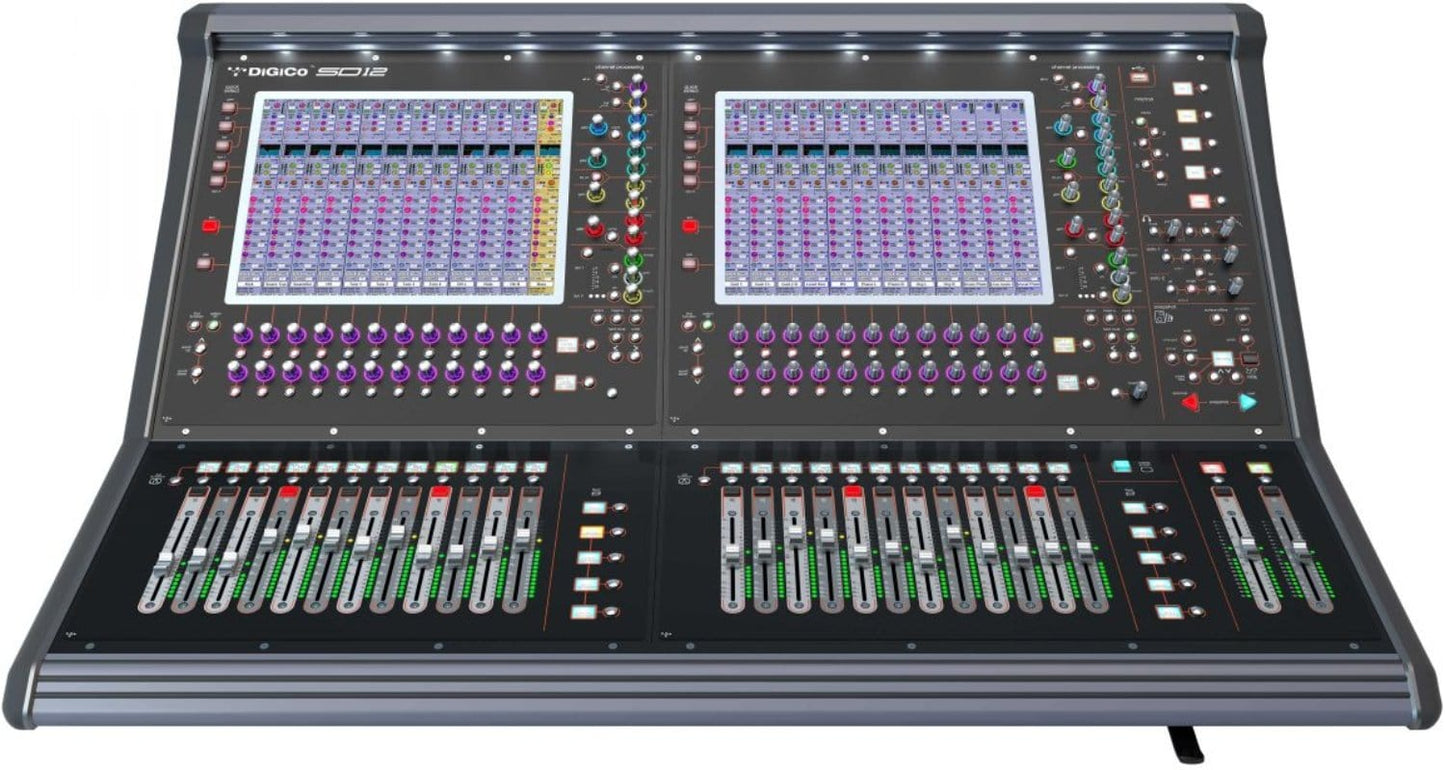

DiGiCo SD12 72-Input Digital Mixing Console - MADI Only
The DiGiCo SD12 is a 72 channel mixing console with 26 physical faders and 2 x 15” LCD high-resolution touchscreens. With Stealth Digital Processing and FPGA technology, the SD12 raises the bar as a multi-application digital console at an exceptionally affordable price point.
Features:
- 72 Input Channels with full processing
- 36 Aux/Sub-Group busses with full processing
- 12 x 8 Matrix with full processing
- Assignable channel layout
- User programmable macros
- Capable of redundantly mirroring with another SD12 console
- Redundant PSUs as standard
- Snapshots for seamlessly changing many parameters at once
- 2 DMI Slots to expand the I/O as desired
- Integrated UB MADI
- Offline software
- iPad control
- SD12 96 software option
- Theatre software option
- DMI Interface Options: DMI-MADI-B and DMI-MADI-C
Specifications:
- Faders: 26 x 100mm touch-sensitive, motorised
- Screens: 2 x 15” LCD high-resolution touch screens
- Input Channels: 72
- Busses: 36 plus masters Aux / Group busses with full processing Mono / Stereo / LCR
- Matrix: 12 Input / 8 Outputs with full processing
- Control Groups: 12, selectable for VCA-style, Moving fader, Mute Group
- Graphic EQ: 16 x 32-band, Gain +/- 12dB
- Internal FX: 12 stereo effects comprising of reverbs and delay/chorus/pitch/enhancer
- Local I/O: 8 x mic/line I/O, 8 x AES I/O
- MADI interface: 2 Interfaces, BNC connectivity
- Optic interface: Optional
- Sampling rates: 48kHz / 96kHz
- GPIO: 2 x DSub37
- DMI: 2 x DiGiCo Multichannel Interface
- Ext Sync: Wordclock, MADI, Optics
- SD12 Dimensions: 1124 mm (w) x 795 mm (d) x 389 mm (h)
- SD12 Weight: 42Kg / 96lbs (130Kg / 287lbs with optional flightcase)
- SD12 Flightcase: 1270 mm (w) x 570 mm (d) x 1150 mm (h)
- SD12 Power Requirements: 90V-260V, 50-60Hz, 150VA. (140W)
