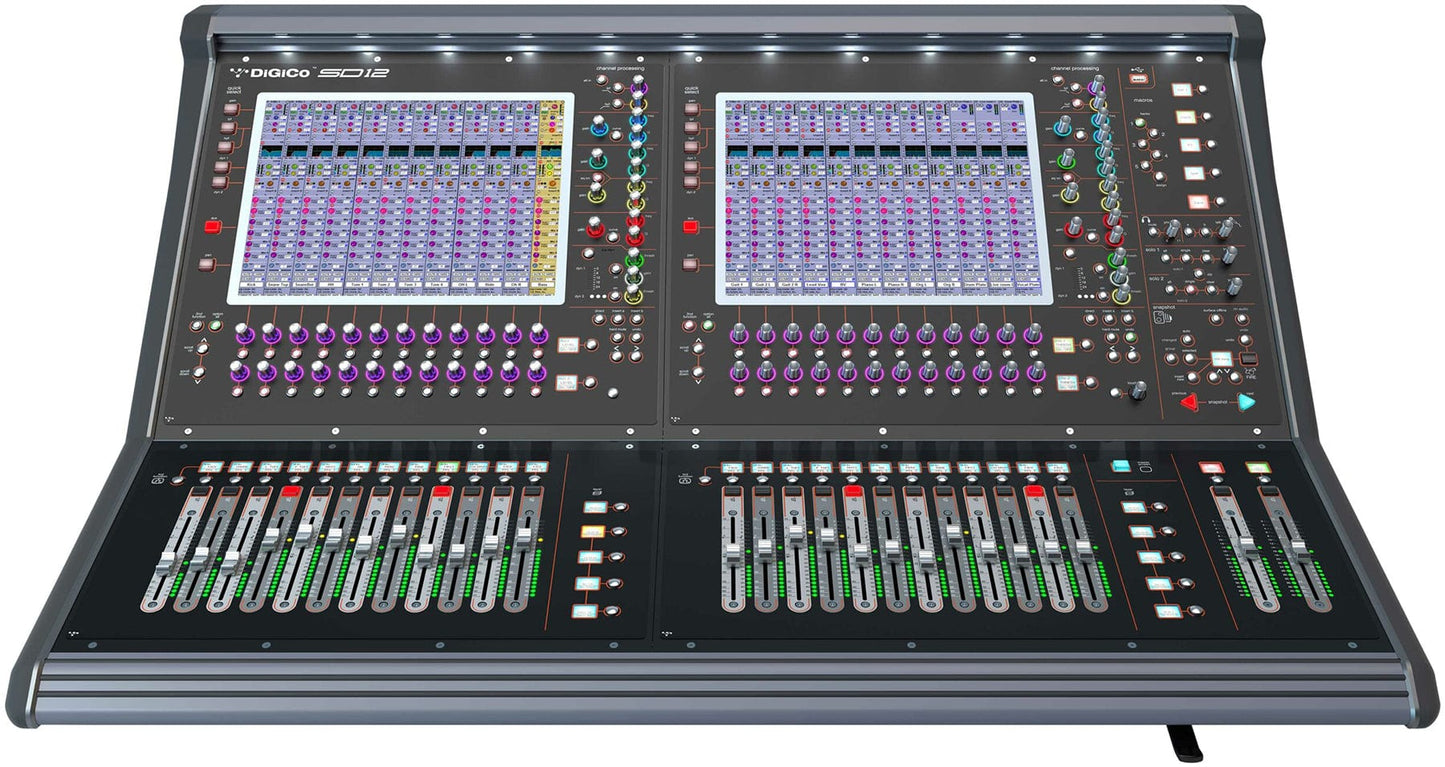

DiGiCo SD12 96-Input Digital Mixing Console D2 Package - MADI Only
The DiGiCo SD12 96-Input Digital Mixing Console is set to raise the bar in terms of what users will now expect from a compact, multi-application digital console. Not only is SD12 a true sonic powerhouse, it also benefits from dual 15-inch touch screens, never before seen on a console in this compact, and is the first in the SD Range with built-in recording interfaces; which makes Virtual Soundchecking very straightforward.
Furthermore, the SD12 now includes a DVI output, for an overview of the console. New LED meters allow for a brighter, faster operation, and the SD12 Lightbar is identical to that of the SD5 and flagship SD7 consoles. There is even space for two assignable master faders – only previously seen on the larger DiGiCo consoles – as well as dual DMI Slots, perfect for expandability.
Features:
- MADI x 2, Optics x 1, UB-MADI, DMI Port x 2
- Compact in size
- Dual 15-inch touchscreens
- Advanced surface connectivity with optional DMI cards
- Latest generation Super FPGA
- Familiar work flow and control in a more compact frame
Specifications:
- Faders: 26 x 100mm touch-sensitive, motorised
- Screens: 2 x 15” LCD high-resolution touch screens
- Input Channels: 96
- Busses: Up to 48 plus masters Aux / Group busses with full processing Mono / Stereo / LCR
- Matrix: Up to 12 Input / 8 Outputs with full processing
- Control Groups: Up to 12, selectable for VCA-style, Moving fader, Mute Group
- Graphic EQ: 16 x 32-band, Gain +/- 12dB
- Internal FX: Up to 12 stereo effects comprising reverbs, delay/chorus/pitch/enhancer
- Local I/O: 8 x mic/line I/O, 8 x AES I/O
- MADI Interface: 2 Interfaces, BNC connectivity
- Optic Interface: Optional
- Sampling Rates: 48kHz / 96kHz
- GPIO: 2 x DSub37
- DMI: 2 x DiGiCo Multichannel Interface
- Ext Sync: Wordclock, AES, MADI, Optics
- SD12 Dimensions: 1124 mm (w) x 795 mm (d) x 389 mm (h)
- SD12 Weight: 42Kg / 96lbs. (130Kg / 287lbs. with optional flightcase)
- SD12 Flightcase: 1270 mm (w) x 570 mm (d) x 1150 mm (h)
- SD12 Power Requirements: 90V-260V, 50-60Hz, 150VA. (140W)
- Faders: 26 x 100mm touch-sensitive, motorised
- Screens: 2 x 15” LCD high-resolution touch screens
- Input Channels: 96
- Busses: Up to 48 plus masters Aux / Group busses with full processing Mono / Stereo / LCR
- Matrix: Up to 12 Input / 8 Outputs with full processing
- Control Groups: Up to 12, selectable for VCA-style, Moving fader, Mute Group
- Graphic EQ: 16 x 32-band, Gain +/- 12dB
- Internal FX: Up to 12 stereo effects comprising reverbs, delay/chorus/pitch/enhancer
- Local I/O: 8 x mic/line I/O, 8 x AES I/O
- MADI Interface: 2 Interfaces, BNC connectivity
- Optic Interface: Optional
- Sampling Rates: 48kHz / 96kHz
- GPIO: 2 x DSub37
- DMI: 2 x DiGiCo Multichannel Interface
- Ext Sync: Wordclock, AES, MADI, Optics
- SD12 Dimensions: 1124 mm (w) x 795 mm (d) x 389 mm (h)
- SD12 Weight: 42Kg / 96lbs. (130Kg / 287lbs. with optional flightcase)
- SD12 Flightcase: 1270 mm (w) x 570 mm (d) x 1150 mm (h)
- SD12 Power Requirements: 90V-260V, 50-60Hz, 150VA. (140W)
