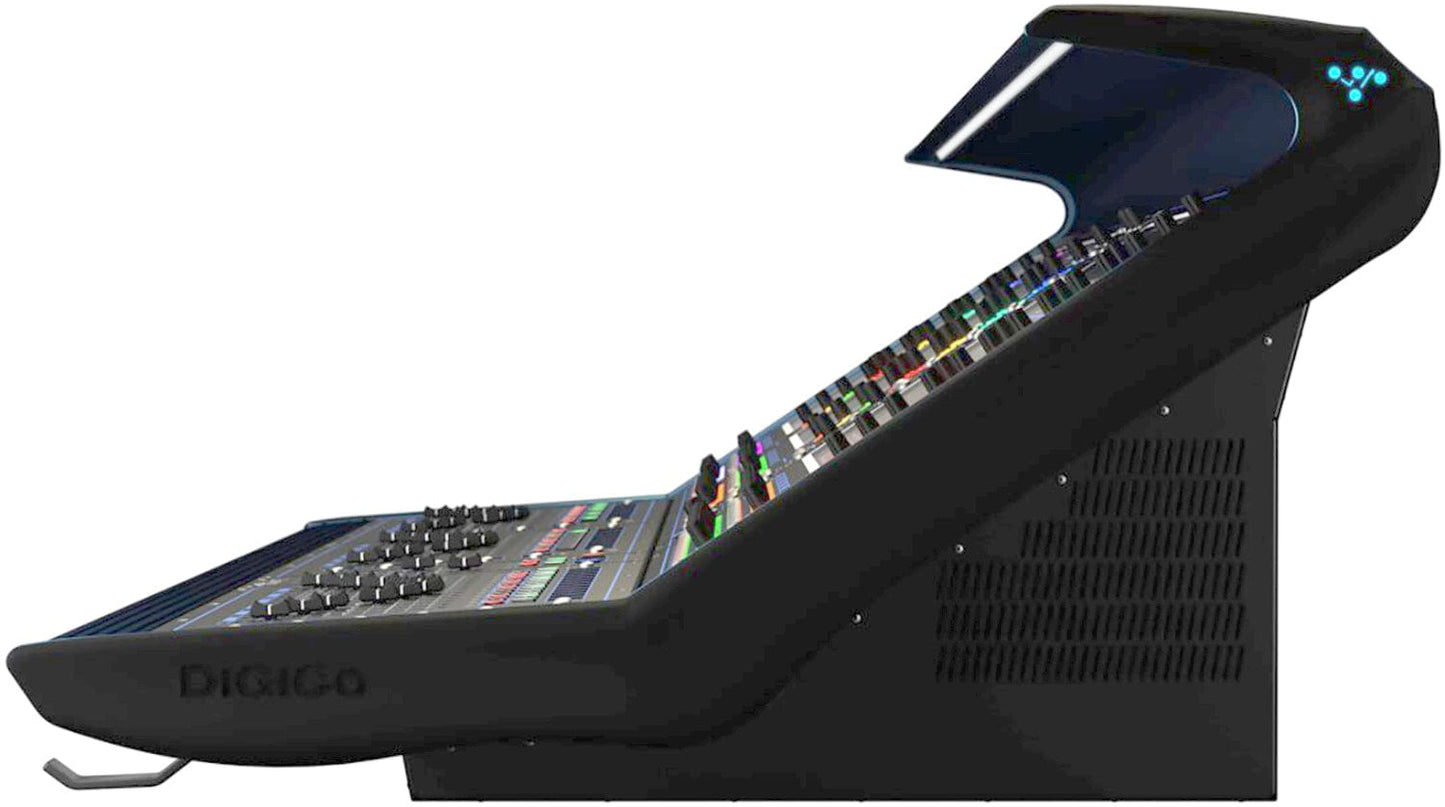

DiGiCo Quantum 338 Digital Mixing Console - MADI Only
The DiGiCo Quantum 338 is a cutting-edge digital mixing console designed for high-demand live sound environments. Exclusively featuring MADI interfaces, the Quantum 338 provides superior audio quality, advanced processing capabilities, and extensive connectivity options, making it the ultimate tool for professional audio engineers.
Features:
- MADI interface only: Dual MADI ports for robust audio connectivity
- Fader banks: 3 banks of 12 faders each, plus 2 additional master faders
- Touchscreens: 3 x 17-inch multi-touch screens for comprehensive control
- Advanced processing: Includes Mustard processing channel strips and Spice Rack plugin processing
- Snapshot automation: Seamless scene transitions with extensive automation features
- Remote control: Full compatibility with remote control via iPad and other devices
- Customizable user interface: Highly intuitive and flexible control environment
Specifications:
- Channels: 128 input channels
- Buses: 64 busses + LR/LCR master bus
- Matrix: 24 x 24 matrix
- Local I/O:
- 8 mic/line inputs
- 8 line outputs
- 4 AES/EBU I/O
- MADI ports: Dual MADI ports supporting up to 64 channels at 48kHz or 32 channels at 96kHz
- DMI slots: 2 slots for DiGiCo Multichannel Interface cards
- FPGA technology: Powered by advanced Quantum FPGA processing
- Dynamic EQ: 4-band fully parametric dynamic EQ
- Multi-band compression: 3-band multi-band compression
- Power supply: Dual redundant power supplies
- Dimensions: Approximately 1,195mm x 812mm x 358mm (47" x 32" x 14")
- Weight: Approximately 58kg (128 lbs)
- Channels: 128 input channels
- Buses: 64 busses + LR/LCR master bus
- Matrix: 24 x 24 matrix
- Local I/O:
- 8 mic/line inputs
- 8 line outputs
- 4 AES/EBU I/O
- MADI ports: Dual MADI ports supporting up to 64 channels at 48kHz or 32 channels at 96kHz
- DMI slots: 2 slots for DiGiCo Multichannel Interface cards
- FPGA technology: Powered by advanced Quantum FPGA processing
- Dynamic EQ: 4-band fully parametric dynamic EQ
- Multi-band compression: 3-band multi-band compression
- Power supply: Dual redundant power supplies
- Dimensions: Approximately 1,195mm x 812mm x 358mm (47" x 32" x 14")
- Weight: Approximately 58kg (128 lbs)
