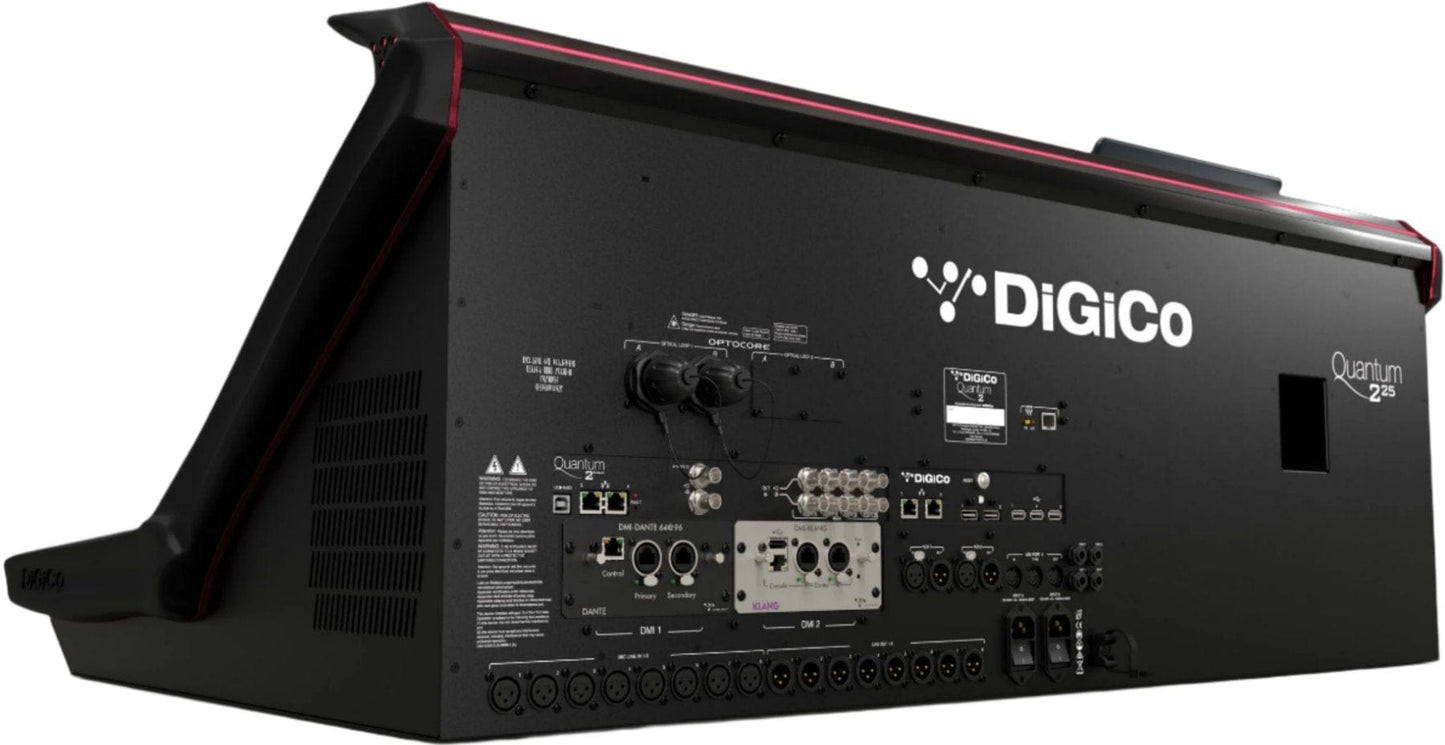

DiGiCo Quantum 225 Digital Mixing Console - MADI and One Multi-Mode Optics ST
The DiGiCo Quantum 225 is a compact digital mixing console offering advanced functionality with 72 input channels, 36 buses, an LR/LCR master bus, and a 12-in/12-out processing matrix. Equipped with DiGiCo’s Mustard Processing channel strips and FPGA-powered Spice Rack insert effects, this console delivers high-performance signal processing. It includes robust I/O options, two MADI ports, Optocore support, and two DMI slots for expansion. With a 17-inch multi-touch screen and 25 touch-sensitive motorized faders, the Quantum 225 ensures intuitive control for professional-grade mixing.
Features:
- 72 input channels and 36 buses
- Mustard Processing channel strips with emulated tube preamp, EQ, and dynamics
- Spice Rack insert effects powered by FPGA
- 8 analog inputs, 8 analog outputs, 4 channels of AES digital I/O
- 2 redundant MADI ports and Optocore support for up to 1,008 channels
- UBMADI with 48 channels for computer recording/playback via USB
- 2 DMI slots for expansion
- 17-inch multi-touch screen and 41 TFT LCD displays
- 25 touch-sensitive, motorized 100mm faders
- Customizable left work surface for laptops, controllers, and screens
Specifications:
- Channels: 72
- Mic Preamps: 8 x XLR
- Main Outputs: 8 x XLR
- Digital I/O: 2 x XLR (AES/EBU)
- Busses: 36 Aux/Sub-Group busses
- MIDI I/O: In/Out/Thru, USB
- USB Ports: 1 x Type B, 3 x Type A
- Faders: 25 x 100mm touch-sensitive, motorized
- Resolution: 24-bit/96kHz
- EQ Bands: 16 x 32-band Graphic EQ, 4-band Parametric
- Dimensions: 44.25" W x 17.1" H x 32.5" D
- Weight: 94.8 lbs
- Channels: 72
- Mic Preamps: 8 x XLR
- Main Outputs: 8 x XLR
- Digital I/O: 2 x XLR (AES/EBU)
- Busses: 36 Aux/Sub-Group busses
- MIDI I/O: In/Out/Thru, USB
- USB Ports: 1 x Type B, 3 x Type A
- Faders: 25 x 100mm touch-sensitive, motorized
- Resolution: 24-bit/96kHz
- EQ Bands: 16 x 32-band Graphic EQ, 4-band Parametric
- Dimensions: 44.25" W x 17.1" H x 32.5" D
- Weight: 94.8 lbs
