Description

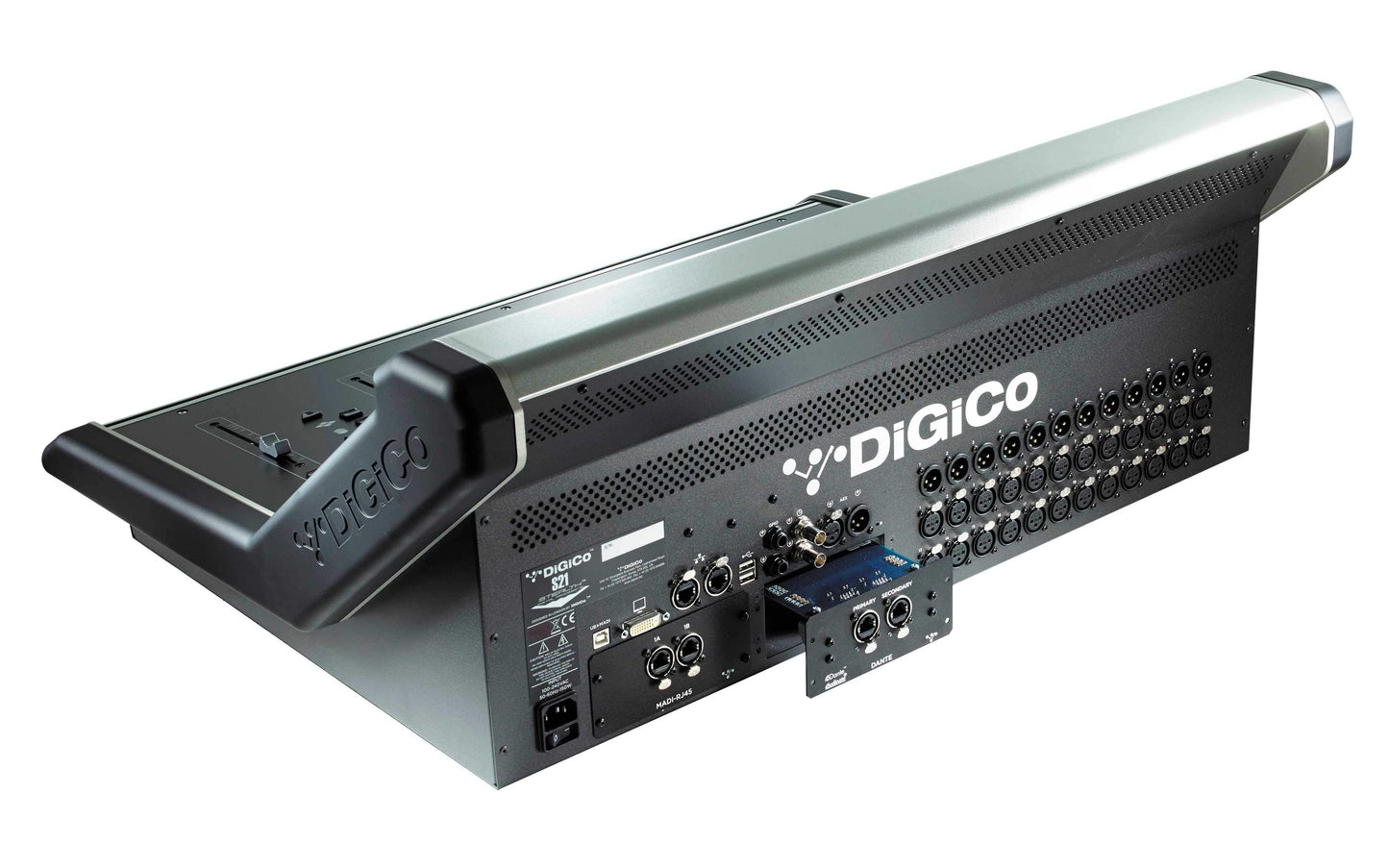

Digico Uk Limited S21 Digital Mixing Console

Step up to the S21’s worksurface, complete with dual P-CAP multi-touch screens, 48 flexi-channels, the equivalent of 46 buses and benchmark 96kHz performance, and this console’s heritage is clear – the S21 is every inch a DiGiCo desk. It’s also a revelation in terms of what an introductory digital console can deliver. Based on the same pioneering design approach as the industry-leading SD series, the S21 boasts the same proprietary audio algorithms plus a new ARM QuadCore RISC processor which runs in harmony with the FPGA core. The result is faster processing with lower power consumption, all packaged in the workflow that the industry’s most respected engineers rely upon – now available to everyone.

Specifications:

  • 48 x Input flex-channels Mono/Stereo (equivalent of 96 DSP channels)
  • 46 busses: 16 x flexi-busses Mono/Stereo (equivalent of 32 DSP busses), Stereo Master (2), Solo busses (2 stereo, 4 total), and 10 x 8 Matrix (8)
  • 10 x Control Groups
  • 1 x Compressor per channel and buss
  • 1 x Gate per channel and buss (switchable to ducker, or compressor with side chain access)
  • 16 x assignable 32 band Graphic EQs
  • 8 x FX engines (reverbs, delays, w/modulation and enhancer)
  • 21 x assignable DiGiTuBes
  • 21 x assignable Multiband Compressors
  • 21 x assignable Dynamic EQ’s
  • User definable Macros
  • An extremely high power headphone amplifier with 1/4 inch and mini jack socket
  • 96kHz as standard
  • 24 mic/line inputs
  • 12 analogue outs
  • 2 AES/EBU I/O (mono)
  • Word Clock I/O
  • 1 GPI and 1 GPO
  • DVI out (for an external monitor)
  • 2 DMI Card slots (up to 64 I/O per slot)
  • 2 Ethernet connections for Networking
  • 2 x 24 segment master/solo meters
  • Touch sensitive rotaries with integrated switch & HTL
  • 2 x multi-touch screens
  • 21 x touch sensitive moving faders
  • 4 x layers of banks of 10 faders
  • Customisable bank and channel layout
  • Snapshots
  • Integrated USB2 Audio I/O interface for recording and playback of up to 48 channels

Audio Specification:

  • Sample Rate 48kHz, 96kHz
  • Processing Delay 2ms Typical @ 48k (48 Stereo Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @ 96kHz
  • Internal Processing Up to 40-bit, Floating Point
  • A>D & D>A 24-bit Converter Bit Depth
  • Frequency Response +/- 0.6dB (20Hz – 20kHz)
  • THD <0.05% @ Unity Gain, 10dB Input @ 1kHz
  • Channel Separation Better Than 90dB (40Hz – 15kHz)
  • Residual Output <90dBu Typical
  • Noise (20Hz – 20kHz)
  • Microphone Input Better Than -126dB Equivalent Noise
  • Maximum Output Level +22dBu
  • Maximum Input Level +22dBu

Processing Channel Specification - Input Channel:

  • Input Name: User-Defined
  • Channel Selection: Mono / Stereo
  • Input Routing: Main Input
  • Analogue Gain: -20 to +60dB
  • Phase: Normal / Reverse
  • Digital Trim: 40 to +40dB
  • Delay: 0 – 682ms
  • DiGiTuBe Drive: 0.01 – 50.0
  • Bias: 0 – 6
  • LPF: 20 – 20kHz, 24dB/Oct
  • HPF: 20 – 20kHz, 24dB/Oct
  • Insert A: (Pre EQ/Dyn) On/Off
  • Equalisation 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hishelf, Hi/Hishelf)
    • On/Off
    • Freq; 20 – 20kHz
    • Gain; +/- 18dB
    • Q: 0.1 -20 (Parametric) / 0.10-0.90 (Shelf)
  • Dynamics 1: Single or 4 x Multiband (3-Band)
    • Compressor; On/Off
    • Threshold; -60 – 0dB
    • Attack; 500us – 100ms
    • Release; 5ms – 5s
    • Ratio; 1:1 – 50:1
    • Gain; 0 to +40dB
    • Hi Crossover; 20Hz – 20kHz
    • Lo Crossover; 20Hz – 20kHz
    • Knee; Hard, Med, Soft
  • Dynamics 2: On/Off
    • Gate / Ducker Threshold; -60 – 0dB
    • Attack; 50us – 100ms
    • Hold; 2ms – 2s
    • Release; 5ms – 5s
    • Range; 0 – 90dB
    • Key; Any Source
    • Key Listen
    • Freq/Width; 20 – 20kHz
    • Compressor; On/Off
    • Threshold; -60 – 0dB
    • Attack; 500us – 100ms
    • Release; 5ms – 5s
    • Ratio; 1:1 – 50:1
    • Gain; 0 to +40dB
    • Link; Any Channel / Buss
    • S/C Source : Any Source
    • S/C Listen : On/Off
    • S/C Filter Freq/Width: 20Hz – 20kHz
  • Insert B: (Post EQ/Dyn) On/Off
  • Mute: Channel Mute
  • Solo: Solo Buss 1 / Solo Buss 2 / Both,
  • Channel Safe: Socket Properties, Input Route, Mono/Stereo, Label, Filters, Trim, Delay, Tube, Insert A, EQ, Dyn1, Dyn2, Insert B, Aux, Group Assigns, Pan, Fade, Mute, Direct Outs, Full Safe
  • Output: Routing Buss,
  • Insert A, Insert B,
  • Direct: Post-Fade
  • Fader: 100mm Motorised Fader ∞ to +10dB

Processing Channel Specification - Aux / Group / Matrix Output:

  • Name: User-Defined
  • Phase: Normal / Reverse
  • Digital Trim: -40 to +40dB
  • Delay: 0 – 682ms
  • DiGiTuBe Drive: 0.01 – 50.0 Bias 0 – 6
  • LPF: 20 – 20kHz, 24dB / Oct
  • HPF: 20 – 20kHz, 24dB / Oct
  • Insert A: (Pre EQ/Dyn) On/Off
  • Equalisation 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hishelf, Hi/Hishelf)
    • On/Off
    • Freq; 20 – 20kHz
    • Gain; +/- 18dB
    • Q: 0.1 -20 (Parametric) / 0.10-0.90 (Shelf)
  • Dynamics 1: Single or 4 x Multiband (3-band)
    • Compressor; On/Off
    • Threshold; -60 – 0dB
    • Attack; 500us – 100ms
    • Release; 5ms – 5s
    • Ratio; 1:1 – 50:1
    • Gain; 0 to +40dB
    • Hi Crossover; 20Hz – 20kHz
    • Lo Crossover; 20Hz – 20kHz
    • Knee; Hard, Med, Soft
  • Gate / Ducker Threshold; -60 – 0dB
    • Attack; 50us – 100ms
    • Hold; 2ms – 2s
    • Release; 5ms – 5s
    • Range; 0 – 90dB
    • Key; Any Source
    • Key Listen
    • Freq/Width; 20 – 20kHz
    • Compressor On/Off
    • Threshold; -60 – 0dB
    • Attack; 500us – 100ms
    • Release; 5ms – 5s
    • Ratio; 1:1 – 50:1
    • Gain; 0 to +40dB
    • Link; Any Channel/Buss
    • S/C Source: Any source
    • S/C Listen: On/Off
    • S/C Filter Freq/Width: 20Hz – 20kHz
  • Insert B: (Post EQ/Dyn) On/Off
  • Mute: Channel Mute
  • Solo: Solo Buss 1 / Solo Buss 2 / Both,
  • Channel Safe: Mono/Stereo, Bus Mode, Label, Filters, Trim, Delay, Tube, Insert A, EQ, Dyn1, Dyn2, Insert B, Group Assigns, Fade, Mute, Direct Outs, Full Safe
  • Output Routing: Outputs, Insert A, Insert B
  • Fader: 100mm Motorised Fader ∞ to + 10dB
