Denon DNF650R Rackmount SD/USB Audio recorder

Denon DNF650R Rackmount SD/USB Audio Recorder

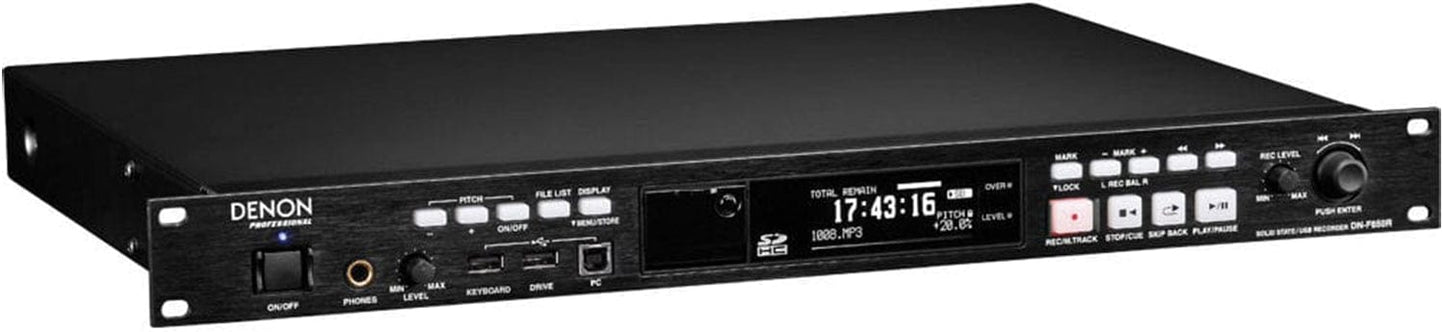

The DN-F650R from Denon is a digital audio recorder that offers professional quality in a compact 1RU rack design. The recorder supports WAV (PCM) and MP3 formats, and records your audio to widely-available SD/SDHC flash memory cards or to USB flash drives for stable storage and sharing. A USB keyboard port lets you name your files, while a PC USB port is provided for transferring files to your computer.

The recorder has XLR and RCA inputs and outputs, allowing you to connect mixers, music players, speakers, or additional recorders. It also has digital S/PDIF and AES/EBU connectors for connecting professional digital devices. The front panel has an intuitive interface with an OLED display and a jog wheel for quick and easy navigation.

The recorder supports marking and mark search, plus audible quick search, repeat and random playback modes, and power-on auto play. It also has ±20% pitch control and tempo lock. A front-panel headphone jack with its own volume control provides convenient monitoring. An RS-232 connector, parallel connector, and 1/4" and 3.5mm footswitch jacks are provided for remote control of the recorder.

• Compact 1RU rack design fits in any standard equipment rack
• Supports WAV (PCM) and MP3 audio formats
• Records to widely-available SD/SDHC flash memory cards or to USB flash drives for stable storage and sharing
• USB keyboard port for naming files, and PC USB port for transferring files to your computer
• XLR and RCA inputs and outputs, allowing you to connect mixers, music players, speakers, or additional recorders. Digital S/PDIF and AES/EBU connectors let you connect professional digital devices
• Intuitive interface with an OLED display and a jog wheel for quick and easy navigation
• Supports marking and mark search, plus audible quick search, single/continuous, repeat, and random playback modes, skip back playback, and power-on auto play. Tempo lock and ±20% pitch control are also provided
• Front-panel 1/4" headphone jack with volume control for convenient monitoring
• Serial, parallel, and contact closure remote control ports

Denon DNF-650R Specs

• Recording Method
• SD/SDHC Flash Memory or USB Flash Drive
• Supported File Formats
• WAV (PCM) and MP3
• Connectors
• 2 x XLR Inputs (L/R)
• 2 x XLR Outputs (L/R)
• 2 x RCA Inputs (L/R)
• 2 x RCA Outputs (L/R)
• 1 x S/PDIF Digital Input
• 1 x S/PDIF Digital Output
• 1 x AES/EBU Digital Input
• 1 x AES/EBU Digital Output
• 1 x 1/4" Headphone Jack
• 1 x RS-232 Serial Remote Connector
• 1 x Parallel Remote Connector
• 1 x 1/4" Foot Pedal Jack
• 1 x 3.5mm Foot Pedal Jack
• 1 x USB Flash Drive Port
• 1 x USB Keyboard Port
• 1 x USB PC Port
• Display
• OLED
