Description

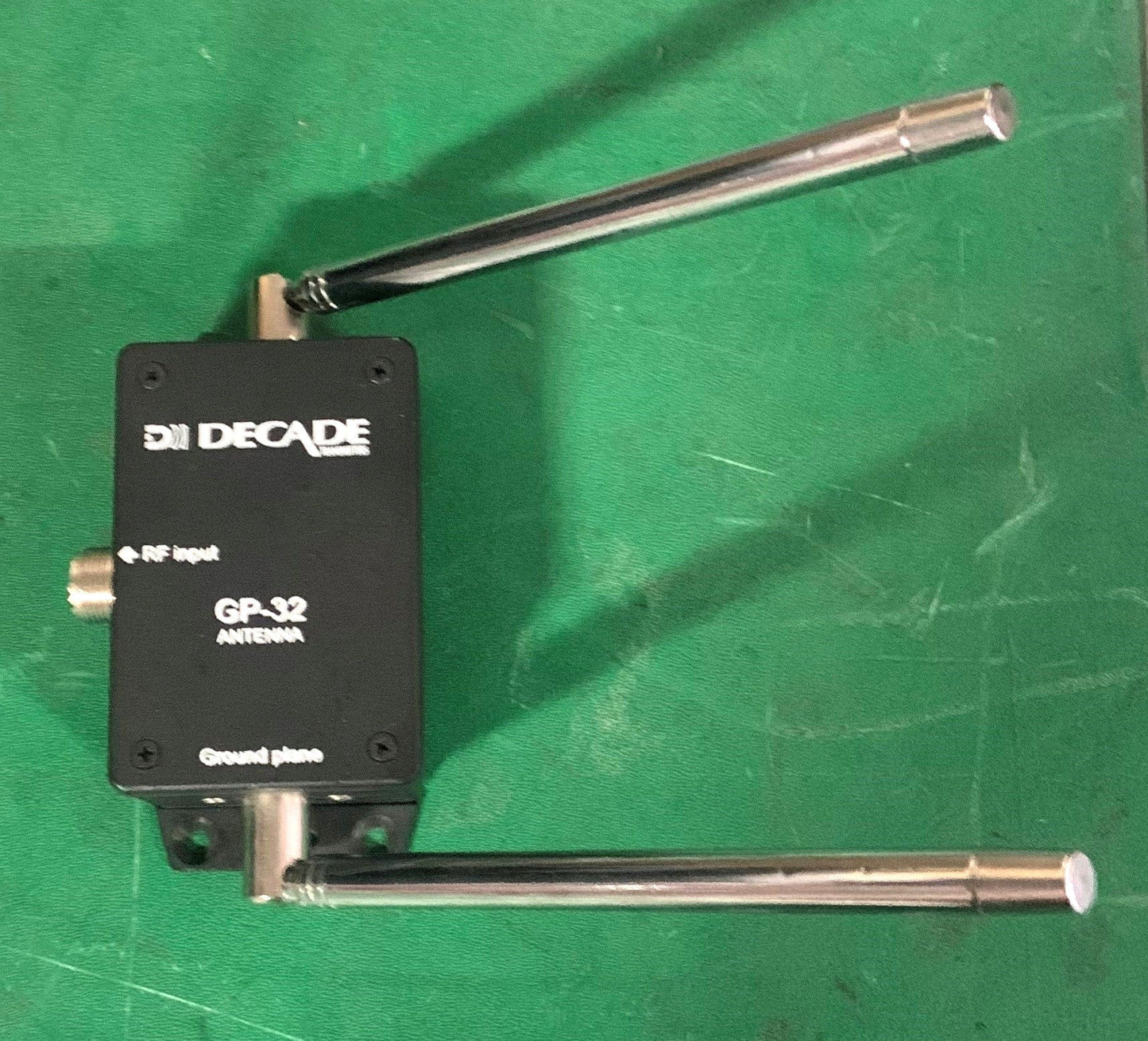

Decade GP 32 Omnidirectional Dipole FM Antenna
The GP-32 is a balanced omnidirectional dipole antenna designed for indoor broadcast applications. With its new impedance matching network and a balun, the GP-32 offers improved performances: a more precise impedance, a lower standing wave ratio and a decreased sensibility to its environment. Furthermore, the GP-32 can be installed in any direction. It can be tuned from 87.9 to 107.9 MHz by adjusting the length of its two rods. A length chart is provided for tuning purposes. It can be used either vertically or horizontally, allowing ease of installation in restricted areas. The fixed bracket on the GP-32 allow the user to fasten the antenna to different type of stands or permanently fix it to a wall with screws. The GP-32 is equipped with a standard female UHF connector for reliable coax cable connection.
Specifications:
- Balanced impedance
- Polarization : vertical
- Radiation pattern : omnidirectional
- Gain : 0 dB (unity gain)
- Frequency range : 87.9 – 107.9 MHz (adjustable)
- Impedance : 50 Ω
- Standing wave ratio : 1.5:1 max., 1.2:1 typ.
- Connector : SO-239 (UHF female)
- Power handling : 2 Watts maximum
- Dimensions : 75'' (fully extended), 17.5'' (collapsed)
- Weight : 1.5 lb.
