Description

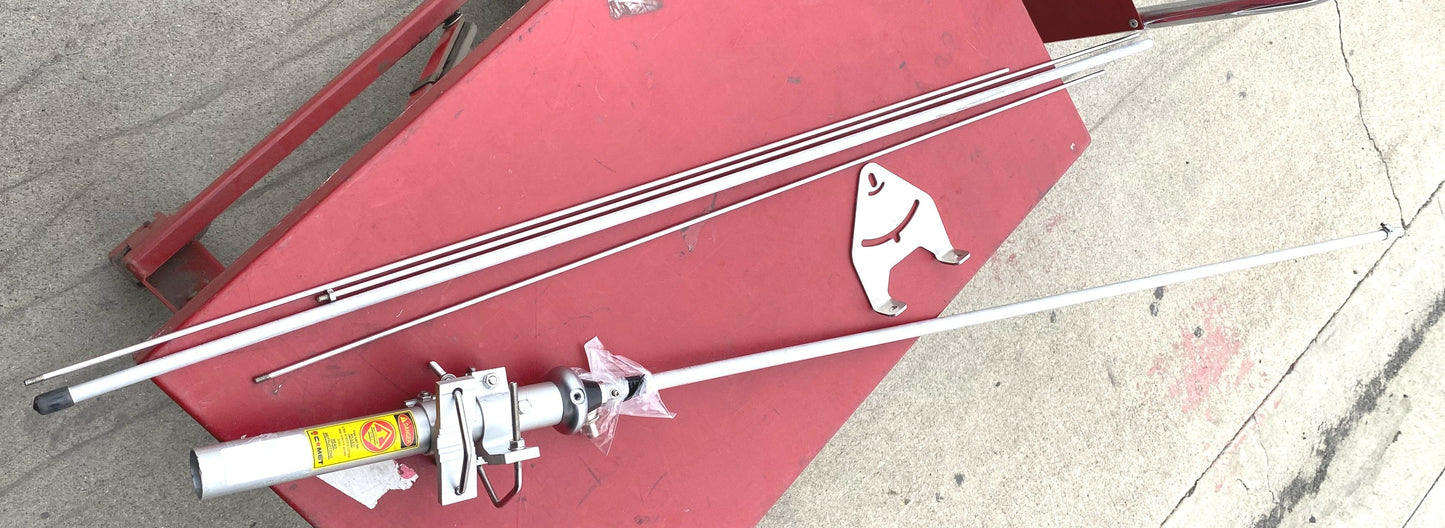

Decade CFM95SL Ground Plane Antenna 16XT with Pole

The CFM-95SL is an omni-directional 5/8 wave ground plane antenna intended for outdoor broadcast applications. It can be adjusted for transmitting frequencies of 87.9 to 107.9 MHz. The center element can be extended (for lower frequencies) or retracted (for higher frequencies). The CFM-95SL gain is 1.25 dBd compared to a dipole which has a gain of 0 dBd.

Specifications:

  • Polarization : vertical
  • Radiation pattern : omni-directional
  • Gain : 1.25 dBd (3.4 dBi)
  • Frequency range : 87.9 to 107.9 MHz (adjustable)
  • Bandwidth (after tuning) : 4 MHz
  • Impedance : 50 Ω
  • Standing wave ratio : 1.5:1 max.
  • Connector : SO-239 (UHF female)
  • Power handling : 200 Watts maximum
  • Wind factor handling : 100 mph (163 km/h) max.
  • Mast Required: 1.25" to 2.5" diameter
  • Length : 66" to 92"
  • Weight : 3 lb.
