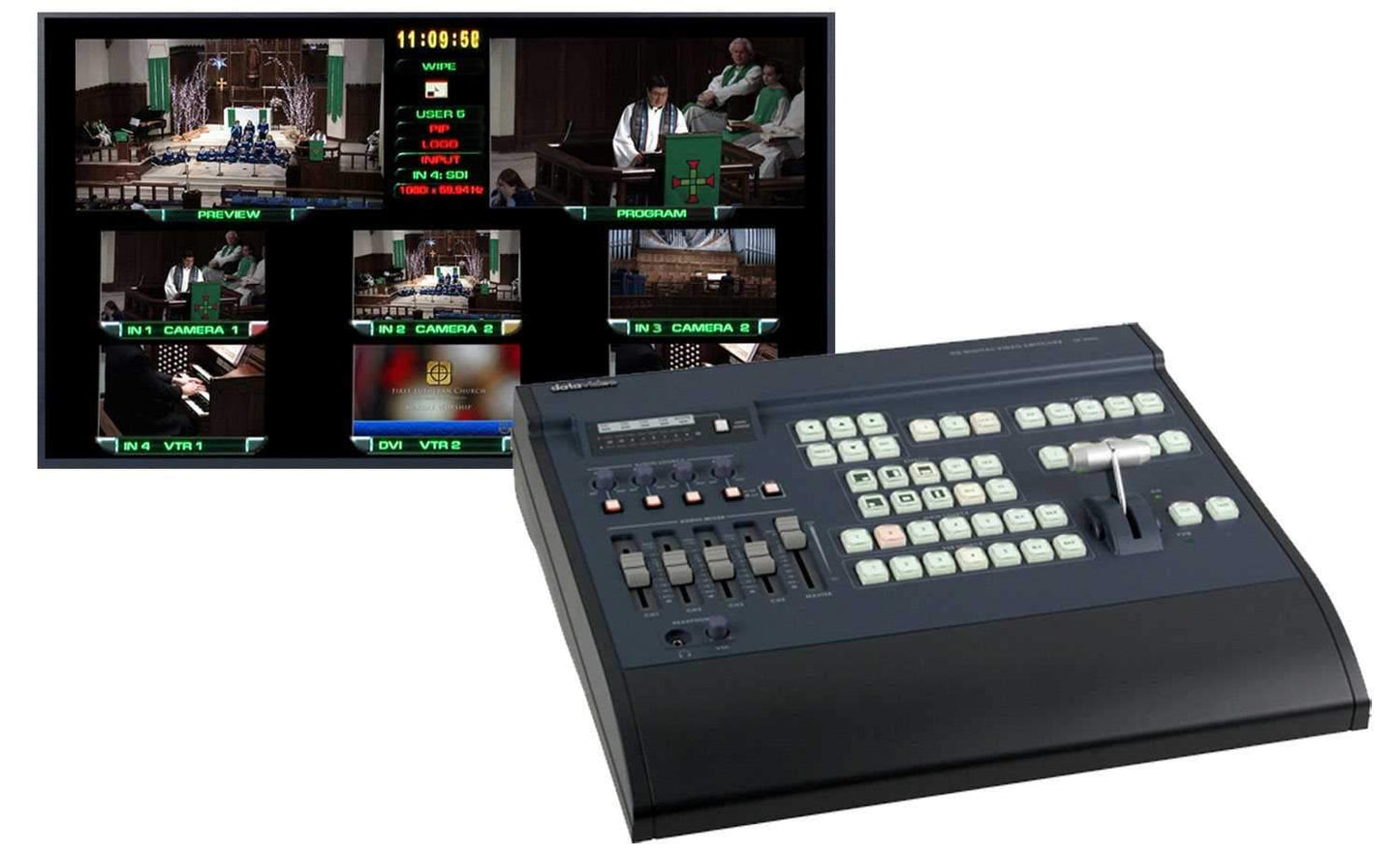

Datavideo SE2000 HD-SDI Pro Video Switcher
The SE-2000 is a HD-SDI switcher designed for small, live production venues of up to 5 inputs by combining 1 or 2 DVI-D computer sources and 3 or 4 HD-SDI sources. The HD-SDI inputs may be HD cameras or small HDMI output cameras that can be used with a Datavideo DAC-9 HDMI to HD-SDI converter. CG may be done with the Datavideo CG-350. PowerPoint presentations go right in through the DVI input.
The SE-2000’s multi display output includes each source, preview, program, and a digital clock display. In addition, the system will store and recall 14 different logos. It also has five operator set up memories and title overlay. The SE-2000's built in audio mixer has four audio follows video inputs (microphone or line) and two audio outputs. Operating the SE-2000 is fast because every control is right on the work surface – no shifts. As with all Datavideo products SE-2000 works on 12vDC or local power.
Features: - Logo insertion: 14 pre-stored logos (max 128 x 96 pixels) inserted via luminance key
- Luminance key, PIP, Freeze Image, Black
- Tally signal output (live and next source)
- Five individual speed keys, T bar (work in both directions) and TAKE key
- Five user preset memories
- 13 transitions with adjustable border width
- Multi preview monitor output
- Resolution: Input: 1920x1080i & 1280x720p; Output: 1080i - 720p
