Datavideo SE-3200MU 12- channel 2U 1080p switcher. Inputs: 8 SDI, 4 HDMI Outputs: 6 assignable SDI, 3 assignable HDMI
Datavideo SE-3200MU 12- channel 2U 1080p switcher. Inputs: 8 SDI, 4 HDMI Outputs: 6 assignable SDI, 3 assignable HDMI
SKU: SE-3200MU
Available options
Description
Datavideo SE-3200MU 12- channel 2U 1080p switcher. Inputs: 8 SDI, 4 HDMI Outputs: 6 assignable SDI, 3 assignable HDMI
Completely customizable 12 input full HD production switcher
The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.
Professional Switcher for Studio and Outdoor Broadcast Van

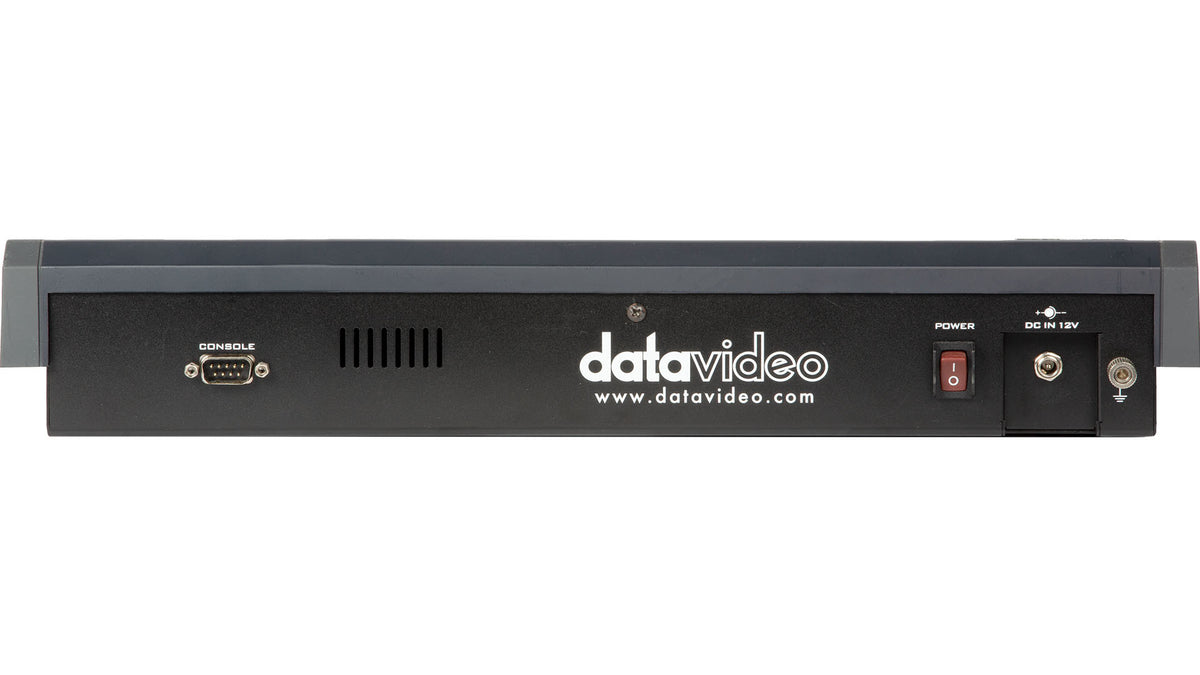

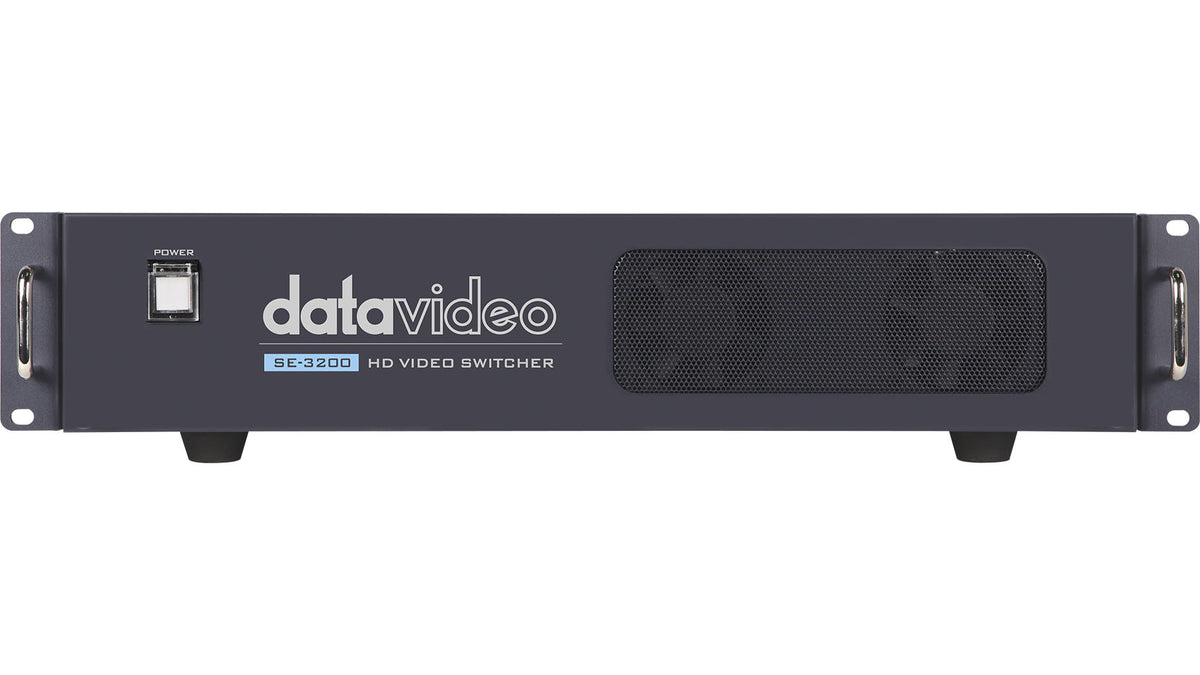

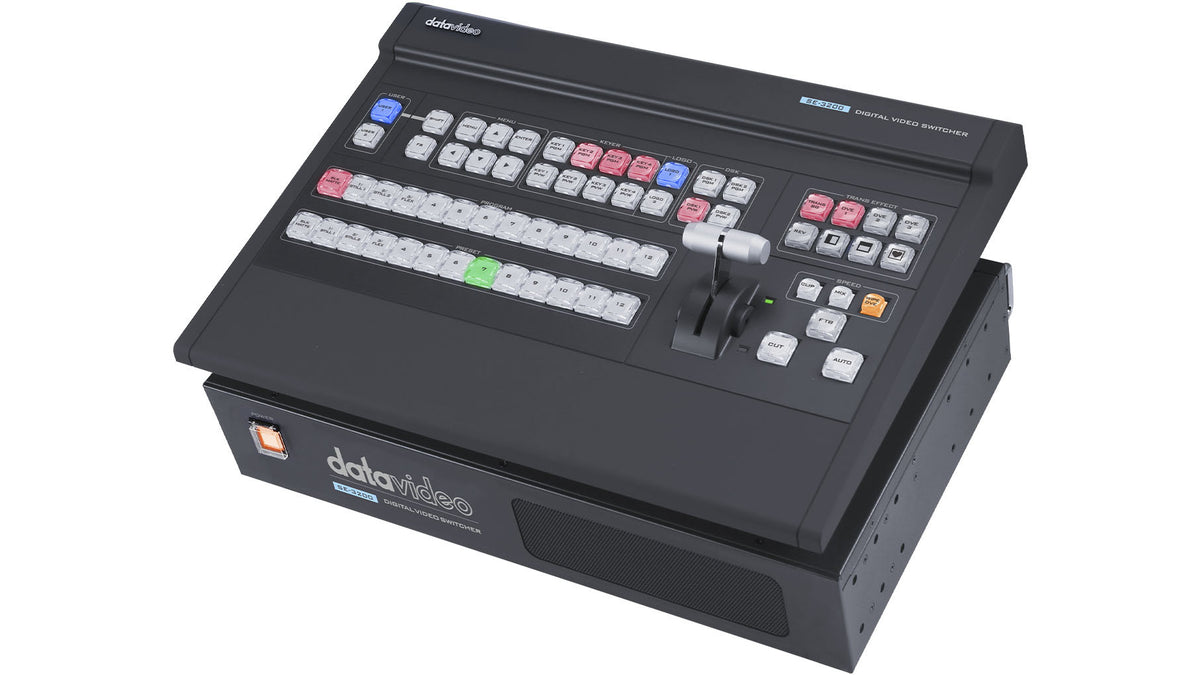

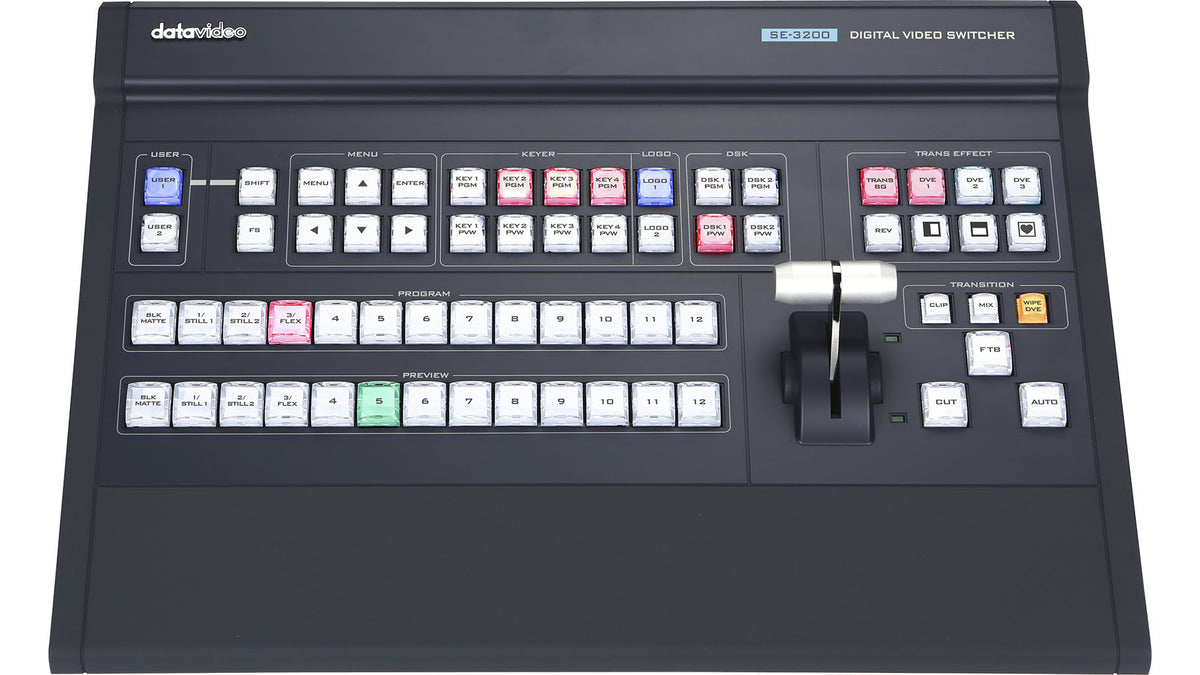

The SE-3200 is a lightweight switcher solution with the main unit mountable on the 19 inch rack. The control keyboard panel can be placed on a flat surface or built inside an outdoor broadcast van.
The SE-3200 switcher also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.
Supports full HD 1080P with scaling on each available input

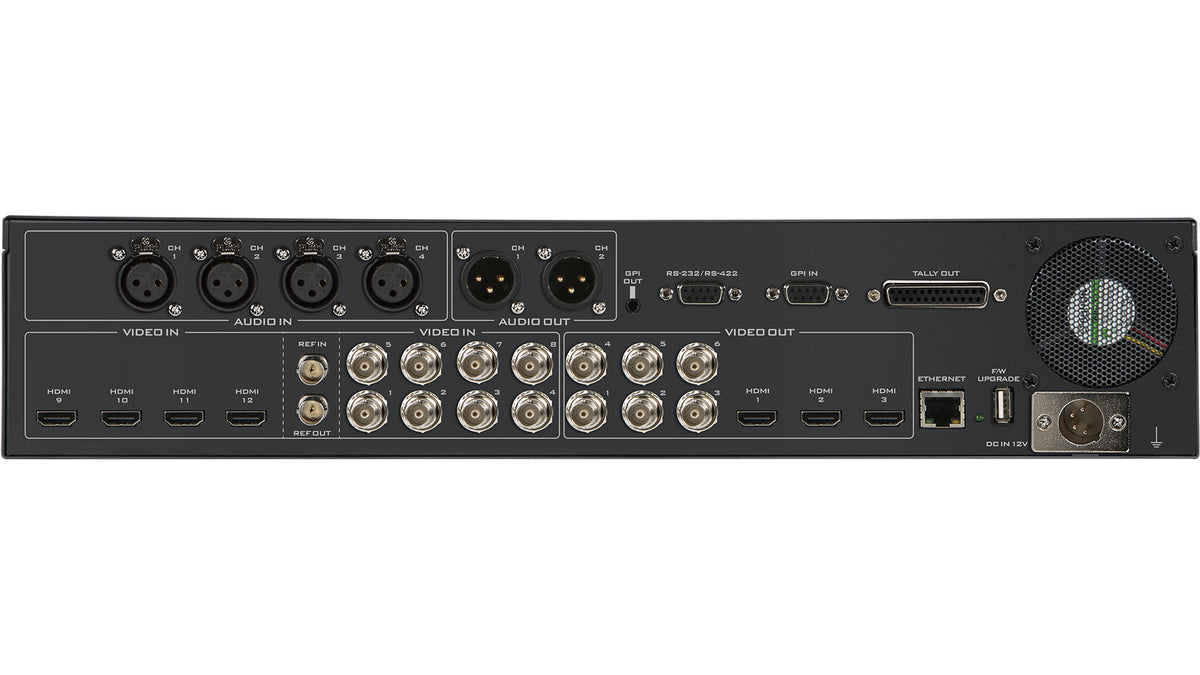

The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.
Create stunning video effects with advanced features
Advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.
Built-in Stinger Transitions and backgrounds
Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos.

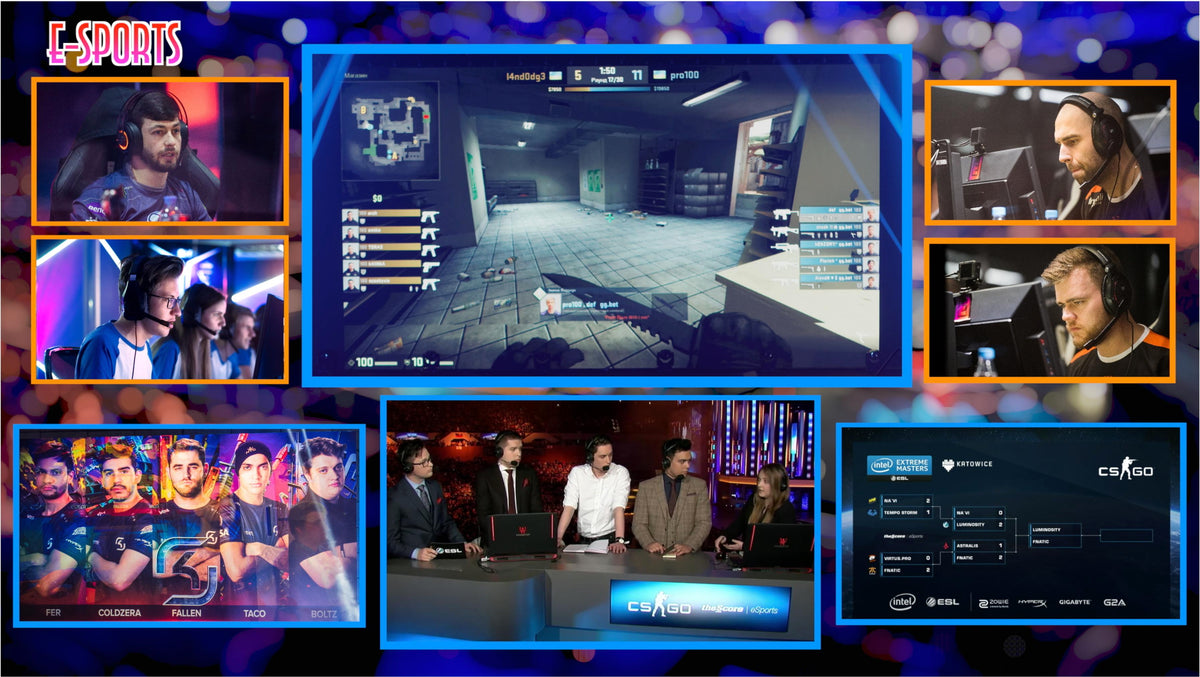

Custom Multiview layout & dual Multiview output
Connect up to two displays to all 3200 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own!
Variety of video and audio input/output
Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!
Plug-and-Play
There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.
Model Number
Video Standard
Video Format
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Video Processing
HDMI: YUV 4:2:2, RGB: 4:4:4
Input Routable / Crosspoint
Video Input
Mix HD & SD Source
Computer Graphic Interface
Video Output
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
3x HDMI assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
Down-converted Output
Built-in Multi-view Monitoring Out
Analogue Audio Input
Analogue Audio Output
Digital Embedded Audio Support
Audio Delay Calibration
A+V Switching
Chromakey
Title Creator
USK
DSK
Picture in Picture
Logo Insertion
Still Store
Effects
Transition Preview
Sync / Reference In/Out
Support external sync with loop thru
Tally Output
PC Remote Control
Camera Control
Built-in Audio Mixer
Storage
Recording File System
Recording File Format
Video Encode
Audio Encode
Streaming Protocol
Firmware Update
Special Features
Free Virtual Set and Stinger transition included
Chassis
Dimension (LxWxH)
432 x 252 x 88 mm (main unit)
Weight
Power
Operating Temp. Range
What's in the Box
1 x SE-3200 Control Board
2 x AD Switch DC 12V
1 x AC Cord
1 x DB9P TO DB9P Cable
12 x Screw
2 x 2U Ear Rack
