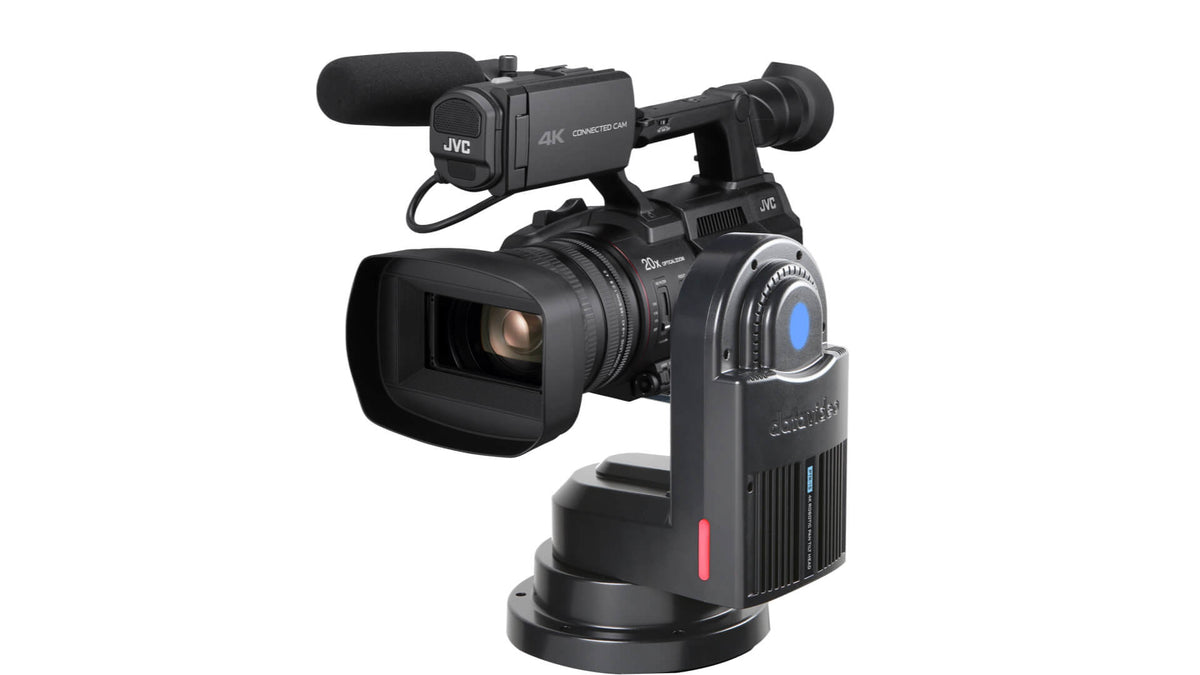

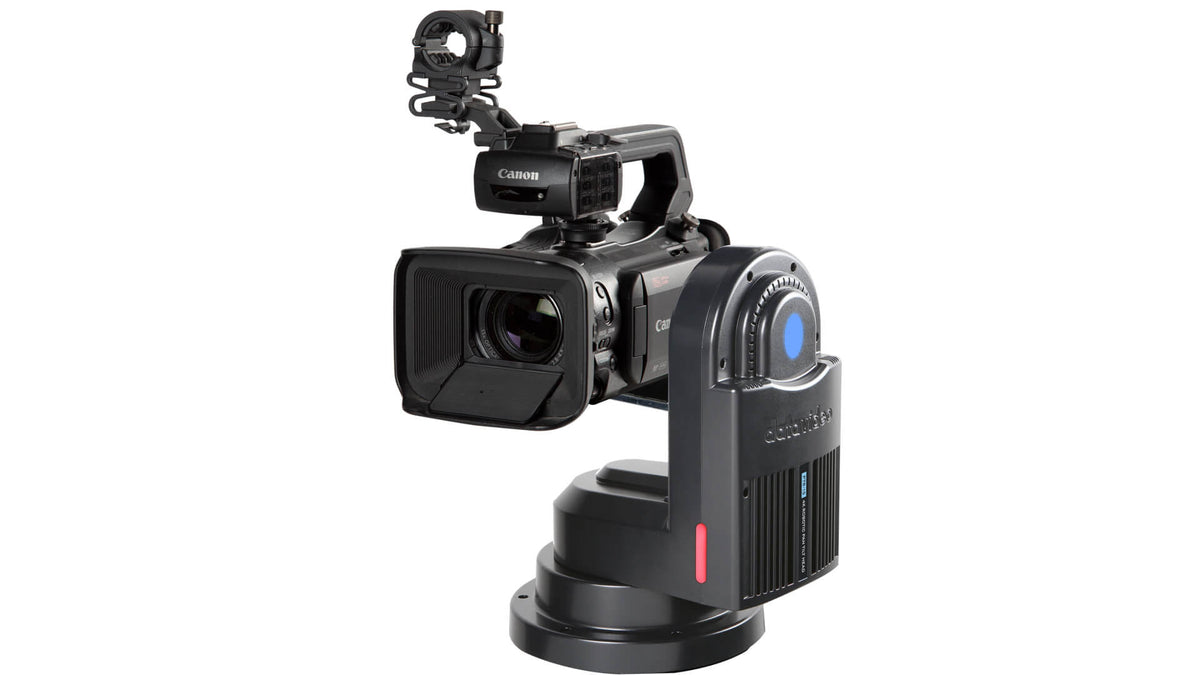

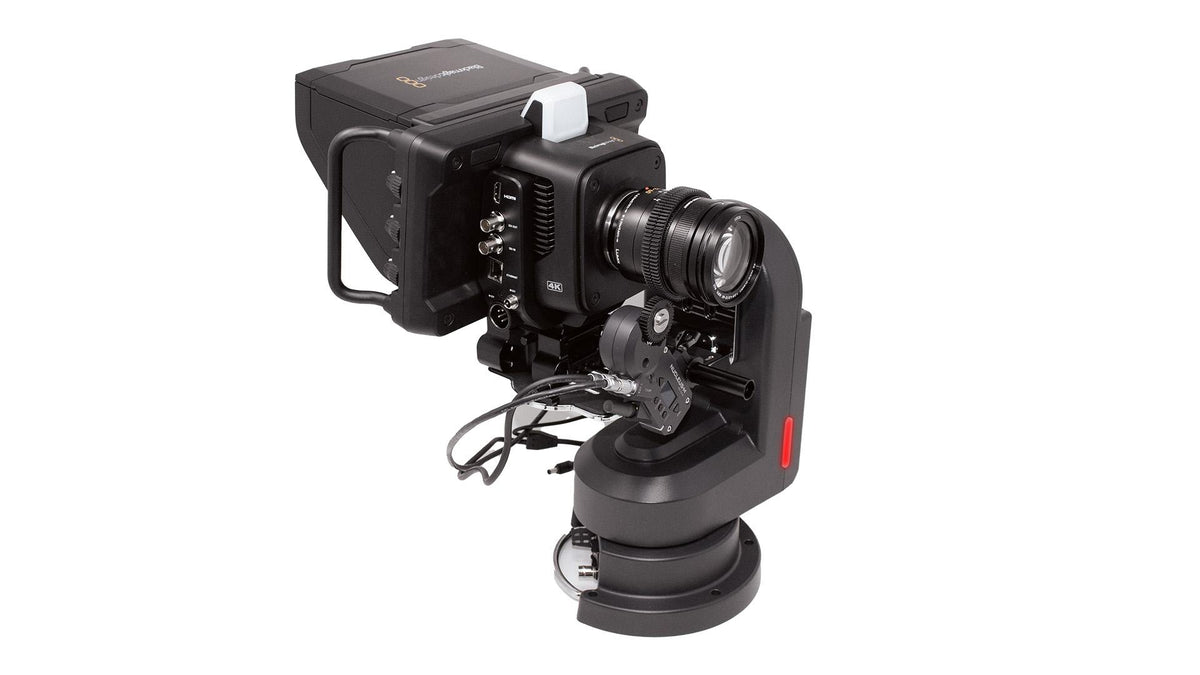

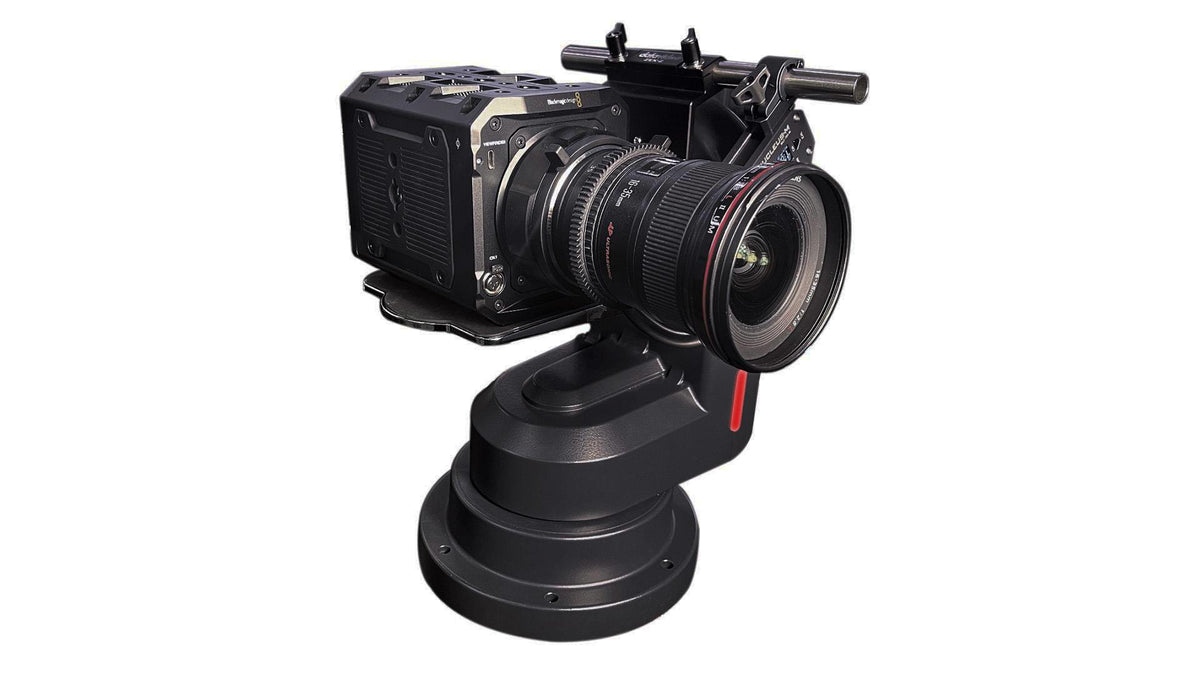

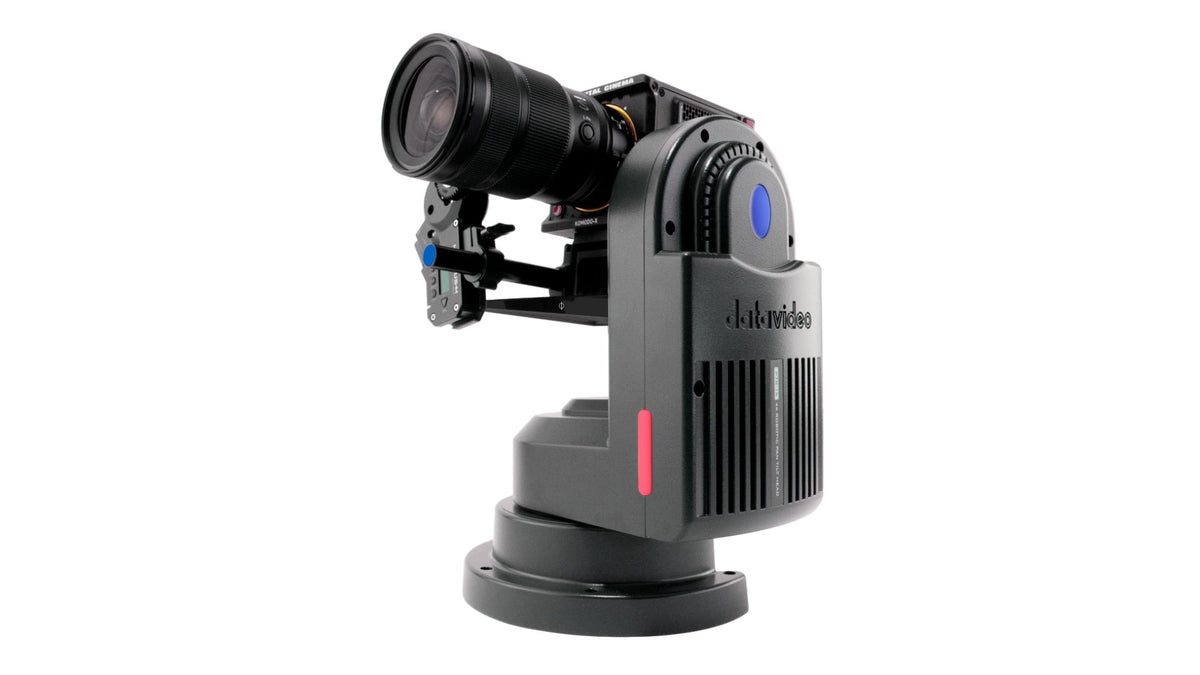

Datavideo PTR-15 4K Robotic pan tilt head. It provides power to the camera. (camera not included)

Datavideo PTR-15 4K Robotic pan tilt head. It provides power to the camera. (camera not included)

Transform Your Professional Camera into a Robotic Camera
PTR-15 is Datavideo’s professional 4K robotic pan-tilt head, designed to transform cinema and broadcast cameras into remotely controlled robotic cameras. Compatible with RED KOMODO-X, Canon EOS C80, Blackmagic PYXIS, as well as selected Sony, Panasonic, and JVC professional cameras, PTR-15 combines cinematic image quality with the efficiency of a PTZ workflow for streamlined multi-camera production.

Transform Your Cinema Camera into a Professional Robotic Camera
Keep the cinematic image quality you trust while gaining the flexibility of professional robotic camera control. PTR-15 transforms professional cinema cameras into robotic cameras, combining cinema-quality imaging with the efficiency and flexibility of a PTZ workflow.

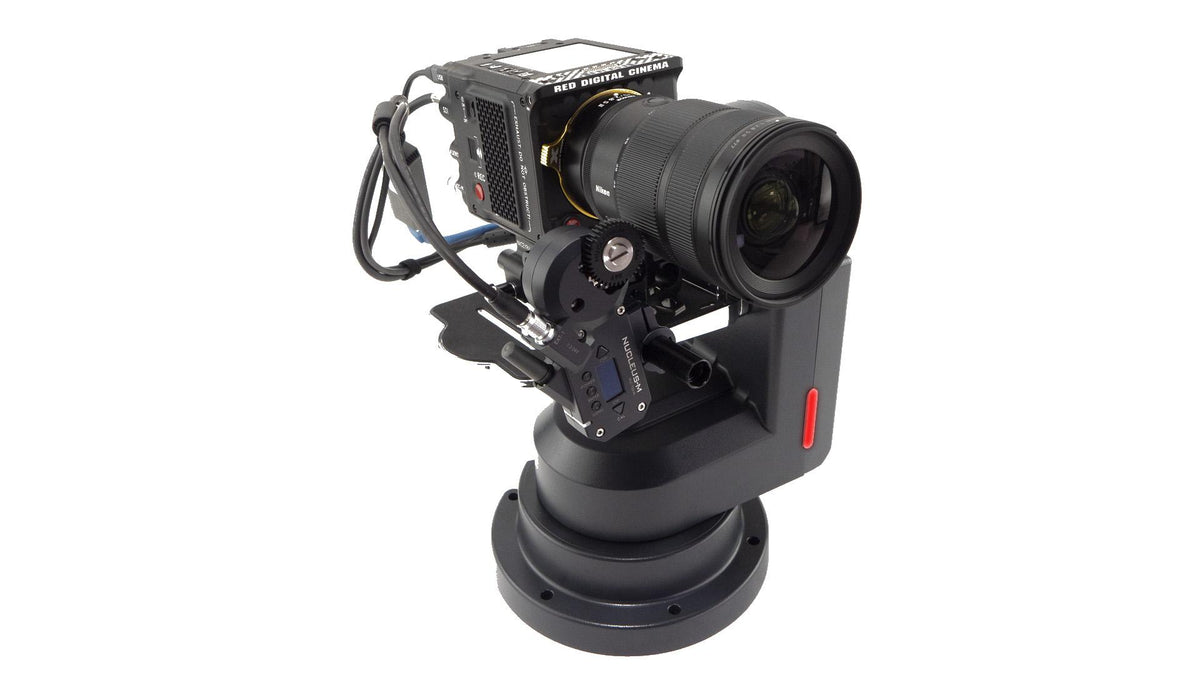

Blackmagic PYXISCanon EOS C80RED KOMODO-X

Versatile Signal Connectivity

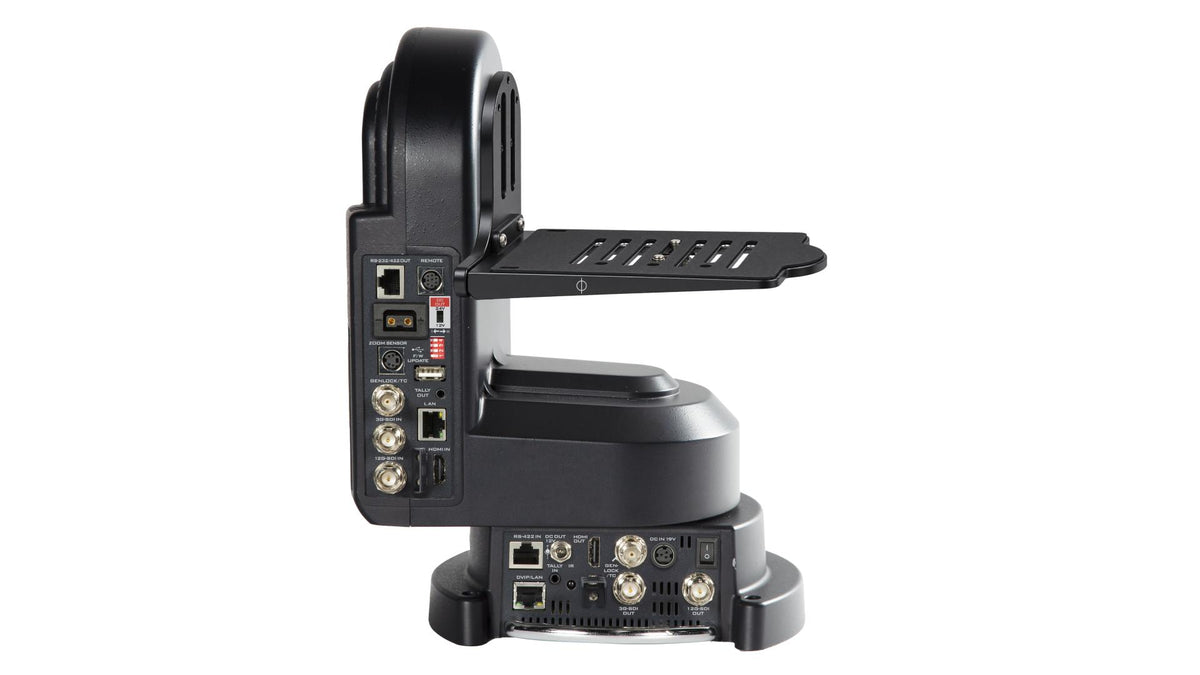

The PTR-15 boasts an extensive range of signal interfaces for seamless integration with the remote head. These interfaces encompass SDI, HDMI, RS-232, RS-422, DVIP, Tally, and LANC, providing diverse connectivity options.

Cost-Effective Transition to Remote PTZ Control
With PTR-15, transitioning from conventional camcorder cameras to remote-controlled PTZ becomes a cost-effective solution. The system empowers a single operator to efficiently manage multi-camera remote operations.

Wide Range of Compatible Cameras Supported

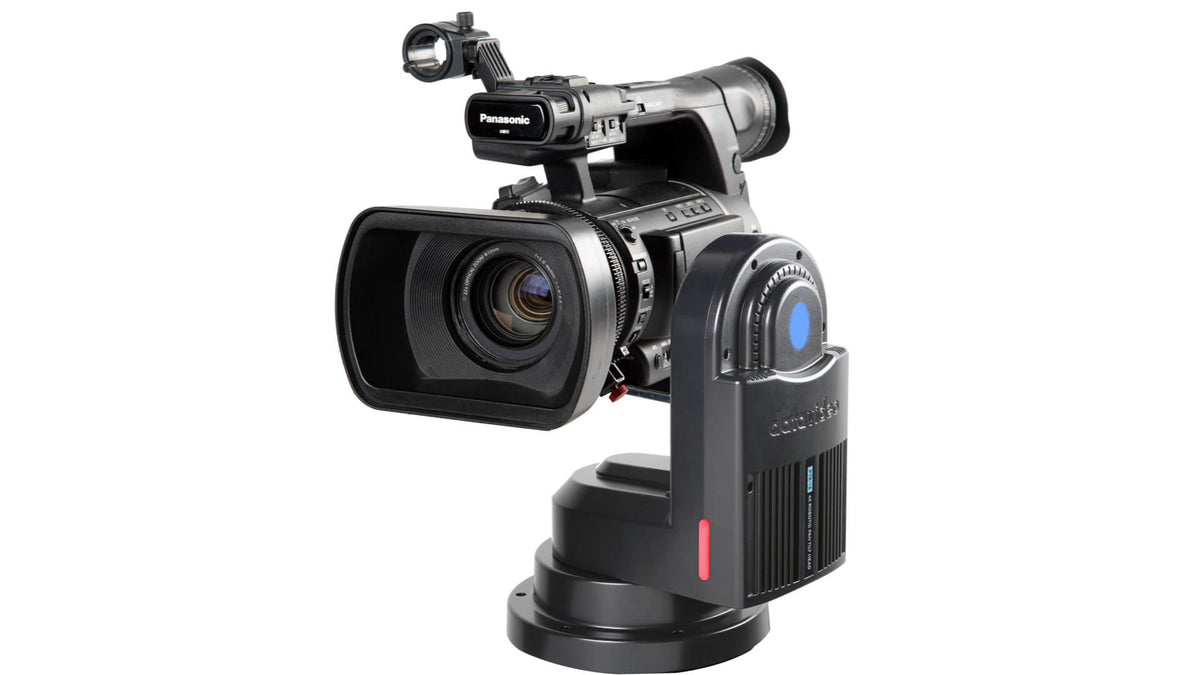

PTR-15 supports a wide range of cinema, broadcast, and professional cameras from RED, Canon, Blackmagic Design, Sony, Panasonic, and JVC, giving users the flexibility to build a robotic camera system around the cameras and lenses they already trust.

Light Weight, Strong, and Sturdy Design
Crafted from aluminum alloy, the PTR-15 boasts a mere weight of 3.7 kg. Its robust design serves as a stable foundation for your camera setup, offering the strength needed to support cameras weighing up to 4 kilograms.

Diversified Controller Options
Compatible with Datavideo RMC-180 MARK II, RMC-300A, and ProTrack Control 100, as well as third-party controllers supporting VISCA, RS-422, and DVIP protocols, PTR-15 integrates easily into existing production workflows.

Support Your Cameras up to 4 Kg Weight on PTR-15
Engineered from robust aluminum alloy, PTR-15 features a super-strong design, providing a sturdy foundation for your camera setup. This construction ensures dependable support for cameras weighing up to 4 kilograms.

Comprehensive IP Control
In addition to the standard RS-232/422 control, the PTR-15 provides robust IP-based control, keeping up with the modern trend of IP-based systems. This technology migrates the camera control protocols and technical parameter adjustments used in high-end broadcast studios to an open IP environment. This transformation breaks away from the previous limitations of exclusive one-to-one control, enabling the free switching of different cameras and achieving precise adjustments of camera parameters such as aperture, shutter, red/blue gain, inflection point, and more. This advancement allows on-site camera operations to enter an unprecedented era of convenience.

12G-SDI and HDMI 2.0 for 4K Production
The robust and stable nature of SDI interfaces makes them highly suitable for broadcast environments, while HDMI offers high compatibility with peripheral devices. The PTR-15 fully supports both 12G-SDI and HDMI 2.0 standards for broadcast and AV applications. Whether you require SDI or HDMI connections, it provides a complete 4K50/60P audiovisual transmission channel.

Datavideo PTR-15 x Blackmagic PYXIS Integration
Transform your Blackmagic PYXIS into a fully robotic PTZ system with the Datavideo PTR-15. Designed for professional production environments, the PTR-15 supports cameras up to 9 lbs and offers remote control of pan, tilt, iris, and more—bringing dynamic movement and flexibility to your fixed camera setup. Key Features: Fully compatible with PYXIS via 12G-SDI for pristine 4K video output Remote pan, tilt, and iris control using Datavideo or Skaarhoj controllers Supports DVIP (Ethernet), RS-422/232, and VISCA protocol for flexible system integration Optional MFT-3 Kit enables servo zoom on manual lenses using the Tilta Nucleus-M motor—turning your PYXIS into a full robotic PTZ solution No need to swap out your PYXIS—just add the PTR-15 for precise, remote-controlled motion and production-grade flexibility. Ideal for studios, lecture capture, worship, or any multi-cam broadcast setup.

Genlock/Timecode Synchronization and Calibration
This is one of the criteria that differentiates broadcast-grade equipment from regular cameras. The genlock function allows interconnection of all cameras and display devices, ensuring precise synchronization at every frame, all operating on the same clock frequency. This prevents issues like tearing due to unstable frame transmission.

The timecode calibration function enables the interconnection of all cameras and recording devices, providing the same time parameters. This establishes a unified time reference point for subsequent archiving or post-production, ensuring consistency.

Support 199 Preset Camera Shooting Positions
For comprehensive video production demands encompassing various angles and perspectives, PTR-15 boasts the capacity to support 199 preset camera positions, catering to your diverse needs. Activate these presets effortlessly using the IR remote control, enabling quick access to any of the 199 positions. In conjunction with the RMC-300A universal remote controller, you can instantly access presets using its 14 dedicated physical buttons. With the RMC-180 MARK II remote control, 4 physical buttons are available for swift preset recall.

Built-in Tally Light
Enhanced with a prominent tally light positioned on the front, PTR-15 conveniently displays your camera's operational status.

Dual Voltage Output: 12V/24V Compatibility
To accommodate the diverse range of camera power specifications, the PTR-15 provides dual-voltage power outputs. This feature easily adapts to the majority of business and professional-grade cameras available on the market. Through a toggle switch on the rear panel, you can switch between power output specifications, ensuring stable power supply. The design includes surge protection circuits for enhanced safety during use.

Built for Virtual Production with FreeD
Datavideo's PTR-15 robotic pan tilt head combines advanced pan-tilt technology with AR/VR systems. It interfaces via RS-422 to transmit pan, tilt, and zoom data to the TVS-3000 Virtual Studio Production System, ensuring seamless collaboration. For different cameras and lenses, it supports lens tracking data acquisition via ZEK-1 or ZEK-2 sensors, enabling lens zoom control and motor tracking synchronization. The RS-422 output provides 8-bit precision Free-D protocol tracking data, compatible with most virtual systems. It offers precise pan (±340 degrees) and tilt (±45 degrees) control with adjustable motion trajectories and speeds, achieving high precision. Built on Datavideo's DVIP protocol, it's compatible with TCP/IP network protocols, supporting third-party device control. You can choose the RMC-300A IP control panel with a 5-inch UI touchscreen or the RMC-180 MARK II serial control panel for dual-system control, enhancing security and reliability.

Optional Accessories: ZEK-1 Zoom Encoder Kit
ZEK-1 is the solution to your free running Zoom cameras. PTR-15 can read its own Pan/Tilt movement and send back to controller for position memory and recall. Now, with ZEK-1, it can detect and read out the Zoom changes. And convert those information into Zoom position to send back for controller to memory and recall the saved zoom position. Compatible with cameras via zoom moving ring.

ZEK-2 is a Robotic Cinema Camera Solution

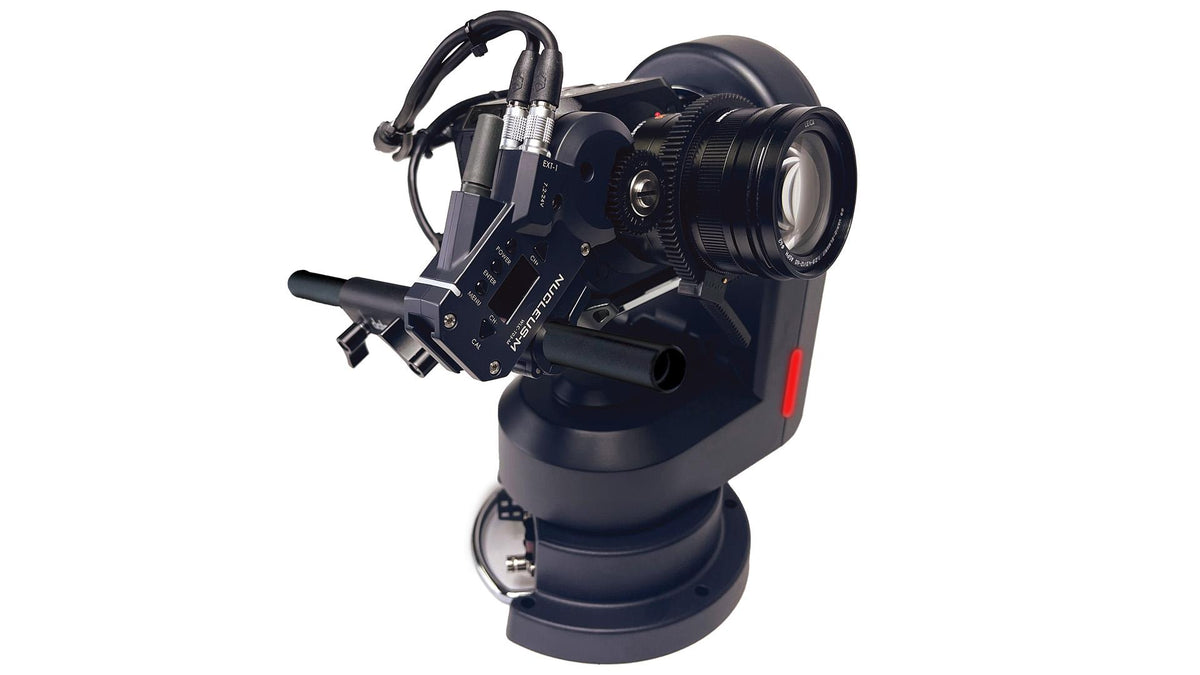

ZEK-2 Zoom Encoder Kit is a mechanical device that allows you to mount the Tilta Nucleus-M motor which adds automatic zoom positioning to the Panasonic Lumix BGH-1 camcorder mounted on the PTR-15 4K Robotic Pan Tilt Head.

Which PTR Is Right for You? – PTR Series Comparison Table
A side-by-side comparison of the PTR Series, highlighting key specifications, movement range, payload capacity, and control options—making it easy to identify the PTR model that best fits your production needs.

Specifications

• Model Number: PTR-15
• Video Interface: HDMI 2.0 x 1 12G-SDI x 1 3G-SDI x 1
• Video Output: 2160p 60/59.94/50 2160p 30/29.97/25 1080p 60/59.94/50 1080p 30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
• Control Unit: RMC-180 MARK II RMC-300A RMC-300C SHOWCAST 100 VISCA Protocol Controller IP Control IR remote
• Genlock: YES
• Timecode: YES
• Panning / Tilting Range: Pan: 340° Tilt: ±45°
• Panning / Tilting Speed: Pan: 0.12~15° /Sec Tilt: 0.06~10° /Sec
• Preset: Pan/Tilt position 199
• Control Distance: 1,200M by RS422 100M by DVIP
• Control Protocal: Sony VISCA DVIP
• Control Input: RS-422 DVIP
• Maximum Load: 4 KG Max
• Control Output: RS-232 RS-422 IP Control BX-Lens LanC
• Power Requirement: DC 14V~ 20V, 90W
• Power Supply: DC 24/12V, 36W Max
• Operating Temp. Range: 0~40 C°
• Operating Humidity Range: 10~80%
• Storage Temp. Range: -10~60C°
• Storage Humidity Range: 5~80%
• Weight: 3.7 kg
• Dimension (LxWxH): 241 x 191 x 300 mm
• Optional accessories: ZEK-1 ZEK-2 PCB-1 WM-10 WM-11 CM-10
• What's in the Box: PTR-15 Main Unit x 1 DC 19V power adaptor x 1 AC cord x 1 IR remote control x 1 DC with lock to D-Tap cable x 1 HDMI cable x 1 SDI cable x 1 Remote cable (2.5mm phone-jack to mini-din 8pin) x 1 1/4” screw x 2 1/4” to 3/8” screw adaptor x 1
