Datavideo PTC-600 4K60p 30x NDI® | HX, 3G-SDI, and HDMI PTZ Camera with Tracking.

Datavideo PTC-600 4K60p 30x NDI® | HX, 3G-SDI, and HDMI PTZ Camera with Tracking.

Write a review

SKU: PTC-600

$3,499.00
$3,499.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

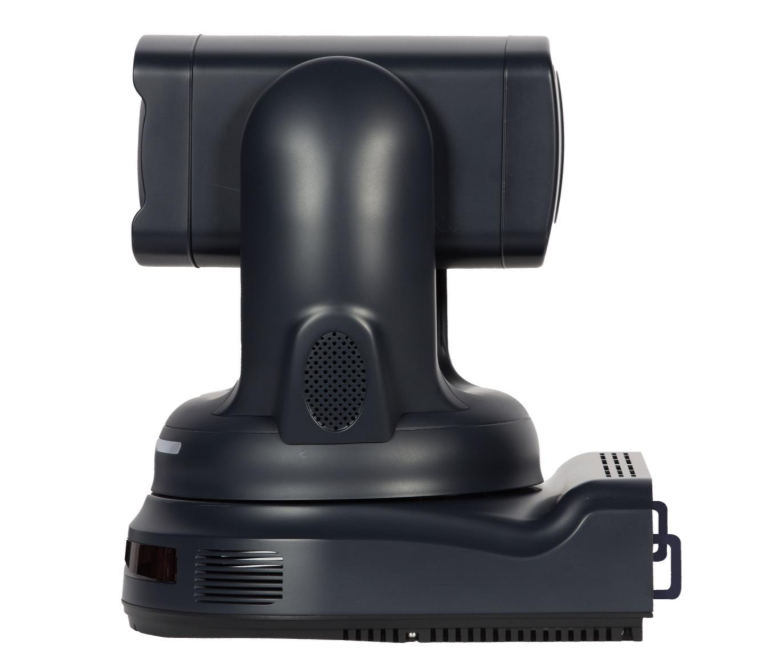

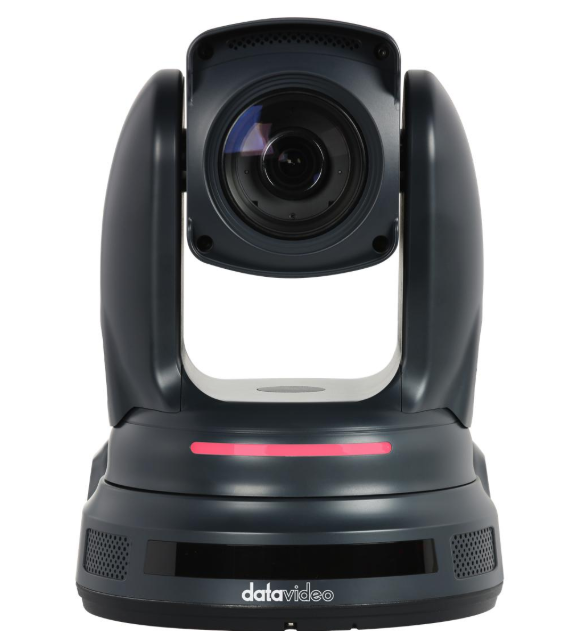

Datavideo PTC-600 4K60p 30x NDI® | HX, 3G-SDI, and HDMI PTZ Camera with Tracking.

The Datavideo PTC 600 is Datavideo's flagship 4K AI-powered PTZ (Pan Tilt Zoom) camera, designed for high-end live production in venues such as auditoriums, lecture halls, performance spaces, and broadcast studios. It delivers impressive image quality, intelligent tracking, and versatile connectivity to meet professional needs effortlessly.

Specifications

  • Sensor & Resolution
    • 1/1.8″ Sony CMOS sensor offering true 4K (up to 2160p60 YUV 4:2:2) via HDMI or 12G SDI, and high-quality 1080p/720p output.
  • Zoom Capabilities
    • 30× optical zoom with 4× digital zoom (≈31× total), accompanied by a wide 60° horizontal field of view
  • Low-Light & Image Quality
    • Excellent low-light sensitivity (min. 0.5 Lux at F1.8, AGC on) with 2D/3D noise reduction for cleaner, smoother visuals

AI Auto Tracking & Optics

  • AI-Powered Natural Tracking
    • Automatically tracks presenters or performers with smooth pan, tilt, and zoom adjustments—no operator needed
  • Interchangeable Backplates
    • Swap between output modules (Full NDI, 12G SDI, HDBaseT), ensuring future-proof setup compatibility

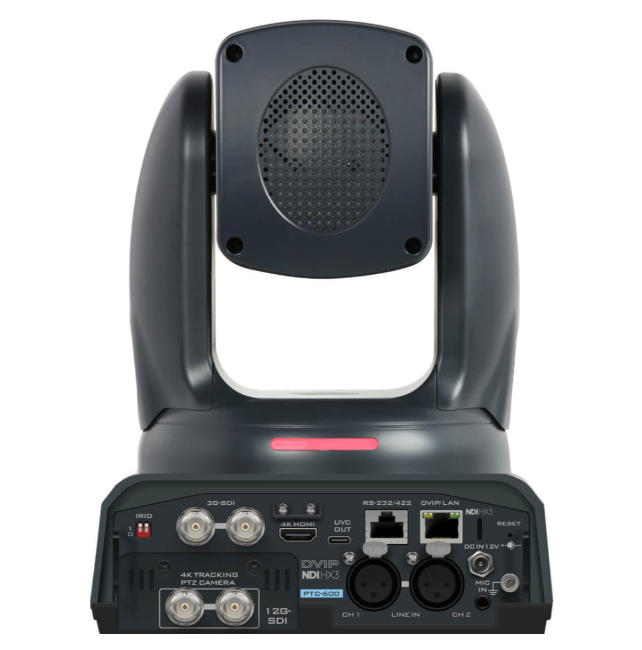

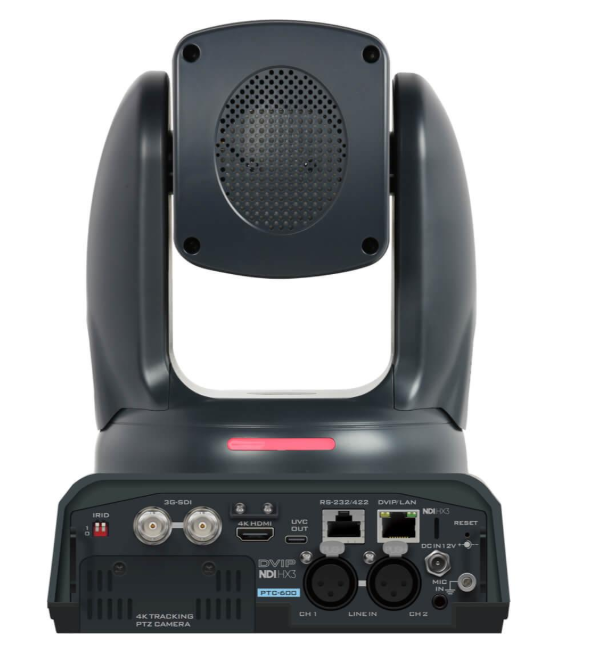

Connectivity & Streaming Outputs

  • Simultaneous Outputs
    • Supports active HDMI 2.0, 3G SDI (or 12G SDI), USB C (UVC), Ethernet PoE+, RS 232/RS 422, and control protocols (Pelco D/P, VISCA/IP, DVIP, ONVIF, NDI)
  • Streaming & Encoding
    • Built-in H.264/H.265/MJPEG encoding; dual-stream capability for two platforms at once via RTSP/RTMP(S)/SRT/ONVIF/NDI HX3
Audio, Controls & Integration
  • Audio Inputs
    • Dual XLR line in and selectable 3.5 mm mic/line input, with internal AAC encoding for clean audio integration
  • Power & Control Options
    • PoE+ simplifies cabling; control via IR, web GUI, PTZ View Assist app, or external control panels (RMC 2P/180/300).
  • Tally Lights
    • Front and rear LEDs signal live (red) or preview (green) status—very handy in multi-camera setups.

Mechanical & Operational Details

  • Pan/Tilt Range
    • Pan up to 340°; Tilt from –20° to +105° with 255 user presets for flexible framing.
  • Physical Specs
    • Dimensions: 187 × 253 × 233 mm; weight: approx. 3 kg; operating temp: 0–40 °C.
  • Power Supply
    • Standard version: 12V 5A (~28.8 W); 12G-SDI version: 37.4 W.

Why Choose the PTC 600?

  • 4K Precision + 30× Zoom: Perfect for large venues needing sharp wide shots and close-in details.
  • AI Tracking: Keeps subjects centered without an operator.
  • Flexible Outputs: Simultaneous and interchangeable ports (NDI, SDI variants).
  • Pro-Level Audio & Control: XLR inputs, tally lights, PoE+, presets, and multi-interface control.
  • Future-Proof: Modular design adapts to evolving broadcast/AV workflows.
