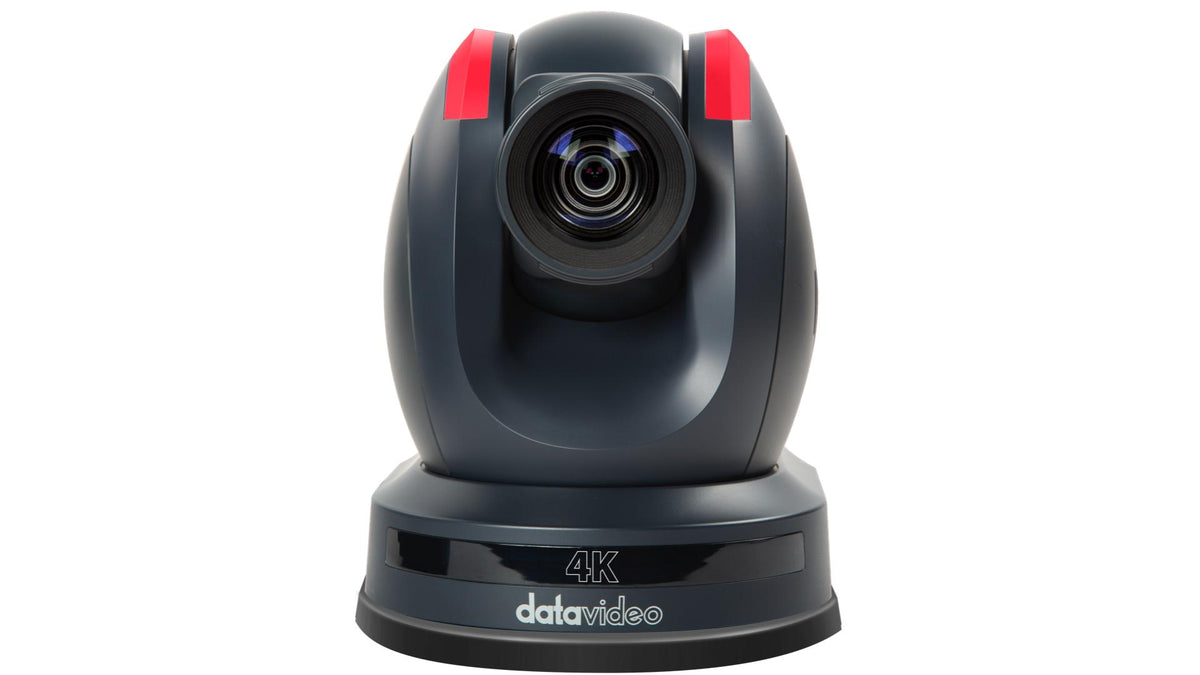

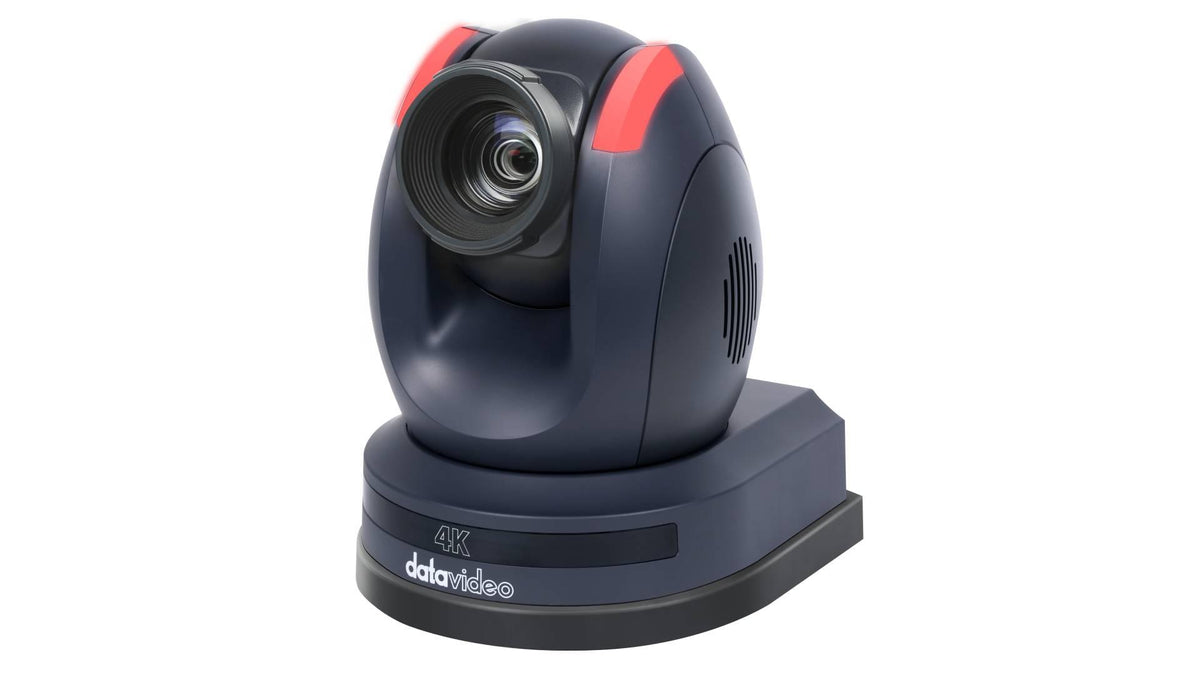

Datavideo PTC-325T 4K 30x HDBaseT, 3G-SDI, and HDMI PTZ Camera with Tracking.

Datavideo PTC-325T 4K 30x HDBaseT, 3G-SDI, and HDMI PTZ Camera with Tracking.

4K Auto Tracking PTZ Camera with HDBaseT
The Datavideo PTC-325 series is equipped with a 1/2.8-inch CMOS sensor and a 30x optical zoom lens, offering 4K 50/60p output via HDMI with YUV 4:2:2 color sampling. This setup delivers sharp, detailed images with accurate color reproduction, even in larger venues. The camera's built-in Auto Tracking feature automatically locks onto and smoothly follows the subject, making it perfect for hands-free operation. Designed with the A/V market in mind, the PTC-325 series supports dual streaming output, enabling easy streaming to platforms like Facebook (RTMPS), YouTube, and dvCloud. Its compliance with the ONVIF Profile S standard ensures compatibility and interoperability across diverse network video environments.This HDBaseT version allows single CAT-6 cable to transfer video, control, power, and tally.

One Cable Solution
HDBaseT allows you to transmit power, UHD video, control, and tally over a single Ethernet cable.

Adopts High-Quality and Reliable Sony CMOS Sensor
Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.

Broadcast Quality 4K Resolution
With built-in 1/2.8" CMOS sensor, supports resolution up to 2160p 50/60.

Superior Optical Performance
The PTC-325 camera series has 30X Optical Zoom and 16X Digital Zoom with the f1.8 wide open aperture.

Low Noise in Low Light
Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs
Supports simultaneous HDMI 2.0 and HDBaseT/IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

Quick Access to Camera's Auto Tracking
Auto tracking can be directly accessed using external controllers like the included RMC-1AT remote, as well as DVIP controllers such as the RMC-300A and PTC View Assist. Additionally, smart switchers like the HS-1600T MARK II and HS-1650T also offer easy integration and control of the auto tracking function.

Custom Auto Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Talent Position: Center / Left Side / Right Side
The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.

Quick Selection of Full Body / Half Body / Close-up
All of the PTC-325T camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

S-Shaped Speed Curve
The S-Shaped Speed Curve, inspired by the smooth acceleration and deceleration of a lift, is a pivotal feature that enhances the camera lens movement. Much like the elevator ride that starts and stops seamlessly, the PTC-325T camera ensures your video captures maintain uninterrupted fluidity. This innovative technology eliminates any jerky movements that might be discernible to the naked eye, resulting in professional-quality, visually pleasing content. The S-Shaped Speed Curve is your assurance that the camera's pan, tilt, and zoom functions will operate with precision and grace, delivering an unparalleled visual experience for your audience. Experience the future of camera movement with the PTC-325T.

Simply Enable Auto Tracking with Your IR Remote Control
RMC-1AT PTZ Controller: all you need is a remote control to set and control all four cameras and save the four presets.

PTZ View Assist: Control up to 4 Cameras
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-145, PTC-280, PTC-285, PTC-305, and PTC-325 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS. The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

Multiple Network Protocol with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Compatible with Various Controllers
Control real-time pan, tilt, and zoom camera movements with Datavideo HS-1600T MARK II, PTZ View Assist APP, RMC-300A and RMC-180 series. With configurable preset positions supported.

RS-422, DVIP and Ethernet Camera Control
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

Seamless Integration with Your HDBaseT PTZ Camera
The HBT-16 is an HDBaseT receiver designed to use with an HDBaseT transmitter to receive signal between HDBaseT devices. The receiver accepts up to 4K 2160P image quality video, and transmits video, audio, streaming, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable. By using the HBT-16 HDBaseT receiver, user can connect the camera to a PC or laptop via the DVIP port. The DVIP (Datavideo IP) control protocol allows for remote management and control of your AV devices over an IP network and supports transmitting the camera's streaming signal to the computer.

Compliant with the ONVIF Profile S Standard
The PTC-325 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.

Power over Ethernet
The PTC-325T supports PoE and HDBastT for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-325T.

Tally Light
Green and red lights tally to show the preview and program status for broadcast applications.

Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported.

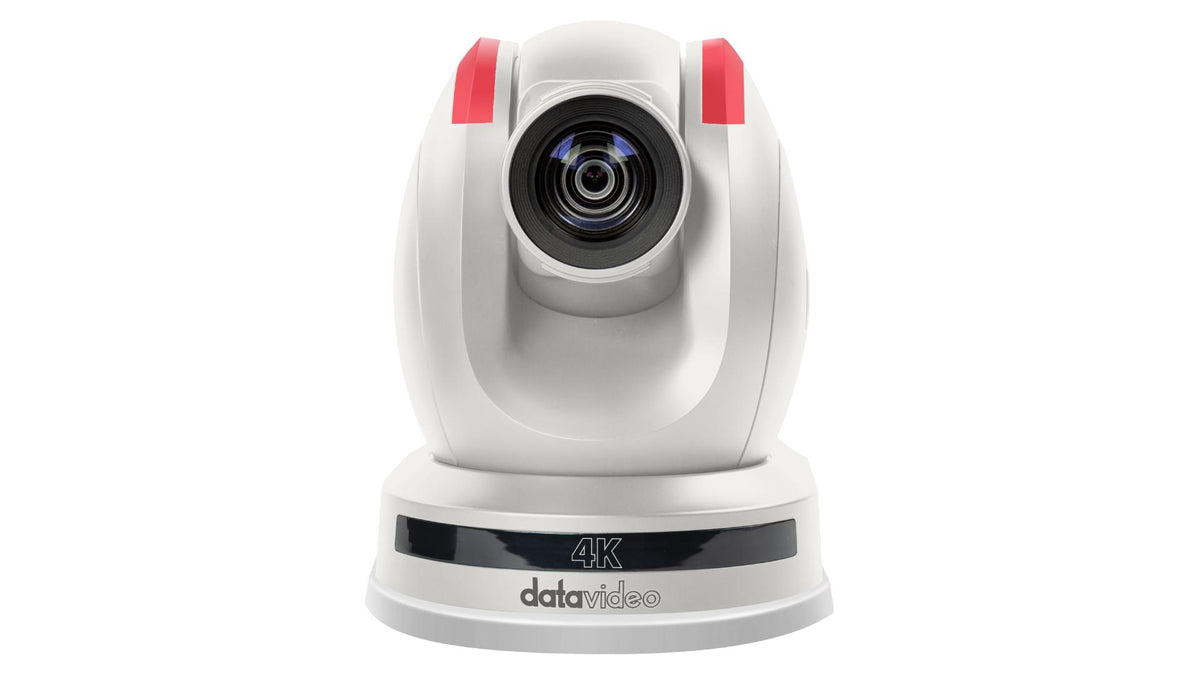

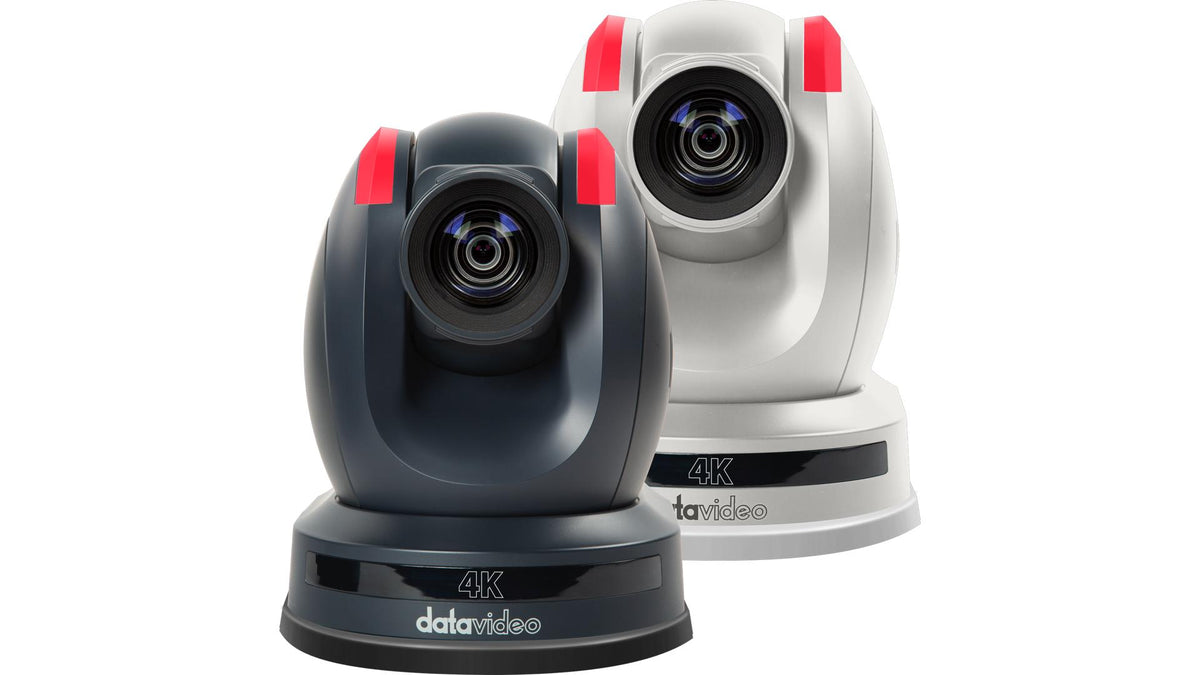

Dark or Light Body
The PTC-325T is available in black or white to remain inconspicuous in permanent setups.

The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.

Remote Control from Anywhere in the World
Control the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.

Specifications

• Model Number: PTC-325T
• Video format/Resolution: HDMI/HDBaseT: 2160p60/59.94/50/30/29.97/25 1080p60/59.94/50/30/29.97/25 1080i60/59.94/50 720p60/59.94/50 *2160p60/59.94/50 YUV 4:2:2 SDI: 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
• Image Sensor: Sony 1/2.8" CMOS
• Effective Pixels (approx.): 8.46Mega Pixels
• S/N Ratio: ?55dB
• Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
• Electronic Shutter: 1/30s ~ 1/10000s
• Zoom Ratio: 30x Optical, 16x Digital Zoom
• Effective Zoom Ratio: 30x
• Gamma Control: N/A
• Iris Control: Auto / Manual
• Digital Noise Reductions: 3D
• On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
• White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
• AGC / Gain Control: Yes
• HDR/WDR: N/A
• Mirror / Flip Image: Yes
• Focus Mode: Auto/Manual
• Panning / Tilting Range: Pan: 300° Tilt: +90° to -15°
• Panning / Tilting Speed: Pan: 0.876°/s~43°/s Tilt: 0.693°/s ~21.32°/s
• Preset: 255 Positions
• Focal Length: 30x, f = 4.5mm ~135mm, F1.8 ~ F4.7
• Field of View (Horizontal, Wide): 62.3°
• Image Compensation: Back light compensation
• Video Output: HDMI 2.0 x1 3G-SDI x1 HDBaseT (PoE) x 1
• Audio Input: 3.5 mm x1 (mic in/line in) switch from Web UI
• Tally LED: Yes
• Lens Filter: N/A
• Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
• Remote Control Interface: IR Web GUI RS-422/RS-232 DVIP HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
• Video Compression Format: H.264/H.265/MJPEG
• Audio Compression Format: AAC, G711
• Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
• HD IP Interface: ----
• Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT
• First Stream Supported Resolution: 3840x2160 1920x1080 1280x720 1024x576 960x540 640x480 640x360
• Second Stream Supported Resolution: 720x480 640x360 480x270 320x240
• Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
• Video Bitrate Mode: VBR, CBR
• Encoding Frame rate: 50Hz: 1-50fps 60Hz: 1-60fps
• POE: IEEE 802.3at
• F/W Update: Via Web UI or USB 2.0
• IR Control: Yes
• Camera Control Unit: HS-1650T/HS-1600T Mark II/RMC-2P/RMC-180 series/RMC-300 series/PTZ View Assist APP
• Tripod Mount: 1/4-20 UNC
• Optional Accessories: WM-1/ WM-10/ WM-11
• Color: Dark Blue/White
• Dimension (LxWxH): 184(W) x 228.5(H) x 194(D)
• Weight: 2.6kg
• Operating Temp. Range: 0~40 °C
• Power: DC 12V 21W
• What's in the Box: 1 x PTC-325T product 1 x RMC-1AT IR remote controller 1 x Ceiling mount bracket -B 6 x Ceiling mount bracket screw M3*4mm 1 x DC 12V Power Adaptor 1 x Safety cable
