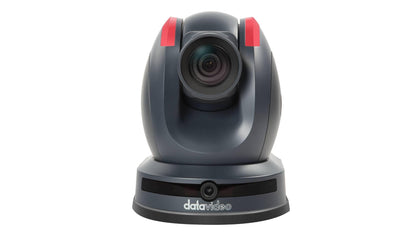

Datavideo PTC-155T 30x HDBaseT 1080p, 3G-SDI, and HDMI Tracking PTZ Camera.

Datavideo PTC-155T 30x HDBaseT 1080p, 3G-SDI, and HDMI Tracking PTZ Camera.

30x Zoom, Dual-Lens AI Tracking, One-Cable Simplicity
The PTC-155T is Datavideo’s AI-powered PTZ camera, blending professional Full HD 1080/60P imaging with the convenience of HDBaseT single-cable transmission.Equipped with a 1/2.8" CMOS sensor, 30x optical zoom, and an intelligent dual-lens system, the PTC-155T delivers smooth, natural AI tracking and crystal-clear visuals, even in complex production environments. With HDMI, 3G-SDI, IP streaming, and HDBaseT connectivity, the PTC-155T ensures flexible integration into modern workflows. Its line-in and 3.5mm microphone inputs provide excellent audio options, while one-click AI trackingenables effortless operation without the need for a dedicated camera operator. Available in dark blue or white, the PTC-155T is the ideal solution for performance halls, classrooms, corporate meetings, and houses of worship, where both reliability and sophistication matter.

Simultaneous Output of Multiple Signal Formats
Supports SDI, HDMI, and UVC video output. Built-in H.264, H.265, and Motion JPEG encoding allows simultaneous live streaming to two platforms, meeting both on-site and online playback requirements.

AI Auto-Tracking
Dual-lens system ensures precise subject tracking.

Stunning Image Quality
Broadcast-grade 1/2.8” CMOS sensor delivers Full HD at 60fps.

Versatile Connectivity
SDI, HDMI, UVC, and NDI|HX3 support, plus built-in streaming.

Easy Control
Operate via controllers, apps, switchers, or web UI.

30x Optical Zoom, 16x Digital Zoom
The PTC-155T's 30x optical zoom and 16x digital zoom allows you to mount it near or far and still get great, sharp shots.

Broadcast Quality 1/2.8-inch CMOS Sensor
The PTC-155 is an AI auto-tracking PTZ camera featuring a 1/2.8-inch CMOS sensor and supports Full HD resolution at 1920x1080 60fps.

Advanced 3D Noise Reduction Function
The PTC-155T supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.

Dual-Lens Camera for Precise Tracking and Full Coverage
The dual-lens camera technology to accurately identify the subject's position and movement track. Even in complex environments, it ensures stable tracking. The secondary lens offers an ultra-wide-angle view, enabling output of HD footage of the entire scene.

Quick Access to Camera’s Auto Tracking
You will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs. In addition to camera controllers, you can also easily enable Auto Tracking on smart switchers, including iCAST mini, SHOWCAST 100, etc.

Custom Auto Object Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Talent Position: Center / Left Side / Right Side
The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.

Quick Selection of Full Body / Half Body / Close-up
All of the PTC-155 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

S-Shaped Speed Curve
The S-Shaped Speed Curve, inspired by the smooth acceleration and deceleration of a lift, is a pivotal feature that enhances the camera lens movement. Much like the elevator ride that starts and stops seamlessly, the PTZ camera ensures your video captures maintain uninterrupted fluidity. This innovative technology eliminates any jerky movements that might be discernible to the naked eye, resulting in professional-quality, visually pleasing content. The S-Shaped Speed Curve is your assurance that the camera's pan, tilt, and zoom functions will operate with precision and grace, delivering an unparalleled visual experience for your audience. Experience the future of camera movement with the Datavideo PTZ camera.

Various Control Options
Control real-time pan, tilt, and zoom camera movements with Datavideo HS-1600T MARK II, iCAST mini switcher, PTZ View Assist APP, RMC-300A and RMC-180 camera controller series. With configurable preset positions supported.

RS-422, DVIP and Ethernet Camera Control
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

Simply Enable Auto Tracking with Your IR Remote Control
The RMC-1AT PTZ Controller is all you need; it allows you to use a remote control to set and control all four cameras and save the four presets.

Wide 54° Field of View
The PTC-155 offers an expansive 54° Field of View, effortlessly capturing all scenes within its frame. This generous field of view ensures that it can encompass and record all the pertinent moments in the given area, delivering comprehensive visual coverage.

Supports Dual H.264/H.265 Video Compression for Streaming
Capable of dual-stream encoding at 1920x1080 resolution at 60P and 720x480 resolution at 30P, providing flexible options for live streaming and recording tasks. Video compression supports H.264 and H.265 formats, while audio compression supports AAC, MP3, and PCM formats.

Multiple Control Protocols and Dual-Stream Live Broadcasting
Supports RTSP, RTMP(S), DHCP, TCP/IP, HTTP, and Multicast protocols. The PTC-155 Series cameras are fully compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability within networked video systems.

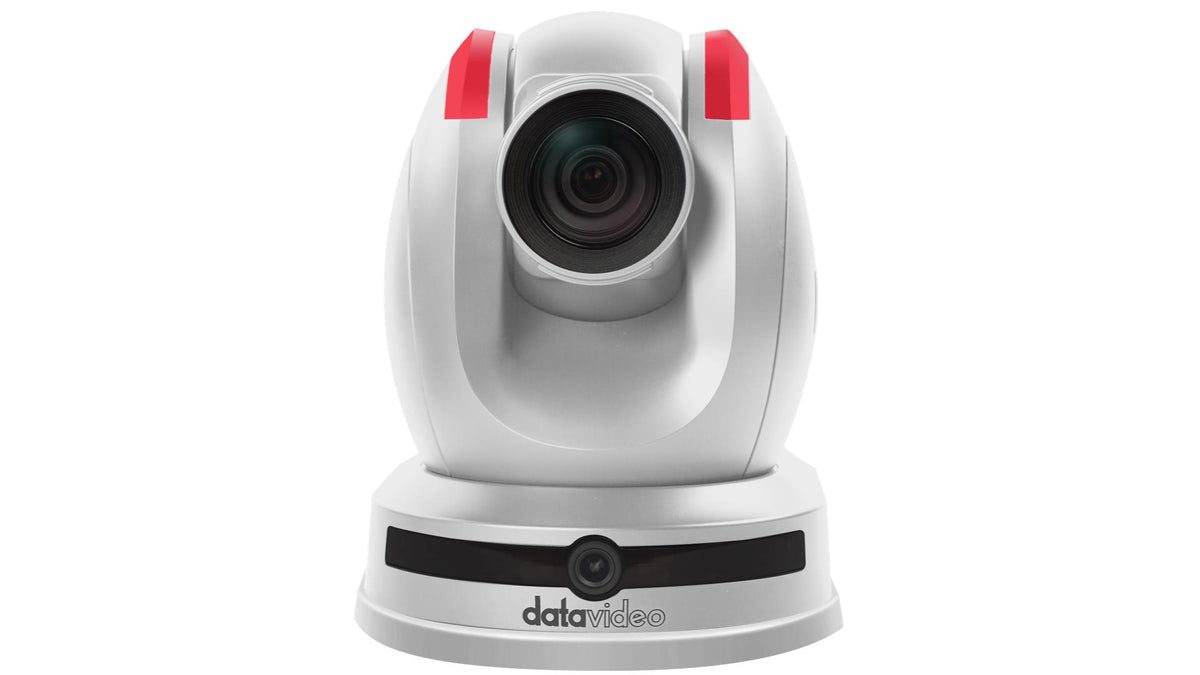

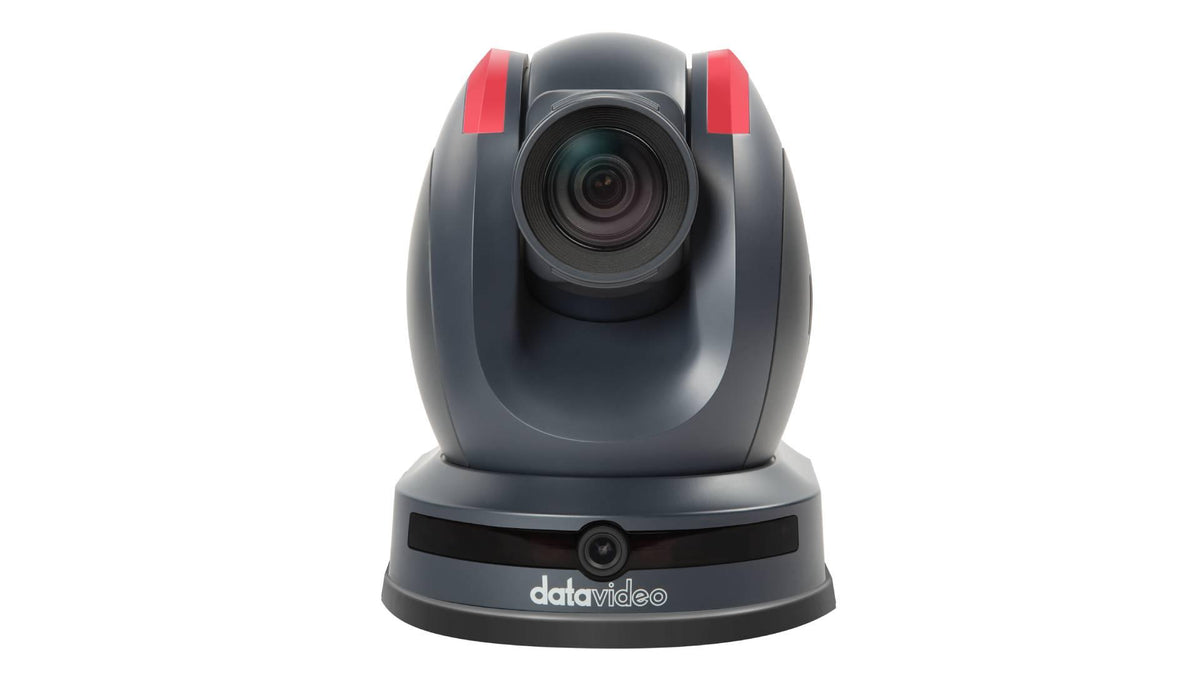

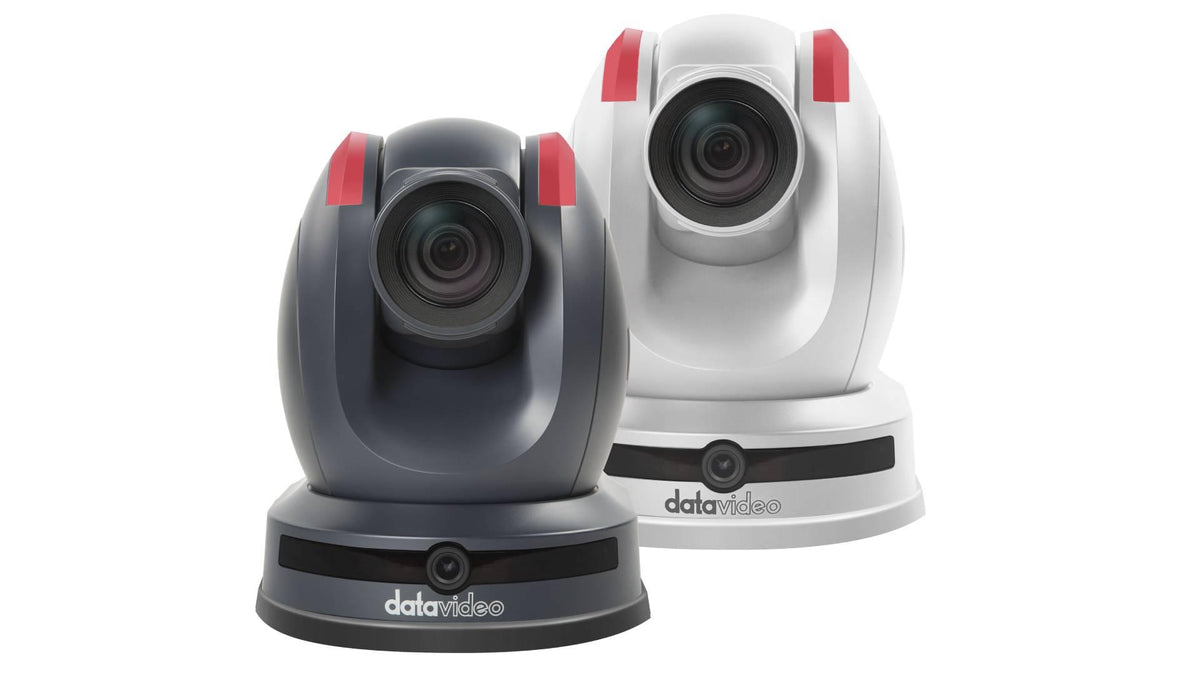

Dark Blue and White Color Models
PTC-155 is available in two colors, dark blue and white. Suitable for broadcast, worship, video conferencing and etc.

FREE PTZ View Assist APP
Control up to four cameras with your Wireless Touch Screen. It can monitor the live streaming video from PTC-155 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and IRIS.

Build a Reliable SRT Live Streaming Workflow with All Datavideo Products
Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

One Ethernet Cable with NDI® | HX Technology
The PTC-155T supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-155T.

Tally Light
Green and red tally lights to show the preview and program status for broadcast applications.

Remote control from anywhere in the world
Control the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.

Datavideo's Comprehensive HDBaseT Lineup
Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T series switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.

Specifications

• Model Number: PTC-155T
• Video format/Resolution: 1080p60/59.94/50/30/29.97/25 720p60/59.94/50
• Image Sensor: Sony 1/2.8" CMOS
• Effective Pixels (approx.): 2.14 Mega pixels
• S/N Ratio: ?50dB
• Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
• Electronic Shutter: 1/25s ~ 1/10000s
• Zoom Ratio: 30x Optical Zoom, 16x Digital Zoom
• Effective Zoom Ratio: 27.35x
• Gamma Control: N/A
• Iris Control: Auto / Manual
• Digital Noise Reductions: 2D/3D
• On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
• White Balance: Auto, OnePush, Manual
• AGC / Gain Control: Yes
• HDR/WDR: N/A
• Mirror / Flip Image: Yes
• Focus Mode: Auto / Manual
• Panning / Tilting Range: Pan: 300° Tilt: +130° to -15°
• Panning / Tilting Speed: Pan: 0.1~ 60°/Sec Tilt: 0.1° to 30°/sec
• Preset: 255 Positions
• Focal Length: f = 5.5mm (wide) to 150.43 mm (tele) F1.66(Wide) ? F4.99 (Tele)
• Field of View (Horizontal, Wide): Main: 54° Panorama: 86°
• Image Compensation: Backlight Compensation

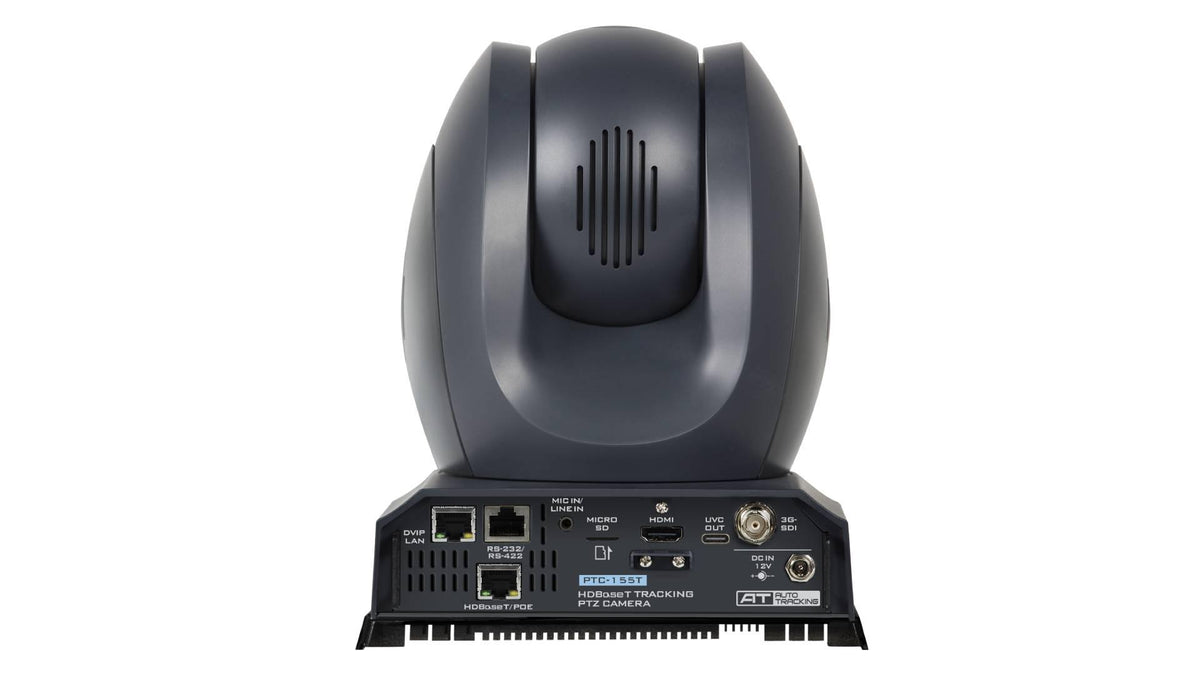

• Video Output: HDMI 1.3 x1 3G-SDI x1 UVC output x1 10/100M RJ45 (PoE) x1 HDBaseT (PoE) x1
• Audio Input: 3.5mm x1 (line in/mic in)
• Tally LED: Yes

• Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, NDI, DVIP, ONVIF
• Remote Control Interface: IR Web UI RS-422/RS-232 (RJ-45) DVIP HDBaseT(RJ-45)
• Video Compression Format: H.264/H.265/MJPEG
• Audio Compression Format: AAC, G711
• Audio Bitrate: 96Kbps, 128Kbps
• Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT
• First Stream Supported Resolution: 1920x1080 1280x720 1024x576 960x540 640x480 640x360
• Second Stream Supported Resolution: 720x480 640x360 640x480 320x240
• Video Bitrate: 32Kbps ~ 20Mbps (First Stream) 32Kbps ~ 5Mbps (Second Stream)
• Video Bitrate Mode: VBR, CBR
• Encoding Frame rate: 50Hz: 1-50fps 60Hz: 1-60fps
• POE: IEEE 802.3at
• F/W Update: Via Web UI
• IR Control: Yes
• Camera Control Unit: HS-1650T HS-1600T Mark II RMC-2P RMC-180 series RMC-300 series
• Tripod Mount: 1/4-20 UNC
• Optional Accessories: WM-1/ WM-10/ WM-11
• Color: Black/ White
• Dimension (LxWxH): 184(W) x 228.5(H) x 194(D)
• Weight: 2.8kg
• Operating Temp. Range: 0~40 °C
• Power: DC 12V 19W
• What's in the Box: 1 x PTC-155T product 1 x IR remote controller 1 x Ceiling mount bracket -B 6 x Ceiling mount bracket screw M3*4mm 1 x DC 12V Power Adaptor 1 x Safety cable
