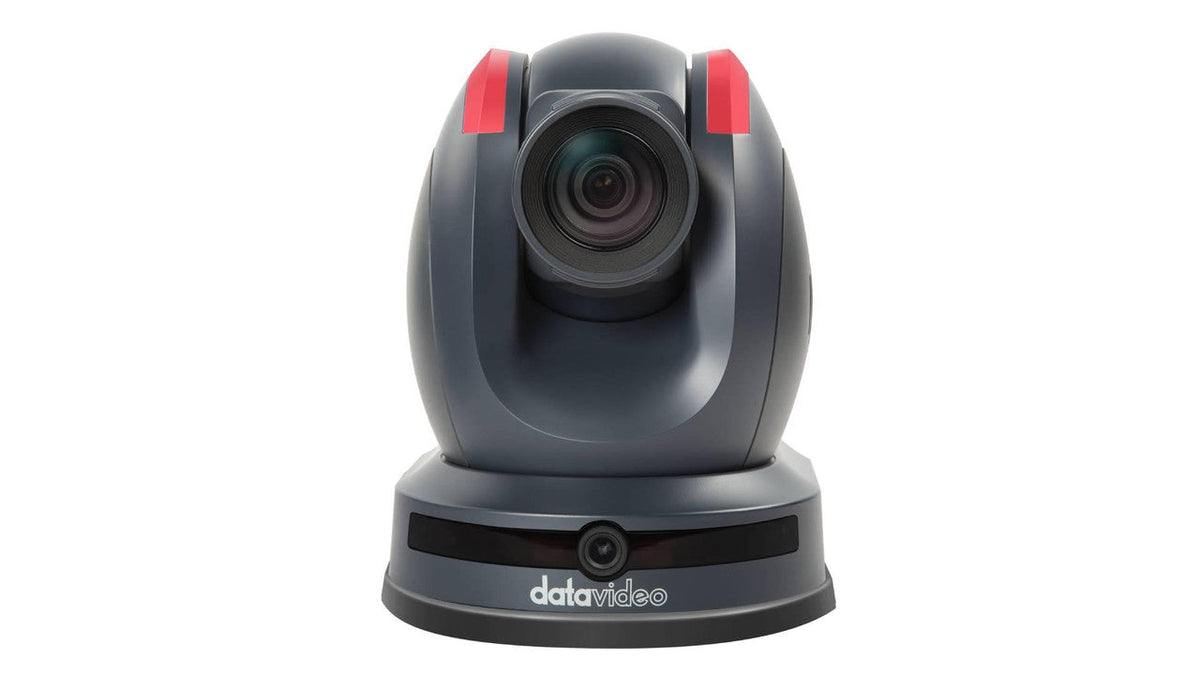

Datavideo PTC-155 30x NDI/HX 1080p, 3G-SDI, UVC and HDMI Tracking PTZ Camera.
Datavideo PTC-155 30x NDI/HX 1080p, 3G-SDI, UVC and HDMI Tracking PTZ Camera.
SKU: PTC-155
Regular price
$2,049.00
Sale price
$2,049.00
Shipping calculated at checkout.
Available options
Description
Datavideo PTC-155 30x NDI/HX 1080p, 3G-SDI, UVC and HDMI Tracking PTZ Camera.
The Datavideo PTC-155 is a Full HD, AI powered PTZ (Pan Tilt Zoom) camera designed for professional live streaming, conferencing, classrooms, events, worship services, and more. Here’s a detailed breakdown
Specifications
- Sensor & Resolution
- 1/2.8″ Sony CMOS sensor delivering crisp Full HD 1080p video at up to 60 fps
- Optical & Digital Zoom
- 30× optical zoom + 16× digital zoom—great for both wide shots and close-ups
- Frame Rate & Quality
- Progressive scan ensures smooth, detailed video at Full HD 1080/60
- AI Auto-Tracking & Dual-Lens Design
- Uses a dual-lens system—one lens captures a wide scene, while another focuses on the subject—working together to enable smooth, accurate subject tracking
- The AI-based tracking adjusts PTZ speed dynamically via integrated PID algorithms to follow the subject fluidly, minimizing jerky movements
Connectivity & Output Formats
- Video Outputs

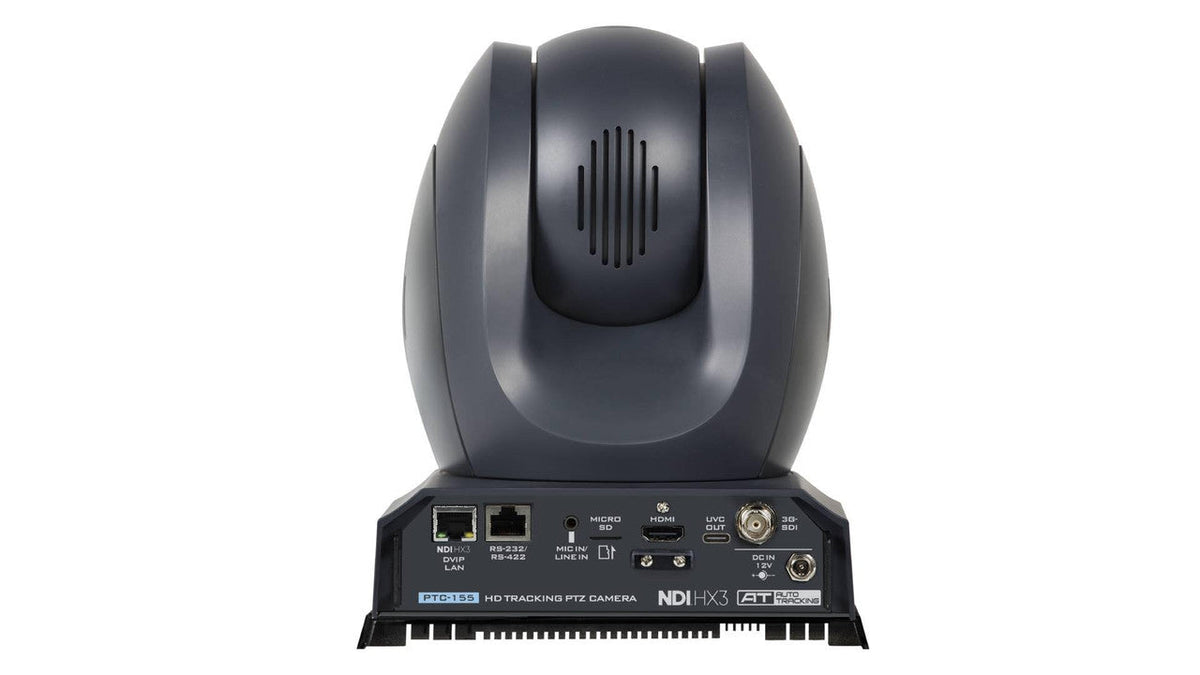

- Simultaneous HDMI (1.3), 3G SDI, UVC, and NDI|HX3 streaming—all active at once
- Streaming & Encoding
- Built-in H.264/H.265/MJPEG encoders, supporting dual-stream live transmission via RTSP, RTMPS, ONVIF, RTMP(S), SRT, multicast, and NDI
- Network & Remote Control
- PoE support (via RJ45) simplifies power and network setup. Compatible control protocols include NDI HX3, Pelco-D/P, VISCA (IP/serial), DVIP, ONVIF, RS 422/RS 232, IR remote, web GUI, and the PTZ View Assist mobile app
Advanced Features & Extras
- Audio Input: 3.5 mm mic/line input with on camera audio encoding (AAC, MP3, PCM)
- Field of View: Wide 54° horizontal view with secondary panoramic lens up to 86°
- Recording: SD card slot for onboard backup recording
- Low-Light Performance: 0.5 Lux sensitivity (F1.8, AGC on) with 2D/3D noise reduction for clean footage
- PTZ Range: Pan 300°, tilt from +130° to –15°, with 255 user presets
- Tally Lights: Green/red LEDs indicate preview/program status—ideal for multi-camera setups
- Mount & Power Options: Includes IR remote, ceiling mount bracket, 12 V DC adapter, PoE compatibility; optional wall mount brackets (WM 1, 10, 11)
Designed For Real-World Integration
- Versatility: Ideal for venues like lecture halls, worship centers, corporate events, and performance venues supports both broadcast and AV workflows
- Ease of Use: Track subjects or specify one person; works with IR remote, app, switchers, or professional controllers. Works seamlessly with dvCloud, Smart Classroom solutions, and Datavideo switchers
- Simplified Cabling: NDI/HX3 and PoE make multi-camera installations clean and efficient—video, audio, tally, power, and control all over one Ethernet cable
