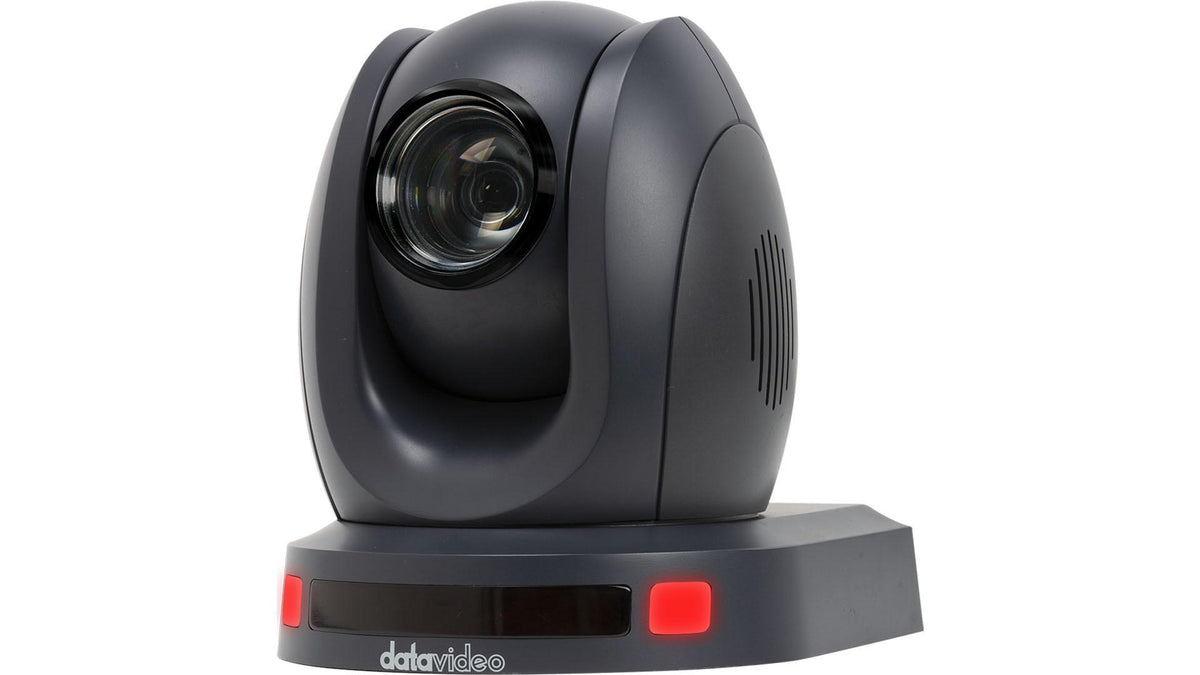

Datavideo PTC-140T-12 Distance up to 300ft. Kit includes: PTC-140T and HBT-12 HDBaseT receiver box

Datavideo PTC-140T-12 Distance up to 300ft. Kit includes: PTC-140T and HBT-12 HDBaseT receiver box

Made with HDBaseT Technology
Rather than using multiple cables for video, power and control, the PTC-140T is able to transmit all three signals over a single CAT 6 cable using the HDBaseT technology. When using DVIP, you need to run two cables. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations, like spots without nearby power outlets.

Stunning Full HD Resolution
The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

20x Optical Zoom, 10x Digital Zoom
The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

Advanced 2D/3D noise reduction function
Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.

Long distance 4K solution
Support up to 4K 25/30p and receives up to 4Kx2K video from the transmitter.

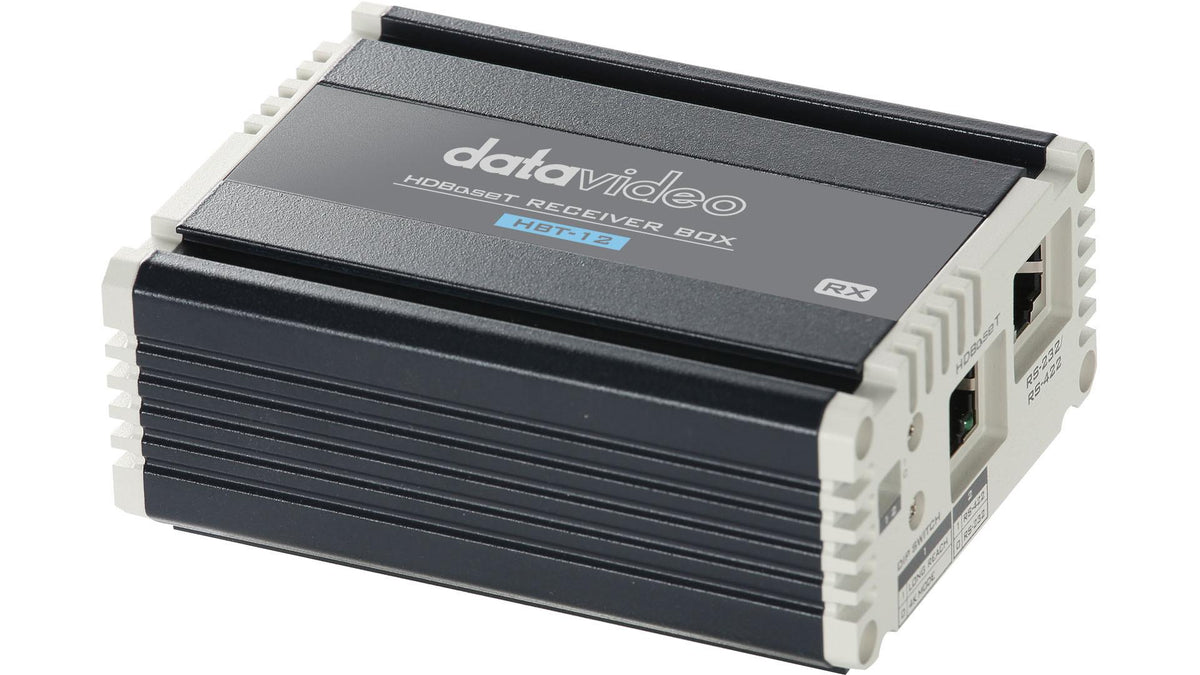

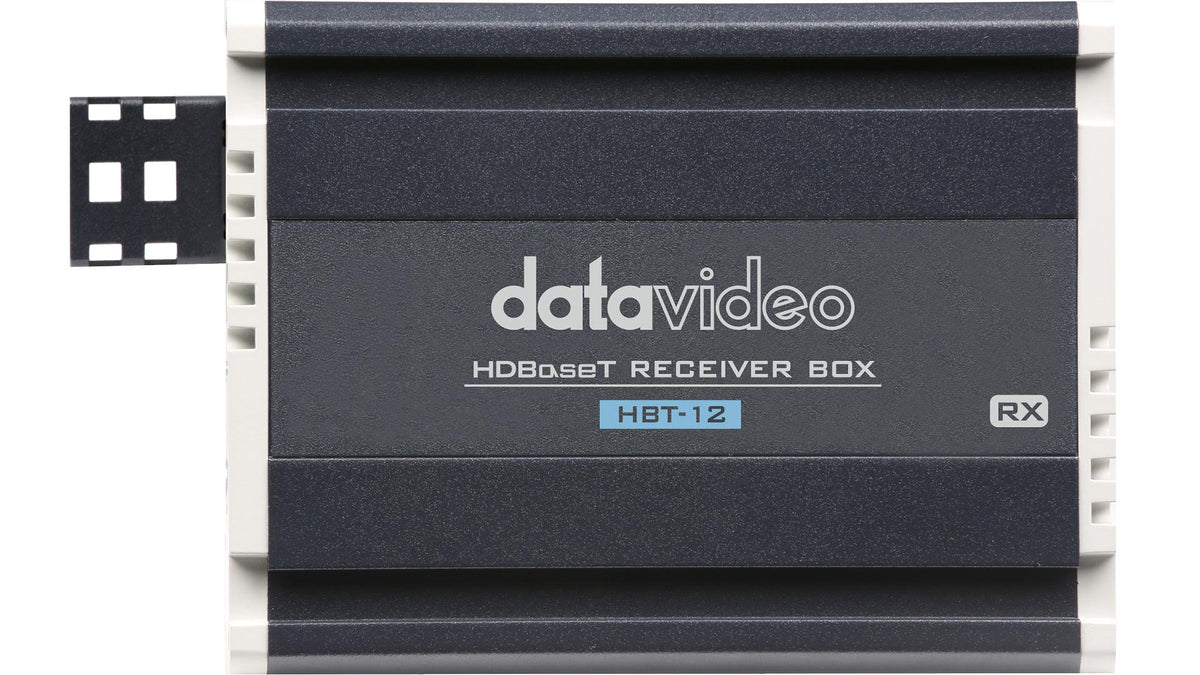

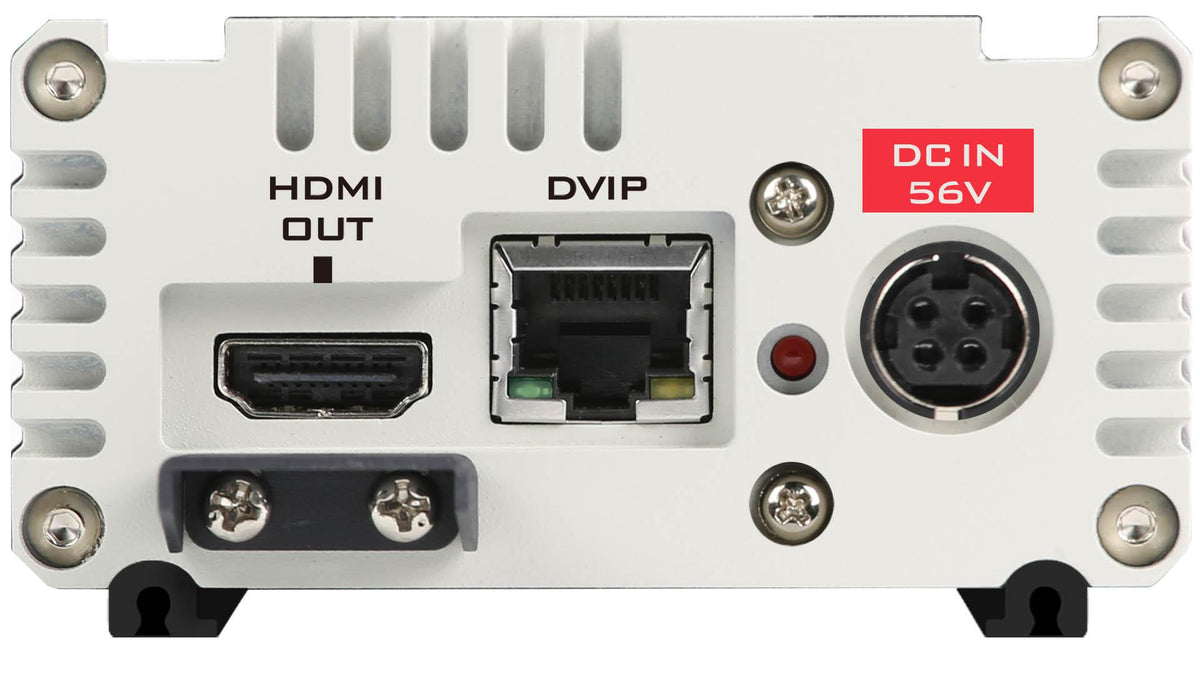

With the 56V power connected to one end of the HBT-12 HDBaseT receiver
The HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++).

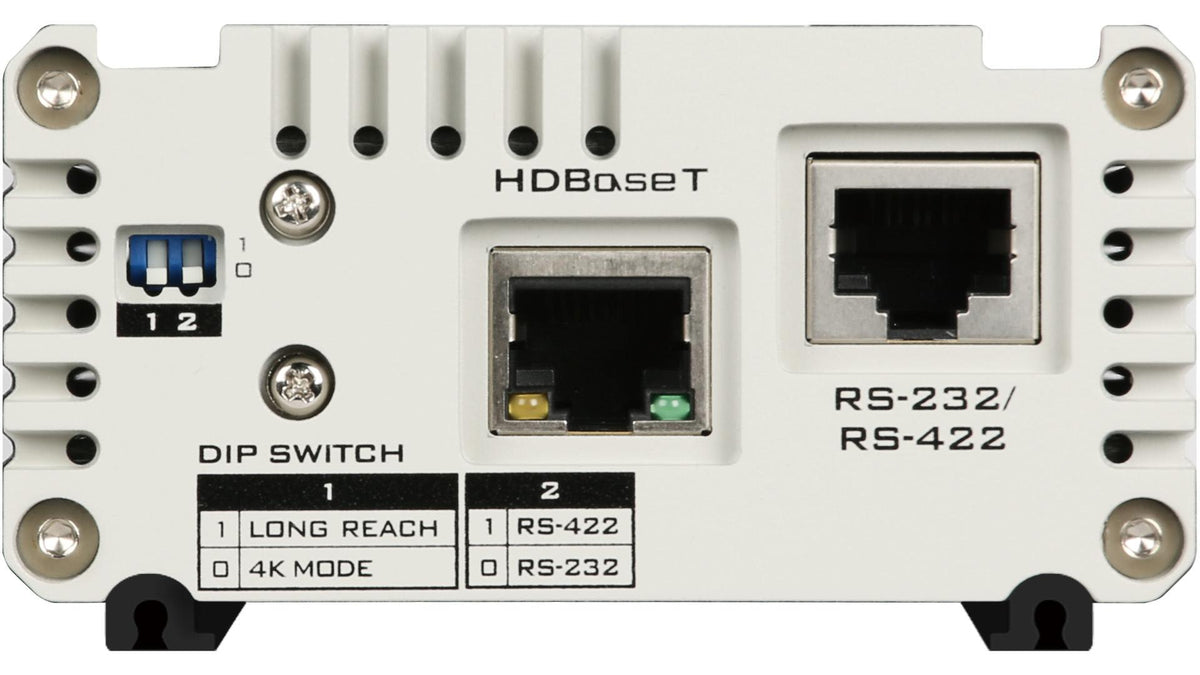

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.
HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.

Datavideo's Comprehensive HDBaseT Lineup
Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MKII switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.

Simple multi-camera control at your fingertips
With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-140T cameras for any live video production. RMC-300A Designed to control up to 24 PTC-140 cameras, with preset memory for easy camera control. Able to control up to 24 Datavideo PTC-140 cameras simultaneously, 7 presets for each camera to operate with RGB backlit buttons.

FREE PTZ View Assist APP
Control up to four cameras with your Wireless Touch Screen. It can monitor the live streaming video from PTC-140 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and IRIS.

Support SRT streaming protocol, no need to worry about unreliable network environment
Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility. Streaming RTMP over unreliable, low-bandwidth networks can cause issues.

With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have.
SRT is better than RTMP because it handles problematic networks more efficiently. It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization.

Seamlessly compatible with DVCloud
Get the most out of your streaming hardware using DVCloud. The PTC-140TH is seamlessly compatible with Datavideo’s DVCloud service. This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders. You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Build a reliable SRT live streaming workflow with all Datavideo products
Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Specifications

• Model Number: PTC-140T-12
• Video format/Resolution: 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
• Image Sensor: 1/2.8 inch high quality HD CMOS sensor
• Effective Pixels (approx.): 2.07 Mega pixels
• S/N Ratio: >55dB
• Min. Illumination: 0.5Lux (F1.8, AGC ON)
• Electronic Shutter: Auto / Manual
• Zoom Ratio: 20x Optical Zoom, 10x Digital Zoom
• Gamma Control: Off / Normal
• Iris Control: Auto / Manual
• Digital Noise Reductions: Yes
• On-Screen Display (OSD): English, Simplified Chinese
• White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
• AGC / Gain Control: Auto / Manual
• Mirror / Flip Image: Yes
• Focus Mode: Auto / Manual
• Panning / Tilting Range: Pan: 340° , Tilt: +90° to -30°
• Panning / Tilting Speed: Pan: 0.1~60°/sec Tilt: 0.1~30°/sec
• Preset: 255 Position
• Focal Length: f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5
• Field of View (Horizontal, Wide): Approx. 54.7° (WIDE END) / 3.3° (TELE END)
• Image Compensation: Backlight Compensation

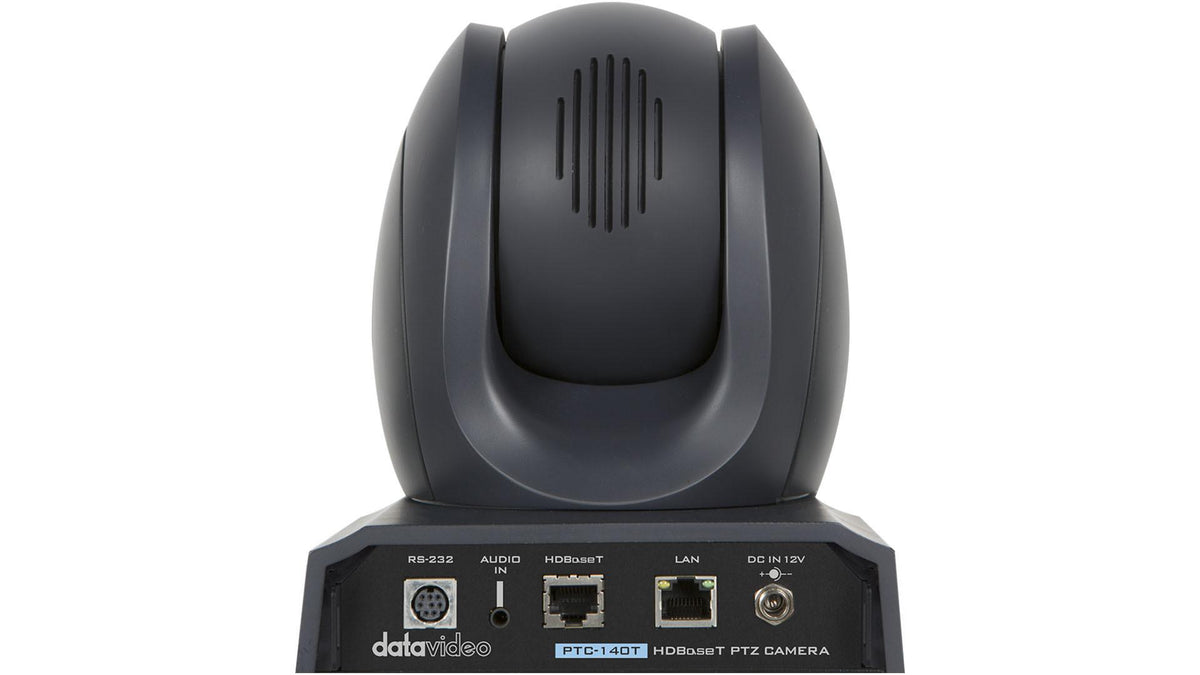

• Video Output: HDBaseT (PoE) x1 RJ-45 x1 Cable Type: Cat6A Shielded
• Audio Input: 3.5mm Line in
• Tally LED: Dual color (Red, Green)
• Lens Filter: M52.0 x 0.75 Thread with UV Protection
• Control Protocol: VISCA, Pelco-D, Pelco-P, DVIP
• Remote Control Interface: RS-232 Lan (RJ-45) HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
• Video Compression Format: H.264, H.265, Dual stream output
• Audio Compression Format: AAC/MP3/G.711A Audio compression
• Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
• HD IP Interface: 100M IP port(100BASE-TX); Support DVIP
• Streaming Protocols: TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
• F/W Update: Ethernet
• IR Control: Yes
• Camera Control Unit: HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP
• Tripod Mount: 1/4-20 UNC
• Optional Accessories: WM-1/ WM-10/ WM-11
• Color: Black/White
• Dimension (LxWxH): 156 x 184 x 186 mm
• Weight: 1.6 kg
• Operating Temp. Range: 0~40 °C
• Power: DC 12V 12W
• What's in the Box: 1 x PTC-140T Unit 1 x HBT-12 Receiver 1 x IR remote controller 1 x Ceiling mount bracket-A 1 x Ceiling mount bracket-B 6 x Ceiling mount bracket screw M3*4mm 1 x DC 12V Power Adaptor 1 x Power Cord 1 x A braided safety cable 1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
