Description

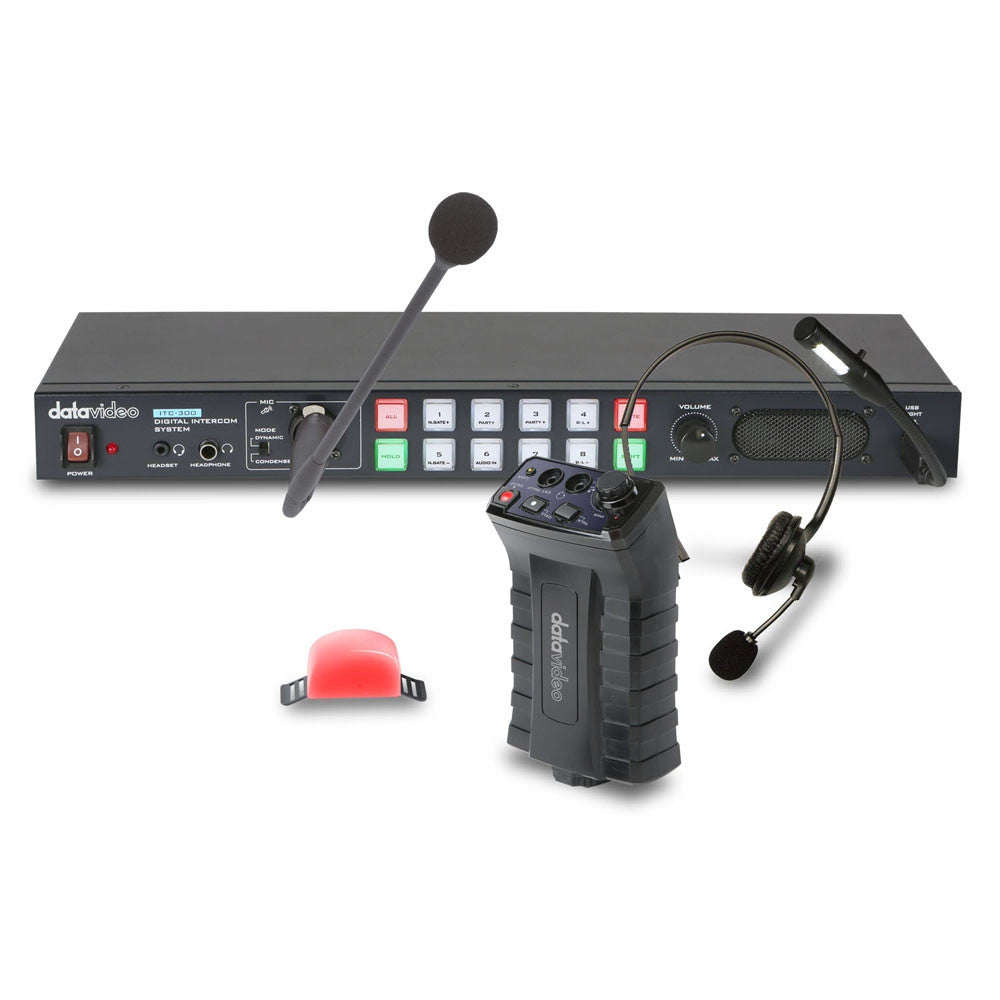

Datavideo ITC-300 Digital intercom system for up to 8 remote users
Single CAT cable for everything
The ITC-300 is a single wired communication system, featuring power over Ethernet to 8 belt packs.

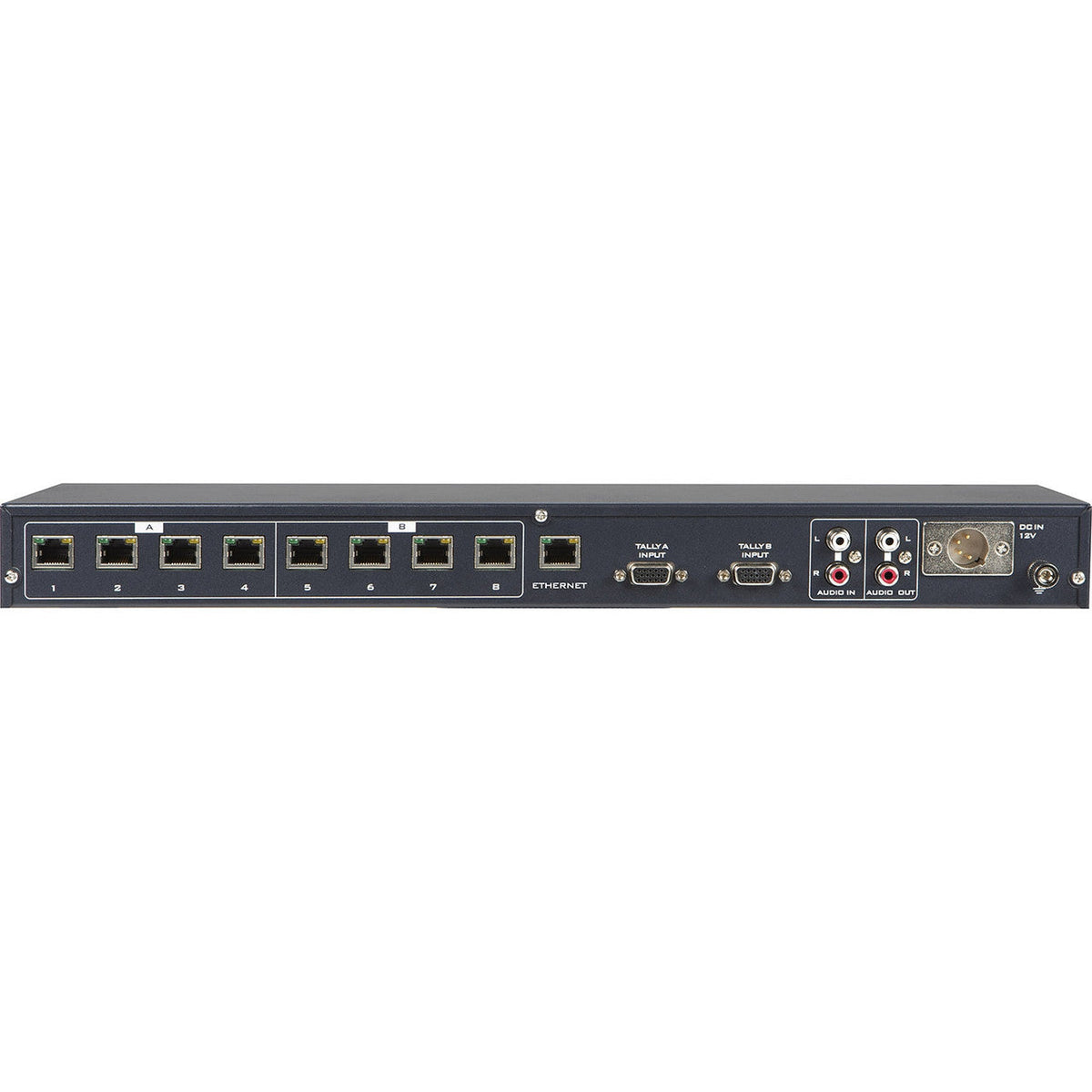

Rack mountable 8 channels Intercom System
The ITC-300 provides 8-Way talkback and bi-colour tally indicators.
Long distance transmission up to 200 meters
Communication distance up to 100 meters or using VP-300R can connect up to 200 meters.
Selectable channel talk, broadcast to all or mute
The director can select to talk to an individual channel or to all channels simultaneously.

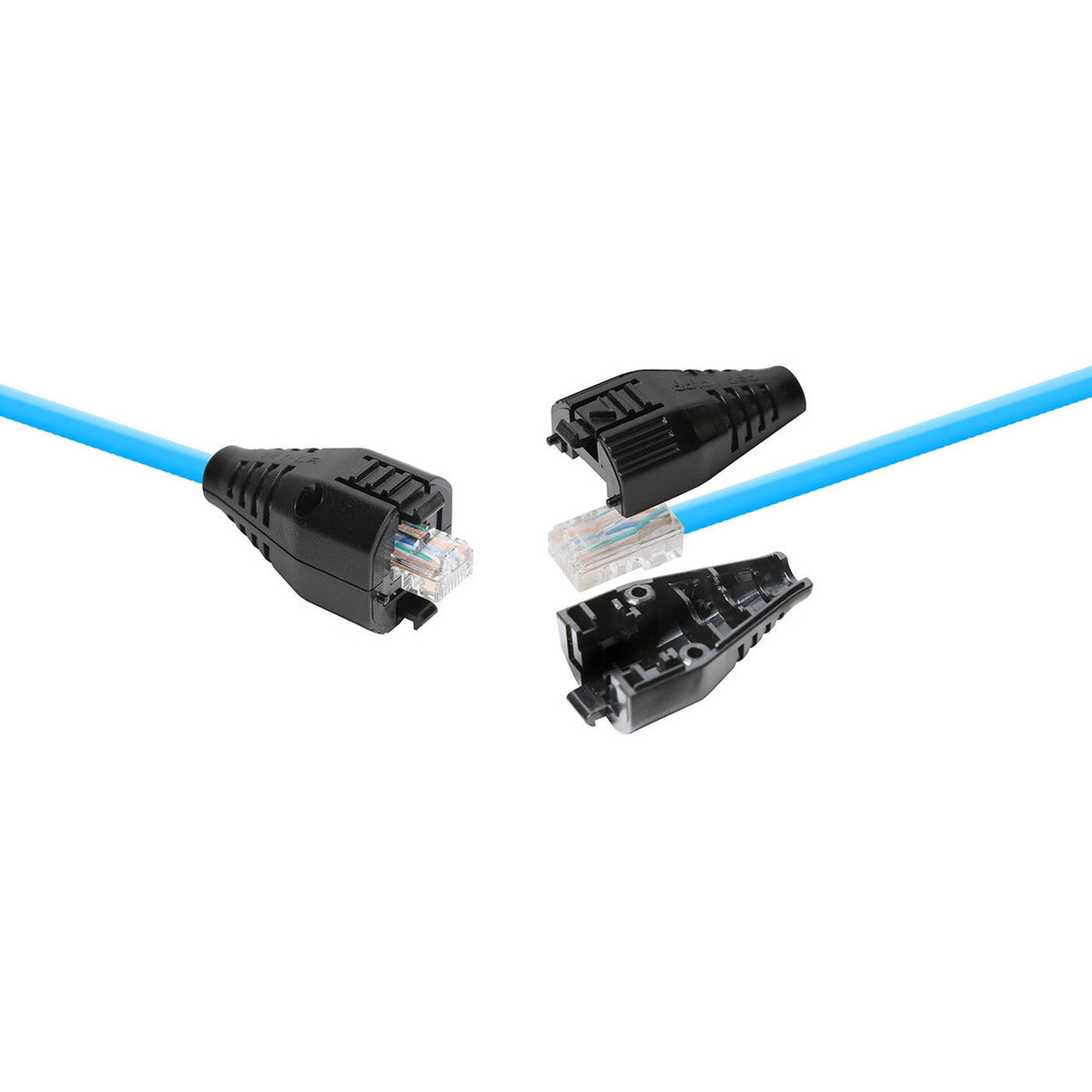

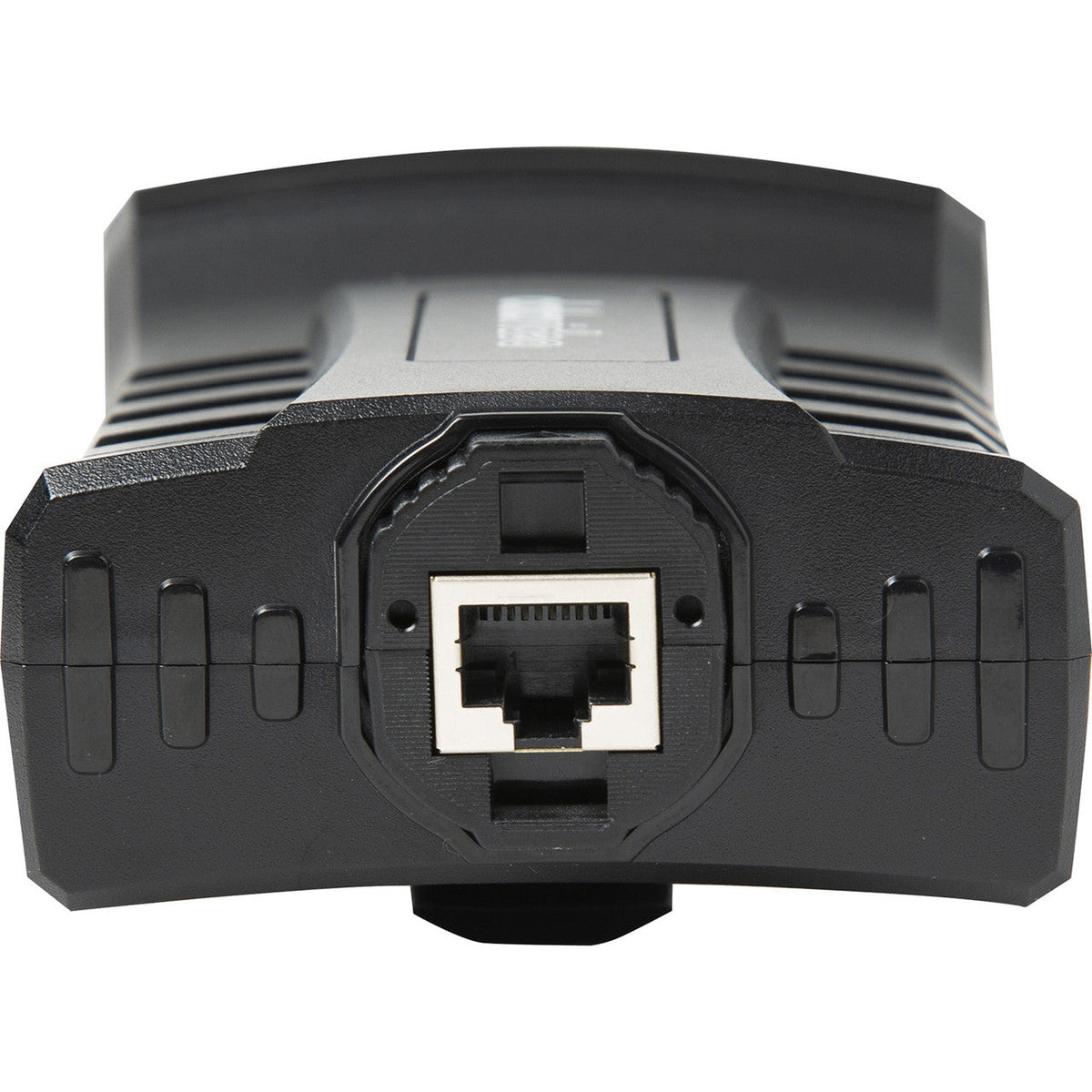

Special design for your RJ-45 connector
The ITC-300SL has a special CAT-6 connector shield to prevent the cable lost when used.

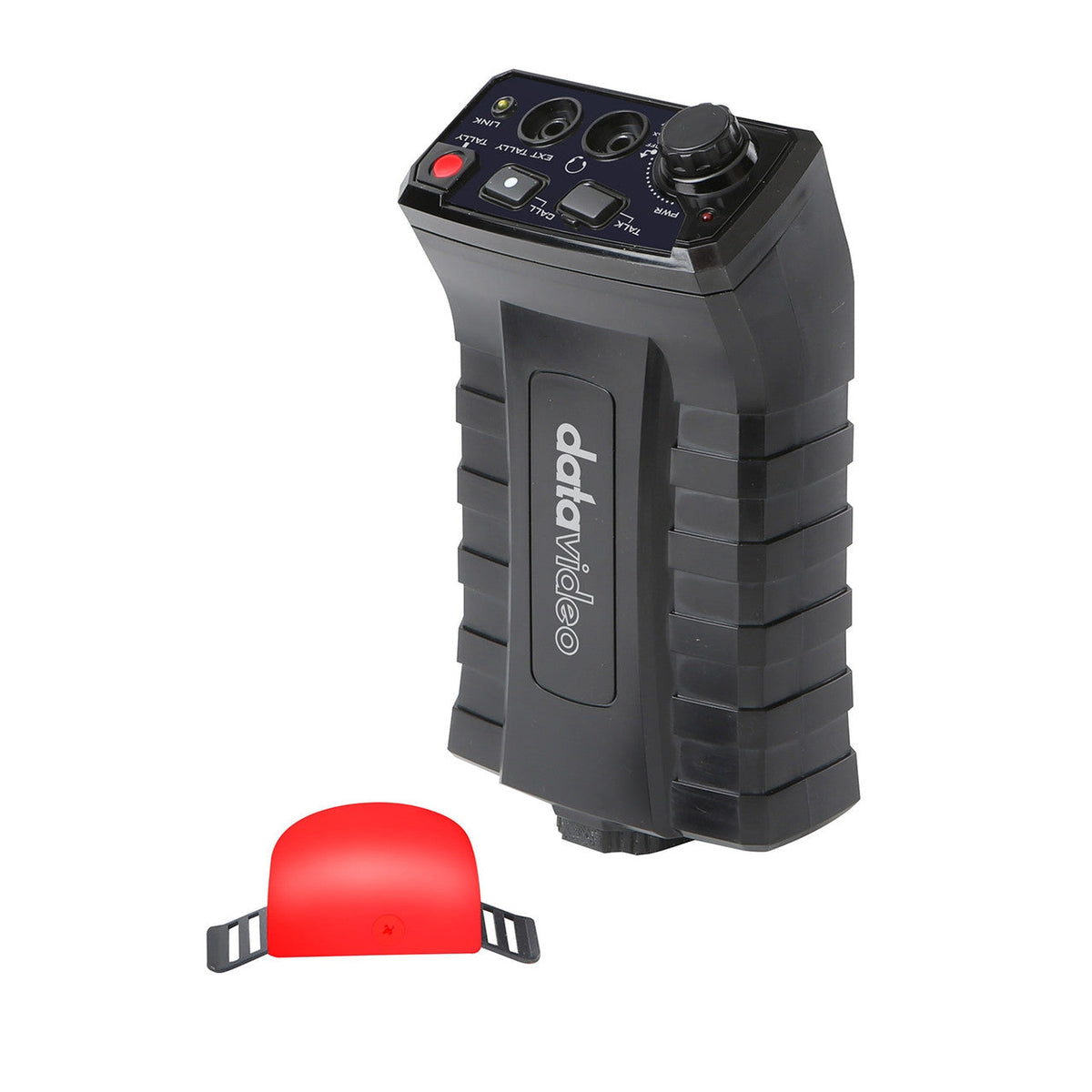

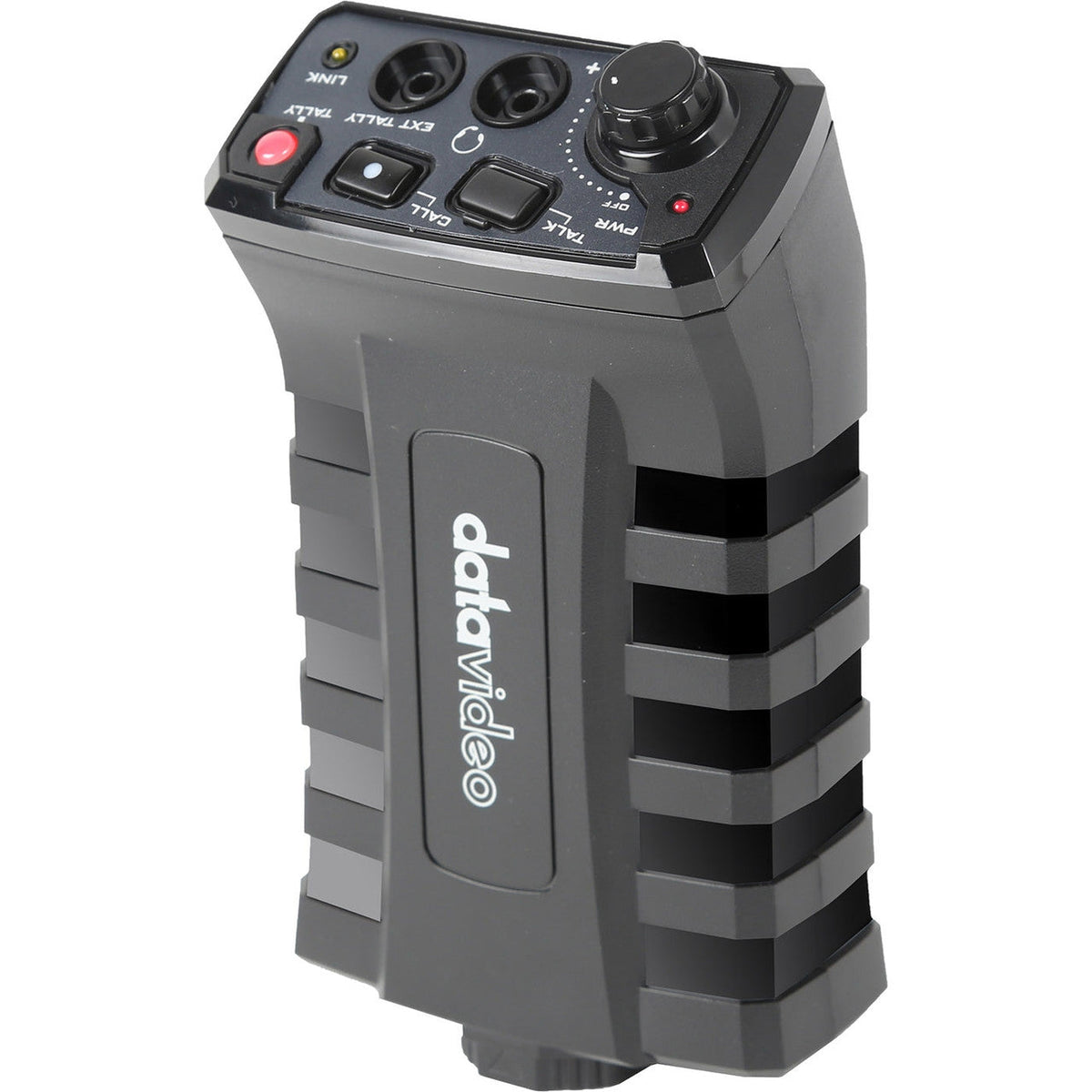

ITC-300SL Belt Packs included
- ITC-300 includes 4 ITC-300SL Belt Packs, which included
- TD-3 - Camera Tally Light
- CB-3 - 20M Cable
- MC-1 - Headset / Microphone
Specifications
| ITC-300 Digital Intercom System |
| Power |
DC 12V, 3A
|
| Tally |
2 x 15 Pin D-Sub Female Sockets
for Tally A and Tally B
|
| MIC / Headset |
1 x 3.5mm Stereo Jack Socket
(For Headphone / Microphone combination)
Headset Impedance 8~600 ohms 100mW(min)
|
| Headphone |
1 x 1/4"" (6.3mm) Stereo Headphone Socket
Headset Impedance 8~600 ohms 100mW(min)
|
| Light Socket (DC 12 V) |
Light Power Consumption: +5 V / 500 mA
|
| Microphone |
3 Pin XLR / 1/4” (6.3mm) Socket x 1
Switchable Condenser / Dynamic
Input Microphone Level -67dB
PIN1:N/A,PIN2:MIC,PIN3:GND
|
| Frequency Response |
300 Hz-7 KHz, < +/-3dB
|
| THD |
< 0.1% @1KHz
|
| S/N |
>70dB
|
| Built-in Speaker |
3W
Speaker is mute when headphones or mic / headset are connected to the ITC-300
|
| Operating Range |
Up to 100m between Base Station and Slave
|
| Operating Temp. Range |
0~40 °C
|
| Dimension (LxWxH) |
440 x 126 x 44mm
|
| Weight |
1.9 kg
|
| What's in the Box |
"1 x ITC-300 Base Unit
4 x ITC-300SL Belt Pack
4 x Ethernet Cable
4 x Earphone Cable
4 x Headset with microphone
1 x Gooseneck Microphone
1 x Tally LED Indicator
4 x Velcro
1 x USB Gooseneck Light
1 x Adaptor + AC Cord
1 x Thank You Card"
|
