Datavideo HS-4000 Datavideo 8-Input 4K Mobile Studio with Built-In 17.3 Inch LCD Monitor

Datavideo HS-4000 Datavideo 8-Input 4K Mobile Studio with Built-In 17.3 Inch LCD Monitor

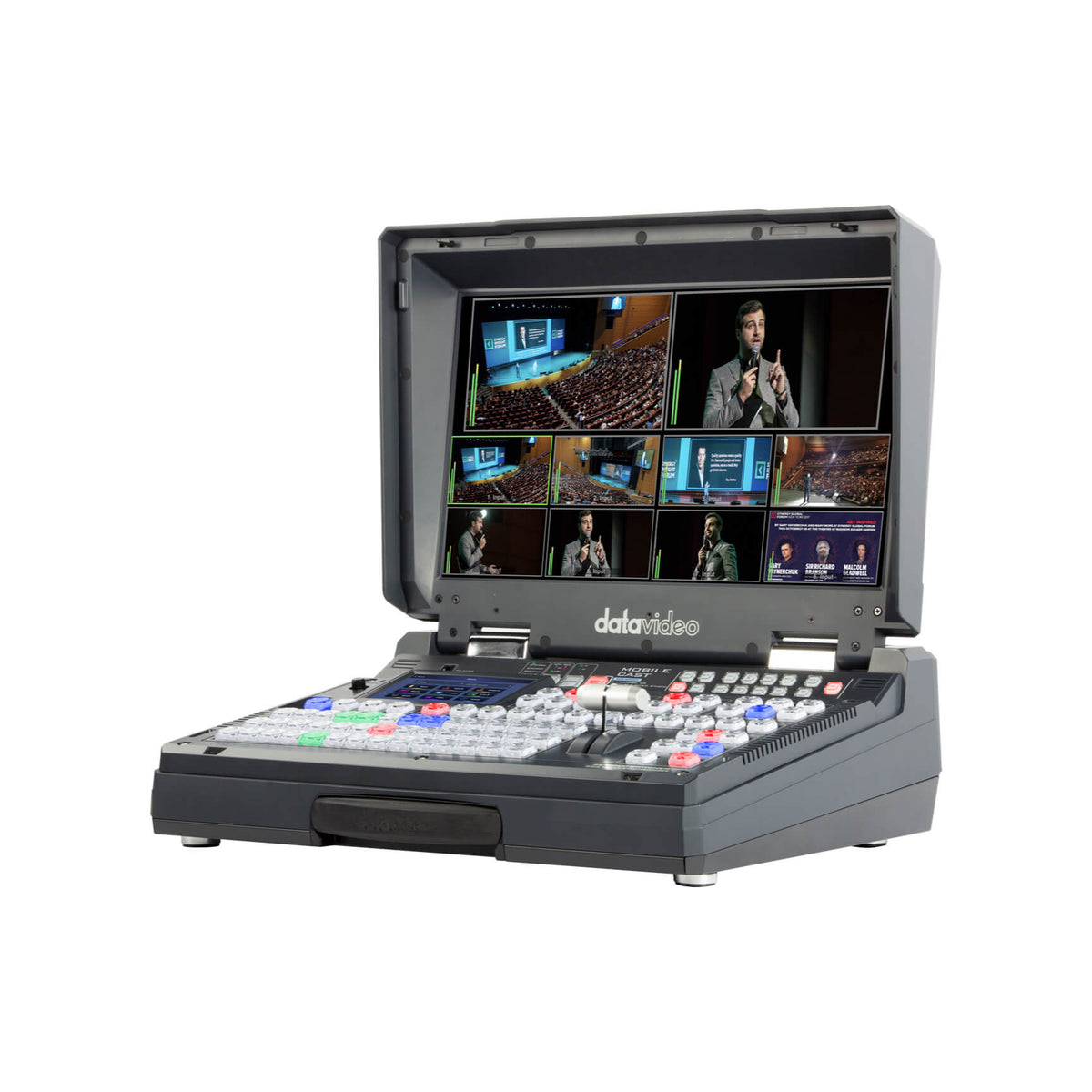

Elevate Your Multimedia Production with a Lightweight 4K Mobile Studio Powerhouse

The Datavideo HS-4000 is a compact, portable mobile studio ideal for broadcasting, conferences, live events, and hybrid activities. It supports up to 4K 60FPS video, accepting inputs from HDMI 2.0 devices and 12G-SDI cameras. It features a 5-inch touchscreen with customizable icons, transition animations, chroma key, and various functions.

With a 17.3-inch UHD 2160p monitor, it offers a multiview display. The HS-4000 includes easy recording and live streaming encoders for simultaneous broadcasting and high-quality MP4 recording with synced audio-video.

This mobile studio blends advanced tech and convenience to fulfill modern multimedia production needs.

All-in-One 4K Production Studio

Datavideo HS-4000 is an all-in-one 4K production studio, it's designed to provide users with a comprehensive solution for producing and broadcasting content in 4K resolution.

The HS-4000 combines features such as video switchers, audio mixers, monitor, recorder, and streaming encoder into a single integrated unit, making it easier for users to create high-quality content without needing to assemble a complex setup from various individual production devices.

Versatile Video Inputs

The HS-4000 can accept video inputs from various sources, including PCs, multimedia players with HDMI 2.0 output, and 12G-SDI cameras. This versatility allows for seamless integration of different devices and sources into the production workflow.

The HS-4000 has 12 video inputs, with 8 of the inputs being selectable for flexibility, as well as variety of video and audio inputs and outputs, 7 outputs with AUX assignment.

Seamless HD to 4K Conversion for Maximum Flexibility

The Datavideo 4000 series switcher offers ultimate versatility in modern production environments, featuring built-in upscaling and downscaling conversion capabilities. Whether your sources are in Full HD or Ultra HD, the HS-4000 ensures seamless interoperability by automatically converting input and output signals between 1080p and 2160p (4K) formats.

This powerful conversion capability enables users to seamlessly mix and match HD and 4K cameras, media players, and other video sources, without worrying about signal compatibility or resolution mismatches. The Datavideo 4000 series switcher intelligently upscales HD inputs to 4K for pristine output quality, while also downscaling 4K sources to HD when needed—perfect for streaming or recording in different resolutions.

Ideal for multi-format productions, the switcher eliminates the need for external converters, simplifying workflow integration. Whether you're broadcasting in 4K, streaming in HD, or recording in both, the 4000 series switcher gives you the flexibility to deliver high-quality content across any platform.

12-Channel Application Built upon an 8 Video Switching Design

Responsive and seamless interface switching between 12G SDI and HDMI 2.0 on four shared channels. By upgrading from 8 channels to a 12 channel machine, it adds greater versatility to your hardware connections and more possibilities to live program production.

Plug-and-Play

There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.

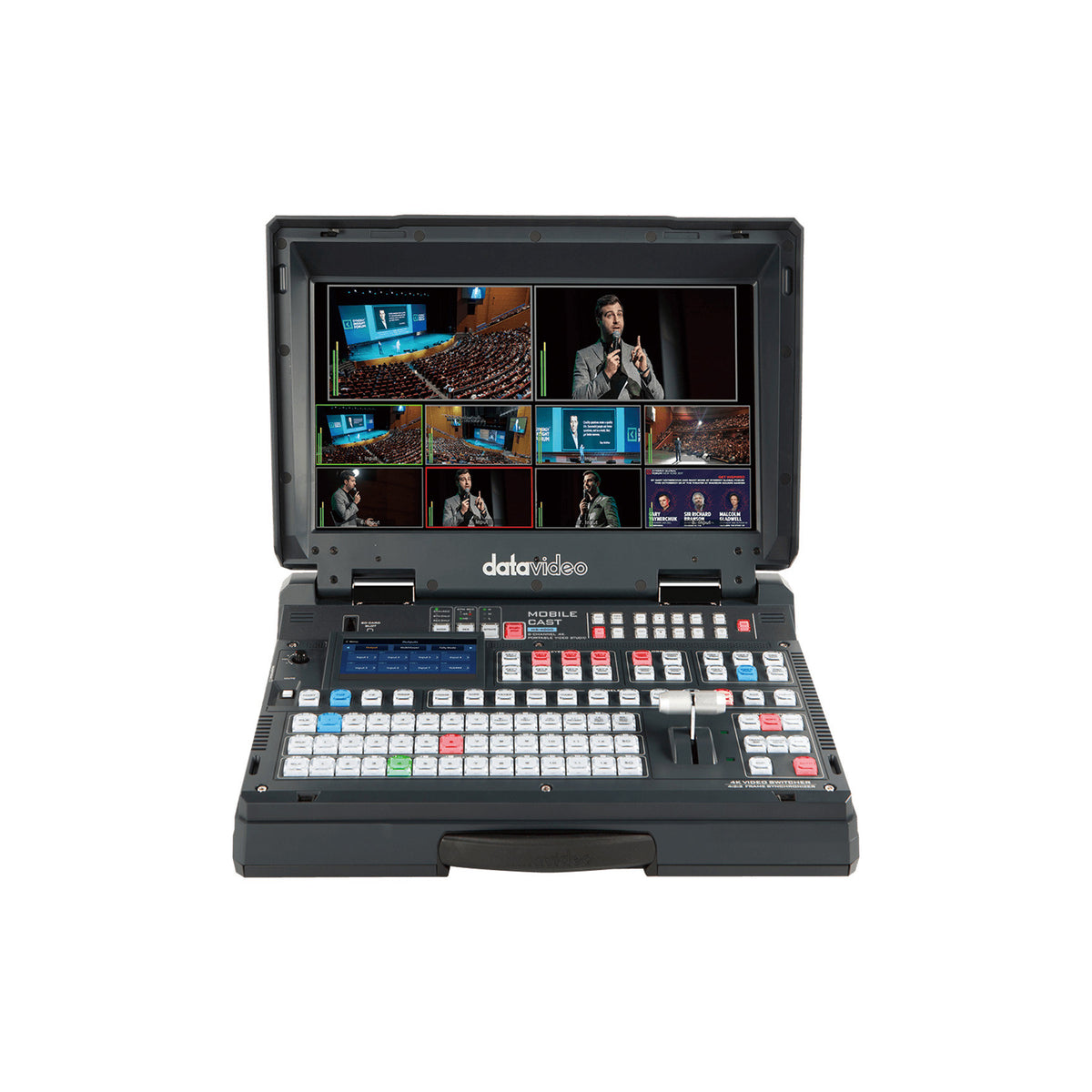

Integrated 4K UHD Monitor

Equipped with a high-quality 17.3-inch 4K UHD monitor, the mobile studio provides a multiview display. This display allows producers and operators to monitor multiple video sources simultaneously, ensuring smooth production execution.

The 4K monitor has four times of resolution than a Full HD monitor, resulting in much sharper and more detailed images.

The increased pixel density of a 4K monitor means that individual pixels are smaller and less noticeable, resulting in sharper text, images, and graphics. The higher resolution of a 4K monitor improves productivity, as you can have multiple windows open side by side without sacrificing legibility or clarity.

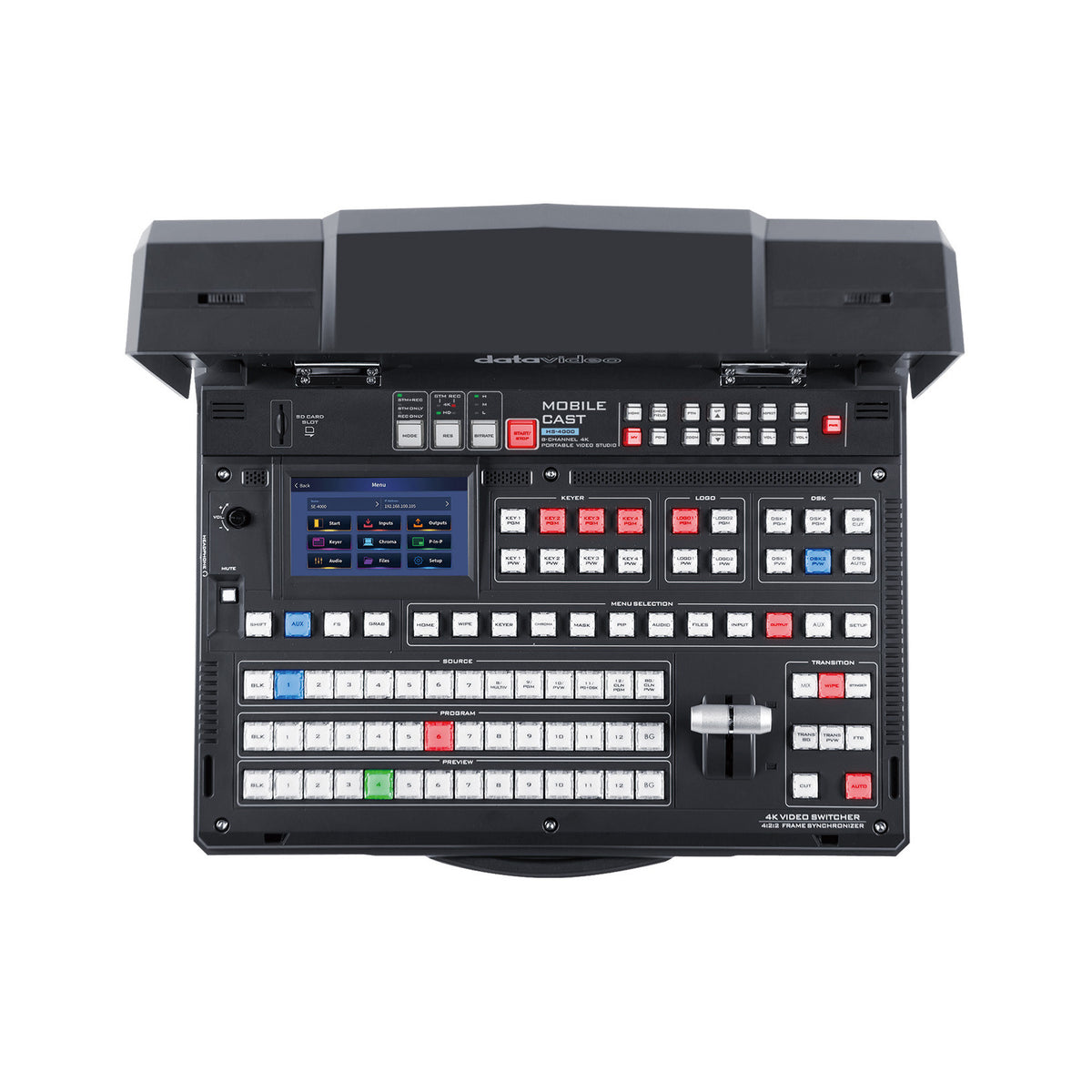

5" Touchscreen Display

With the 5" touchscreen panel built-in, you will not need a laptop or app to assist with your live production.

With many built-in functions, including user memory with customized icon, transition animation set up, chroma key, luma key, DSK, PIP, wipe generator, still stores, and logo insertion; these can all be done on the 5" LCD touchscreen.

Intuitive One-Button-One-Function

The easy-to-use user interface is intuitive so you don't need complicated composite buttons to activate various switching effects including video effects that are usually activated in a number of steps.

They can all be saved in one user memory slot and with the assigned icon, you can easily identify the settings saved therein. Simply tap the slot to activate all saved features.

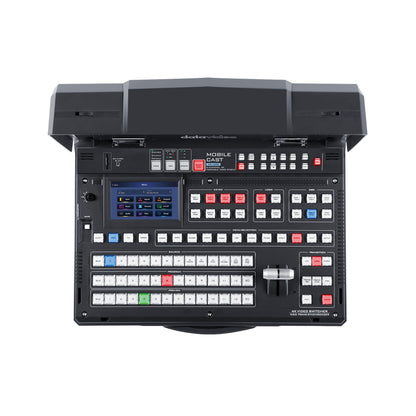

Dedicated Source Selection Buttons

The HS-4000 provides dedicated source selection buttons, allowing operators to switch video sources independently without navigating through menus or using shortcut key combinations. This design minimizes the risk of operational errors during live production, ensuring smoother workflows and enhanced stability.

Pre-saved 10 virtualsets with each having 4 configurable camera angles; save up to 40 virtualsets

In addition to user saved still images, the SE-4000 also provides up to 10 sets of or 40 high quality 4K virtualsets for left, front, right and long shot auxiliary cameras. They are designed for video conferences and interview programs.

Not only that, the user can visit www.datavideovirtualset.com to download more virtualsets. Different themes for various scenarios are available on the website for download. In addition to the built-in virtualsets, you still have 200+ still image slots for saving extra virtualsets on the HS-4000 for video production.

Feel free to download various virtual scenes from Datavideo's proprietary virtualset website (www.datavideovirtualset.com) on which there are countless virtualset themes covering classrooms, TV news report, interview and finance programs, etc.

The virtualsets are created for schools and small to large virtual studios, providing you with a close to real virtual backgrounds and a pleasant experience in virtual program production.

Fully Customizable: User Memory

Save camera and keyer settings in user memory presets. The HS-4000 offers up to 125 memory presets. Use icons to better identify settings saved therein.

You may sometimes need to switch between different chromakey, lumakey and linear key settings because different video shooting environments have different camera angles and amount of light so the keyer settings may vary.

You can save the camera's PTZ settings along with these keyer parameters in the user memory presets which can be accessed with one tap. Once loaded, the program view will be switched instantaneously to another camera image along with the keyer settings and the background image, mimicking video switching with multiple keyers. HS-4000 is a video switcher designed to create a multi-camera virtual studio.

Enhanced Control with RMC-2P

The Datavideo HS-4000 can now connect to the RMC-2P camera controller via DVIP. This integration allows seamless control of cameras, enhancing your video production workflow with precise and efficient operation. Experience greater flexibility and professional control capabilities with the HS-4000 and RMC-2P combination.

Support SRT streaming protocol, no need to worry about unreliable network environment

Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility.

Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently.

It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization.

Specifications

• Model Number: HS-4000
• Video Standard: 4K and HD
• Video Format
• 3840x2160p: 60/59.94/50/30/29.97/25
• 1080p: 60/59.94/50/30/29.97/25
• 1080i: 60/59.94/50
• Input Routable / Crosspoint: Yes

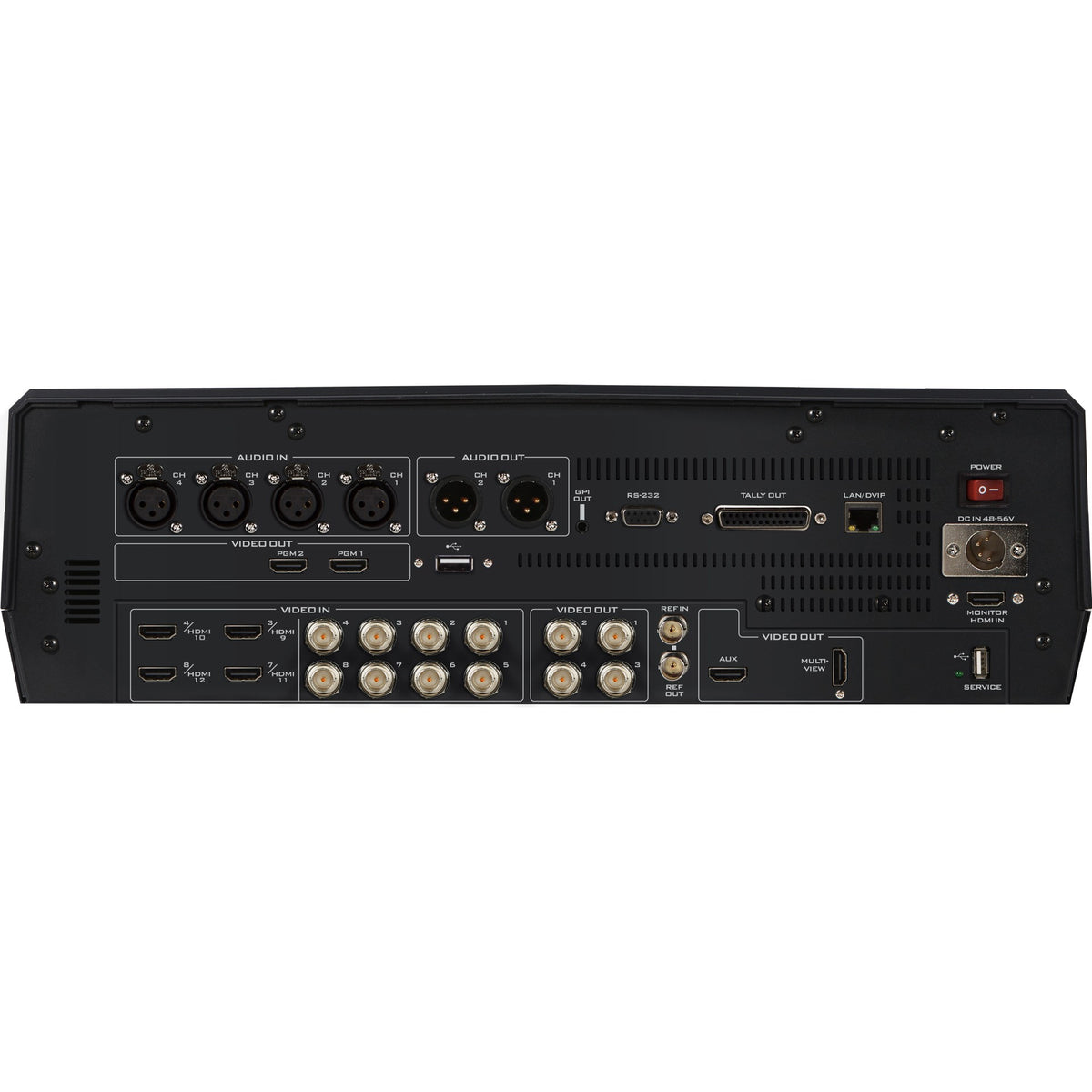

• Video Input
• Total 8 live inputs (select 8 from 12)
• 8 x 12G-SDI
• 4 x HDMI
• Computer Graphic Interface: 4 via HDMI
• Down-converted Output: Yes
• Video Output
• 4 x 12G-SDI / 1 x HDMI
• all assignable :
• Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12
• 2 x HDMI PGM only
• 1 x HDMI Multiview
• Analogue Audio Input: 4x Balanced XLR
• Analogue Audio Output: 2x Balanced XLR
• Digital Embedded Audio Support
• Input 4 channels,
• Output 4 channels
• Audio Delay Calibration: Up to 16 frames
• A+V Switching: Yes
• USK: 4
• DSK: 2, support Lumakey & Linear key (Key / Fill)
• Picture in Picture: 2
• Logo Insertion: 2
• Title Creator: Yes (Coming soon by firmware update)
• Built-in Audio Mixer: Yes
• Built-in Monitor Display: 17.3” 4K TFT LED backlit, 3840x2160 pix
• Built-in Intercom & Tally: ----
• Streaming
• Streaming
• H.264: MAX RES: HD@60 420 8bit codec
• H.265: MAX RES: 4K@60 420 8bit codec
• Streaming Audio Encode
• AAC 2CH,
• 16bit 48KHz 192Kbps
• Streaming Protocol
• RTMP
• SRT
• Streaming Control: Web browser UI for configuration and control Socket commands
• Recording File System: FAT32, exFAT
• Recording File Format: MP4 (H.265+ AAC) or (H.264+ AAC)
• Streaming & Recording Setting Control: Web UI for system configuration and control
• Others
• Special Features
• 5" Touch Panel
• 17.3" 4K Monitor
• 4 Chroma-Key Virtual Studio
• Streaming encoder and recorder
• Dimension (LxWxH): 455 x 370 x 134 mm
• Weight: 9.2 kg, Reinforce Plastic Case
• Power: DC 56V, 4.46A
• Operating Temp. Range: 0~40 °C
• What's in the Box
• 1 x HS-4000 Unit
• 1 x AD Switch DC 48~56V with AC Cord
