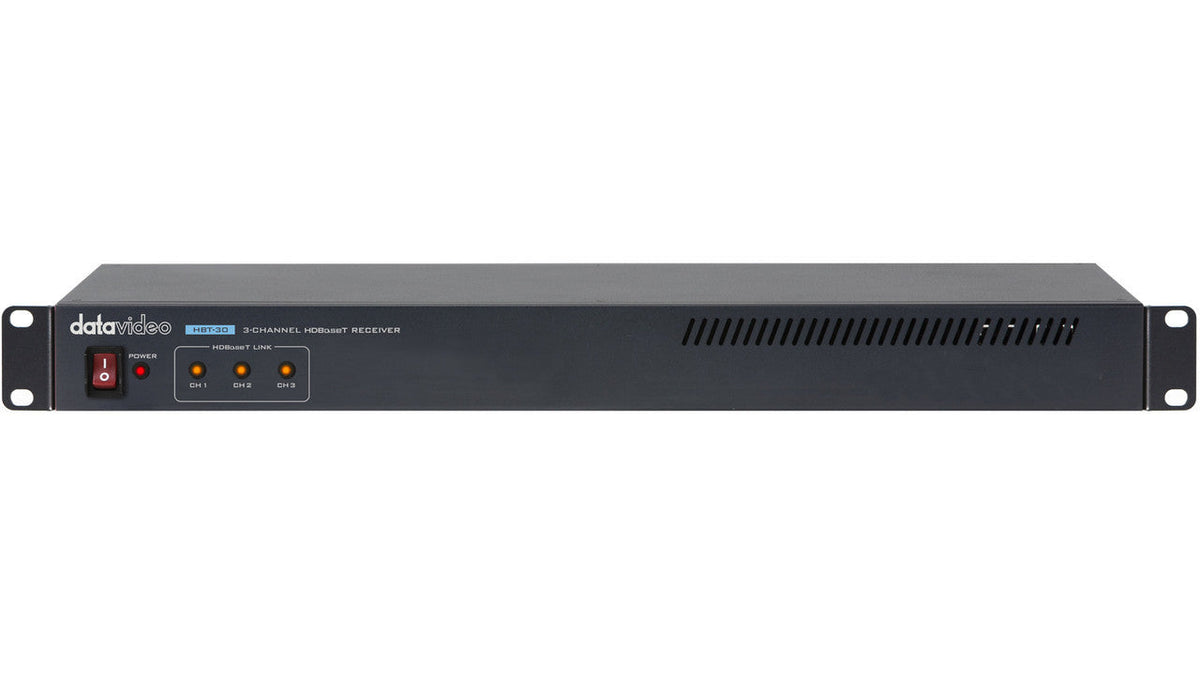

Datavideo HBT-30 3 channel long range 4K60p HDBaseT Receiver. Comes with 56v power supply. Supports up to 100m. Works with HBT-15 HDBaseT Transmitter.
Datavideo HBT-30 3 channel long range 4K60p HDBaseT Receiver. Comes with 56v power supply. Supports up to 100m. Works with HBT-15 HDBaseT Transmitter.
SKU: HBT-30
Available options
Description
Datavideo HBT-30 3 channel long range 4K60p HDBaseT Receiver. Comes with 56v power supply. Supports up to 100m. Works with HBT-15 HDBaseT Transmitter.
An essential link to connect all your equipment for your 4K live production
The HBT-30 supplies power, Ultra HD 4K50/60 video signal, and camera control up to 3 devices up to 100 meters distance. It simultaneously outputs HDMI, RS-422 and IP control signals.
Seamlessly add HDBaseT to your 4K HDMI Workflow
HBT-30 can power the PTZ video cameras via PoE, transmit signals over a single ethernet cable to and from the camera and can be used to remotely control various camera parameters such as iris, presets and etc. Most importantly, it can output HDMI signal to your switcher.
Integrate camera control, switcher and recorder operations
HBT-30 transmits HDMI signal (up to Ultra HD 4K 50/60 ) as well as camera control. With the HBT-30, the system can be integrated as a camera controller, video switcher, and ISO recorder.
Perfect solution for your HDMI workflow
Remote control of camera functions via RS-422 or DVIP with HDMI video transmission (up to Ultra HD 4K 50/60 ) up to 3 cameras simultaneously up to 100 meter.
Control your camera from 100 meter away
Control up to three HDBaseT cameras from a single receiver. With HBT-30, you no longer need individual HDBaseT receiver boxes per camera.
What is HDBaseT ?
HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!
Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflow benefits that HDBaseT technology offers.
Specifications
Model Number
- HBT-30
Video/Audio Input
- HDBaseT (RJ-45) x 3
Video/Audio Output
- HDMI 2.0 x 3
Supported Video Format
- 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 525i: 59.94 NTSC
- 625i: 50 PAL
Video Process
- 4K60 4:4:4, 8bit
4K60 4:2:2 10bit
4K60 4:2:0 10bit
Video bandwidth
- Single-link 594MHz [18Gbps]

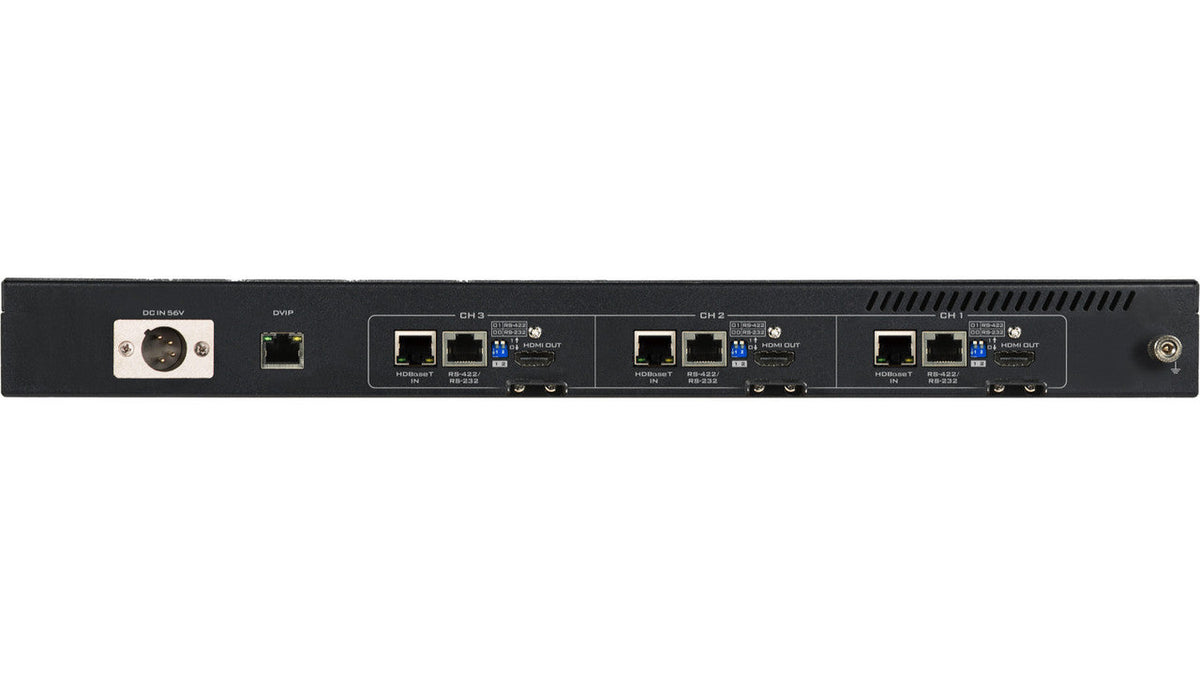

DVIP
- RJ-45 x1(input)
RS-422/ RS-232
- RJ-45 x 3 (RS-232/RS-422)
Power
- DC IN: DC 56V
PoE Output
- 65W per channel
HDBaseT Distance
- 1080p@60 up to 100M by CAT. 6A cable
- 4K@60 up to 100M by CAT. 6A cable
HDMI compliance
- HDMI Deep Color & 4K@60
HDCP compliance
- HDCP 2.2/1.4 (Bypass)
Audio support
- Surround Sound [up to 7.1 Channel) or Stereo Digital Audio
Dimension (LxWxH)
- 440 x 125 x 44.5 mm
Weight
- 1.8Kg
Operating Temp. Range
- 0~40 °C
What's in the Box
- 1 x HBT-30 main unit
- 1 x AC cord
- 1 x DC 56V power adaptor
