Datavideo HBT-15 Long range 4K60p HDBaseT Transmitter. Transmits up to 100m. Works with HBT-16 HDBaseT Receiver.

Datavideo HBT-15 Long range 4K60p HDBaseT Transmitter. Transmits up to 100m. Works with HBT-16 HDBaseT Receiver.

Long distance 4K HDBaseT Transmitter that carries 4K video, control, tally, and power over one ethernet cable

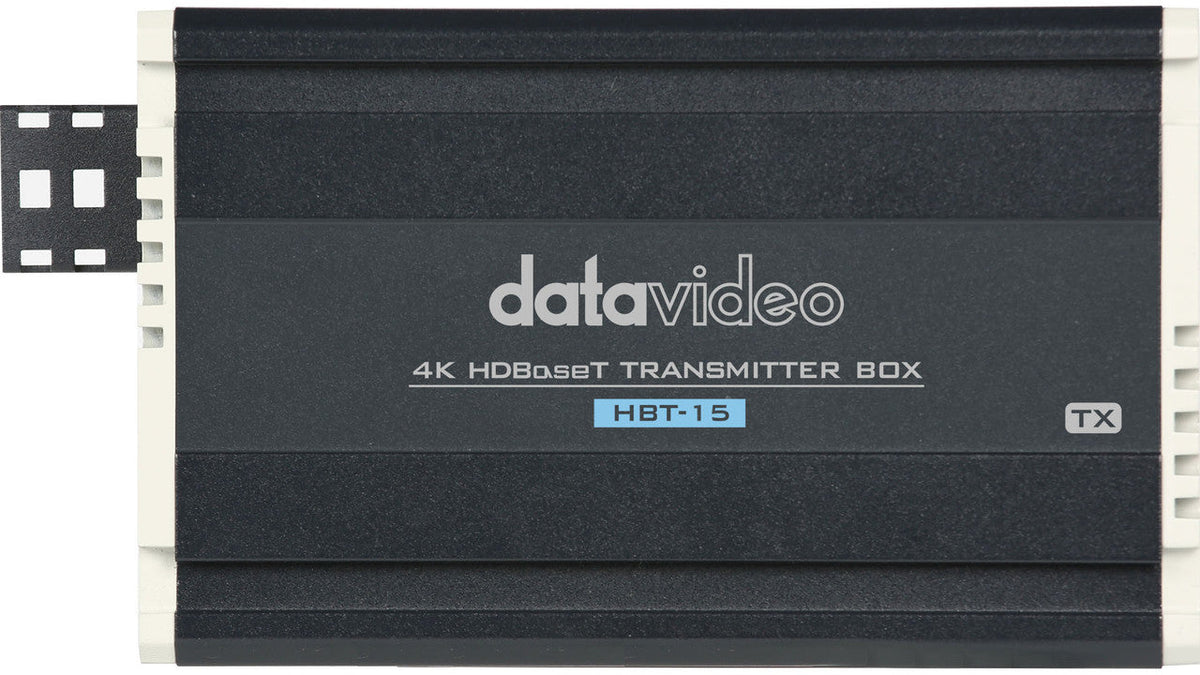

The HBT-15 is an HDBaseT Transmitter designed to interface between transmitting and receiving HDBaseT devices. The HBT-15 Transmitter transmits up to 4K 2160P image quality video up to 100m.

Transmits HDMI signals up to 100m at 2160p using Cat 6A or above cable.

The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

HDMI Deep Color supports better color depths

HDMI Deep Color supports better color depths. To giving your display device a great image.

Specifications

Model Number

• HBT-15

Video/Audio Input

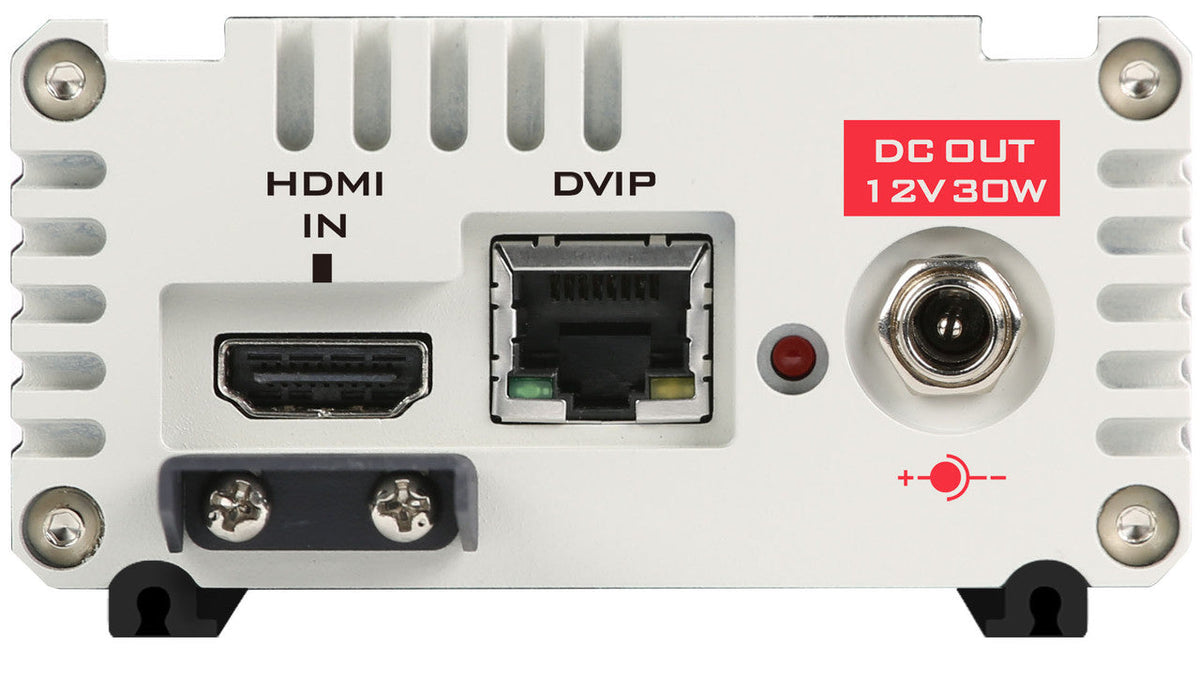

• HDMI 2.0 x1

Video/Audio Output

• HDBaseT RJ-45 x1

Supported Video Format

• 2160p: 60/59.94/50/30/29.97/25

• 1080p: 60/59.94/50/30/29.97/25

• 1080i: 60/59.94/50

• 720p: 60/59.94/50

• 480i: 59.94

• 576i: 50

Video Process

• 4K2K60 4:4:4 8bits

• 4K2K60 4:2:0 10bits

Video bandwidth

• Single-link 600MHz [18Gbps]

DVIP

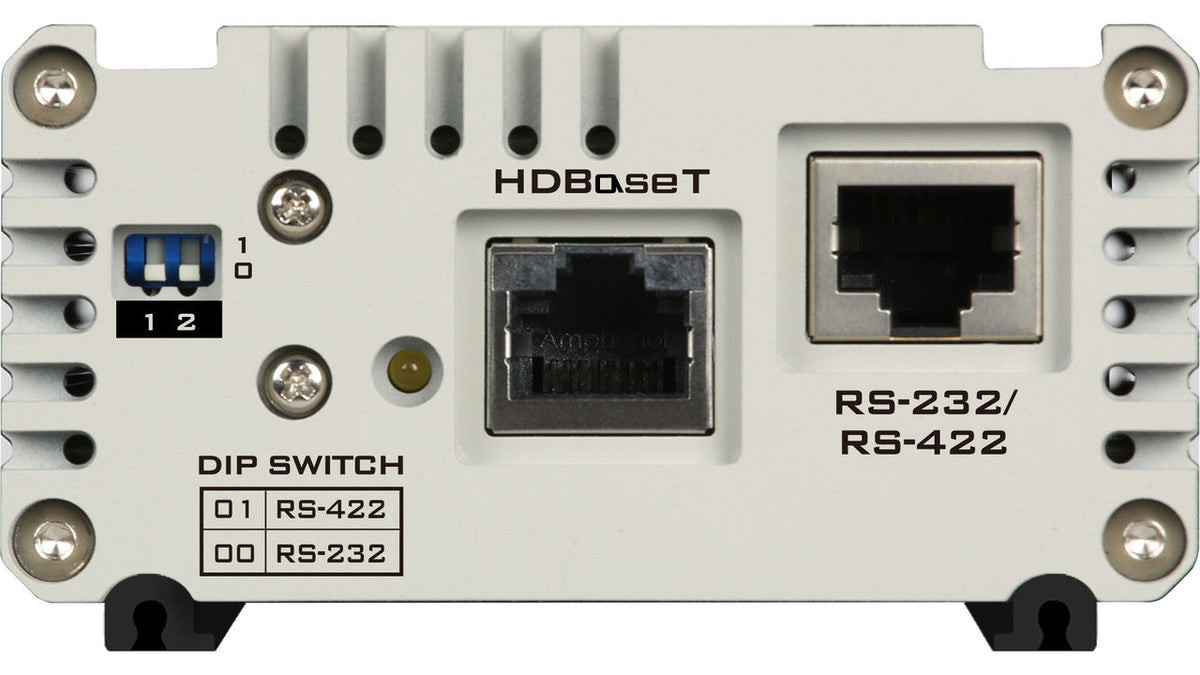

• RJ-45 x1(output)

RS-422/ RS-232

• RJ-45 x1

Power

• DC Out: 12V 30W

HDBaseT Distance

• 2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)

HDMI compliance

• HDMI 2.0

HDCP compliance

• HDCP 2.2/1.4 (Bypass)

Audio support

• Surround sound (up to 7.1ch)

Dimension (LxWxH)

• 157 x 85 x 46mm

Weight

• 474 g

Operating Temp. Range

• 0~40 °C

What's in the Box

• 1 x HBT-15 main unit

• 1 x DC to DC cable
