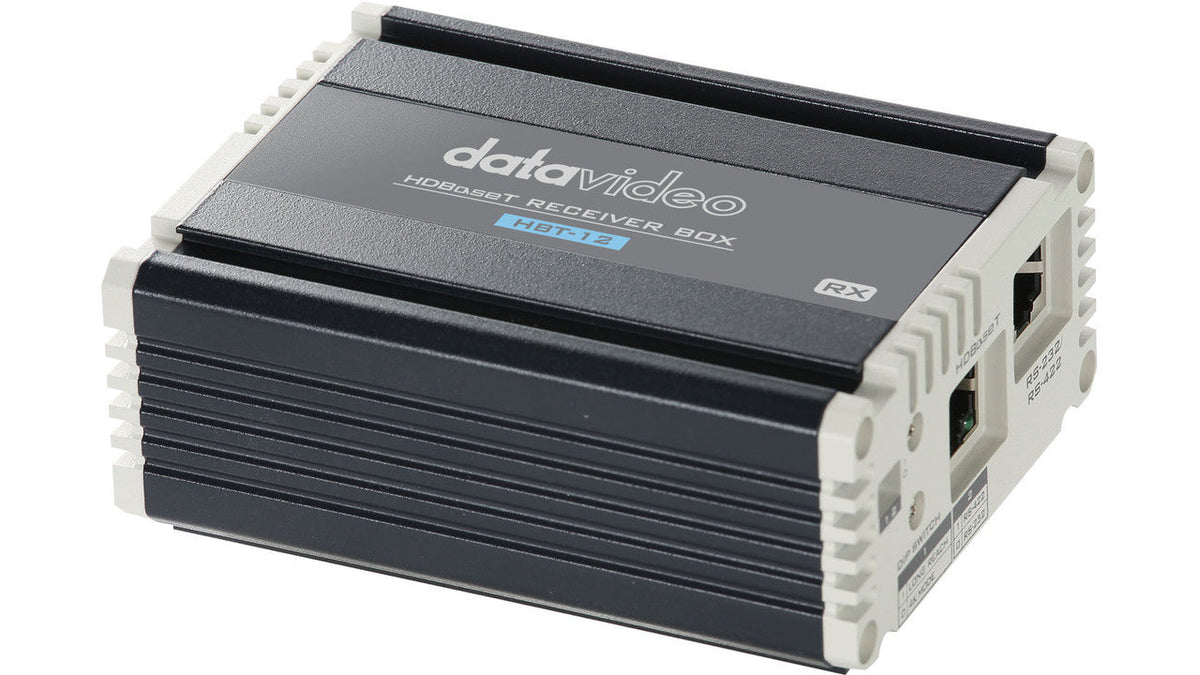

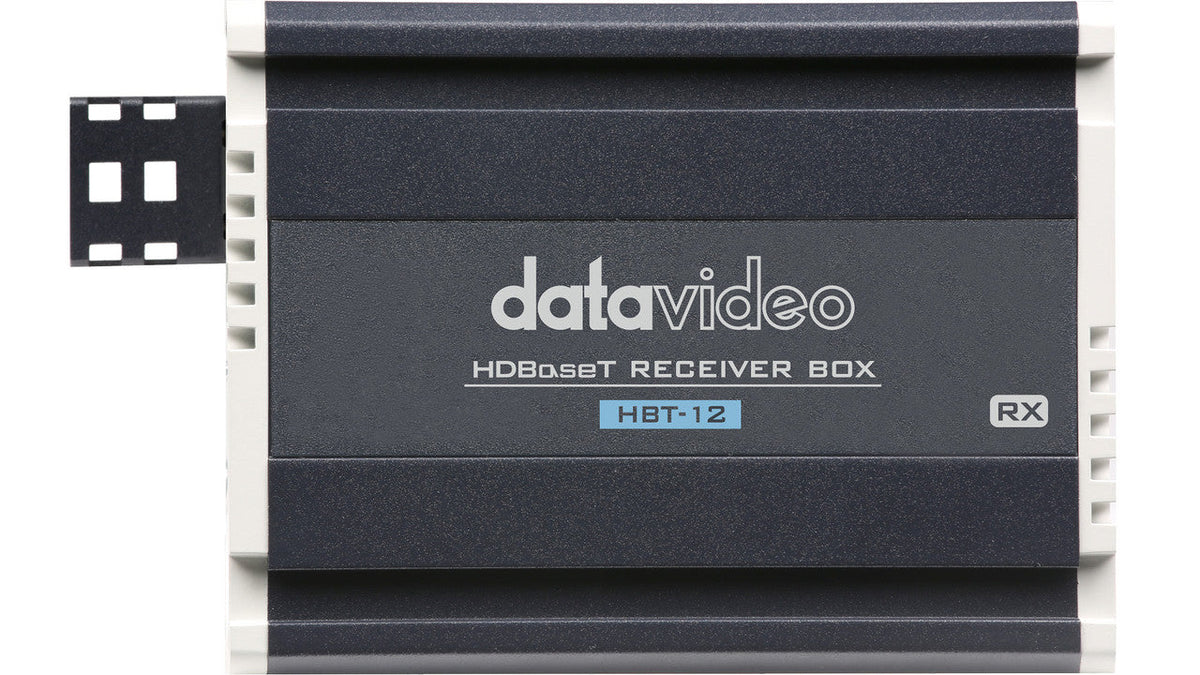

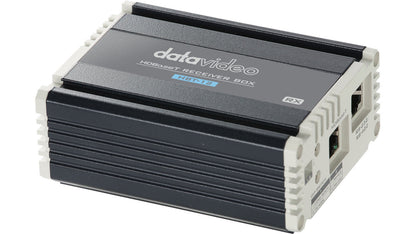

Datavideo HBT-12 4K30p HDBaseT Receiver. Comes with 56v power supply. Supports up to 100m. Works with HBT-5 and PTR-10T.

Datavideo HBT-12 4K30p HDBaseT Receiver. Comes with 56v power supply. Supports up to 100m. Works with HBT-5 and PTR-10T.

Long distance 4K solution and carry everything in one ethernet cable

The HBT-12 is an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.

With the 56V power connected to one end of the HBT-12 HDBaseT receiver

The HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++).

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.

HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.

Specifications:

Model Number

• HBT-12

Video/Audio Input

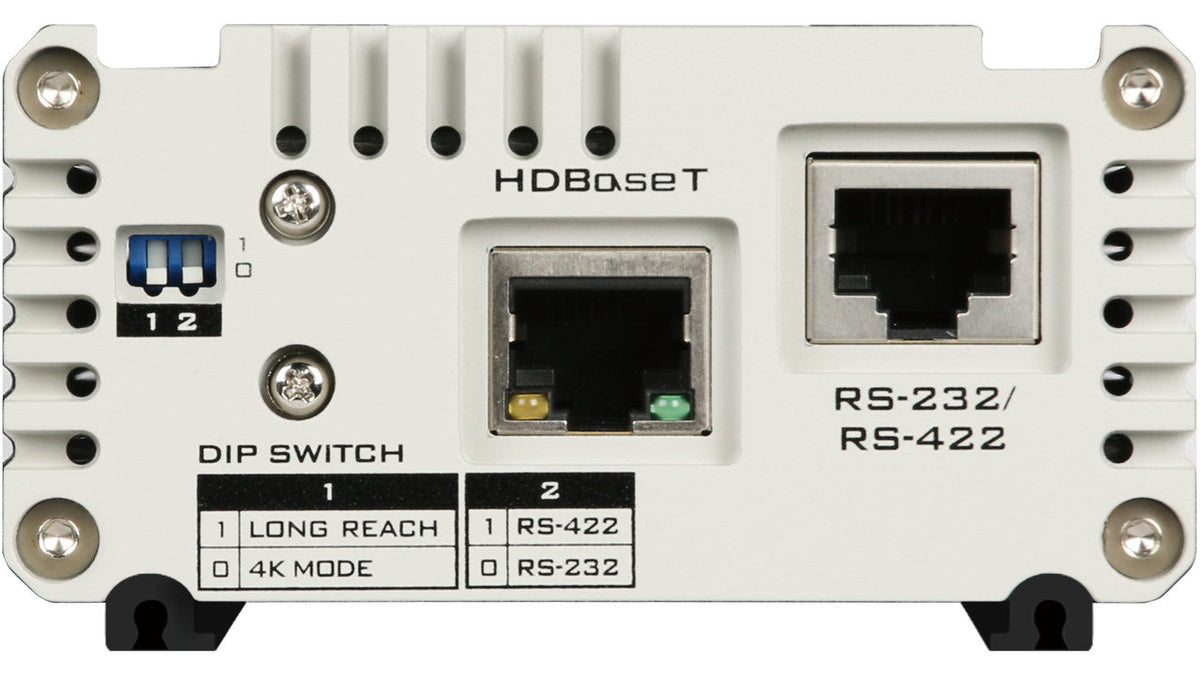

• HDBaseT RJ-45 x1

Video/Audio Output

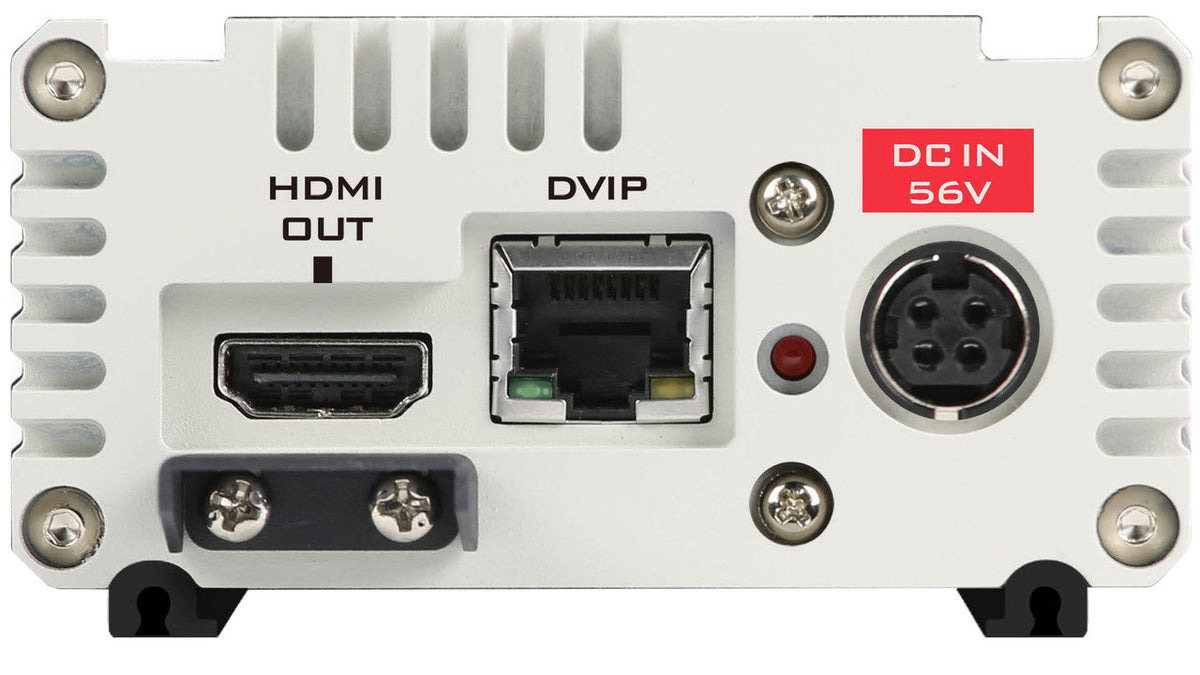

• HDMI x1

Supported Video Format

• 3840x2160p: 30/29.97/25/24/23.98

• 1080p: 60/59.94/50/30/29.97/25/24/23.98

• 1080i: 60/59.94/50, 720p: 60/59.94/50

DVIP

• RJ-45 x1(input)

RS-422/ RS-232

• RJ-45 x1(input)

Power

• DC IN: DC 56V

PoE Output

• 65W

HDBaseT Distance

• 1080p@60 100m by CAT.7 cable

• 4K2K@30 70m by CAT.7 cable

 Dimension (LxWxH)

• 132 x 85 x 45 mm

Weight

• 400 g

Operating Temp. Range

• 0~40 °C

What's in the Box

• 1 x HBT-12 main uni
  1 x AC cord
  1 x DC 56V power adaptor
