Description

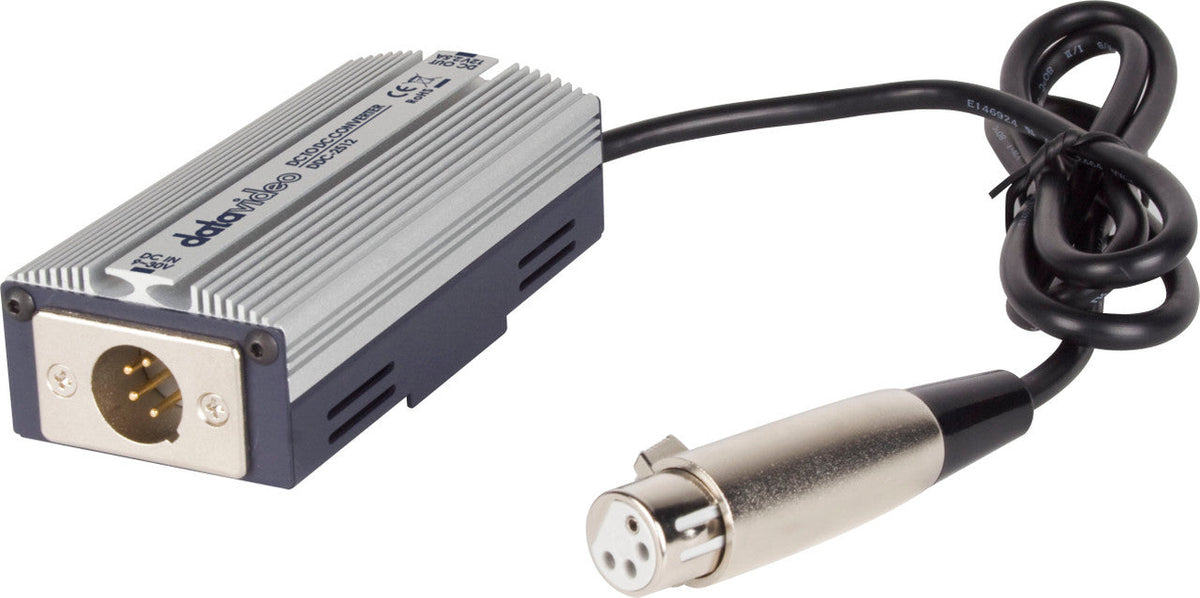

Datavideo DDC-2512 DC voltage regulator
The Datavideo DDC-2512 DC to 12VDC, 2.5A Converter supplies power to third-party cameras or AV equipment. It is designed to be used with the Datavideo PD-3 Power Distribution unit and CB-23 all-in-one cable.
It automatically accepts input voltages between 9 and 30VDC to provide a regulated 12VDC output. The unit can allow for 4-pin XLR type input connections and has a 4-pin XLR type DC output connection.
· Supplies power to third-party cameras or AV equipment
· Designed to be used with the Datavideo PD-3 Power Distribution unit and CB-23 all-in-one cable
· Automatically accepts input voltages between 9 and 30VDC to provide regulated 12VDC output
Specifications
|
Voltage Range
|
Input: 9 to 30 VDC
|
|
Efficiency
|
Input: Up to 85% (typical)
|
|
DC Voltage
|
Output: 12 V
|
|
Voltage Tolerance
|
Output: ±3%
|
|
Rated Current
|
Output: 2.5 A
|
|
Current
|
Output: 0 to 2.5 A
|
|
Rated Power
|
Output: 300 W
|
|
Ripple & Noise (max)
|
Output: <400 mV (maximum)
|
