Description

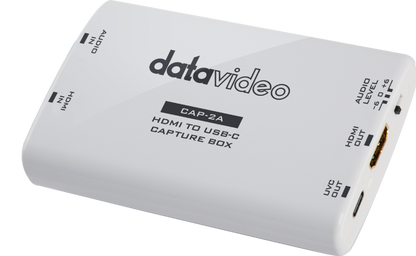

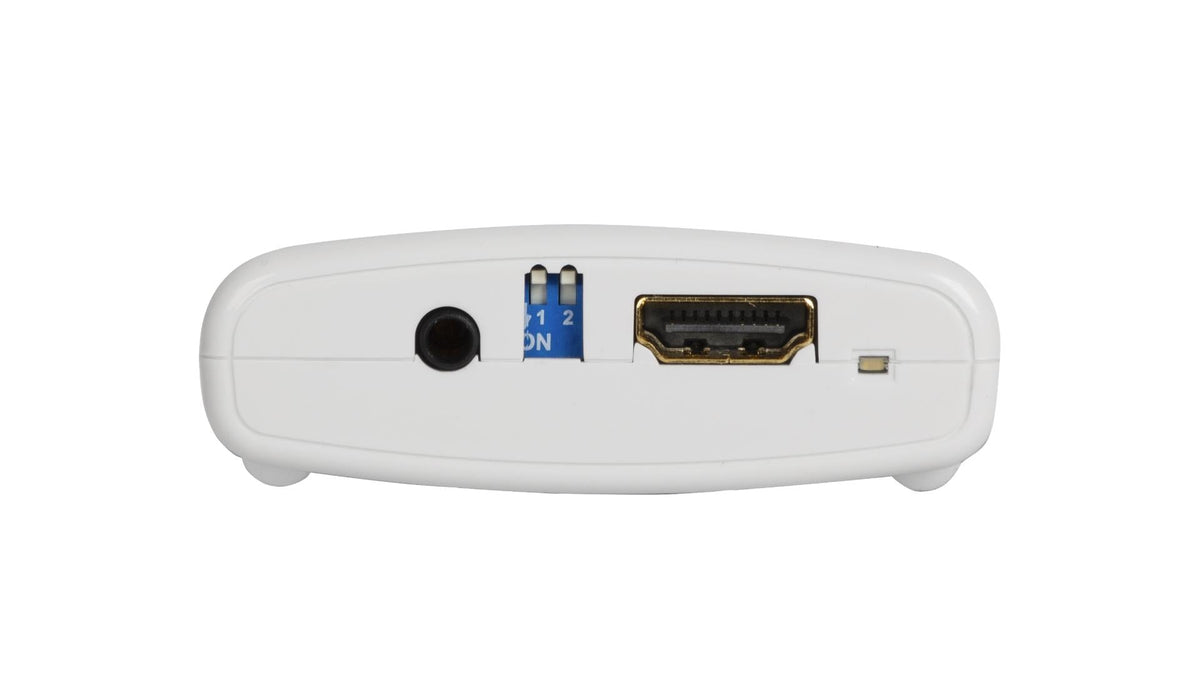

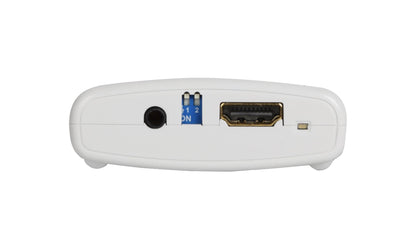

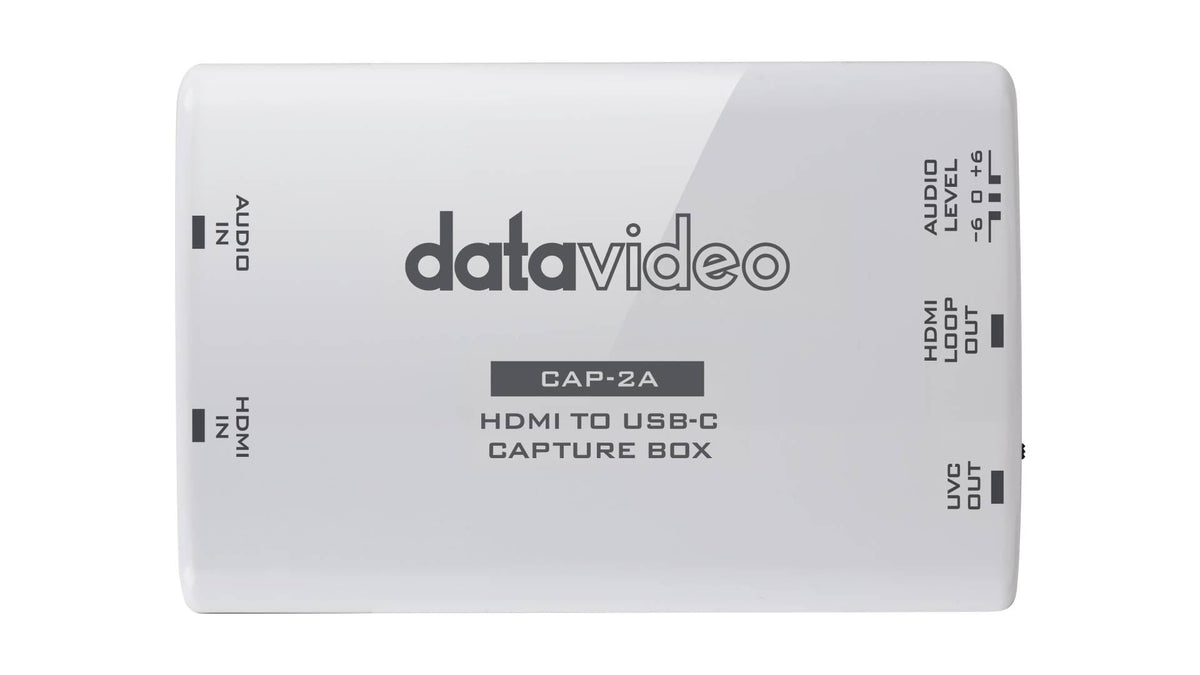

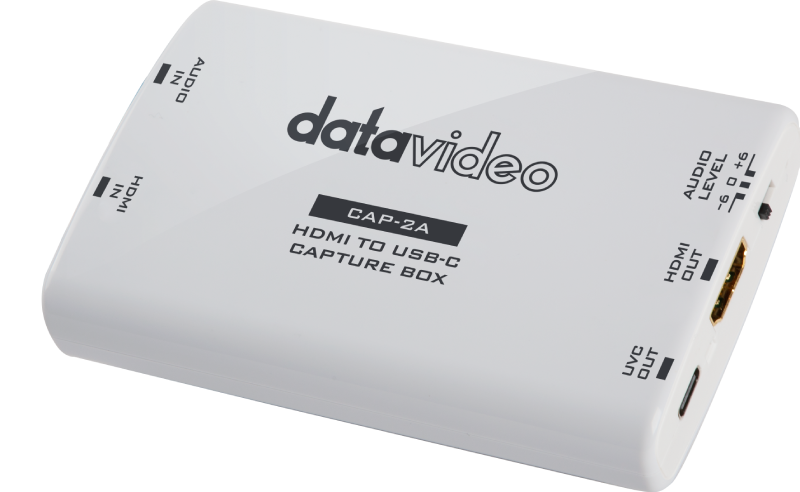

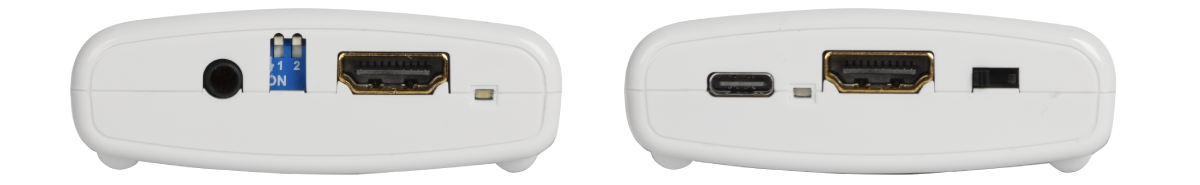

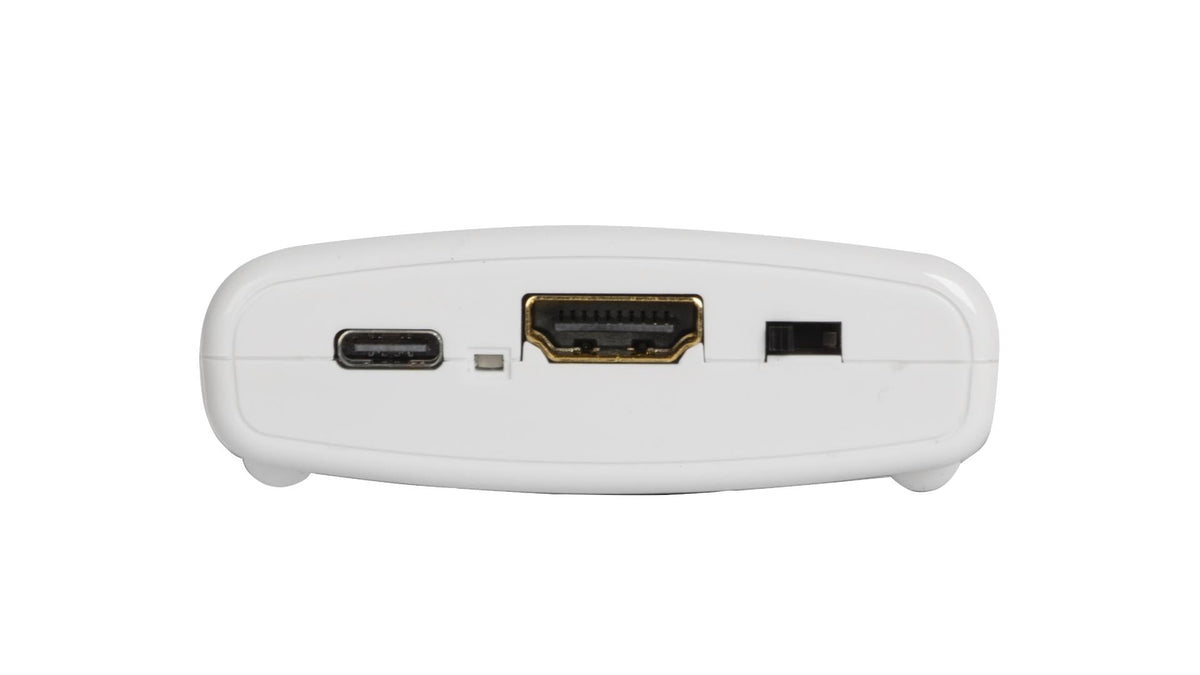

Datavideo CAP-2A HDMI to USB 3.0 capture box.
The Datavideo CAP-2A is a 4K HDMI-to-USB-C capture box that converts an HDMI video source into a UVC-compatible webcam signal for computers. It supports capture resolutions up to 4K UHD 30p and Full HD 120p, while simultaneously providing a 4K60 HDMI loop-through output for monitoring or recording. The device connects via USB-C 3.2 and works with popular applications such as OBS, Zoom, Teams, Google Meet, and VLC without requiring drivers.
Features:
- 4K HDMI video capture
- USB-C 3.2 connectivity
- HDMI loop-through monitoring
- UVC plug-and-play operation
- Supports OBS, Zoom, Teams, Google Meet
- Captures up to UHD 4K30
- Supports Full HD 1080p120
- External analog audio input
- Mixes HDMI and line-level audio
- No driver installation required
- Firmware upgrades via USB
Specs:
Product Type: HDMI to USB-C Capture Device
Video Input: 1 x HDMI
Video Outputs: 1 x USB-C 3.2, 1 x HDMI Loop Through
Capture Resolution: Up to 3840 x 2160p30, Up to 1920 x 1080p120
HDMI Loop Through: Up to 3840 x 2160p60
USB Interface: USB-C 3.2 Gen 1
USB Bandwidth: Up to 5 Gbps
Audio Inputs: HDMI Embedded Audio (2-Channel), 3.5 mm Stereo Line Input
Audio Output: Up to 24-Bit PCM, 48 kHz
Capture Formats: RGB, YUY2, NV12, I420, P010, MJPEG
Operating Systems: Windows, macOS, Linux
