Datavideo AD-10 Audio Delay Box to synchronize video and audio with microphone input. It supports 1 channel. Delay time is from 0~400 ms.

Datavideo AD-10 Audio Delay Box to synchronize video and audio with microphone input. It supports 1 channel. Delay time is from 0~400 ms.

Easy-to-use design

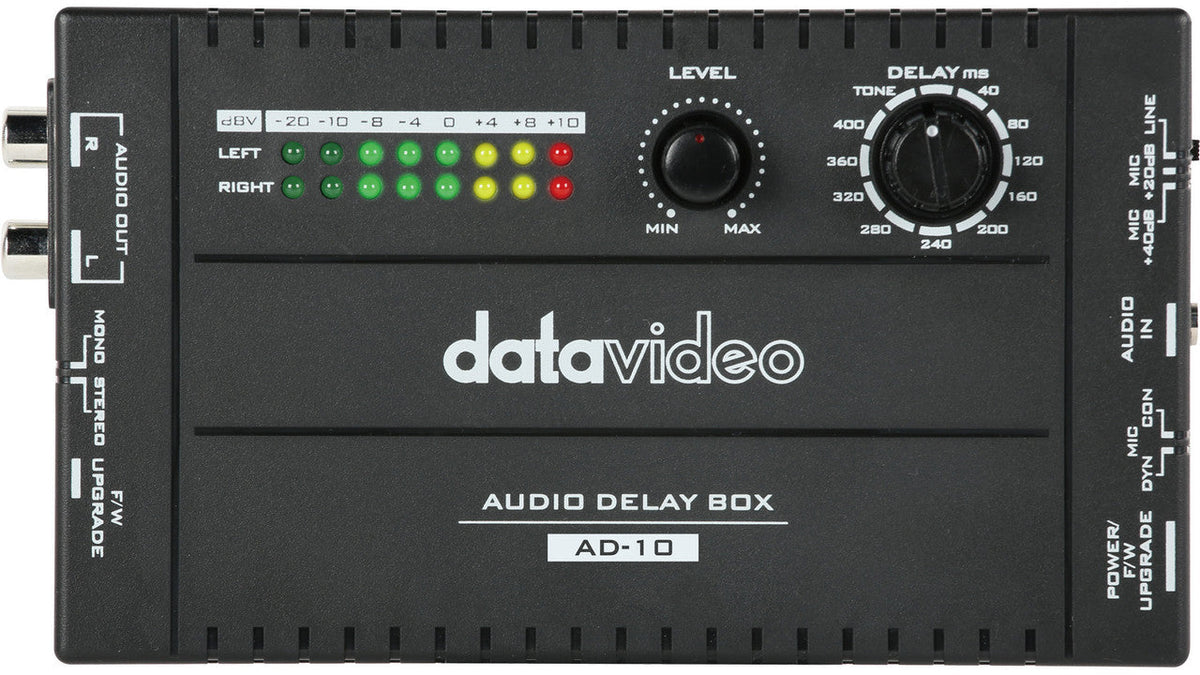

Easy to control with clear LED indicators. Compact and lightweight, suitable for integration into any workflow.

Delay up to 400ms

Up to 400ms of sound delay range with easy to adjust knob design, synchronize video and sound with precision.

Power by external USB power supply

Convenient power supply available anywhere, make your work process smoother.

Full range of input options to meet a variety of needs

Switchable for Microphone input or Audio Line input, and switchable Condenser / Dynamic Microphone. Meet a wide range of microphone input requirements.

Compatible outputs

Switchable mono/stereo output. Stereo RCA output connectors for wide compatibility.

Specifications

Model Number

• AD-10

Audio Input

• 1 x 3.5mm Jack Socket

• ( Tip: Mic/Line (Left)、Ring: Mic/Line (Right)、Sleeve: GND)

• 16K ohms, MAX Line input Level: +10dBV

Audio Output

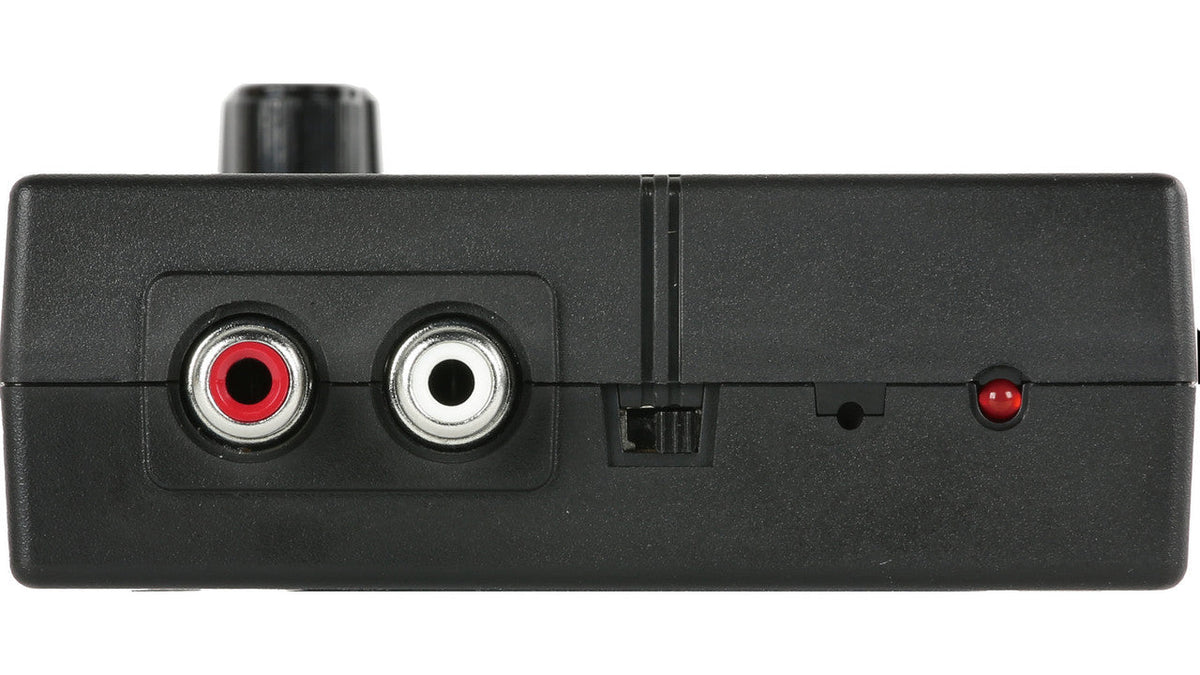

• 2 x unbalanced stereo audio, RCA sockets 600 ohms, MAX=+10dBV

Audio Indicator

• 2 Rows (Left / Right)

Audio Delay

• Up to 400ms

Audio Sample Rates

48 KHz

Special Feature

• Switchable for Microphone input or Audio Line input

• Switchable Condenser / Dynamic Microphone

• Stereo RCA output connectors for wide compatibility

Chassis

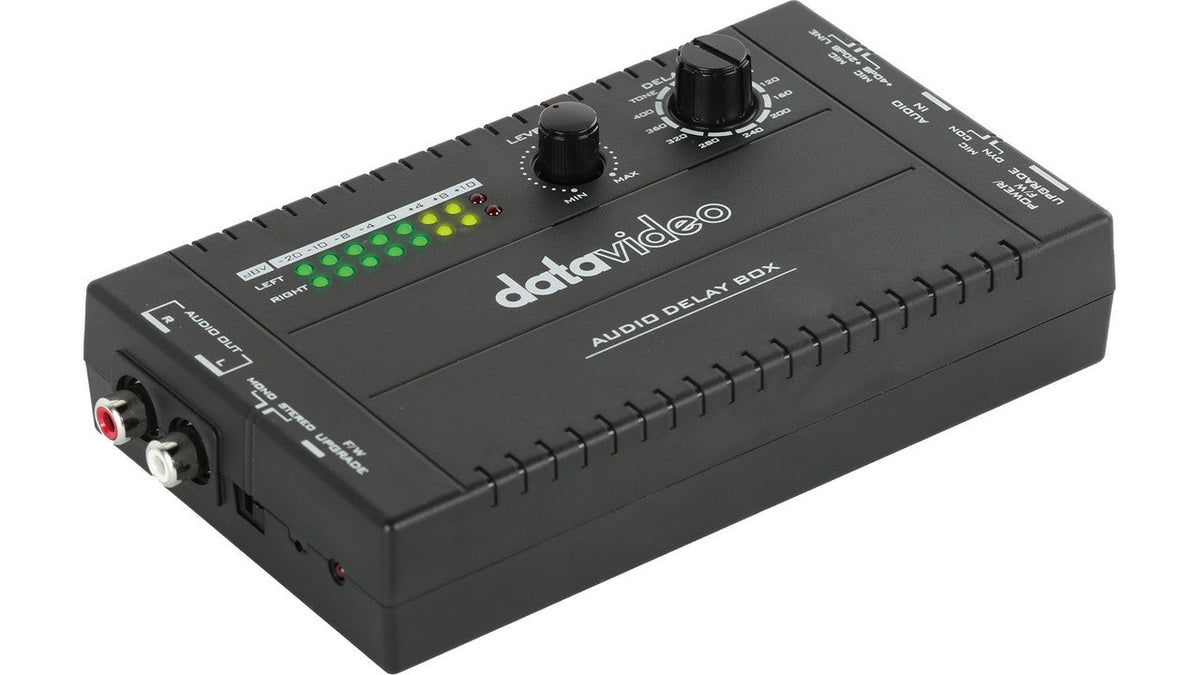

• Compact and lightweight design

Power

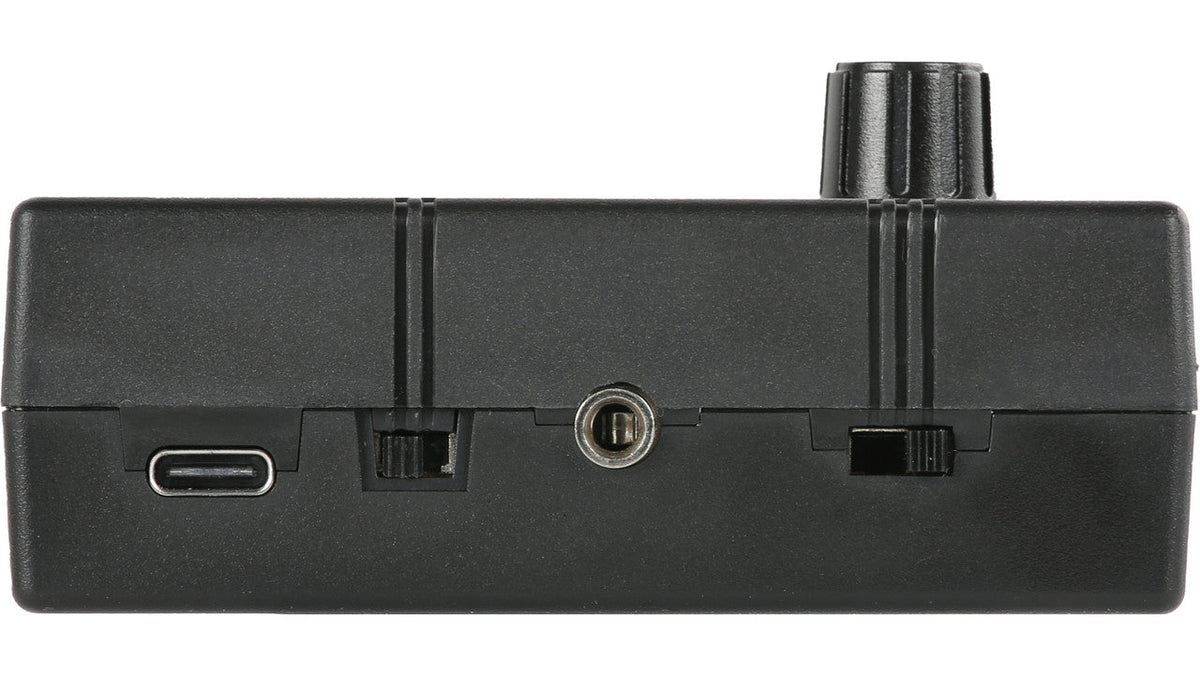

• USB Type C (5V/1A) - Not included with the product. A generic USB-C to USB cable can be used to power the unit.

Dimension (LxWxH)

• 151 x 88.5 x 30.7 mm

Weight

• 0.18 kg

Operating Temp. Range

• 0~40 °C

What's in the Box

• 1 x AD-10 product

• 1 x RCA to 3.5mm Cable
