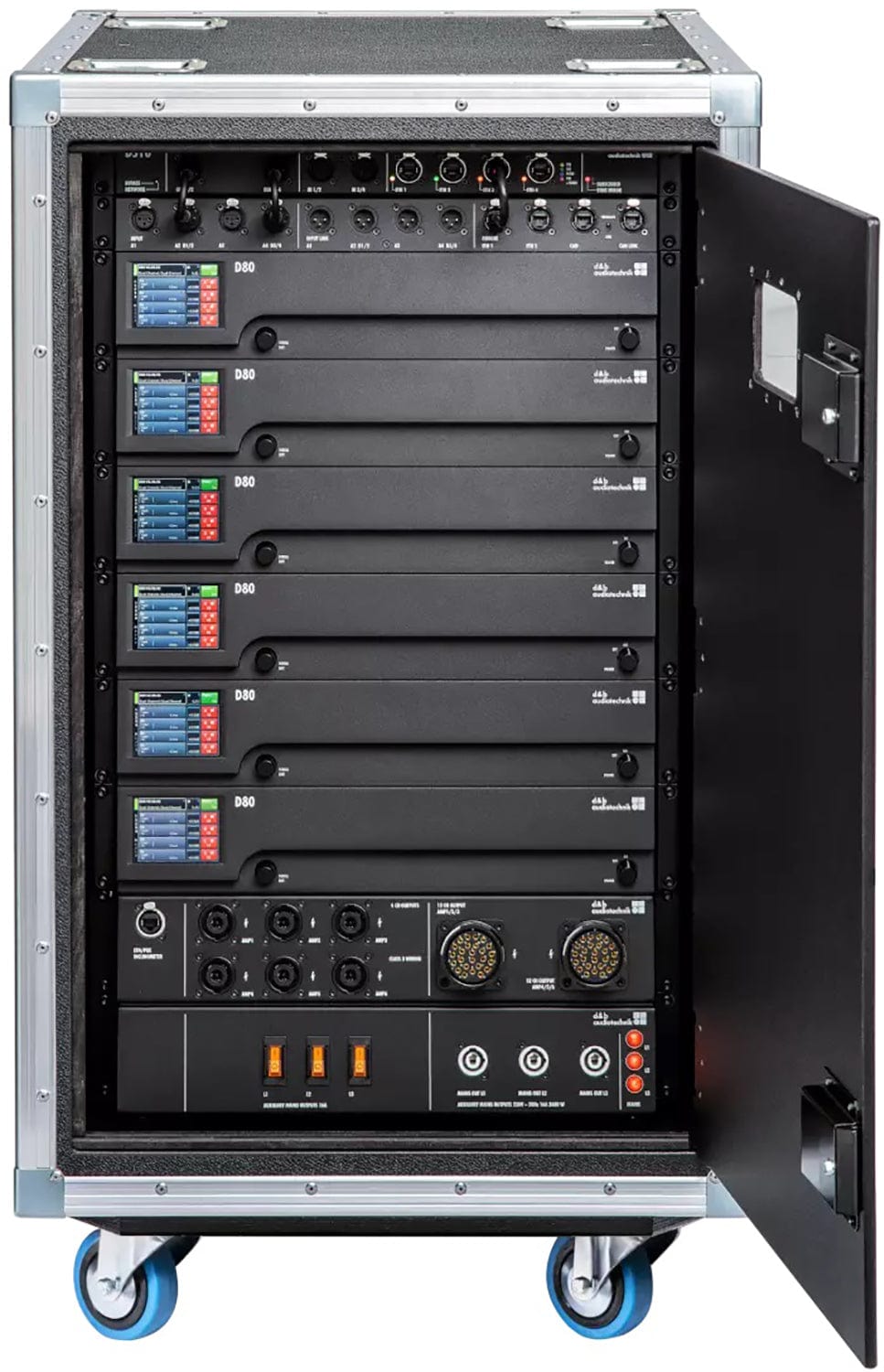

D&B Audiotechnik Z5576.551 6x D80 Touring Rack - NEMA Mains Panel / Audio Network Bridge / Amplifier

The d&b Z5576.050 D80 Touring rack assembly NEMA is intended for large scale mobile sound reinforcement applications. It is designed as a closed and prewired 18 RU system rack, providing mains power distribution and connector interfaces for 6 x D80 amplifiers.

For this purpose, the touring rack is equipped with a 2 x 30 A NEMA mains power distribution device (Z5577.001) as well as a loudspeaker connector panel (Z5578).

In addition the Z5578 loudspeaker connector panel incorporates a POE (Power Over Ethernet) enabled etherCON® (RJ 45) connector for the direct connection of an inclinometer.

Also incorporated is an I/O panel (Z5338), which serves as a connector interface for both analog and digital audio signals as well as four network connectors for either Ethernet or CAN-Bus remote capabilities.

In addition, a d&b DS10 Audio Network Bridge (Z4010) is included to allow direct connection to the Dante audio network.

Specifications:

• Dimensions and weight:
  • Height x width x depth: 1060 x 600 x 780 mm (41.73 x 23.6 x 30.7")
  • Total weight (incl. all amps): 210 kg / 463 lb
