D&B Audiotechnik Z2860.500 D90 Amplifier
The D&B Audiotechnik Z2860.500 D90 Amplifier delivers unparalleled sound quality and performance, increased system efficiency and power-saving features which place the D90 at the forefront of advanced amplifier technology. As well as providing maximum loudspeaker performance, it maintains lower internal temperatures at the highest output, ensuring long and reliable operation. By incorporating MILAN networking technology, its robust design allows seamless configuration for redundant system setups for audio signal transport, complemented by fallback capabilities for all inputs and device communication.
Features:
- Maximum output power
- 4 x 5400/2700 W into 4/8 Ω
- Maximum output voltage/current
- 210 Vpeak / 78 Apeak
- Monitoring display, Color TFT touchscreen, 4.3" / 480 x 272 pixel
- All current d&b loudspeaker setup
Specifications:
- Digital Signal Processing:
- Equalizer:
- 2 x 16-band
- PEQ/notch/shelving/asymmetric
- Latency analog and digital inputs: 0.3 ms
- Delay setting: 0.3 ms - 10 s
- Configurations: current d&b loudspeakers
- Function switches: d&b loudspeaker specific circuits
- Frequency generator: Pink noise or Sine wave 10 Hz - 20 kHz
- Controls and indicators:
- POWER: Mains power switch
- SCROLL/EDIT: Digital rotary encoder
- Display: Colour TFT touchscreen, 4.35"/480 x 272 pixel

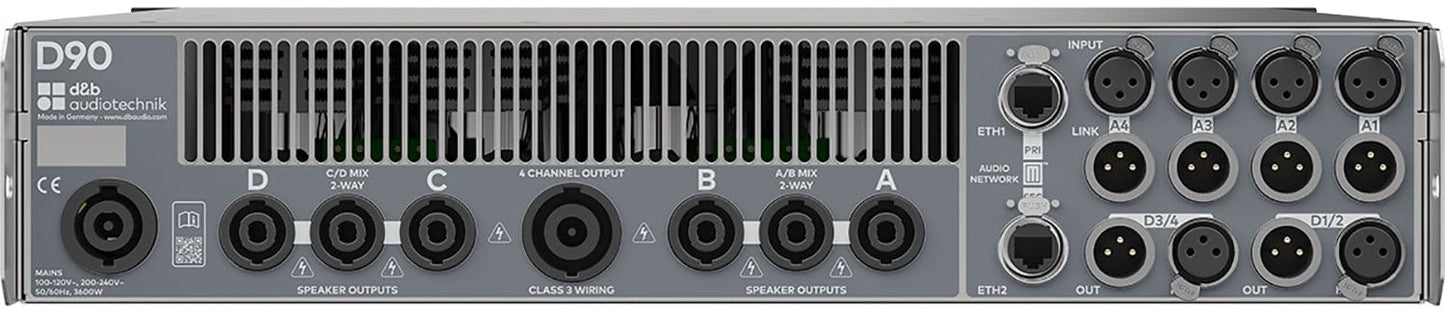

- Connectors:
- Sampling frequency Digital AES/EBU: 44.1, 48, 96, 192 kHz
- INPUT ANALOG (A1 - A4): 3 pin XLR female
- ANALOG LINK (A1 - A4): 3 pin XLR male
- INPUT DIGITAL (D1/2, D3/4): 3 pin XLR female AES3
- DIGITAL LINK (Output): 3 pin XLR male
- Speaker outputs A/B/C/D: 4 x NL4
- Mix TOP/SUB / 2-Way Active output A/B and C/D: 2 x NL4
- 4 Channel output: 1 x NL8
- ETHERNET: 2 x RJ 45, 1 Gbit/100 Mbit Ethernet
- Mains connector: powerCON®-HC
- Maximum output power per channel (THD+N < 0.5%, all channels driven): CF = 12 dB at 4 / 8 ohms: 4 x 5400/2700 W
- Power supply:
- Type: Autosensing switch mode power supply with active Power Factor Correction (PFC)
- Rated mains voltage: 100 - 127 / 208 - 240 V, 50 - 60 Hz
- Dimensions / weight:
- Dimensions (H x W x D): 2 RU x 19" x 512 mm/20.2"
- Weight: 18.8 kg (41.5 lb)
- Digital Signal Processing:
- Equalizer:
- 2 x 16-band
- PEQ/notch/shelving/asymmetric
- Latency analog and digital inputs: 0.3 ms
- Delay setting: 0.3 ms - 10 s
- Configurations: current d&b loudspeakers
- Function switches: d&b loudspeaker specific circuits
- Frequency generator: Pink noise or Sine wave 10 Hz - 20 kHz
- Equalizer:
- Controls and indicators:
- POWER: Mains power switch
- SCROLL/EDIT: Digital rotary encoder
- Display: Colour TFT touchscreen, 4.35"/480 x 272 pixel
- Connectors:
- Sampling frequency Digital AES/EBU: 44.1, 48, 96, 192 kHz
- INPUT ANALOG (A1 - A4): 3 pin XLR female
- ANALOG LINK (A1 - A4): 3 pin XLR male
- INPUT DIGITAL (D1/2, D3/4): 3 pin XLR female AES3
- DIGITAL LINK (Output): 3 pin XLR male
- Speaker outputs A/B/C/D: 4 x NL4
- Mix TOP/SUB / 2-Way Active output A/B and C/D: 2 x NL4
- 4 Channel output: 1 x NL8
- ETHERNET: 2 x RJ 45, 1 Gbit/100 Mbit Ethernet
- Mains connector: powerCON®-HC
- Maximum output power per channel (THD+N < 0.5%, all channels driven): CF = 12 dB at 4 / 8 ohms: 4 x 5400/2700 W
- Power supply:
- Type: Autosensing switch mode power supply with active Power Factor Correction (PFC)
- Rated mains voltage: 100 - 127 / 208 - 240 V, 50 - 60 Hz
- Dimensions / weight:
- Dimensions (H x W x D): 2 RU x 19" x 512 mm/20.2"
- Weight: 18.8 kg (41.5 lb)
