Description

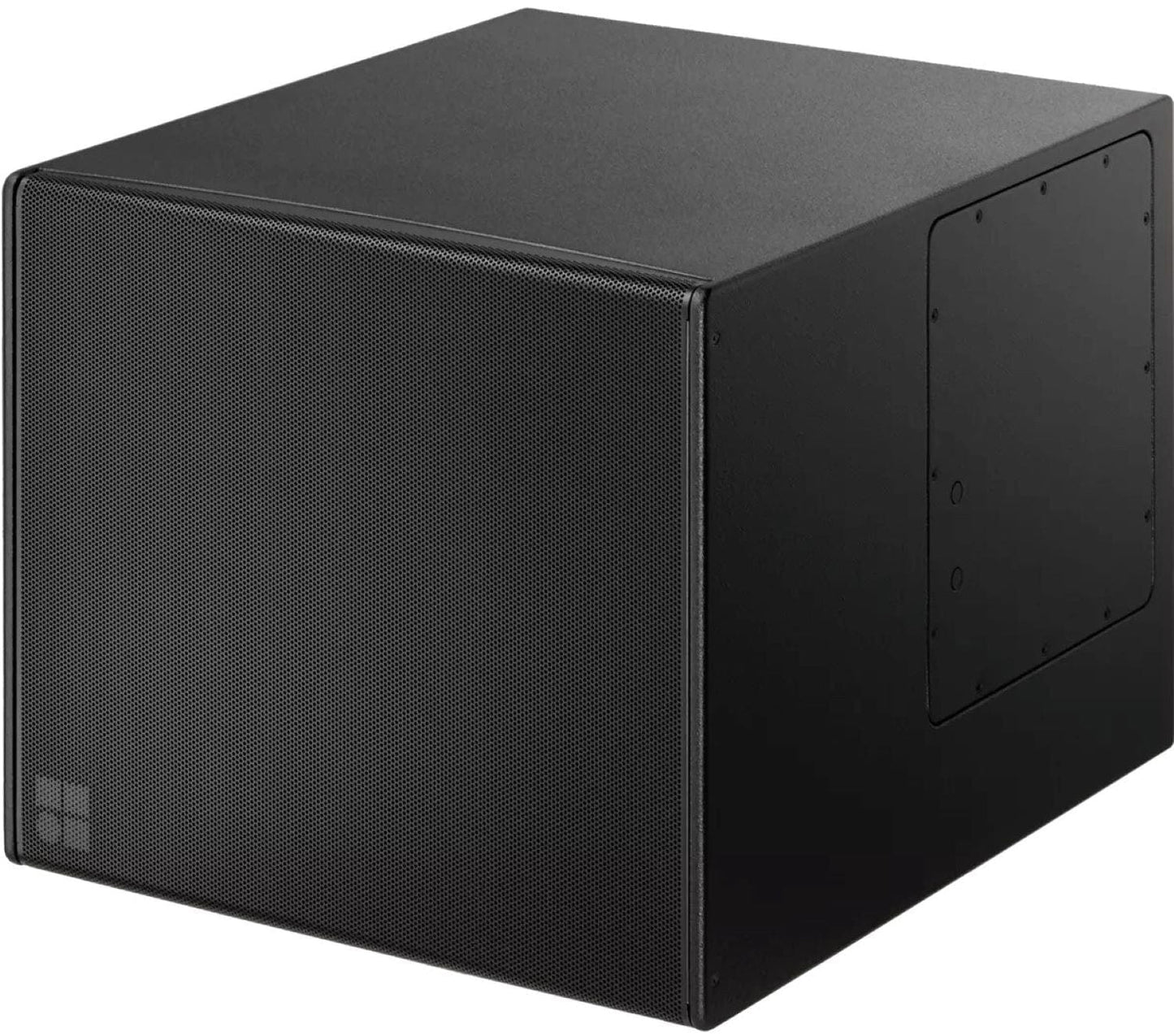

D&B Audiotechnik Z1628.100 27S-SUB 15-Inch/12-Inch Dual Passive Subwoofer - Weather-Resistant

The 27S-SUB is a compact high performance cardioid subwoofer powered by a single amplifier channel and is for use with the xS-Series and xA-Series loudspeakers. The cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15“ driver in a bass-reflex design facing to the front and a 12” driver in a two chamber bandpass design radiating to the rear. It can be used stand-alone, stacked or individually flown. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Weather resistant (WR): This option is suitable for outdoor use. The cabinets have an impact and weather protected black PCP (Polyurea Cabinet Protection) finish. WR cabinets are equipped with a recessed connector panel including a Faston type connector (2 x 6.3 mm, female). A cover plate which accepts single or dual PG cable glands (Type PG13.5 for cable diameters from 6 - 12 mm) is enclosed, as shown in the graphic opposite.

Features:

  • Components 15"/12"
  • Dispersion Cardioid
  • SPLmax 131 dB
  • Weight 41 kg / 90 lb

Specifications:

  • System data:
    • Frequency response (-5 dB standard): 40 - 140 Hz
    • Frequency response (-5 dB CUT mode): 40 - 100 Hz
    • Max. sound pressure:
      • with 10D: 128 dB
      • with D20/5D/30D: 131 dB
      • with D40/D80/40D: 131 dB
    • Cabinets per amplifier channel: 2
  • Loudspeaker data:
    • Configuration: Installation specific cardioid subwoofer
    • Nominal impedance: 6 Ω
    • Power handling capacity (RMS/peak 10 ms): 500/2000 W
    • Nominal dispersion angle (h x v): 110° x 55° rotatable
    • Components:
      • 15" driver with neodymium magnet front
      • 12" driver with neodymium magnet rear
    • Connections:
      • Faston connector type 2
  • Dimensions / Weight:
    • Dimensions (H x W x D): 490 x 580 x 700 mm / 19.3 x 22.8 x 27.6"
    • Weight: 41 kg / 90 lb
