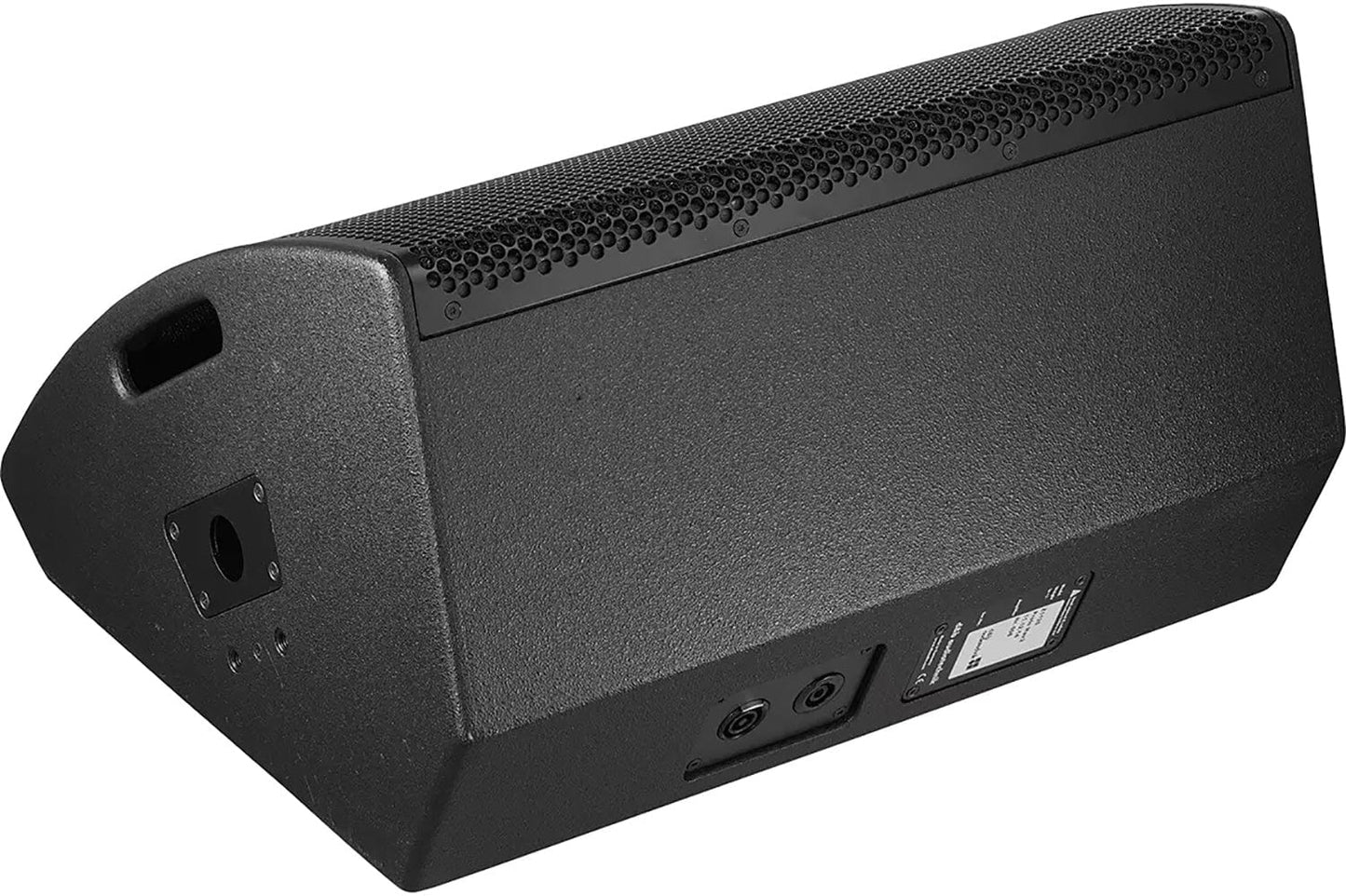

D&B Audiotechnik Z1120.001 MAX 2 Monitor with NL4 Speakon Connection
The 2-way passive MAX2 loudspeaker houses a 15” LF driver and a coaxially mounted 1.4” HF compression driver and achieves 75° conical constant directivity dispersion. The driver arrangement uses a single magnet assembly, allowing for a compact cabinet design with a low profile for strict visual demands. The MAX2 provides a broad variety of deployment possibilities, whether used individually as a stage monitor; as a stand-alone full range system or, when combined with d&b subwoofers, as a drumfill. The loudspeaker cabinet is constructed in marine plywood with an impact resistant paint finish. Four M10 threaded inserts allow connection to a flying bracket. The cabinet incorporates a pair of recessed grips for handling, while the front is protected by a rigid metal grill backed with an acoustically transparent foam. A pole mount is incorporated into one of the side panels. Two runners recessed in the bottom panel protect the cabinet from scratching and prevents movement.
Features:
- Components 15″/1.4″
- Dispersion 75°
- SPLmax 135 dB
- Weight 23 kg / 50 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 55 Hz - 20 kHz
- Max. sound pressure:
- with 10D 131 dB
- with D20/30D 135 dB
- with D40/D80/40D 135 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: 2-way stage monitor
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 250/1600 W
- Nominal dispersion angle (h x v): 75°
- Components:
- 15" driver with ferrite magnet
- coaxial 1.4" exit compression drive
- passive crossover network
- Connections: 2 x NL4
- Dimensions / weight:
- Dimensions (H x W x D): 354 x 580 x 496 mm/ 14 x 22.8 x 19.5"
- Weight: 23 kg / 50 lb
