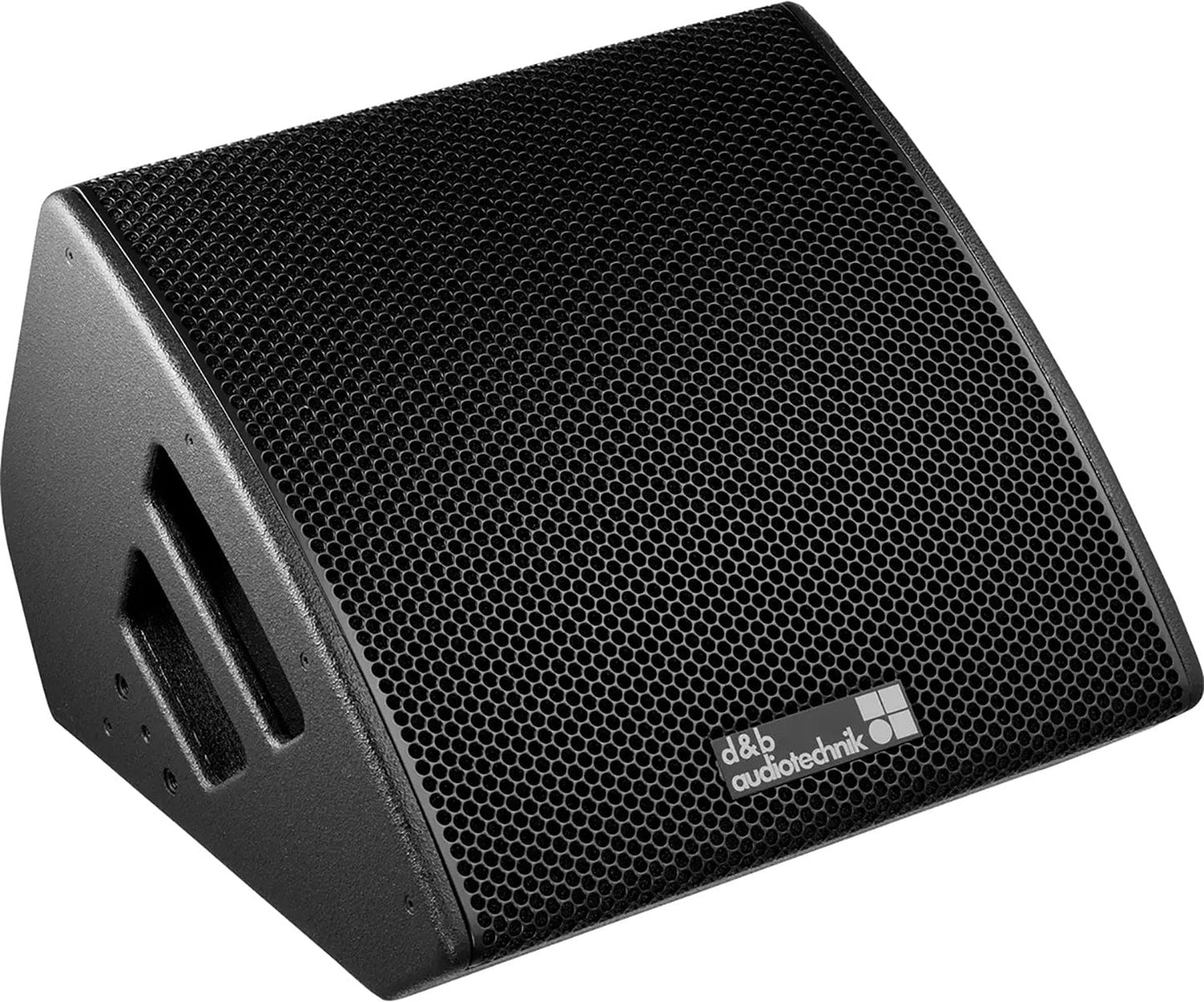

D&B Audiotechnik Z0820.002 M6 Stage Monitor with NLT4 F/M Connections

The M6 is a 2-way high performance stage monitor employing an integrated 12” LF and 1.3” exit horn loaded HF coaxial driver design that utilizes neodymium magnets. The constant directivity dispersion of 50° x 80° (h x v), which this unique horn provides, delivers an accurately defined coverage area on stage. The M6 can also be operated in 2-Way Active mode. When the cabinet is used in an upright position the M6 serves as a powerful PA loudspeaker with a 80° x 50° dispersion suitable for a variety of applications. For dedicated installation applications the dispersion characteristics of the M6 driver assembly can be rotated. The M6 cabinet is constructed from marine plywood, which incorporates the handles, has an impact resistant paint finish, M10 threaded inserts and a socket to accept loudspeaker stands. The front of the loudspeaker cabinet is protected by a rigid metal grill backed with an acoustically transparent foam. Two runners recessed in the bottom panel protect the cabinet from scratching and prevents movement.

Specifications:

• System data:
  • Frequency response (-5 dB standard): 65 Hz - 17 kHz
  • Max. sound pressure:
    • with 10D: 132 dB3 / 133 dB
    • with D20/30D: 135 dB3 / 138 dB
    • with D40/D80/40D: 135 dB3 / 138 dB
  • Cabinets per amplifier channel (passive mode): 2
  • Cabinets per D20/D80/30D (active mode): 4
• Loudspeaker data:
  • Configuration: 2-way stage monitor
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 400/1600 W
  • Nominal dispersion angle (h x v): 50° x 80° rotatable
  • Components:
    • 12" driver with neodymium magnet
    • coaxial 1.3" exit compression driver with 3" coil and CD horn
    • passive crossover network
  • Connections: 2 x NLT4 F/M
• Dimensions / weight:
  • Dimensions (H x W x D): 332 x 486 x 455 mm (13.1 x 19.1 x 18.0"6)
  • Weight: 16 kg (35 lb)
