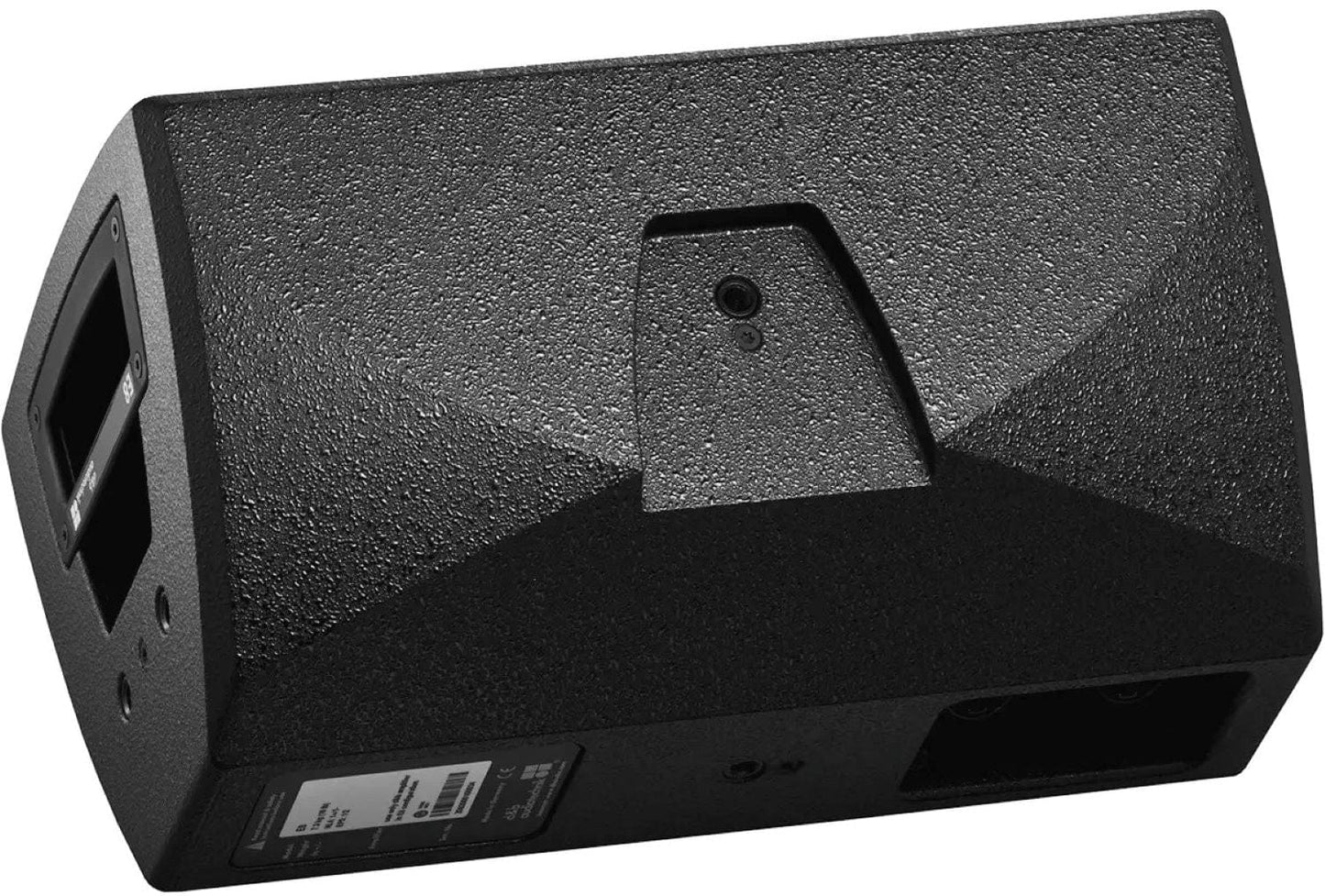

D&B Audiotechnik Z0620.001 E8 8-Inch NL4 Passive Loudspeaker

The E8 is a high performance 2-way multipurpose loudspeaker, employing an integrated coaxial driver. The E8 can be used for speech and music applications as a stand-alone full range system, or incorporated into larger distributed sound reinforcement situations. With the addition of an E12X subwoofer in passive or active mode or any other E-Series subwoofer, it can also easily reproduce higher level music program. The multifaceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The 90° x 50° dispersion pattern (h x v) of the horn is easily rotatable through 90° to provide a 50° x 90° dispersion pattern. The E8 cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating a handle and a socket to accept loudspeaker stands. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP54 rating, and enables operation of loudspeakers in changing ambient conditions. Both options are supplied with metal plates in the specified colour covering the handle recesses and loudspeaker stand socket.

Features:

• Components: 8″/1″
• Dispersion: 90° x 50° rotatable
• SPLmax: 129 dB
• Weight: 7.3 kg / 16.1 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 62 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 120 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 126 dB
    • with D20/5D/30D: 129 dB
    • with D40/D80/40D: 129 dB
  • Cabinets per amplifier channel: 3
• Loudspeaker data:
  • Configuration: 2-way compact coaxial loudspeaker
  • Nominal impedance: 12 Ω
  • Power handling capacity (RMS/peak 10 ms): 150/800 W
  • Nominal dispersion angle (h x v): 90° x 50° rotatable through 50° x 90°
  • Components:
    • 8" driver with neodymium magnet
    • 1" exit compression driver with 1.75" coil and rotatable CD horn
    • passive crossover network
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 390 x 232 x 223 mm / 15.4 x 9.1 x 8.8"
  • Weight: 7.3 kg / 16.1 lb
