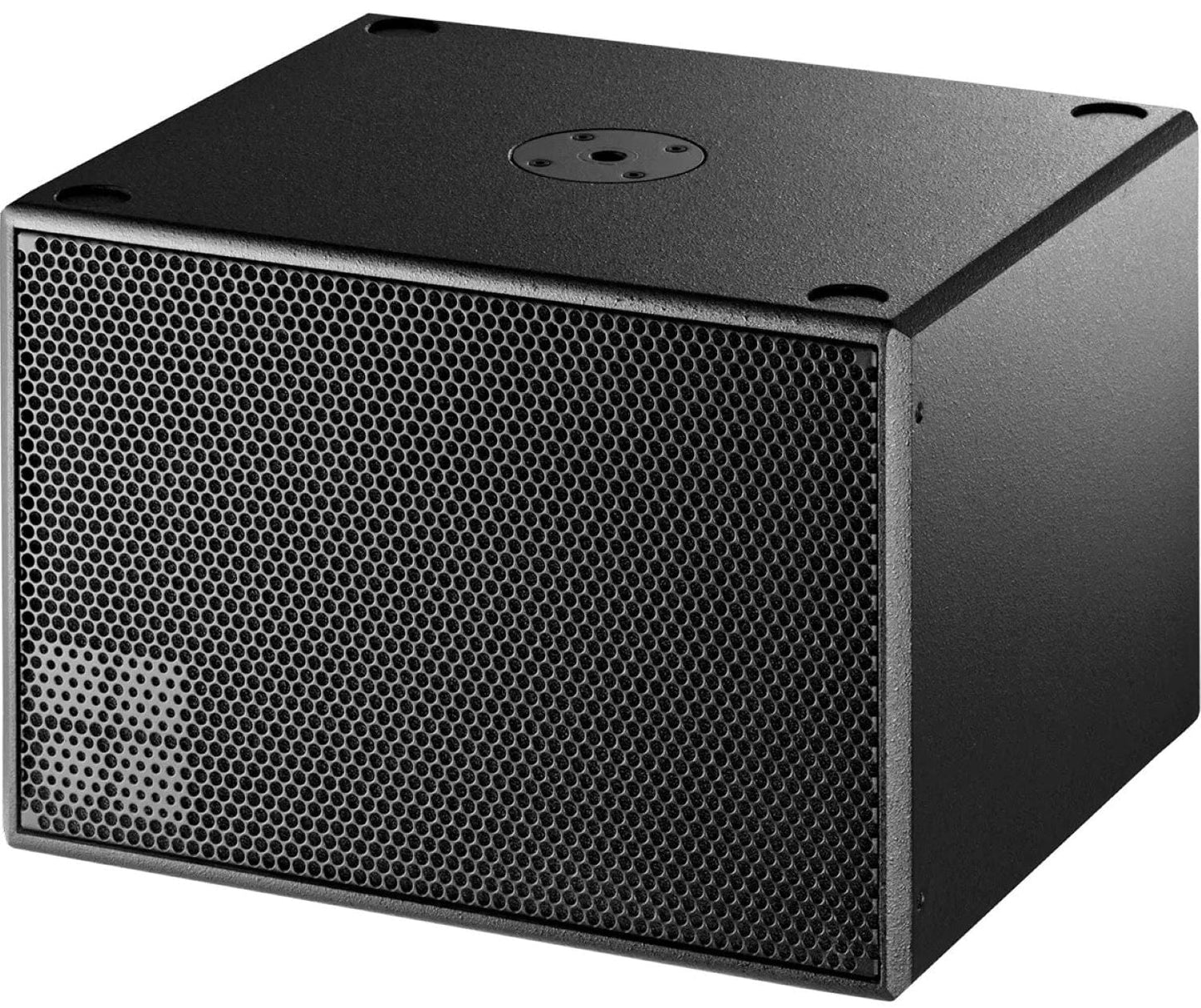

D&B Audiotechnik Z0210.001 E12X 12-Inch NL4 Passive Subwoofer

The E12X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E12X-SUB to be operated in parallel to the E8 loudspeaker on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer. In Active mode the E12X-SUB can be used to supplement any of the E-Series cabinets. The E12X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a handle and an M20 threaded flange on the top to accept the d&b Loudspeaker stand winder M20. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Amplifiers

When the E8-X configuration is selected an E12X-SUB can be driven passively in parallel with an E8 from the same amplifier channel.

The following amplifiers can be used to drive the E12X-SUB:

• Mobile: D20, D40, D80
• Installation: 5D, 10D, 30D, 40D

Features

• Components 12"
• Dispersion Omni directional
• SPLmax 127 dB
• Weight 18 kg / 40 lb

Specifications

System data

• Frequency response (-5 dB standard): 45 Hz - 100 Hz
• Frequency response (–5 dB 140 Hz mode): 45 Hz - 140 Hz
• Max. sound pressure [1]:
• with 10D: 124 dB
• with D20/5D/30D: 127 dB
• with D40/D80/40D: 127 dB
• Cabinets per amplifier channel: 2

Loudspeaker data

• Configuration: Compact subwoofer
• Nominal impedance: 8 Ω
• Power handling capacity (RMS/peak 10 ms): 300/1600 W
• Components: 12" driver
• Connections: 2 x NL4

Dimensions / weight

• Dimensions (H x W x D): 358 x 530 x 448 mm / 14.1 x 20.9 x 17.6"
• Weight: 18 kg / 40 lb

[1] 1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven. For possible performance deviations when using multiple loudspeakers, check 5D Powershare Calculator tool.
