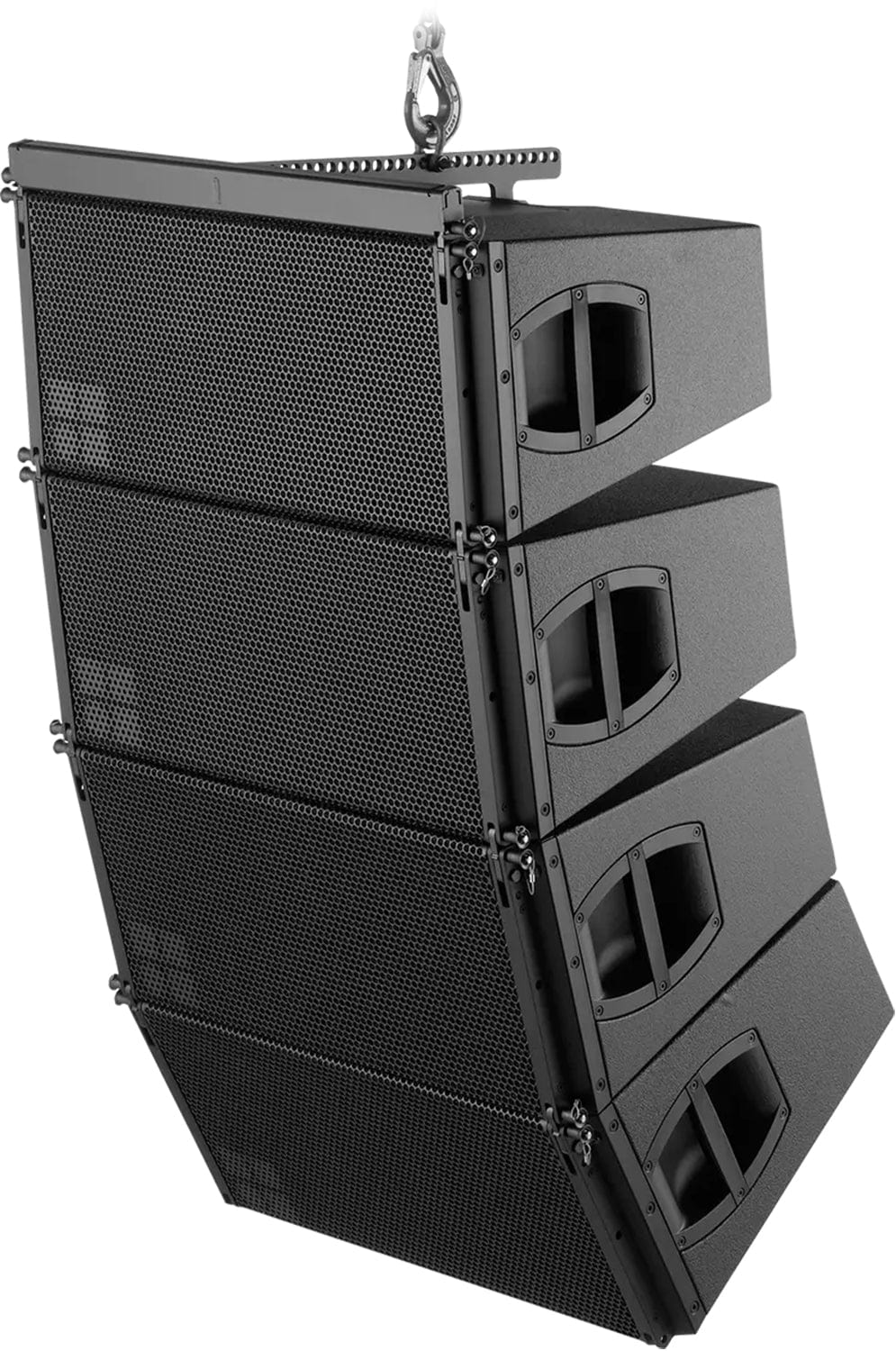

D&B Audiotechnik V12 High Performance 3-Way Passive Line Array Loudspeaker
The V12 is a 3-way passive design housing 2 x 10" LF drivers, one hornloaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5" voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 120° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers. It can be used in columns of purely V12 loudspeakers or combined with V8s and / or with V-SUBs. The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle, while two additional recessed grips are provided at the rear bottom of the cabinet.
Specifications:
- System data:
- Frequency response (-5 dB standard): 67 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
- Max. sound pressure:
- with D20/30D: 139 dB
- with D40/D80/40D: 142 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: High performance 3-way passive line array loudspeaker
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 500/2000 W
- Nominal dispersion angle (horizontal): 120°
- Splay angle settings: 0° - 14° (1° increment)
- Components:
- 2 x 10" driver / 1 x 8" driver
- 2 x 1.4" exit compression driver
- passive crossover network
- Connections:
- 2 x NLT4 F/M
- optional 2 x NL4 or 2 x EP5
- Dimensions / weight:
- Dimensions (H x W x D):
- 310 x 700 x 460 mm
- 12.2 x 27.5 x 18"
- Weight:
- 34 kg
- 75 lb
- Frequency response (-5 dB standard): 67 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
- Max. sound pressure:
- with D20/30D: 139 dB
- with D40/D80/40D: 142 dB
- Cabinets per amplifier channel: 2
- Configuration: High performance 3-way passive line array loudspeaker
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 500/2000 W
- Nominal dispersion angle (horizontal): 120°
- Splay angle settings: 0° - 14° (1° increment)
- Components:
- 2 x 10" driver / 1 x 8" driver
- 2 x 1.4" exit compression driver
- passive crossover network
- Connections:
- 2 x NLT4 F/M
- optional 2 x NL4 or 2 x EP5
- Dimensions (H x W x D):
- 310 x 700 x 460 mm
- 12.2 x 27.5 x 18"
- 34 kg
- 75 lb
