D&B Audiotechnik S-Series PA System for Large House of Worship with 44S / 10S Speakers and E15X Sub

D&B Audiotechnik S-Series PA System for Large House of Worship with 44S / 10S Speakers and E15X Sub

This live sound reinforcement speaker package contains the following items:

*(2x) D&B Audiotechnik Z1618.000 10S 10-Inch Passive Loudspeaker

The biaxial 10S/10S-D are high performance 2-way loudspeakers housing a single 10" driver in a bass-reflex enclosure and different HF sections. They are lightweight passive designs using neodymium drivers and large horns for accurate pattern control with rotatable dispersion characteristics of 75° x 50° and 110° x 55° respectively. With their frequency response from 60 Hz to 18 kHz both versions can be used as full range systems and can also be supplemented by different subwoofers from the xS-Series. The enclosures are constructed from marine plywood with an impact resistant black paint finish and are Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The top and bottom panels incorporate a pair of M10 threaded inserts, and the rear panel incorporates two M8 threaded inserts, two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Components 10"/1.4"
• Dispersion 75° x 50° rotatable
• SPLmax 130 dB
• Weight 13 kg / 29 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 60 Hz - 18 kHzz
  • Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 127 dB
    • with D20/5D/30D: 130 dB
    • with D40/D80/40D: 130 dB
  • Cabinets per amplifier channel: 3
• Loudspeaker data:
  • Configuration: Installation specific high performance 2-way loudspeaker
  • Nominal impedance: 12 Ω
  • Power handling capacity (RMS/peak 10 ms): 200/1200 W
  • Nominal dispersion angle (h x v): 75° x 50° rotatable
  • Components:
    • 10" driver with neodymium magnet
    • 1.4" compression driver with CD horn
    • Passive crossover network
  • Connections:
    • 2 x NL4
    • screw terminal block
• Dimensions / Weight:
  • Dimensions (H x W x D): 580 x 283 x 350 mm / 22.8 x 11.1 x 13.8"
  • Weight: 13 kg / 129 lb

*(2x) D&B Audiotechnik Z1650.500 44S 2x 4.5-Inch Passive Loudspeaker - Flushmount Version

The 44S is a passive 2-way design housing two 4.5” neodymium LF drivers and two 1.25" HF dome tweeters mounted on a rotatable CD horn thus providing a rotatable dispersion characteristic of 90° x 30°.

The optional d&b Z5427.000 44S back box can be used for flush mounting the loudspeaker into ceilings or walls, either in horizontal or vertical position. The asymmetric cabinet shape of the 44S allows the dispersion to be adjusted +/- 20° in five-degree increments within the back box.

The loudspeaker can be used as a stand-alone system or supplemented by actively driven d&b subwoofers.

The enclosure is injection moulded with an impact resistant paint finish. The front of the cabinet is protected by a rigid metal grill. Two M8 threaded inserts are incorporated in the back panel to connect to different rigging accessories. The loudspeaker cabinet and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours.

Features:

• Components 2 x 4.5″, 2 x 1.25″
• Dispersion 90° x 30° rotatable
• SPLmax 123 dB
• Weight 3.6 kg (8 lb)

Specifications:

• System data:
  • Frequency response (-5 dB standard): 90 Hz - 17 kHz
  • Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
  • Max. sound pressure:
    • with 10D: 121 dB
    • with D20/5D/30D: 123 dB
    • with D40/D80/40D: 123 dB
  • Cabinets per amplifier channel: 4
• Loudspeaker data:
  • Configuration: Compact universal high performance 2-way loudspeaker with an asymmetric cabinet shape
  • Nominal impedance: 16 ohms
  • Power handling capacity (RMS/peak 10 ms): 150/500 W
  • Nominal dispersion angle (h x v): 90° x 30°
  • Components:
    • 2 x 4.5″ driver with neodymium magnet
    • 2 x 1.25″ dome tweeter mounted on CD horn
  • Connections: 4-pin Phoenix Euroblock and 2 x NL4 M
• Dimensions / Weight:
  • Dimensions (H x W x D):
  • 390 x 128 x 150 mm
  • 480 x 140 x 180 mm with Backbox
  • 15.3 x 5 x 5.9″
  • 18.9 x 5.5 x 7.1″ with Backbox
  • Weight:
  • 3.6 kg
  • 6.2 kg with Backbox
  • 8 lb
  • 13.7 lb with Backbox

*(2x) D&B Audiotechnik Z1650-001 44S 2x 4.5-Inch Passive Loudspeaker - White

The 44S is a passive 2-way design housing two 4.5” neodymium LF drivers and two 1.25" HF dome tweeters mounted on a rotatable CD horn thus providing a rotatable dispersion characteristic of 90° x 30°.

The optional d&b Z5427.000 44S back box can be used for flush mounting the loudspeaker into ceilings or walls, either in horizontal or vertical position. The asymmetric cabinet shape of the 44S allows the dispersion to be adjusted +/- 20° in five-degree increments within the back box.

The loudspeaker can be used as a stand-alone system or supplemented by actively driven d&b subwoofers.

The enclosure is injection moulded with an impact resistant paint finish. The front of the cabinet is protected by a rigid metal grill. Two M8 threaded inserts are incorporated in the back panel to connect to different rigging accessories. The loudspeaker cabinet and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours.

Features:

• Components 2 x 4.5″, 2 x 1.25″
• Dispersion 90° x 30° rotatable
• SPLmax 123 dB
• Weight 3.6 kg (8 lb)

Specifications:

• System data:
  • Frequency response (-5 dB standard): 90 Hz - 17 kHz
  • Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
  • Max. sound pressure:
    • with 10D: 121 dB
    • with D20/5D/30D: 123 dB
    • with D40/D80/40D: 123 dB
  • Cabinets per amplifier channel: 4
• Loudspeaker data:
  • Configuration: Compact universal high performance 2-way loudspeaker with an asymmetric cabinet shape
  • Nominal impedance: 16 ohms
  • Power handling capacity (RMS/peak 10 ms): 150/500 W
  • Nominal dispersion angle (h x v): 90° x 30°
  • Components:
    • 2 x 4.5″ driver with neodymium magnet
    • 2 x 1.25″ dome tweeter mounted on CD horn
  • Connections: 4-pin Phoenix Euroblock and 2 x NL4 M
• Dimensions / Weight:
  • Dimensions (H x W x D):
  • 390 x 128 x 150 mm
  • 480 x 140 x 180 mm with Backbox
  • 15.3 x 5 x 5.9″
  • 18.9 x 5.5 x 7.1″ with Backbox
  • Weight:
  • 3.6 kg
  • 6.2 kg with Backbox
  • 8 lb
  • 13.7 lb with Backbox

*(2x) D&B Audiotechnik Z0615.001 E15X 15-Inch NL4 Passive Subwoofer

The E15X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E15X-SUB to be operated in parallel to E12 or E12-D loudspeakers on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer. In Active mode the E15X-SUB can be used to supplement any of the E-Series cabinets. The E15X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a pair of handles and an M20 threaded flange on the top to accept the d&b loudspeaker stand winder. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Amplifiers

When the E12-X or E12-DX configuration is selected an E12 or E12-D can be driven passively in parallel with an E15X-SUB from the same amplifier channel.

The following amplifiers can be used to drive the E15X-SUB.

Mobile

• D6
• D20
• D40
• D80

Installation

• 10D
• 30D
• 40D

Technical Data

• System data
• Frequency response (-5 dB standard)
• 37 - 140 Hz
• Frequency response (-5 dB 100 Hz mode)
• 37 - 100Hz
• Max. sound pressure[1]
• with 10D
• 127 dB
• with D20/30D
• 130 dB
• with D40/D80/40D
• 130 dB
• Cabinets per amplifier channel
• 2
• Loudspeaker data
• Configuration
• Compact subwoofer
• Nominal impedance
• 8 Ω
• Power handling capacity (RMS/peak 10 ms)
• 300/1600 W
• Components
• 15" driver
• passive crossover network
• Connections
• 2 x NL4
• Dimensions / weight
• Dimensions (H x W x D)
• 426 x 530 x 550 mm
• 16.8 x 20.9 x 21.7"
• Weight
• 24 kg
• 53 lb

[1] 1 m, free field, SPL max peak test signal: pink noise with crest factor 4, one speaker driven

*(2x) D&B Audiotechnik Z2880.000 5D Amplifier

The 5D is a Class D installation amplifier with flexible power distribution among its four output channels. It uses Digital Signal Processing (DSP) to incorporate loudspeaker-specific configurations for smaller loudspeakers from E-Series, xS-Series, xC- and T-Series, as well as equalization and delay functions. A linear setup is available allowing the amplifier to be used as a linear installation power amplifier. The amplifier has a dynamic range of 111 dB (Dante input, unweighted) and is designed to drive a selected range of d&b loudspeakers while providing comprehensive management and protection capabilities.

Specifications:

• Digital Signal Processing:
  • Latency analog and digital inputs: 1.1 ms / < 3 ms
  • Configurations: Selected loudspeakers from E-Series, xS-Series, xC Series, T-Series; Linear setup
  • Frequency generator: Pink noise or Sine wave 10 Hz – 20 kHz
• Controls and indicators:
  • Display: LED indicators
• Connectors:
  Ethernet, Dante Input: 2 x RJ 45, 1 Gbit / 100 Mbit GPI: 1 x 6-pin Euroblock 3.5 mm male Input / Link ANALOG (A1-A4): 2 x 6-pin Euroblock male, 3.5 mm Speaker outputs A/B/C/D: 2 x 4-pin Euroblock 5.08 mm female Mains connector: IEC FAULT: 1 x 3-pin Euroblock 3.5 mm male
• Power supply:
  • Type: Wide range switched mode power supply with active Power Factor Correction (PFC)
  • Rated mains voltage: 100 - 240 V, 50 - 60 Hz
• Dimensions / weight:
  • Dimensions (H x W x D): 1 RU x 9.5" x 435 mm/17.1"
  • Weight:
    • 4.6 kg
    • 10 lb

*(2x) D&B Audiotechnik Z5405.000 10S Flying Bracket

The d&b Z5405 Flying bracket 10S must only be used in conjunction with the d&b xS-Series loudspeakers 10S/ 10S-D. The bracket can be directly mounted to ceilings or vertically flown and mounted to bars and truss with a tube diameter of up to 70 mm (2.75") using the Z5010 TV spigot and the Z5012 Pipe clamp.

*(1x) D&B Audiotechnik Z5424.000 44S L-Mount Adapter

The Z5424 L-mount adapter serves to attach a single 44S cabinet directly to ceilings or floors (e.g. stage lips). It can be also attached to walls or any other suitable surface. The enclosed stick-on rubber pads are intended for temporary (mobile) floor applications to prevent the surface from scratching. Depending on the orientation of the cabinet, the adapter allows for fixed tilt angles of 0° or ± 20°.

*(1x) D&B Audiotechnik Z5427.000 44S Backbox

Including:

• 4 Mounting clamp
• 4 Torx screw T25, M5 x 30
• 2 Cable grommet
• Fixing point for secondary safety device
• D2633.EN .01 Mounting instructions

Dry construction:

• Wall thickness of up to 25 mm (1") using the enclosed mounting clamps and torx screws.
• For greater wall thickness of up to 55 mm (2.2",) use appropriate longer screws (not enclosed.)

Concrete construction:

• Use the outer mounting ears and appropriate anchors and screws (not enclosed)

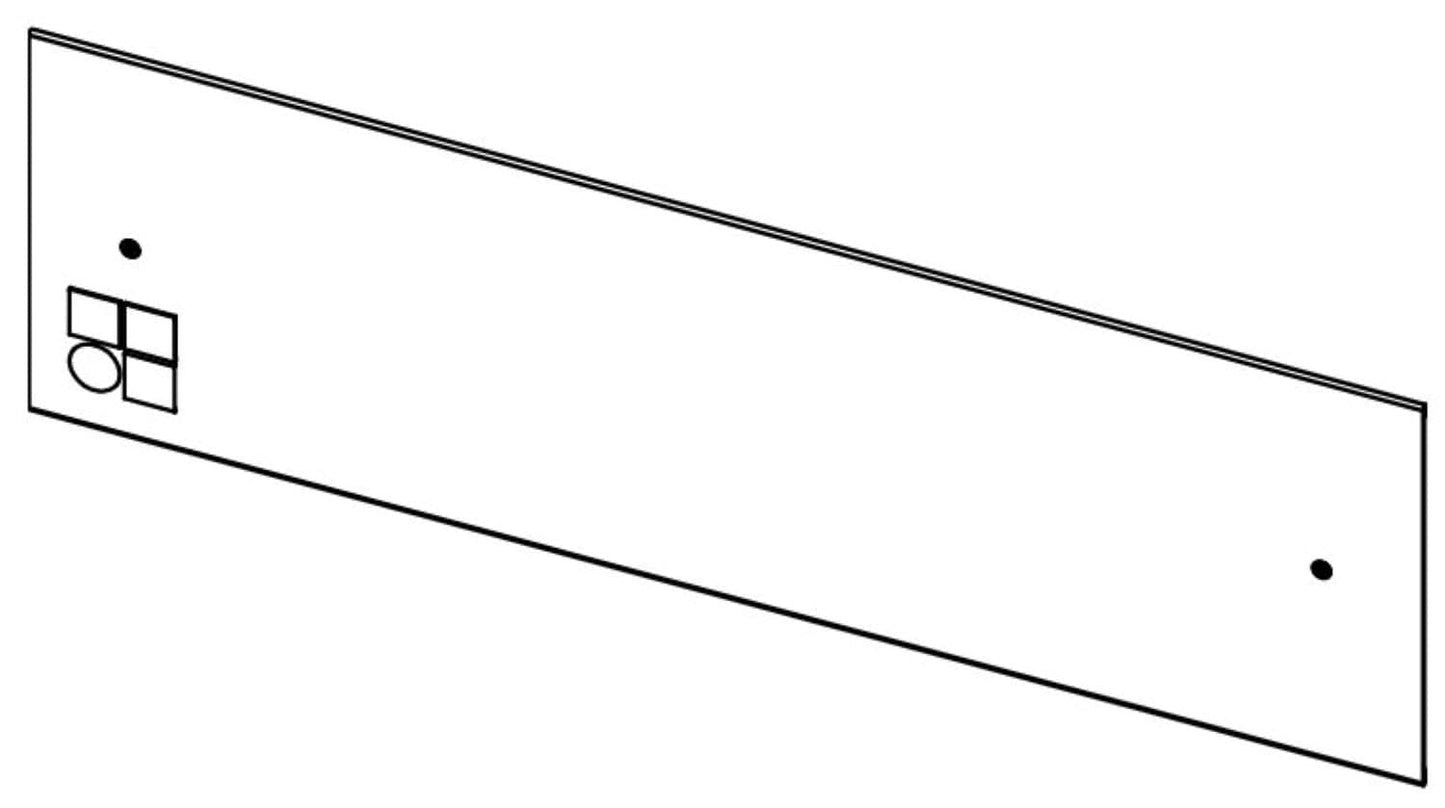

*(1x) D&B Audiotechnik Z5428.000 44S Backbox Grill

Z5428 44S Backbox grill, dimensions in mm [inch]

490 (19.3) x 148 (5.83)

Includes

2x Torx T10, M3 x 15 Tuflock enclosed with the cover grill
