D&B Audiotechnik Q-SUB Subwoofer

D&B Audiotechnik Q-SUB Subwoofer

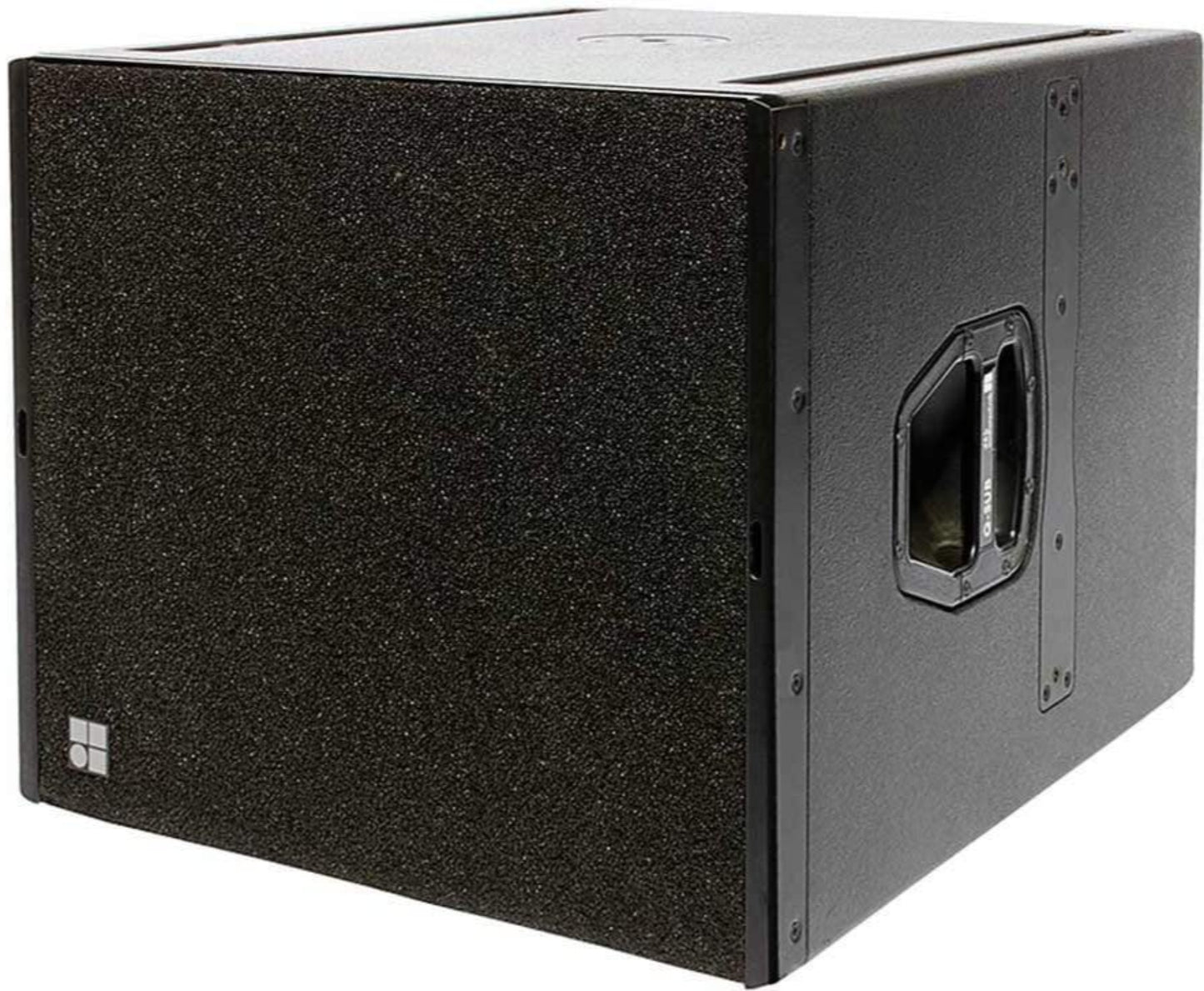

The Q-SUB is an actively driven low compression bass-reflex loudspeaker fitted with a high excursion 18" driver. d&b SenseDrive technology is available when powered by the D12 amplifier. The Q-SUB is mechanically compatible with the Q1 and Q7; ten sockets in the front grill and side panels for Q-Series rigging components permit use in various combinations, either flown or ground stacked. The Q-SUB cabinet is constructed from marine plywood with an impact resistant paint finish, a pair of handles, four heavy duty wheels and an M20 threaded flange in the top panel to accept a loudspeaker stand. The front of the loudspeaker cabinet is protected by a rigid metal grill covered with replaceable acoustically transparent foam and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel. Two runners protect the bottom of the cabinet from scratching; these are located in correspondingly shaped recesses in the top panel to prevent movement when stacked. Fittings for securing an optional wooden lid are also provided.

Specifications:

• System data:
  • Frequency response (-5 dB): 40 Hz - 130/100¹ Hz
  • Cabinets per channel D6/D12/D20/D80: 2
  • Max. sound pressure² with
  • D6 in passive mode: 129 dB SPL
  • D12/D20 in passive mode: 132 dB SPL
  • D80 in passive mode: 132 dB SPL
• Loudspeaker data:
  • Power handling capacity (RMS/peak 10 ms): 400/1600 W
  • Components: 18" driver
• Dimensions / weight:
  • Dimensions (H x W x D): 493 x 580 x 668 mm³(19.4 x 22.8 x 26.3"³)
  • Weight: 42 kg (93 lb)
