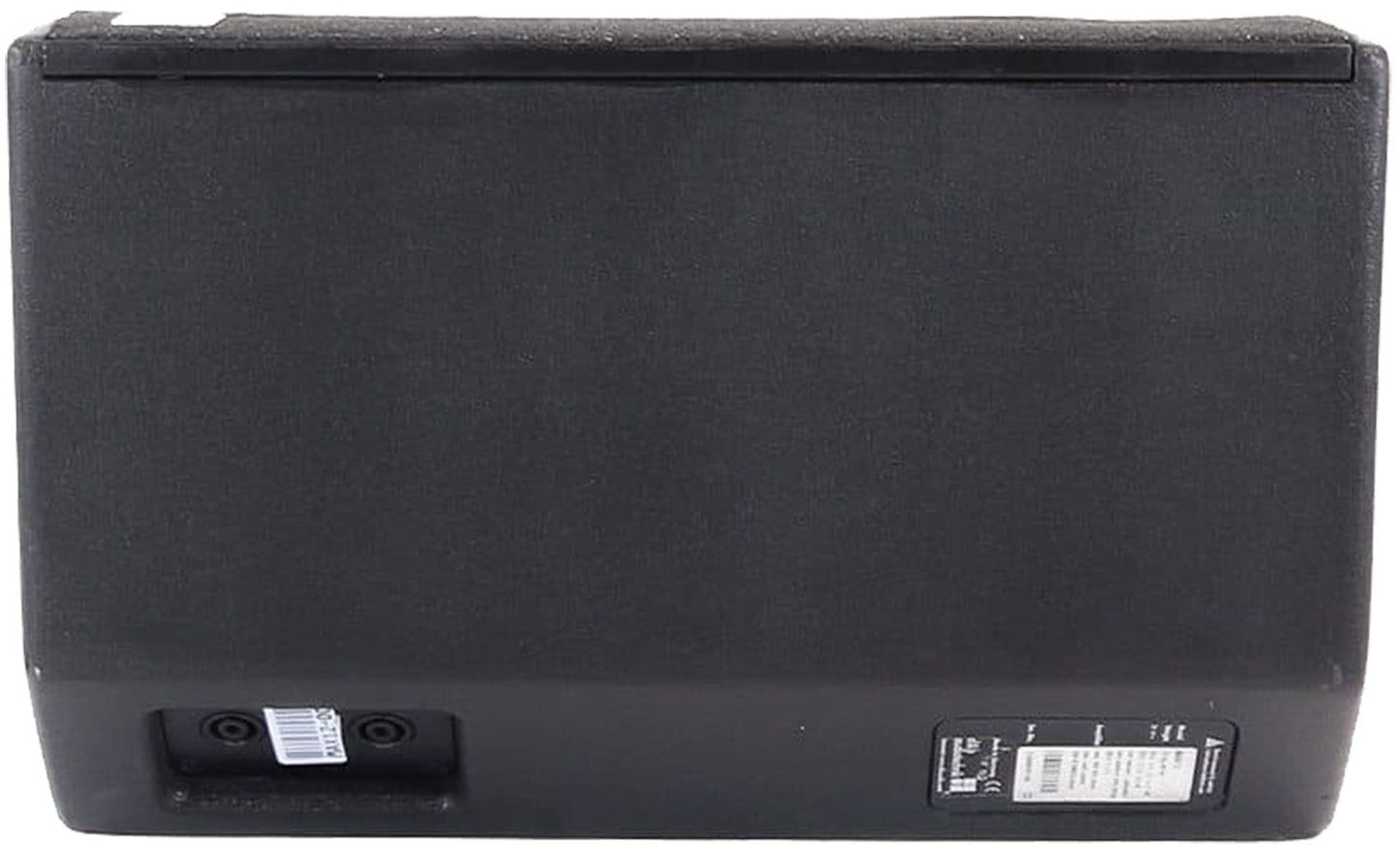

d&b audiotechnik MAX12 Stage Monitor Loudspeaker
MAX12, db's smallest stage monitor, is a 2-way full range loudspeaker, which due to the coaxial design has a compact, low profile enclosure. It achieves a high SPL and feedback stability with remarkable vocal presence, clarity and neutral, balanced sound. The MAX12 cabinet is constructed from marine plywood, which incorporates the handles, has an impact resistant paint finish, M10 threaded inserts and a socket to accept a loudspeaker stand.
Specifications:
-
System data:
- Frequency response (-5 dB): 65 Hz - 18 kHz1
- Max. sound pressure2 with
- D6 in passive mode: 130 dB SPL
- D12 in passive mode: 134 dB SPL
- D80 in passive mode: 134 dB SPL
- D12 in active mode: 135 dB SPL
- D80 in active mode: 135 dB SPL
- Cabinets per D12/D80 (active mode): 2/4
- Cabinets per channel D6/D12/D80 (passive mode): 2
-
Loudspeaker data:
- Power handling capacity (RMS/peak 10 ms): 250/1200 W
- Nominal dispersion angle (h x v): 80° conical
- Components: 12" driver/2" coaxial mounted compression driver
-
Dimensions / weight:
- Dimensions (H x W x D): 324 x 486 x 425 mm3(12.8 x 19.1 x 16.7"3)
- Weight: 22 kg (48 lb)
