D&B Audiotechnik E-Series System E8 Loudspeakers (x2) and E12X Subwoofers (x2) with D40 Amplifier

D&B Audiotechnik E-Series System E8 Loudspeakers (x2) and E12X Subwoofers (x2) with D40 Amplifier

1x D&B Audiotechnik Z2850.500 D40 Amplifier - US/CA/KR

The D40 amplifier represents a new performance level of four channel Class D amplifiers using Digital Signal Processing (DSP) to incorporate loudspeaker specific configurations and user definable setups, equalization and delay functions.

2x D&B Audiotechnik Z0620.001 E8 8-Inch NL4 Passive Loudspeaker

The E8 is a high performance 2-way multipurpose loudspeaker, employing an integrated coaxial driver. The E8 can be used for speech and music applications as a stand-alone full range system, or incorporated into larger distributed sound reinforcement situations. With the addition of an E12X subwoofer in passive or active mode or any other E-Series subwoofer, it can also easily reproduce higher level music program. The multifaceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The 90° x 50° dispersion pattern (h x v) of the horn is easily rotatable through 90° to provide a 50° x 90° dispersion pattern. The E8 cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating a handle and a socket to accept loudspeaker stands. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP54 rating, and enables operation of loudspeakers in changing ambient conditions. Both options are supplied with metal plates in the specified colour covering the handle recesses and loudspeaker stand socket.

2x D&B Audiotechnik Z0210.001 E12X 12-Inch NL4 Passive Subwoofer

The E12X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E12X-SUB to be operated in parallel to the E8 loudspeaker on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer. In Active mode the E12X-SUB can be used to supplement any of the E-Series cabinets. The E12X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a handle and an M20 threaded flange on the top to accept the d&b Loudspeaker stand winder M20. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions

Features:

• D&B Audiotechnik Z2850.500 D40 Amplifier - US/CA/KR:
• High voltage output suitable for driving applicable d&b loudspeakers, including the KSL System
• Increases overall system efficiency
• Advanced voltage management
• Energy-efficient for minimal ecological impact
• Enhanced DSP capabilities accommodate future system architecture
• D&B Audiotechnik Z0620.001 E8 8-Inch NL4 Passive Loudspeaker:
• Components: 8″/1″
• Dispersion: 80° x 50° rotatable
• SPLmax: 129 dB
• Weight: 7.3 kg / 16.1 lb
• D&B Audiotechnik Z0210.001 E12X 12-Inch NL4 Passive Subwoofer:
• Components: 12"
• Dispersion: Omni directional
• SPLmax: 127 dB
• Weight: 18 kg (40 lb)

Specifications:

• D&B Audiotechnik Z2850.500 D40 Amplifier - US/CA/KR:
• Digital Signal Processing:
  • Equalizer: 2 x 16-band PEQ/notch/shelving/asymmetric
  • Latency analog and digital inputs: 0.3 ms
  • Delay setting: 0.3 ms - 10 s
  • Configurations: current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)
  • Function switches: d&b loudspeaker specific circuits
  • Frequency generator: Pink noise or Sine wave 10 Hz - 20 kHz
• Controls and indicators:
  • POWER: Mains power switch
  • SCROLL/EDIT: Digital rotary encoder
  • Display: Colour TFT touchscreen, 4.35"/480 x 272 pixel

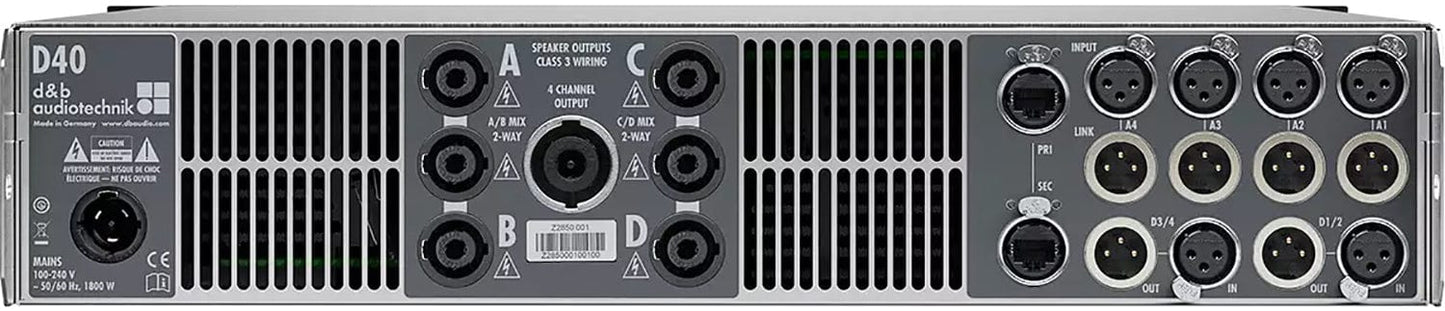

• Connectors:
  • Sampling frequency Digital AES/EBU: 44.1, 48, 96, 192 kHz
  • INPUT ANALOG (A1 - A4): 3 pin XLR female
  • ANALOG LINK (A1 - A4): 3 pin XLR male
  • INPUT DIGITAL (D1/2, D3/4): 3 pin XLR female AES3
  • DIGITAL LINK (Output): 3 pin XLR male
  • Speaker outputs A/B/C/D: NL4
  • Mix TOP/SUB / 2-Way Active output A/B and C/D: NL4
  • 4 Channel output: NL8
  • ETHERNET: 2 x RJ 45, 1 Gbit/100 Mbit Ethernet
  • Mains connector: powerCON® TRUE1 TOP
• Data (linear setting with subsonic filter):
  • Maximum output power per channel (THD+N < 0.5%, all channels driven): CF = 12 dB at 4 / 8 ohms: 4 x 2400/2000 W
• Power supply:
  • Type: Autosensing switch mode power supply with active Power Factor Correction (PFC)
  • Rated mains voltage: 100 - 127 / 208 - 240 V, 50 - 60 Hz
• Dimensions / weight:
  • Dimensions (H x W x D): 2 RU x 19" x 512 mm/20.2"
  • Weight: 13.8 kg (30.4 lb)
• D&B Audiotechnik Z0620.001 E8 8-Inch NL4 Passive Loudspeaker:
• System data:
  • Frequency response (-5 dB standard): 62 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 120 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 126 dB
    • with D20/5D/30D: 129 dB
    • with D40/D80/40D: 129 dB
  • Cabinets per amplifier channel: 3
• Loudspeaker data:
  • Configuration: 2-way compact coaxial loudspeaker
  • Nominal impedance: 12 Ω
  • Power handling capacity (RMS/peak 10 ms): 150/800 W
  • Nominal dispersion angle (h x v): 90° x 50°, rotatable through 50° x 90°
  • Components:
    • 8" driver with neodymium magnet
    • 1" exit compression driver with 1.75" coil and rotatable CD horn
    • Passive crossover network
• Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 390 x 232 x 223 mm (15.4 x 9.1 x 8.8")
  • Weight: 7.3 kg (16.1 lb)
• D&B Audiotechnik Z0210.001 E12X 12-Inch NL4 Passive Subwoofer:
• System data:
  • Frequency response (-5 dB standard): 45 Hz - 100 Hz
  • Frequency response (–5 dB 140 Hz mode): 45 Hz - 140 Hz
  • Max. sound pressure:
    • with 10D: 124 dB
    • with D20/5D/30D: 127 dB
    • with D40/D80/40D: 127 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: Compact subwoofer
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 300/1600 W
  • Components: 12" driver
• Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 358 x 530 x 448 mm (14.1 x 20.9 x 17.6")
  • Weight: 18 kg (40 lb)
