D&B Audiotechnik E-Series System E12 Loudspeakers (x2) and E12X Subwoofers (x2) with D40 Amplifier

1x D&B Audiotechnik Z2850.500 D40 Amplifier - US/CA/KR

The D40 amplifier represents a new performance level of four channel Class D amplifiers using Digital Signal Processing (DSP) to incorporate loudspeaker specific configurations and user definable setups, equalization and delay functions.

2x D&B Audiotechnik Z0601.001 E12 12-Inch NL4 Passive Loudspeaker

The E12 and E12-D are high performance 2-way multipurpose loudspeakers, employing an integrated coaxial driver. The E12 and E12-D can be used for speech and music applications as stand-alone full range systems or incorporated into larger distributed sound reinforcement situations and, with the addition of an E15X or B4 subwoofer, can also easily reproduce high level music program. The multifaceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The E12 has an 80° x 50° dispersion pattern (h x v), while the E12-D has a wider 110° x 50° pattern. The horns in both loudspeakers are easily rotatable through 90° providing 50° x 80° or 50° x 110° dispersion patterns. The E12 and E12-D cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating handles and a hidden socket to accept loudspeaker stands. The loudspeaker cabinet is also available in Special Colour (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP54 rating, and enables operation of loudspeakers in changing ambient conditions. Both options are supplied with metal plates in the specified colour covering the handle recesses and loudspeaker stand socket.

2x D&B Audiotechnik Z0210.001 E12X 12-Inch NL4 Passive Subwoofer

The E12X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E12X-SUB to be operated in parallel to the E8 loudspeaker on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer. In Active mode the E12X-SUB can be used to supplement any of the E-Series cabinets. The E12X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a handle and an M20 threaded flange on the top to accept the d&b Loudspeaker stand winder M20. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions

Features:

• D&B Audiotechnik Z2850.500 D40 Amplifier - US/CA/KR:
• High voltage output suitable for driving applicable d&b loudspeakers, including the KSL System
• Increases overall system efficiency
• Advanced voltage management
• Energy-efficient for minimal ecological impact
• Enhanced DSP capabilities accommodate future system architecture
• D&B Audiotechnik Z0601.001 E12 12-Inch NL4 Passive Loudspeaker:
• Components: 12″/1.3″
• Dispersion: 80° x 50° rotatable
• SPLmax: 134 dB
• Weight: 16 kg / 35 lb
• D&B Audiotechnik Z0210.001 E12X 12-Inch NL4 Passive Subwoofer:
• Components: 12"
• Dispersion: Omni directional
• SPLmax: 127 dB
• Weight: 18 kg (40 lb)

Specifications:

• D&B Audiotechnik Z2850.500 D40 Amplifier - US/CA/KR:
• Digital Signal Processing:
  • Equalizer: 2 x 16-band PEQ/notch/shelving/asymmetric
  • Latency analog and digital inputs: 0.3 ms
  • Delay setting: 0.3 ms - 10 s
  • Configurations: current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)
  • Function switches: d&b loudspeaker specific circuits
  • Frequency generator: Pink noise or Sine wave 10 Hz - 20 kHz
• Controls and indicators:
  • POWER: Mains power switch
  • SCROLL/EDIT: Digital rotary encoder
  • Display: Colour TFT touchscreen, 4.35"/480 x 272 pixel

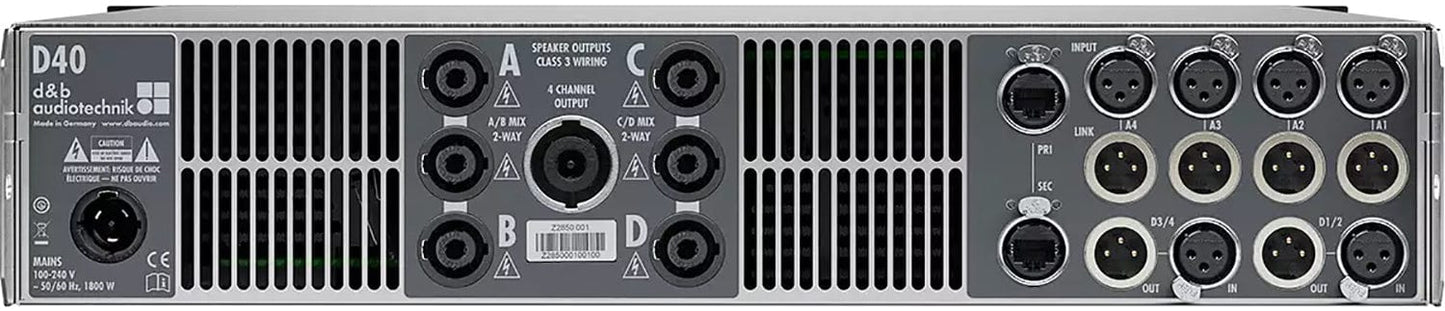

• Connectors:
  • Sampling frequency Digital AES/EBU: 44.1, 48, 96, 192 kHz
  • INPUT ANALOG (A1 - A4): 3 pin XLR female
  • ANALOG LINK (A1 - A4): 3 pin XLR male
  • INPUT DIGITAL (D1/2, D3/4): 3 pin XLR female AES3
  • DIGITAL LINK (Output): 3 pin XLR male
  • Speaker outputs A/B/C/D: NL4
  • Mix TOP/SUB / 2-Way Active output A/B and C/D: NL4
  • 4 Channel output: NL8
  • ETHERNET: 2 x RJ 45, 1 Gbit/100 Mbit Ethernet
  • Mains connector: powerCON® TRUE1 TOP
• Data (linear setting with subsonic filter):
  • Maximum output power per channel (THD+N < 0.5%, all channels driven): CF = 12 dB at 4 / 8 ohms: 4 x 2400/2000 W
• Power supply:
  • Type: Autosensing switch mode power supply with active Power Factor Correction (PFC)
  • Rated mains voltage: 100 - 127 / 208 - 240 V, 50 - 60 Hz
• Dimensions / weight:
  • Dimensions (H x W x D): 2 RU x 19" x 512 mm/20.2"
  • Weight: 13.8 kg (30.4 lb)
• D&B Audiotechnik Z0601.001 E12 12-Inch NL4 Passive Loudspeaker:
• System data:
  • Frequency response (–5 dB standard): 50 Hz – 18 kHz
  • Frequency response (–5 dB CUT mode): 100 Hz – 18 kHz
  • Max. sound pressure (1 m, free field):
    • E12/E12-D with D6: 131/130 dB
    • E12/E12-D with D12: 134/133 dB
  • Input level (100 dB-SPL/1 m): –17 dBu
• Loudspeaker data:
  • Nominal impedance: 8 ohms
  • Power handling capacity (RMS/peak 10 ms): 300/1600 W
  • Nominal dispersion angle (hor. x vert.): 80° x 50°, 110° x 50°
• Components:
  • 12" driver with neodymium magnet
  • Coaxial 1.3" exit compression driver with 3“ coil and rotatable CD horn
  • Passive crossover network
• Connections:
  • 2 x NL4
  • Pin assignments:
    • NL4: 1+/1–
• Weight: 16 kg (35 lb)
• D&B Audiotechnik Z0210.001 E12X 12-Inch NL4 Passive Subwoofer:
• System data:
  • Frequency response (-5 dB standard): 45 Hz - 100 Hz
  • Frequency response (–5 dB 140 Hz mode): 45 Hz - 140 Hz
  • Max. sound pressure:
    • with 10D: 124 dB
    • with D20/5D/30D: 127 dB
    • with D40/D80/40D: 127 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: Compact subwoofer
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 300/1600 W
  • Components: 12" driver
• Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 358 x 530 x 448 mm (14.1 x 20.9 x 17.6")
  • Weight: 18 kg (40 lb)
