D&B Audiotechnik E-Series Small Bar PA System for Background Music with E8 Speakers / E15X Sub

This live sound reinforcement speaker package contains the following items:

*(6x) D&B Audiotechnik Z0620.001 E8 8-Inch NL4 Passive Loudspeaker

The E8 is a high performance 2-way multipurpose loudspeaker, employing an integrated coaxial driver. The E8 can be used for speech and music applications as a stand-alone full range system, or incorporated into larger distributed sound reinforcement situations. With the addition of an E12X subwoofer in passive or active mode or any other E-Series subwoofer, it can also easily reproduce higher level music program. The multifaceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The 90° x 50° dispersion pattern (h x v) of the horn is easily rotatable through 90° to provide a 50° x 90° dispersion pattern. The E8 cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating a handle and a socket to accept loudspeaker stands. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP54 rating, and enables operation of loudspeakers in changing ambient conditions. Both options are supplied with metal plates in the specified colour covering the handle recesses and loudspeaker stand socket.

Features:

• Components: 8″/1″
• Dispersion: 90° x 50° rotatable
• SPLmax: 129 dB
• Weight: 7.3 kg / 16.1 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 62 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 120 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 126 dB
    • with D20/5D/30D: 129 dB
    • with D40/D80/40D: 129 dB
  • Cabinets per amplifier channel: 3
• Loudspeaker data:
  • Configuration: 2-way compact coaxial loudspeaker
  • Nominal impedance: 12 Ω
  • Power handling capacity (RMS/peak 10 ms): 150/800 W
  • Nominal dispersion angle (h x v): 90° x 50° rotatable through 50° x 90°
  • Components:
    • 8" driver with neodymium magnet
    • 1" exit compression driver with 1.75" coil and rotatable CD horn
    • passive crossover network
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 390 x 232 x 223 mm / 15.4 x 9.1 x 8.8"
  • Weight: 7.3 kg / 16.1 lb

*(2x) D&B Audiotechnik Z0615.001 E15X 15-Inch NL4 Passive Subwoofer

The E15X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E15X-SUB to be operated in parallel to E12 or E12-D loudspeakers on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer. In Active mode the E15X-SUB can be used to supplement any of the E-Series cabinets. The E15X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a pair of handles and an M20 threaded flange on the top to accept the d&b loudspeaker stand winder. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Amplifiers

When the E12-X or E12-DX configuration is selected an E12 or E12-D can be driven passively in parallel with an E15X-SUB from the same amplifier channel.

The following amplifiers can be used to drive the E15X-SUB.

Mobile

• D6
• D20
• D40
• D80

Installation

• 10D
• 30D
• 40D

Technical Data

• System data
• Frequency response (-5 dB standard)
• 37 - 140 Hz
• Frequency response (-5 dB 100 Hz mode)
• 37 - 100Hz
• Max. sound pressure[1]
• with 10D
• 127 dB
• with D20/30D
• 130 dB
• with D40/D80/40D
• 130 dB
• Cabinets per amplifier channel
• 2
• Loudspeaker data
• Configuration
• Compact subwoofer
• Nominal impedance
• 8 Ω
• Power handling capacity (RMS/peak 10 ms)
• 300/1600 W
• Components
• 15" driver
• passive crossover network
• Connections
• 2 x NL4
• Dimensions / weight
• Dimensions (H x W x D)
• 426 x 530 x 550 mm
• 16.8 x 20.9 x 21.7"
• Weight
• 24 kg
• 53 lb

[1] 1 m, free field, SPL max peak test signal: pink noise with crest factor 4, one speaker driven

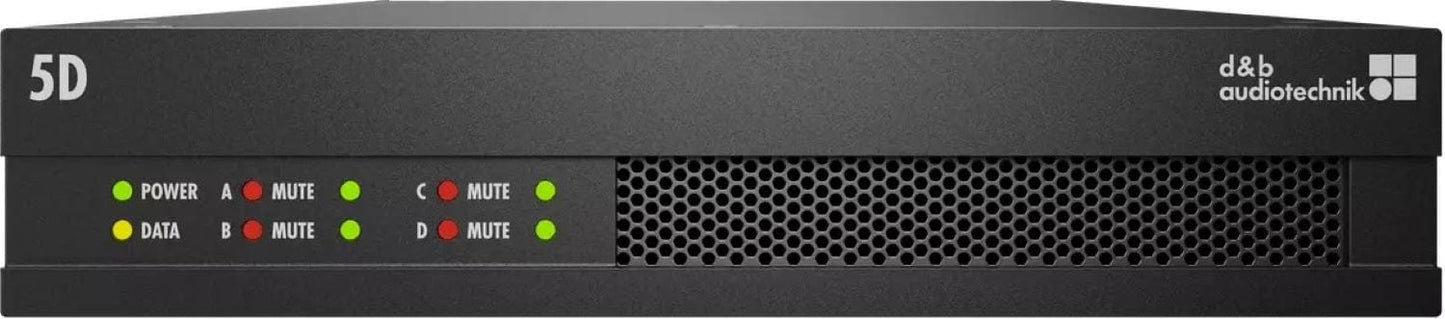

*(1x) D&B Audiotechnik Z2880.000 5D Amplifier

The 5D is a Class D installation amplifier with flexible power distribution among its four output channels. It uses Digital Signal Processing (DSP) to incorporate loudspeaker-specific configurations for smaller loudspeakers from E-Series, xS-Series, xC- and T-Series, as well as equalization and delay functions. A linear setup is available allowing the amplifier to be used as a linear installation power amplifier. The amplifier has a dynamic range of 111 dB (Dante input, unweighted) and is designed to drive a selected range of d&b loudspeakers while providing comprehensive management and protection capabilities.

Specifications:

• Digital Signal Processing:
  • Latency analog and digital inputs: 1.1 ms / < 3 ms
  • Configurations: Selected loudspeakers from E-Series, xS-Series, xC Series, T-Series; Linear setup
  • Frequency generator: Pink noise or Sine wave 10 Hz – 20 kHz
• Controls and indicators:
  • Display: LED indicators
• Connectors:
  Ethernet, Dante Input: 2 x RJ 45, 1 Gbit / 100 Mbit GPI: 1 x 6-pin Euroblock 3.5 mm male Input / Link ANALOG (A1-A4): 2 x 6-pin Euroblock male, 3.5 mm Speaker outputs A/B/C/D: 2 x 4-pin Euroblock 5.08 mm female Mains connector: IEC FAULT: 1 x 3-pin Euroblock 3.5 mm male
• Power supply:
  • Type: Wide range switched mode power supply with active Power Factor Correction (PFC)
  • Rated mains voltage: 100 - 240 V, 50 - 60 Hz
• Dimensions / weight:
  • Dimensions (H x W x D): 1 RU x 9.5" x 435 mm/17.1"
  • Weight:
    • 4.6 kg
    • 10 lb
