D&B Audiotechnik E-Series PA-System with E12 Loudspeakers (x2) B4 Subs (x4) and E5 Nearfills (x4)

D&B Audiotechnik E-Series PA-System with E12 Loudspeakers (x2) B4 Subs (x4) and E5 Nearfills (x4)

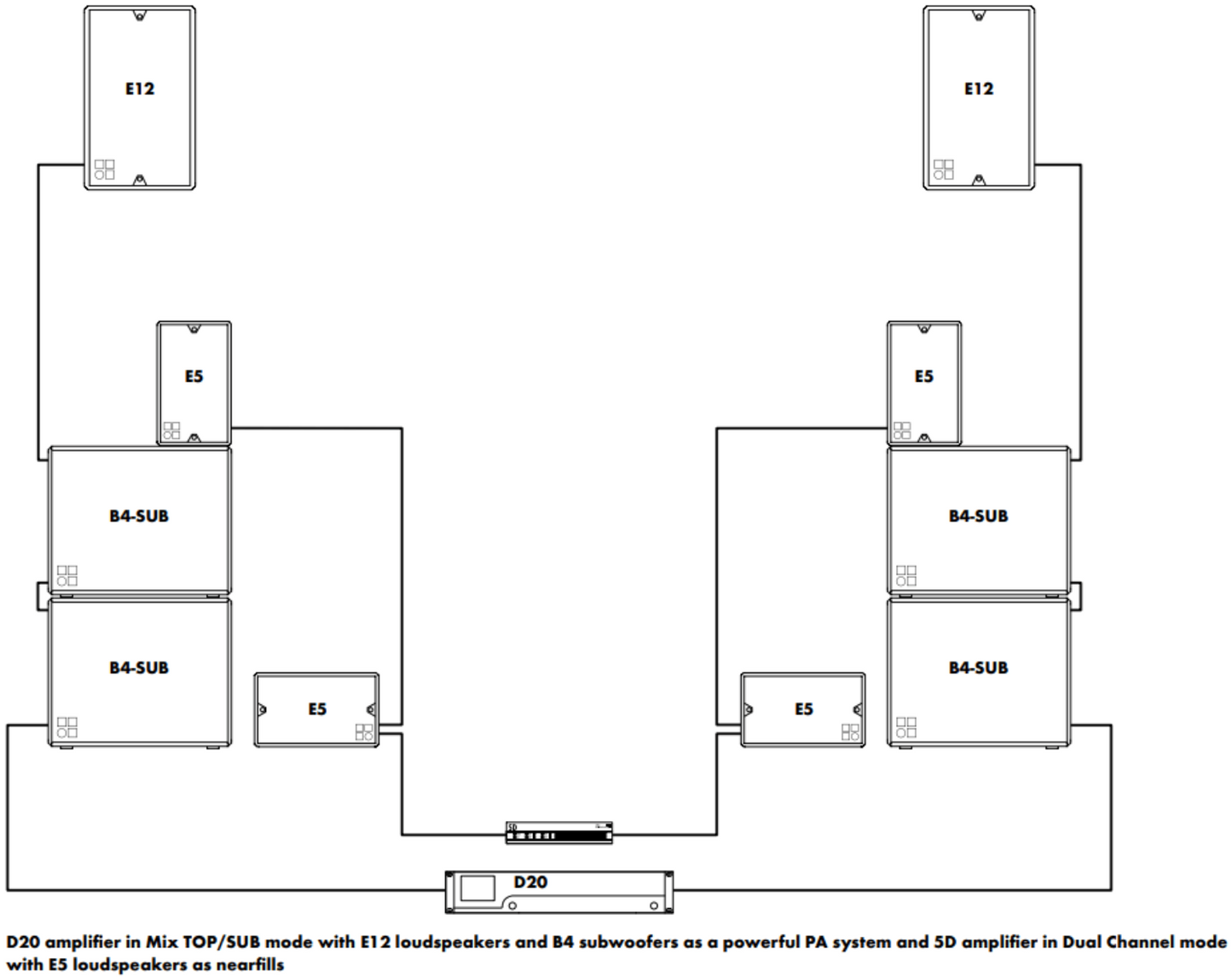

This PA System package contains the following items:

• 1x D&B Audiotechnik Z2850.500 D40 Amplifier - US/CA/KR
• 1x D&B Audiotechnik Z2880.000 5D Amplifier
• 2x D&B Audiotechnik Z0601.001 E12 12-Inch NL4 Passive Loudspeaker
• 4x D&B Audiotechnik Z0450.000 E5 5-Inch NL4 Passive Loudspeaker
• 4x D&B Audiotechnik Z0610.001 B4 15-Inch/12-Inch NL4 Dual Passive Subwoofer

*1x D&B Audiotechnik Z2850.500 D40 Amplifier - US/CA/KR

The D40 amplifier represents a new performance level of four channel Class D amplifiers using Digital Signal Processing (DSP) to incorporate loudspeaker specific configurations and user definable setups, equalization and delay functions.

Features:

• High voltage output suitable for driving applicable d&b loudspeakers, including the KSL System
• Increases overall system efficiency
• Advanced voltage management
• Energy-efficient for minimal ecological impact
• Enhanced DSP capabilities accommodates future system architecture

Specifications:

• Digital Signal Processing:
  • Equalizer: 2 x 16-band PEQ/notch/shelving/asymmetric
  • Latency analog and digital inputs: 0.3 ms
  • Delay setting: 0.3 ms - 10 s
  • Configurations: current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)
  • Function switches: d&b loudspeaker specific circuits
  • Frequency generator: Pink noise or Sine wave 10 Hz - 20 kHz
• Controls and indicators:
  • POWER: Mains power switch
  • SCROLL/EDIT: Digital rotary encoder
  • Display: Colour TFT touchscreen, 4.35"/480 x 272 pixel
• Connectors
  • Sampling frequency Digital AES/EBU: 44.1, 48, 96, 192 kHz
  • INPUT ANALOG (A1 - A4): 3 pin XLR female
  • ANALOG LINK (A1 - A4): 3 pin XLR male
  • INPUT DIGITAL (D1/2, D3/4): 3 pin XLR female AES3
  • DIGITAL LINK (Output): 3 pin XLR male
  • Speaker outputs A/B/C/D: NL4
  • Mix TOP/SUB / 2-Way Active output A/B and C/D: NL4
  • 4 Channel output: NL8
  • ETHERNET: 2 x RJ 45, 1 Gbit/100 Mbit Ethernet
  • Mains connector: powerCON® TRUE1 TOP
• Data (linear setting with subsonic filter):
  • Maximum output power per channel (THD+N < 0.5%, all channels driven)
  • CF = 12 dB at 4 / 8 ohms: 4 x 2400/2000 W
• Power supply:
  • Type: Autosensing switch mode power supply with active Power Factor Correction (PFC)
  • Rated mains voltage: 100 - 127 / 208 - 240 V, 50 - 60 Hz
• Dimensions / weight:
  • Dimensions (H x W x D): 2 RU x 19" x 512 mm/20.2"
  • Weight: 13,8 kg (30,4 lb)

*1x D&B Audiotechnik Z2880.000 5D Amplifier

The 5D is a Class D installation amplifier with flexible power distribution among its four output channels. It uses Digital Signal Processing (DSP) to incorporate loudspeaker-specific configurations for smaller loudspeakers from E-Series, xS-Series, xC- and T-Series, as well as equalization and delay functions. A linear setup is available allowing the amplifier to be used as a linear installation power amplifier. The amplifier has a dynamic range of 111 dB (Dante input, unweighted) and is designed to drive a selected range of d&b loudspeakers while providing comprehensive management and protection capabilities.

Specifications:

• Digital Signal Processing:
  • Latency analog and digital inputs: 1.1 ms / < 3 ms
  • Configurations: Selected loudspeakers from E-Series, xS-Series, xC Series, T-Series; Linear setup
  • Frequency generator: Pink noise or Sine wave 10 Hz – 20 kHz
• Controls and indicators:
  • Display: LED indicators
• Connectors:
  • Ethernet, Dante Input: 2 x RJ 45, 1 Gbit / 100 Mbit GPI: 1 x 6-pin Euroblock 3.5 mm male Input / Link ANALOG (A1-A4): 2 x 6-pin Euroblock male, 3.5 mm Speaker outputs A/B/C/D: 2 x 4-pin Euroblock 5.08 mm female Mains connector: IEC FAULT: 1 x 3-pin Euroblock 3.5 mm male
• Power supply:
  • Type: Wide range switched mode power supply with active Power Factor Correction (PFC)
  • Rated mains voltage: 100 - 240 V, 50 - 60 Hz
• Dimensions / weight:
  • Dimensions (H x W x D): 1 RU x 9.5" x 435 mm/17.1"
  • Weight:
    • 4.6 kg
    • 10 lb

*2x D&B Audiotechnik Z0601.001 E12 12-Inch NL4 Passive Loudspeaker

The E12 and E12-D are high performance 2-way multipurpose loudspeakers, employing an integrated coaxial driver. The E12 and E12-D can be used for speech and music applications as stand-alone full range systems or incorporated into larger distributed sound reinforcement situations and, with the addition of an E15X or B4 subwoofer, can also easily reproduce high level music program. The multifaceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The E12 has an 80° x 50° dispersion pattern (h x v), while the E12-D has a wider 110° x 50° pattern. The horns in both loudspeakers are easily rotatable through 90° providing 50° x 80° or 50° x 110° dispersion patterns. The E12 and E12-D cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating handles and a hidden socket to accept loudspeaker stands. The loudspeaker cabinet is also available in Special Colour (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP54 rating, and enables operation of loudspeakers in changing ambient conditions. Both options are supplied with metal plates in the specified colour covering the handle recesses and loudspeaker stand socket.

Features:

• Components 12″/1.3″
• Dispersion 80° x 50° rotatable
• SPLmax 134 dB
• Weight 16 kg / 35 lb

Specifications:

• System data:
  • Frequency response (–5 dB standard): 50 Hz – 18 kHz
  • Frequency response (–5 dB CUT mode): 100 Hz – 18 kHz
  • Max. sound pressure (1 m, free field): E12/E12-D with D6: 131/130 dB, E12/E12-D with D12: 134/133 dB
  • Input level (100 dB-SPL/1 m): –17 dBu
• Loudspeaker data:
  • Nominal impedance: 8 ohms
  • Power handling capacity (RMS/peak 10 ms): 300/1600 W
  • Nominal dispersion angle (hor. x vert.): 80° x 50°, 110° x 50°
  • Components:
    • 12" driver with neodymium magnet
    • coaxial 1.3" exit compression driver with 3“ coil and rotatable CD horn
    • Passive crossover network
  • Connections:
    • 2 x NL4

  • Pin assignments:
    • NL4: 1+/1–
  • Weight: 16 kg (35 lb)

*4x D&B Audiotechnik Z0450.000 E5 5-Inch NL4 Passive Loudspeaker

The E5 is a lightweight 2-way passive loudspeaker using a ferrite LF driver and a coaxially mounted wide dispersion dome tweeter. It offers a wide symmetrical dispersion pattern in the horizontal and vertical plane, while the cabinet may be mounted in either attitude. The E5 is intended for mobile near field applications for speech and music reinforcement in theatres, conferences, industrial presentations, broadcast studios and as surround sound, delay and fill systems. It can be used stand-alone or supplemented by different subwoofers from the E-Series. The highly compact bass-reflex enclosure is injection moulded with an impact resistant black paint finish. The loudspeaker cabinet is weather protected and suitable for outdoor use as standard and is also available with a Special Colour (SC) option.

Features:

• Components 5″/1″
• Dispersion 100° conical
• SPLmax 117 dB
• Weight 2.7 kg / 6.0 lb

Specifications:

• System data:
  • Frequency response (–5 dB standard mode): 85 Hz – 20 kHz
  • Frequency response (–5 dB CUT mode): 130 Hz – 20 kHz
  • Max. sound pressure (1 m, free field) with D6: 116 dB
  • Max. sound pressure (1 m, free field) with D12: 117 dB, (SPLmax peak, pink noise test signal with crest factor 4)
  • Input level (100 dB-SPL/1 m): –6 dBu
• Loudspeaker data:
  • Nominal impedance: 16 ohms
  • Power handling capacity (RMS/peak 10 ms): 60/400 W
  • Nominal dispersion angle (hor. x vert.): 100° conical
  • Components: 5“ driver with ferrite magnet
  • 1” dome driver, coaxially mounted
  • Passive crossover network
  • Connections: 2 x NL4
  • 1 x two pole push terminal (PT – up to 6 mm2/AWG 10)
  • Pin assignments: NL4: 1+ / 1–
  • Push terminal: Red: (+) / Black: (–)
  • Weight: 2.7 kg (6.0 lb)

4x D&B Audiotechnik Z0610.001 B4 15-Inch/12-Inch NL4 Dual Passive Subwoofer

The B4-SUB is an actively driven cardioid subwoofer powered by a single amplifier channel. It houses two long excursion neodymium drivers in an integrated cardioid setup: a 15" driver in a bass-reflex design facing to the front and a 12" driver in a two chamber bandpass design radiating to the rear. The cardioid dispersion pattern resulting from this approach avoids unwanted energy behind the system that greatly reduces the reverberant field at low frequencies and provides the greatest accuracy of low frequency reproduction. The B4 subwoofer can only be used in a ground stacked setup. The B4-SUB cabinet is constructed from marine plywood, has an impact and weather resistant paint finish and a pair of handles. An M20 threaded flange in the top panel accepts the d&b Loudspeaker stand winder M20. The loudspeaker cabinet is also available in Special Colour (SC) options.

Features:

• Components 15"/12"
• Dispersion Cardioid
• SPLmax 131 dB
• Weight 44 kg / 97 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 40 - 150 Hz
  • Frequency response (-5 dB 100 Hz mode): 40 - 100 Hz
  • Max. sound pressure:
    • with 10D: 128 dB
    • with D20/30D: 131 dB
    • with D40/D80/40D: 131 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: Cardioid subwoofer
  • Nominal impedance: 6 Ω
  • Power handling capacity (RMS/peak 10 ms): 500/2000 W
  • Components: 15" / 12" driver
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 476 x 580 x 700/ 800 mm (18.7 x 22.8 x 27.73 / 31.6")
  • Weight: 44 kg / 97 lb
