Description

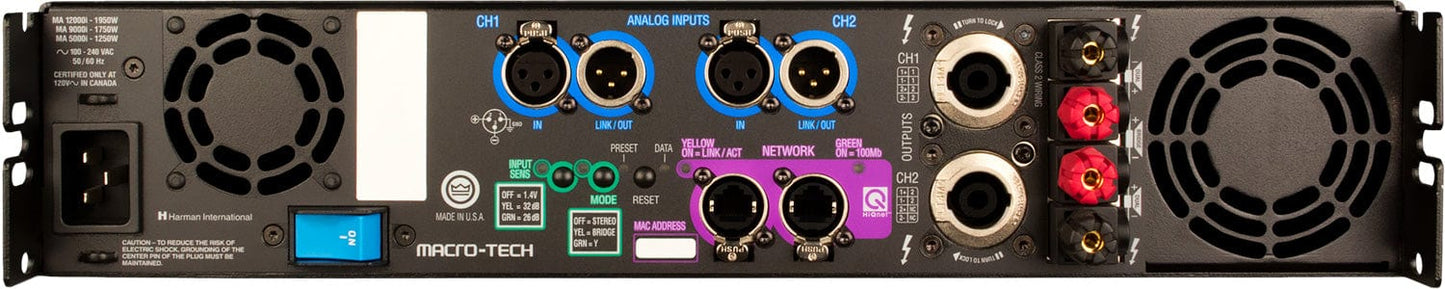

Crown MA5000 2-Channel 1250 Watt Audio Amplifier
The Crown Macro-Tech i Series offers amazing power, light weight and ease of use for touring sound applications. The series includes onboard analog signal processing and a built-in network connection.
Features:
- The Macro-Tech i Series continues the Macro-Tech legacy of unparalleled sonic accuracy and detail, putting sound quality above all else
- Patented, cutting-edge Class-I circuitry gets more power out of an amplifier with less waste
- Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road
- Global Power Supply — designed to deliver maximum power no matter what country you work in
- Built-in load, line voltage, input and output monitoring
- Standard Ethernet networking via System Architect® lets system operators monitor and control the amplifier from any location
Specifications:
- Frequency Response: ±0.25dB
- Signal to Noise Ratio: >112dB
- THD: <0.1%
- THD+Noise: <0.1%, 20Hz to 20kHz
- Intermodulation Distortion: <0.35%
- Damping Factor: >5000
- Crosstalk: >80dB
- Common Mode Rejection: >70dB Typical
- DC Output Offset: <±3mV
- Input Impedance: 20kΩ balanced, 10kΩ unbalanced
- Maximum Input Level: +20dBu Typical
- Load Impedance Stereo: 1/2/4/8/16Ω; Bridge: 2/4/8Ω
- Input Sensitivity: 1.4Vrms, 32dB gain, 26dB gain
- Voltage Gain: 39.3dB to 24.5dB
- Required AC Mains (±10%): Universal AC input, 100-240VAC, 50/60Hz
- Dimensions: 19" x 3.5" x 16.2" (48.3 cm x 8.9 cm x 41.1 cm)
- Net Weight: 28 lbs (12.7 kgs)
- Shipping Weight: 36 lbs (16.3 kgs)
- Power Connector: 20A
