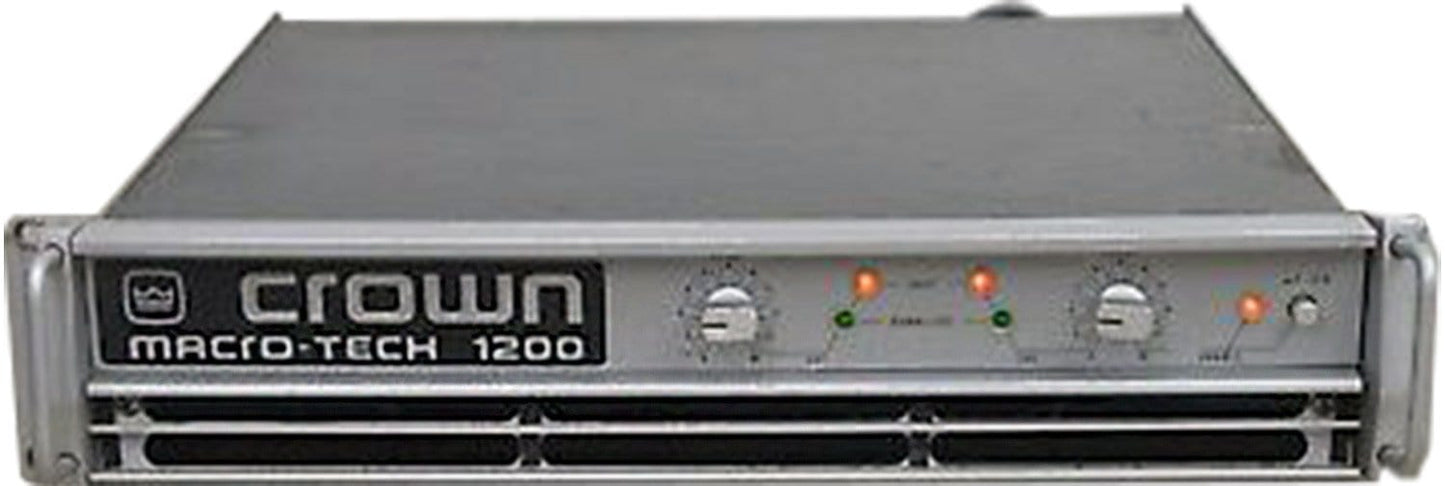

Crown MA1200 Audio Amplifier 2-Channel 320-Watt
The Crown® Macro-Tech® Series is the defining standard for amplifier design today. No compromises, no gimmicks. Just brilliant engineering backed by superior manufacturing, support and an unsurpassed commitment to quality. Like all Crown amps, the defining characteristic of the Macro-Tech Series is sonic accuracy. A tight, rock-solid low end, with smooth, detailed highs and a well-defined midrange. In short, the most accurate reproduction of an audio signal you’ve ever heard. And because we put the quality of sound above all else, a Crown is the most coveted amplifier in the business.
Features:
- Patented ODEP (Output Device Emulation Protection) circuitry compensates for overheating and overload
- IOC (Input/Output Comparator) circuitry immediately indicates any distortion exceeding 0.05% giving dynamic proof of performance
- Two mono modes (Bridge-Mono and Parallel-Mono) for driving a wide range of load impedances and cable lengths
- Full protection against shorted outputs, open circuits, mismatched loads, general overheating, high frequency overloads. Loudspeaker protection against low frequency and DC output.
- Plug-in PIP card facility
Specifications:
- Output power:
- 700W continuous @2Ω 20Hz-20kHz
- 495W continuous @4Ω 20Hz-20kHz
- 320W continuous @8Ω 20Hz-20kHz
- (Bridge mono) 980W continuous @8Ω 20-20kHz
- Frequency response: 20hz - 20kHz ±0.1dB @1W
- Phase response: ±10° from 10Hz - 20kHz @1W
- Signal to Noise Ratio: >105dB 20Hz - 20kHz below rated output at 26dB gain
- THD: <0.05% from 20Hz to 1kHz and increasing linearly to <0.1% at 20kHz, delivering full rated power into 8 Ohms per channel
- IM Distortion: <0.05% from 10mW to full rated output at 26dB gain
- Damping factor: >1000 from 10Hz to 400Hz
- Slew rate: >13 volts per microsecond (stereo)
- Voltage gain: 20:1 ±3% or 26 dB ±0.25dB
- Mains power: 100/120/220/230/240 VAC 50/60Hz
- Dimensions: 2u standard rack mount x 406mm deep
- Weight: 20kg
- Output power:
- 700W continuous @2Ω 20Hz-20kHz
- 495W continuous @4Ω 20Hz-20kHz
- 320W continuous @8Ω 20Hz-20kHz
- (Bridge mono) 980W continuous @8Ω 20-20kHz
- Frequency response: 20hz - 20kHz ±0.1dB @1W
- Phase response: ±10° from 10Hz - 20kHz @1W
- Signal to Noise Ratio: >105dB 20Hz - 20kHz below rated output at 26dB gain
- THD: <0.05% from 20Hz to 1kHz and increasing linearly to <0.1% at 20kHz, delivering full rated power into 8 Ohms per channel
- IM Distortion: <0.05% from 10mW to full rated output at 26dB gain
- Damping factor: >1000 from 10Hz to 400Hz
- Slew rate: >13 volts per microsecond (stereo)
- Voltage gain: 20:1 ±3% or 26 dB ±0.25dB
- Mains power: 100/120/220/230/240 VAC 50/60Hz
- Dimensions: 2u standard rack mount x 406mm deep
- Weight: 20kg
