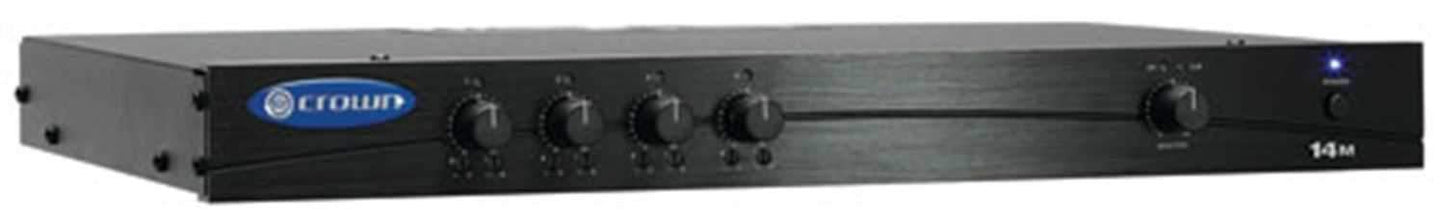

The 14M has 4 inputs and 1 output channel.
Crown's Commercial Audio mixers deliver legendary Crown quality to the commercial audio industry. These high-value mixers are designed for use in a wide range of commercial applications including schools, hospitals, factories, restaurant/retail, houses of worship, fitness facilities, A/V boardrooms, prisons, and small offices. Easily configured for a range of uses such as paging, background music, security, and evacuation instructions, Crown's Commercial Audio units are the smart choice for commercial sound.
Features
• Ideal for commercial and industrial use
• Expandable by adding Crown Commercial Audio Series amplifiers or mixer-amplifiers
• Balanced Phoenix-type mic/line inputs
• Any input can be sent to any output channel
• Built-in four-tone generator
• Priority muting
• Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
Specifications
• Frequency Response (at line out): 20Hz to 20kHz +/-1dB
• Signal to Noise Ratio (master volume at minimum): 100 dB
• THD: less than 0.01% at rated output at 1kHz
• Input Sensitivity (volts RMS for full output at maximum gain)
- Balanced mic inputs: 3mV
- Balanced line inputs: 800mV
- RCA connectors: 400mV
• Input Impedance (nominal)
- Mic: 400 ohms
- Line: 100 kilohms
- RCA: 50 kilohms
• Crosstalk (all controls at "10"): -50dB at 1kHz
• Line Output Level (nominal): 1V into 10 kilohms
• Phantom Power: 15 VDC
• Dimensions (W x H x D): 19" x 1.7" x 10.7"
• Weight: 8.7 lbs (net), 14 lbs (shipping)
