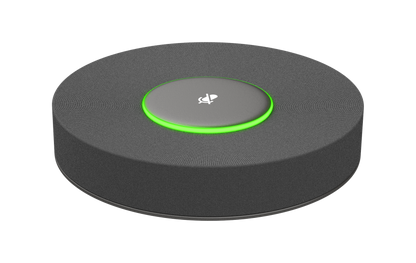

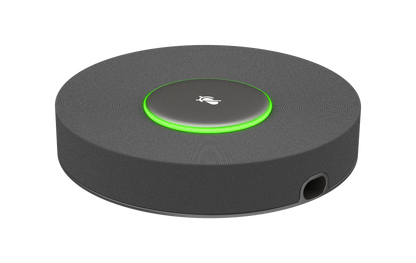

Crestron UCA-B70-MIC-AUX Crestron Videobar 70 Companion Extension Microphone Pod

Crestron UCA-B70-MIC-AUX Crestron Videobar 70 Companion Extension Microphone Pod

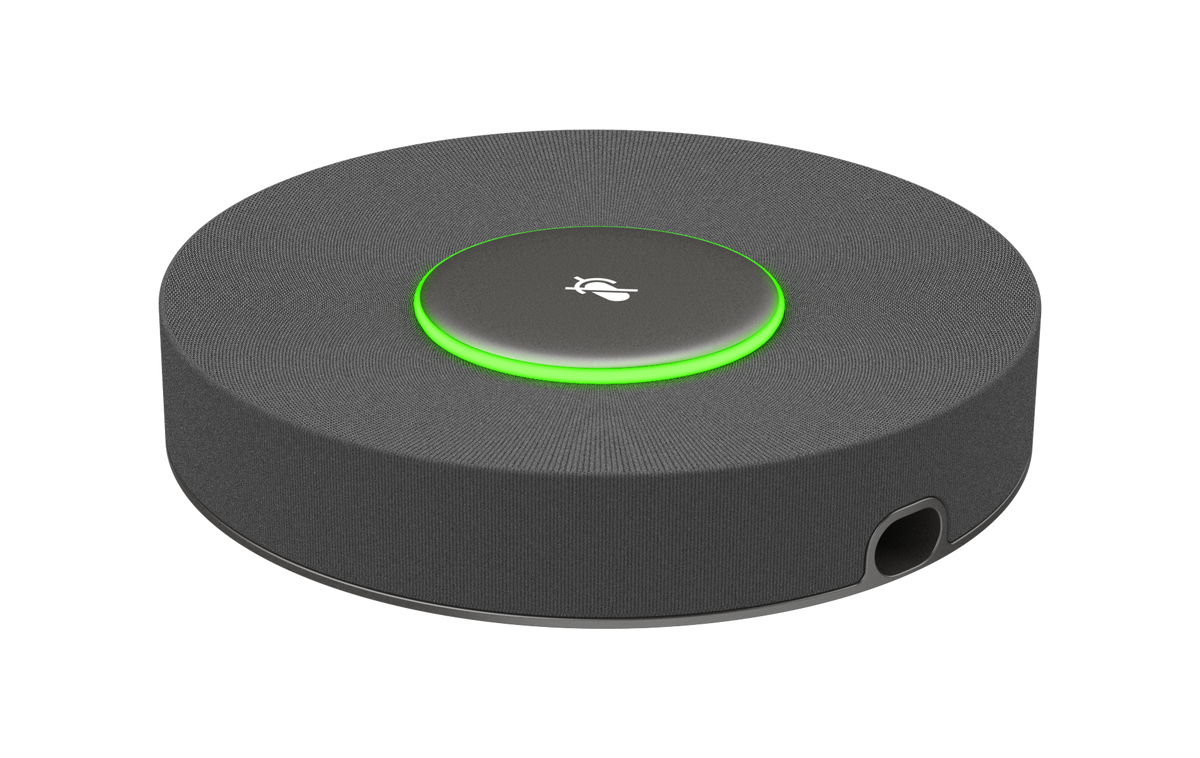

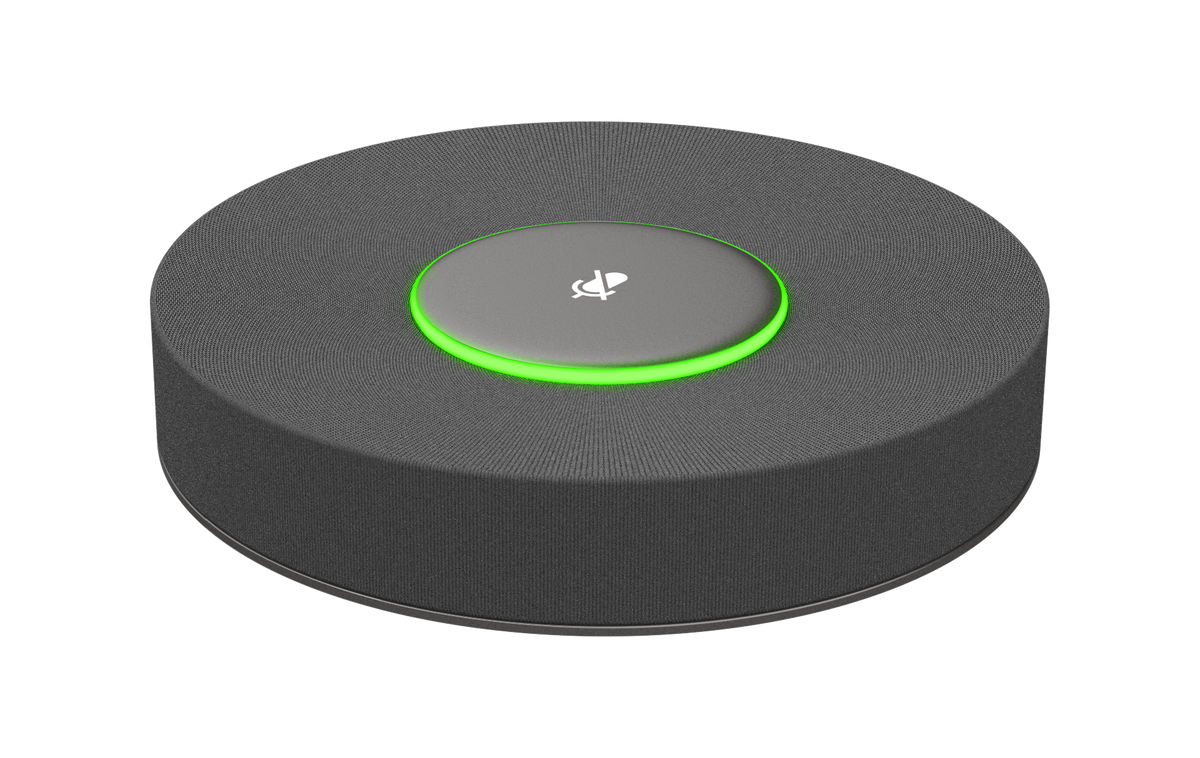

The Crestron UCA-B70-MIC-AUX is an extension microphone pod for use with the UC-SB2-CAM-A Series Crestron Videobar 70. The extension microphone pod extends the audio range of the Crestron Videobar 70 by 7.5 ft (2.3 m) and can be situated within different areas in the room.

Press the mute button on the extension microphone pod to mute or unmute the Videobar 70 and microphone pods simultaneously. The LED on the top of the extension microphone pod changes from red (muted) to green (unmuted) to display the mute status.

The Crestron UCA-B70-MIC-AUX Companion Extension Microphone Pod must be connected to the UCA-B70-MIC Primary Extension Microphone Pod for operation. Refer to the UCA-B70-MIC product page for more information.

Key Features

• Extends the audio pickup range for the UC-SB2-CAM-A Series Videobar 70
• Button to mute or unmute Videobar 70 and microphone pods
• LED indicator displays mute status
• 7.5 ft (2.3 m) audio coverage area
• Daisy-chain connects to the UCA-B70-MIC-AUX Companion Extension Microphone Pod via the included 33 ft (10 m) signal cable
• No configuration or programming required

Specifications

Communications

• A2B bus protocol, child, synchronous data

Audio

• Microphone: 360° 8x Mic Array
• Pickup Range: 7.5 ft (2.3 m)

Buttons

• Mic Mute: Physical button on top, push to mute/unmute device
• Reset: Recessed push button on bottom

Indicators

• Mic: Red LED indicates microphone is muted; Green LED indicates microphone is unmuted; Flashing Green LED indicates primary mic pod is booting

Connectors

• In (To POD): USB-C A2B communication and power; Proprietary Connection not USB or USB-C Compliant

Power

• Powered via USB-C connection to UCA-B70-MIC Primary Extension Microphone Pod

Environmental

• Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (noncondensing)
• Heat Dissipation: 9 BTU/Hr

Contruction

• Enclosure: Black Fabric Cover, metal housing, perforated for mic array, rubber bottom pad
• Mounting: Tabletop mounting only

Dimensions

• Height: 0.93 in. (24 mm)
• Width: 4.76 in. (121 mm)
• Depth: 4.76 in. (121 mm)

Weight

• 0.67 lb (0.3 kg)
