Crestron UC-2-T-V Small Room Tabletop Conference Device for Crestron Collab Compute Devices

Crestron UC-2-T-V Small Room Tabletop Conference Device for Crestron Collab Compute Devices

The UC-2-T-V tabletop conferencing device provides a small room speakerphone and touch screen solution for use with Crestron Collab Compute hardware (sold separately).

Built-In Speakerphone
An integrated 360° quad microphone array captures voices from every seat at the table while the built-in speaker provides full-range audio playback for voice and program content. Echo cancellation is handled by the Microsoft Teams software running on the connected Crestron Collab Compute.

Intuitive UI

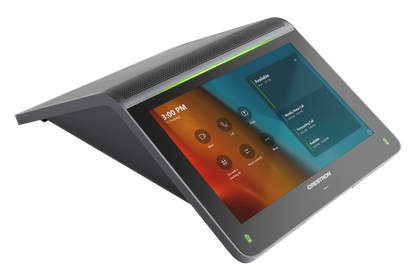

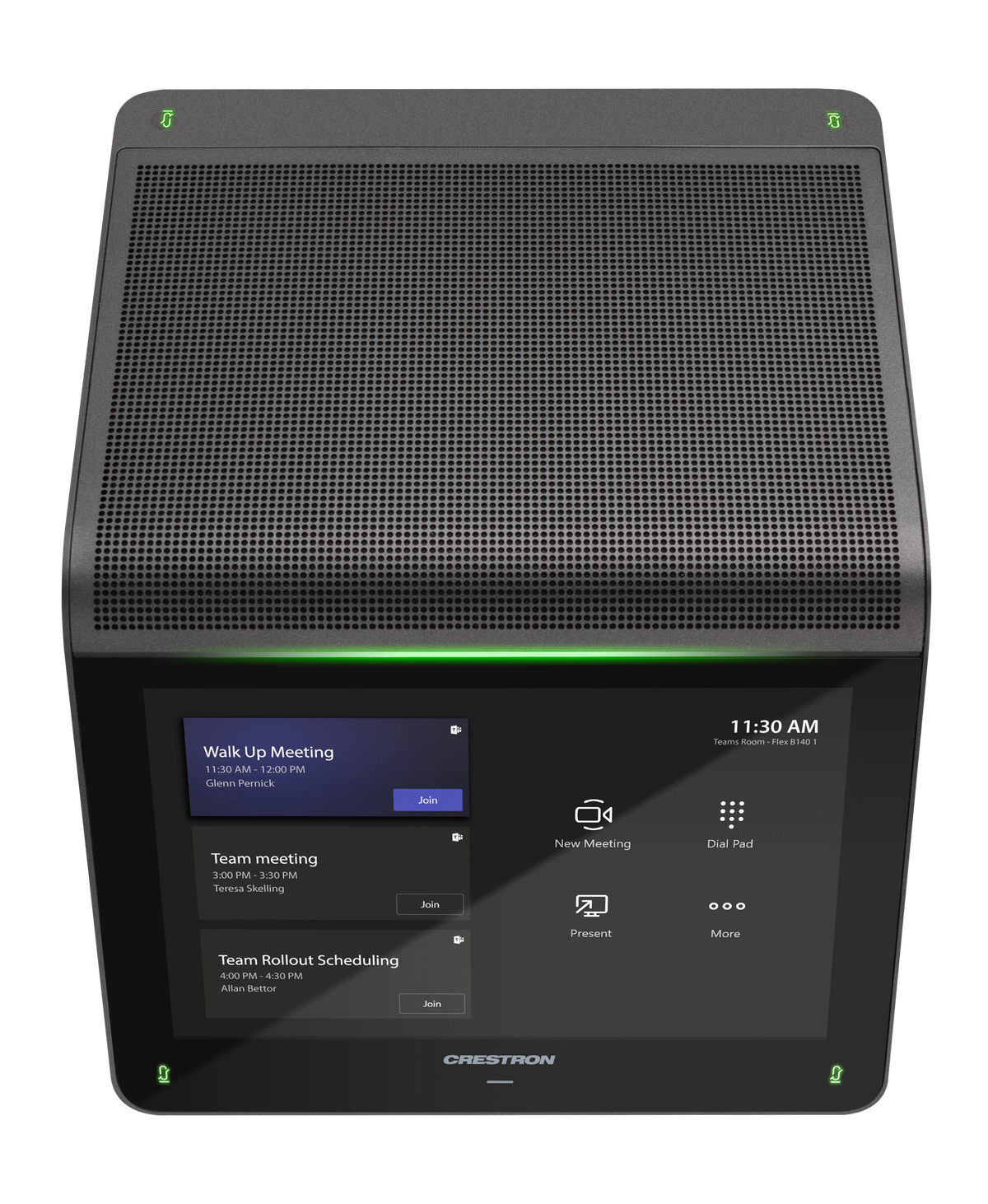

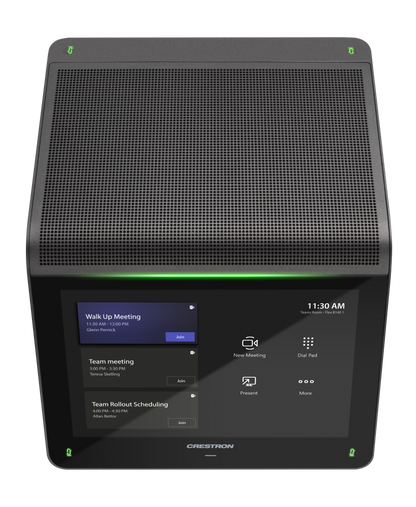

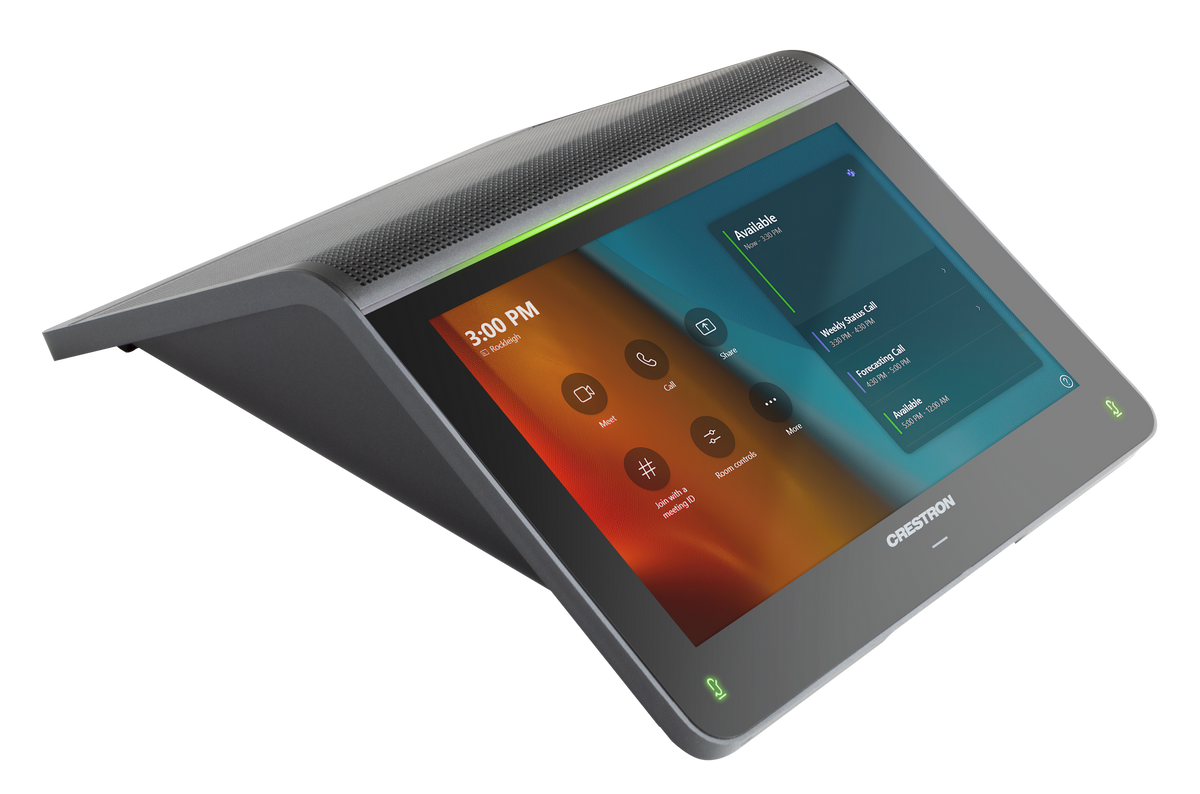

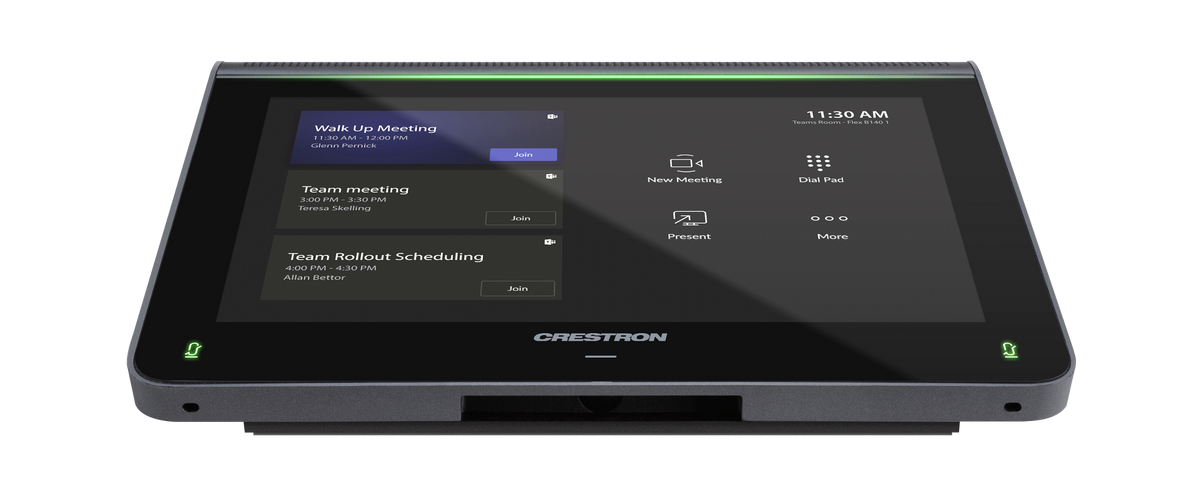

The built-in 7 in. (178 mm) capacitive multitouch screen receives a Microsoft Teams or Zoom Rooms user interface directly from the connected Crestron Collab Compute.^{1, 2} The interface displays meeting schedule details and basic call controls. The touch bar on the top of the conferencing device also provides a simple mute/unmute control and indicator.

Power over Ethernet

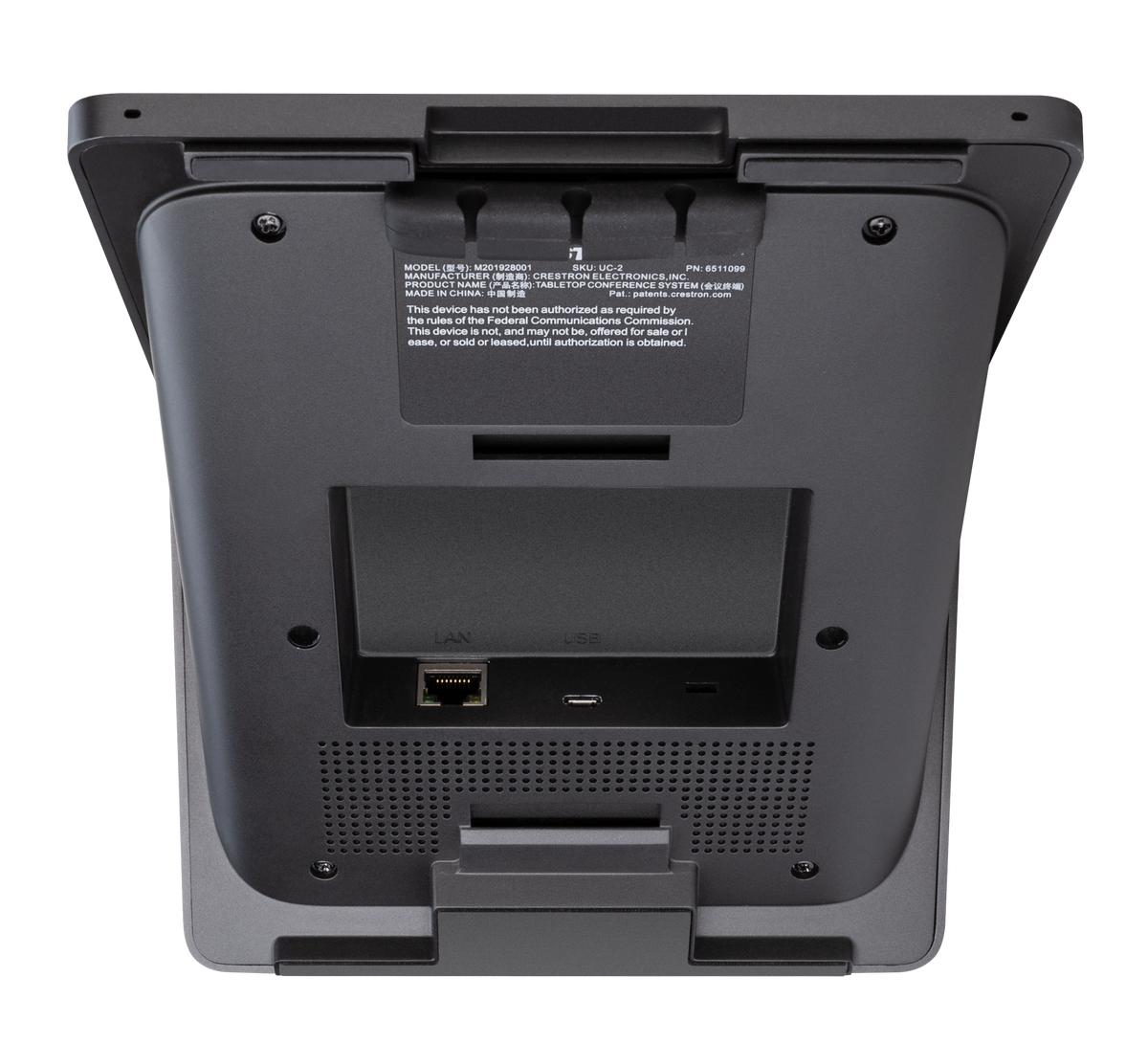

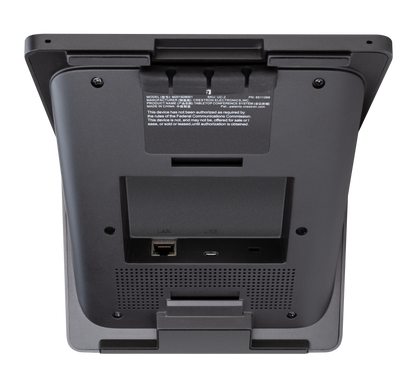

The UC-2-T-V receives power over Ethernet (PoE+) from the connected Crestron Collab Compute or the included PoE injector. The PoE+ of the compute functions both as a power source and a dedicated touch screen configuration port. Once the proper setup is performed on the compute, connecting the UC-2-T-V will automatically configure the conferencing device.

Key Features

• Tabletop UC conferencing solution
• Automatically configures once connected to the PoE+ port of a Crestron Collab Compute (sold separately)
• 7 in. (178 mm) HD color touch screen with Microsoft Teams® or Zoom Rooms™ user interface
• Integrated 360° quad microphone array
• High-powered full-range speaker
• High-visibility mic mute indication
• Enterprise-grade security
• PoE+ powered
• UCA-SMK-UC2 swivel mount kit sold separately

Specifications

Communications

• Ethernet: 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Legacy Active Directory® authentication, digest access authentication, password login, XiO Cloud client, IEEE 802.3at Type 2 PoE+ compliant

Audio

• Speaker: Full range speaker; Amplifier Power: 7 W (rated power); Output Volume: 83 ±3 dBA @1m 1 kHz; Frequency Response: 100 Hz - 20 kHz
• Microphones: (4) Built-in omnidirectional, digital MEMS microphones with 360° audio pickup; Maximum pickup range: 10 ft (3 m) typical

Touch Screen

• Screen: 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
• UI: Microsoft Teams® or Zoom Rooms™ interface when paired with a Crestron Collab Compute device (sold separately)2

Controls and Indicators

• Mic Mute Symbol and Light Bar: (4) Capacitive buttons with bi-color LEDs; Toggles between mute and unmute; Symbol LED blinks green when the unit is powering up; All LEDs illuminate red when the mic is muted; All LEDs illuminate green when the mic is unmuted during an active call or online meeting

Power

• Power: IEEE 802.3af Class 3 and 802.3at Class 4 PoE+ powered device

Environmental

• Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (noncondensing)

Dimensions

• Height: 3.02 in. (77 mm)
• Width: 7.17 in. (182 mm)
• Depth: 9.61 in. (244 mm)

Weight

• 2.1 lb (0.96 kg)
