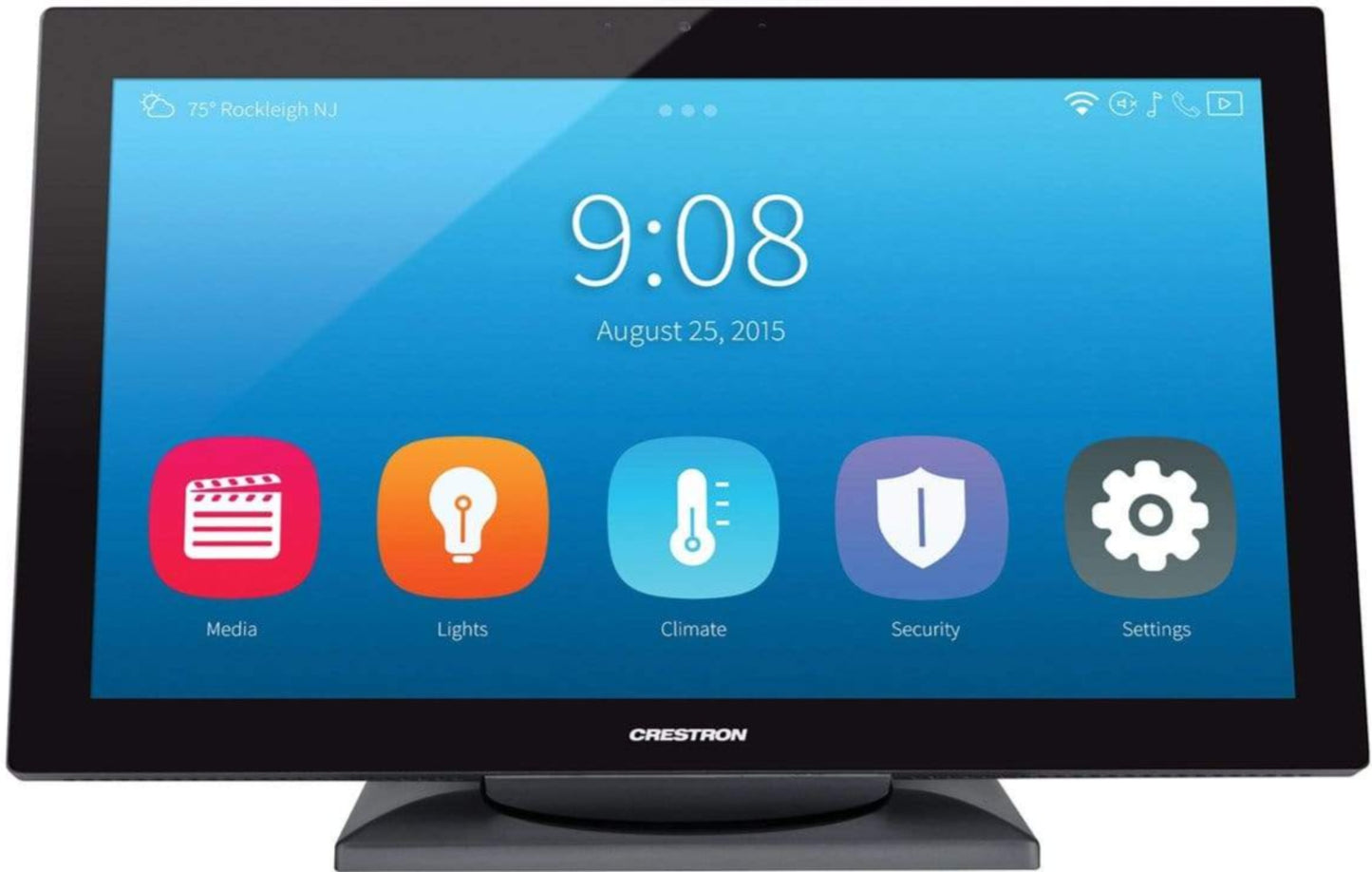

Crestron TS-1542-TILT-B-S 15.6 in HD Touch Screen
Provides a sleek and modern looking Full HD 1080p touch screen featuring premium metallic construction. Suitable for installation on a wall, tabletop, or VESA mount. Features Smart Graphics® performance, dual-window HD streaming video display, annotation, voice recognition, web browsing, and Rava® SIP Intercom. Powered via PoE+ or 24VDC (100-240V power pack included).
Features:
- Cool-looking graphical buttons, sliders, knobs, and gauges that are intuitive and fun to use
- Kinetic effects to enhance the feeling of realism, with lists and toolbars that scroll with momentum at the flick of a fingertip
- Drag-and-drop objects that snap into place, offering an easy way to switch sources
- Dashboard widgets to personalize the touch screen with clocks, weather, news, and other information[1]
- A power-saving screensaver that can display the time, temperature, and other text content at a reduced brightness level
- Customizable themes allowing a completely different look and feel for every user, event, or season
- Fully-developed SmartObjects® technology that enables sophisticated control over complex devices with minimal programming
- A consistent look and feel across multiple touch screens of varying sizes
Specifications:
-
Touch Screen Display:
- Display Type TFT active matrix color LCD
- Size 15.6 inch (396 mm) diagonal
- Aspect Ratio 16:9 Full HD
- Resolution 1920 x 1080 pixels
- Brightness 400 nits (cd/m²)
- Contrast 800:1 typical
- Response Time 30 ms G-to-G
- Color Depth 24-bit, 16.7M colors
- Illumination LED w/auto-brightness control
- Viewing Angle ±80° horizontal, +80°/−65° vertical
- Touch Screen Projected capacitive, 10-point multi-touch capable
-
Graphics Engine: Crestron Smart Graphics, local and remote annotation, multi-language web browser, multi-language on-screen keyboard, screensaver, fully-scalable dual streaming video windowing, setup and diagnostics via web browser or onscreen UI
-
Languages:
- Smart Graphics: Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
- On-Screen Keyboard: Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
- Voice Recognition: Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey)
- Web Browser: Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
-
Memory:
- RAM: 2 GB DDR3-SDRAM
- Flash: 4 GB
- Maximum Project Size: 1 GB
-
Communications:
Ethernet: 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory authentication, HTTPS web browser setup, Crestron XiO Cloud client, IEEE 802.3 at Type 2 compliant USB Host: Supports USB HID compliant keyboard devices USB Device: For computer console (installer setup and firmware update)
-
Streaming Decoder:
- Video Formats: H.264 (MPEG-4 part 10 AVC), MJPEG
- Audio Formats: AAC stereo
- Bitrates: Up to 25 Mbps
- Resolutions: Up to 1080p60
-
Audio:
- Features: Built-in microphone and speakers, Rava SIP Intercom, multi-language voice recognition
- Audio Feedback Formats: MP3
-
Connectors:
- 24V DC, 1.0 A:
- (1) 2-pin 3.5 mm detachable terminal block
- 24 Volt DC power input
- Wire Size: 18 AWG maximum
- Connects to the PW-2420RUL power pack (included), or to a Cresnet network or power supply
- USB HID:
- (1) USB Type A connector, female;
- USB 2.0 host port for USB HID-compliant keyboard
- CONSOLE:
- (1) USB Type B connector, female;
- USB computer console port (for setup)
- G: (1) 6-32 screw, chassis ground lug
- LAN:
- (1) 8-pin RJ45 connector, female;
- 10Base-T/100Base-TX Ethernet port
- Power over Ethernet Plus (PoE+) compliant
- 6 ft (1.8 m) cable and TS-1542-IMCW interface module included
-
Buttons & Indicators:
- RESET: (1) Pushbutton at rear connector panel for hardware reset
- LAN: (2) LEDs at LAN connector, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
-
Power:
- Power Options: Power pack, Cresnet, or PoE+
- Power Pack (included):
- Output: ≥1 Amp @ 24 Volts DC
- Input: 1.3 Amps @ 100-240 Volts AC, 50/60 Hz
- Model: PW-2420RUL
- Cresnet: 25 Watts @ 24 Volts DC
- PoE+ (Power over Ethernet Plus): IEEE 802.3 at Type 2 Class 4 (25.5 W) PoE+ Powered Device NOTE: - The TS-1542 is not compatible with PoE.
- Power Consumption:
- 25 Watts maximum
- 18.4 Watts typical (display brightness 100%)
- 8.7 Watts standby (display backlight off)
-
Environmental:
- Temperature: 32° to 113° F (0° to 45° C)
- Humidity: 10% to 90% RH (non-condensing)
- Heat Dissipation: 63 BTU/hr typical
-
Construction:
- Composition: Aluminum housing with dark gray or white finish (custom colors and graphics also available), edge-to-edge glass with black or white surround
- Mounting (model TS-1542):
- Mounts to a flat wall surface over a 2-gang electrical box, horizontally-oriented 1-gang electrical box, 1-gang UK electrical box (BS 4662), 1-gang European electrical box (DIN 49073), or rough cut-out up to 2 in. H x 3 in. W (50 mm H x 75 mm W) using wall mount kit provided;
- VESA 100 x 100 mm mountable with wall mount kit removed
- Mounting (model TS-1542-TILT): Includes tabletop base with 23° to 45° adjustable tilt
-
Dimensions - Model TS-1542:
- Height: 9.42 in. (240 mm)
- Width: 15.35 in. (390 mm)
- Depth:
- 1.80 in. (46 mm) with wall mount kit;
- 1.76 in. (45 mm) without wall mount kit (VESA mount)
-
Dimensions - Model TS-1542-TILT:
- Height:
- 8.76 in. (223 mm) minimum at 45° tilt;
- 9.90 in. (252 mm) maximum at 23° tilt
- Width: 15.35 in. (390 mm)
- Depth:
- 6.80 in. (173 mm) minimum at 23° tilt;
- 8.15 in. (207 mm) maximum at 45° tilt
-
Weight:
- TS-1542: 7.3 lb (3.4 kg)
- TS-1542-TILT: 10.1 lb (4.6 kg)
-
Compliance: UL Listed for US & Canada, IC, CE, FCC Part 15 Class B digital device
-
Touch Screen Display:
- Display Type TFT active matrix color LCD
- Size 15.6 inch (396 mm) diagonal
- Aspect Ratio 16:9 Full HD
- Resolution 1920 x 1080 pixels
- Brightness 400 nits (cd/m²)
- Contrast 800:1 typical
- Response Time 30 ms G-to-G
- Color Depth 24-bit, 16.7M colors
- Illumination LED w/auto-brightness control
- Viewing Angle ±80° horizontal, +80°/−65° vertical
- Touch Screen Projected capacitive, 10-point multi-touch capable
- Graphics Engine: Crestron Smart Graphics, local and remote annotation, multi-language web browser, multi-language on-screen keyboard, screensaver, fully-scalable dual streaming video windowing, setup and diagnostics via web browser or onscreen UI
-
Languages:
- Smart Graphics: Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
- On-Screen Keyboard: Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
- Voice Recognition: Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey)
- Web Browser: Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
-
Memory:
- RAM: 2 GB DDR3-SDRAM
- Flash: 4 GB
- Maximum Project Size: 1 GB
-
Communications:
- Ethernet: 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory authentication, HTTPS web browser setup, Crestron XiO Cloud client, IEEE 802.3 at Type 2 compliant USB Host: Supports USB HID compliant keyboard devices USB Device: For computer console (installer setup and firmware update)
-
Streaming Decoder:
- Video Formats: H.264 (MPEG-4 part 10 AVC), MJPEG
- Audio Formats: AAC stereo
- Bitrates: Up to 25 Mbps
- Resolutions: Up to 1080p60
-
Audio:
- Features: Built-in microphone and speakers, Rava SIP Intercom, multi-language voice recognition
- Audio Feedback Formats: MP3
-
Connectors:
- 24V DC, 1.0 A:
- (1) 2-pin 3.5 mm detachable terminal block
- 24 Volt DC power input
- Wire Size: 18 AWG maximum
- Connects to the PW-2420RUL power pack (included), or to a Cresnet network or power supply
- USB HID:
- (1) USB Type A connector, female;
- USB 2.0 host port for USB HID-compliant keyboard
- CONSOLE:
- (1) USB Type B connector, female;
- USB computer console port (for setup)
- G: (1) 6-32 screw, chassis ground lug
- LAN:
- (1) 8-pin RJ45 connector, female;
- 10Base-T/100Base-TX Ethernet port
- Power over Ethernet Plus (PoE+) compliant
- 6 ft (1.8 m) cable and TS-1542-IMCW interface module included
- 24V DC, 1.0 A:
-
Buttons & Indicators:
- RESET: (1) Pushbutton at rear connector panel for hardware reset
- LAN: (2) LEDs at LAN connector, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
-
Power:
- Power Options: Power pack, Cresnet, or PoE+
- Power Pack (included):
- Output: ≥1 Amp @ 24 Volts DC
- Input: 1.3 Amps @ 100-240 Volts AC, 50/60 Hz
- Model: PW-2420RUL
- Cresnet: 25 Watts @ 24 Volts DC
- PoE+ (Power over Ethernet Plus): IEEE 802.3 at Type 2 Class 4 (25.5 W) PoE+ Powered Device NOTE: - The TS-1542 is not compatible with PoE.
- Power Consumption:
- 25 Watts maximum
- 18.4 Watts typical (display brightness 100%)
- 8.7 Watts standby (display backlight off)
-
Environmental:
- Temperature: 32° to 113° F (0° to 45° C)
- Humidity: 10% to 90% RH (non-condensing)
- Heat Dissipation: 63 BTU/hr typical
-
Construction:
- Composition: Aluminum housing with dark gray or white finish (custom colors and graphics also available), edge-to-edge glass with black or white surround
- Mounting (model TS-1542):
- Mounts to a flat wall surface over a 2-gang electrical box, horizontally-oriented 1-gang electrical box, 1-gang UK electrical box (BS 4662), 1-gang European electrical box (DIN 49073), or rough cut-out up to 2 in. H x 3 in. W (50 mm H x 75 mm W) using wall mount kit provided;
- VESA 100 x 100 mm mountable with wall mount kit removed
- Mounting (model TS-1542-TILT): Includes tabletop base with 23° to 45° adjustable tilt
-
Dimensions - Model TS-1542:
- Height: 9.42 in. (240 mm)
- Width: 15.35 in. (390 mm)
- Depth:
- 1.80 in. (46 mm) with wall mount kit;
- 1.76 in. (45 mm) without wall mount kit (VESA mount)
-
Dimensions - Model TS-1542-TILT:
- Height:
- 8.76 in. (223 mm) minimum at 45° tilt;
- 9.90 in. (252 mm) maximum at 23° tilt
- Width: 15.35 in. (390 mm)
- Depth:
- 6.80 in. (173 mm) minimum at 23° tilt;
- 8.15 in. (207 mm) maximum at 45° tilt
- Height:
-
Weight:
- TS-1542: 7.3 lb (3.4 kg)
- TS-1542-TILT: 10.1 lb (4.6 kg)
- Compliance: UL Listed for US & Canada, IC, CE, FCC Part 15 Class B digital device
