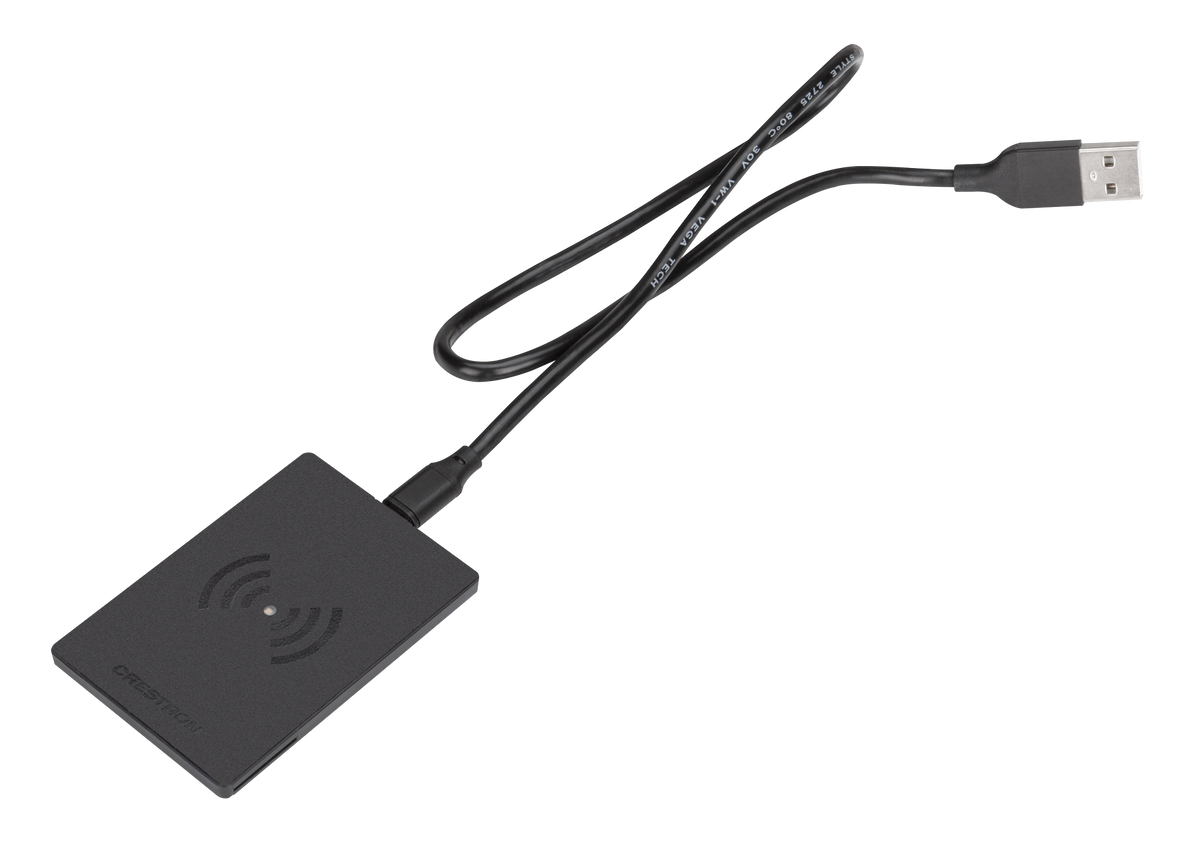

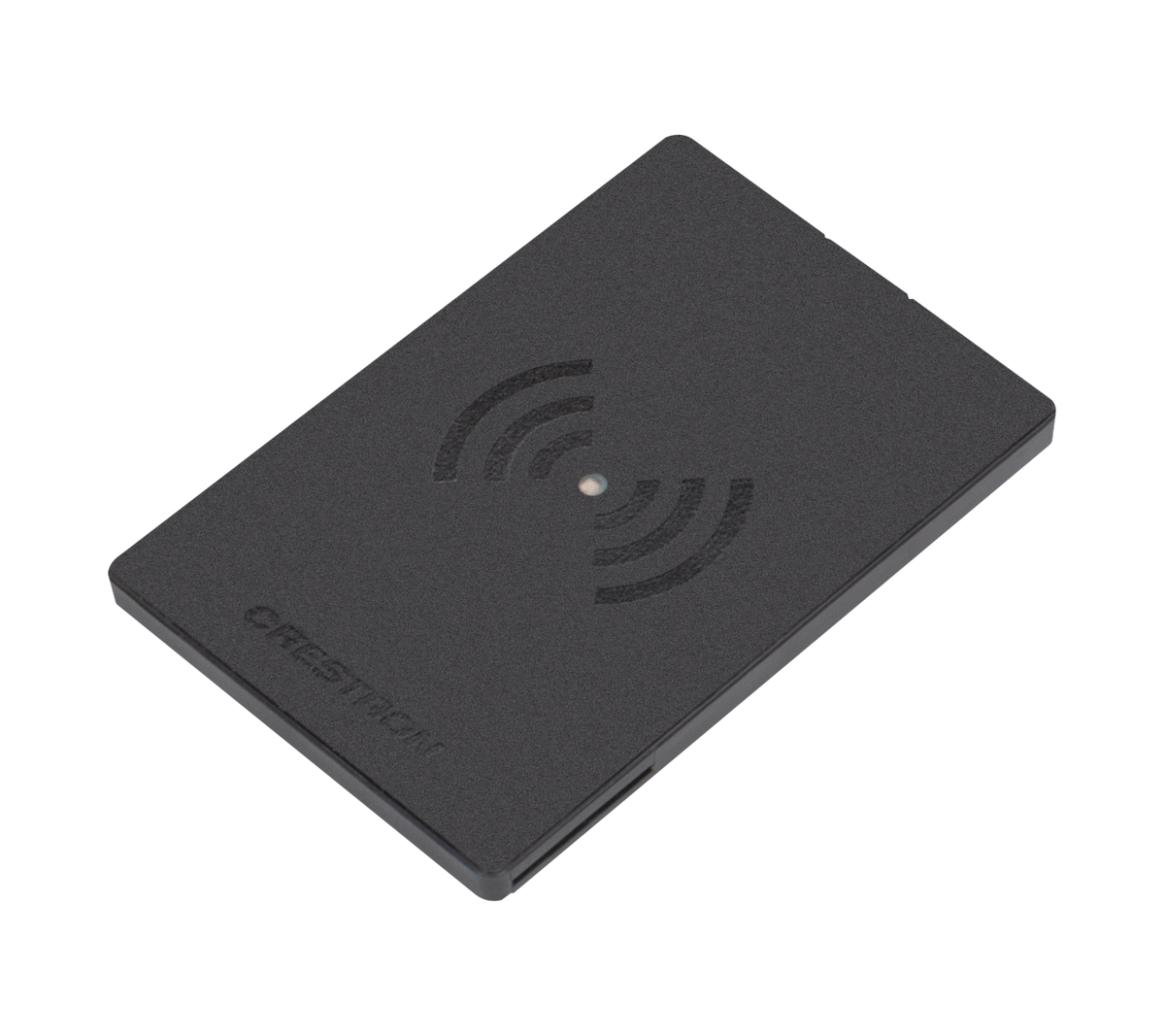

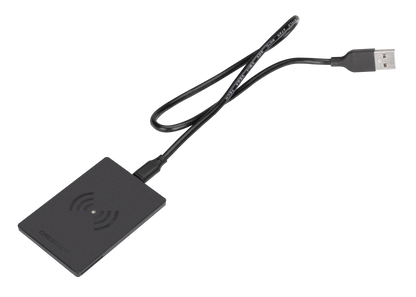

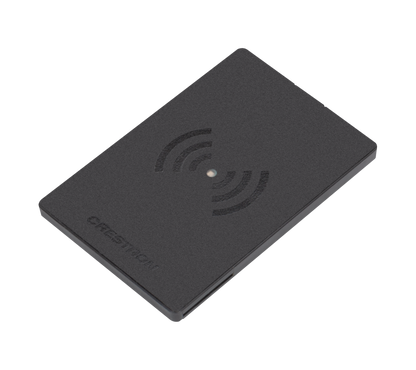

Crestron RFID-USB RFID Card Reader

Crestron RFID-USB RFID Card Reader

The Crestron® RFID-USB is a sleek RFID card reader that integrates into supported room scheduling applications and custom room control projects via a TSW-70 series or TSS-70 series touch screen. The RFID-USB installs next to the touch screen, allowing users to easily authenticate with or communicate to the touch screen by scanning an RFID card. The RFID-USB also integrates with a Crestron control system for custom room control or access projects. The RFID-USB supports a range of LF and HF technologies (125 kHz and 13.56 MHz) as well as NFC and Bluetooth® Low Energy (BLE) communications to satisfy numerous RFID use cases.

The RFID-USB provides a small form factor and versatile mounting options for incorporation into new and existing installations. The RFID-USB attaches securely to glass or drywall surfaces using adhesive pads without requiring any screws. The RFID-USB also is compatible with mullion mount kit installations (TSW-770/1070-MSMK series). The RFID-USB connects directly to the touch screen via USB for power supply and data communication.

Key Features

• Provides an RFID card reader solution for supported scheduling applications and custom room control projects
• Integrates directly with Crestron® TSW-70 or TSS-70 series touch screens and control systems
• Presents a sleek, modern design with a small form factor
• Installs onto drywall or glass surfaces with support for mullion mount kit installations

Specifications

Wireless Communications

• Frequency: 125 kHz (LF); 13.56 MHz (HF); 2.4 GHz (BLE)
• Antenna: Integrated into device
• Read/Write Distance: Up to 3.15 in. (80 mm) depending on environment (for LF and HF)
• Transmission Speed: USB full speed, 12 Mbit/s (Host); < 848 kbit/s (HF Air); < 100 kbit/s (BT Air)
• Bluetooth® Communications (BLE): Bluetooth v4.2; GAP, SM, L2CAP, ATT standards; Predefined GATT structure; AES128 supported

Connectors

• USB: (1) Micro USB connector, female; For connection to USB host port on TSW-70 series touch screen

Power

• Power Supply: 4.3-5.5V via micro USB; Limited power source according to IEC60950-1 or PS2 classified IEC 62368-1, short-circuit current < 8 A
• Power Consumption: 70 mA typical (idle); 135 mA typical (RF field on)
• MTBF: 500,000 hours

Environmental

• Temperature: -4° to 140° F (-20° to 60° C)
• Humidity: 5% to 95% RH (non-condensing)

Construction

• Housing: Plastic, black finish
• Mounting: Peel-and-stick adhesive mount to glass, drywall, or similar surfaces; Mounting frame provided for integration with mullion mount kit installations

Dimensions

• Height: 2.58 in. (66 mm); 3.37 in. (86 mm) with mounting frame
• Width: 1.79 in. (46 mm); 1.94 in. (49 mm) with mounting frame
• Depth: 0.16 in. (4 mm); 0.26 in. (7 mm) with mounting frame

Weight

• 0.64 oz (18 g)
