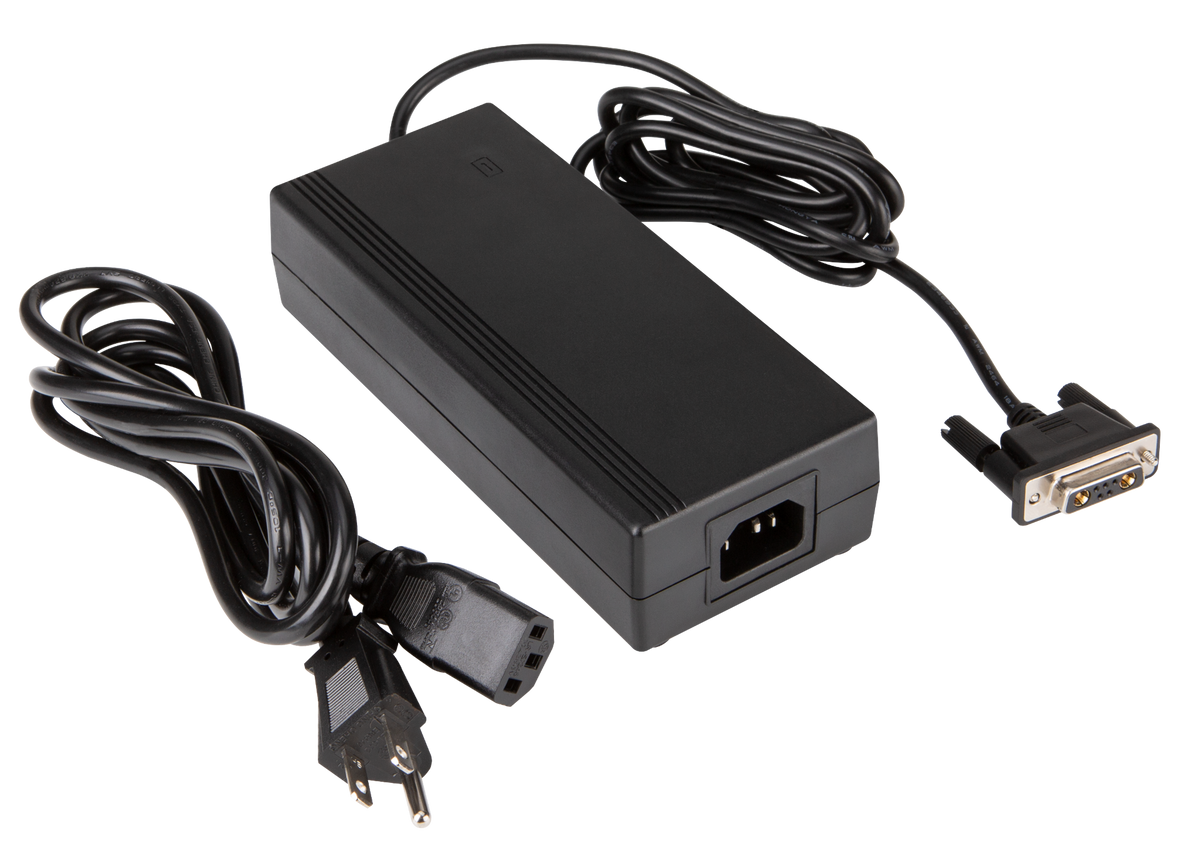

Crestron PW-5430DUS High-Efficiency Power Pack
Crestron PW-5430DUS High-Efficiency Power Pack
SKU: PW-5430DUS
Available options
Description
Crestron PW-5430DUS High-Efficiency Power Pack
The PW-5430DUS is an optional high-efficiency power pack that can be used with Crestron® DMB‑4K-I-C and DMB-4K-O-C blades and with Crestron DMPS3-4K-350-C and DMPS3‑4K‑250-C presentation systems. When the PW‑5430DUS is used with a blade, PoDM power (15.4 watts) can be provided to all of the eight DM 8G+® ports on the blade. PoDM+ power (30 watts) can be provided to a maximum of four DM 8G+ ports on the blade. For optimal reliability of blade applications requiring a mix of PoDM and PoDM+ power, the total power provided by the PW‑5430DUS should not exceed 120 watts.
NOTE: For blade applications requiring PoDM+ power to all of the eight DM 8G+ ports on the blade, use the DM‑PSU‑3X8‑RPS power supply.
When the PW‑5430DUS is used with a DMPS3-4K-350-C or DMPS3‑4K‑250‑C presentation system, PoDM and PoDM+ power can be provided to each DM 8G+ input and output port. PoE power (15.4 watts) can be provided to the CONTROL SUBNET port.
Specifications
| Connectors | |
| 54VDC Out | (1) Attached 6 ft (1.8 m) cable with combo D-Sub 7W2 female connector; 2.96 Amp @ 54 Volts DC regulated |
| Main Power In | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
| Indicators | |
| Power | (1) LED, green indicates that power pack is powered and functioning |
| Power Requirements | |
| 2.5 Amps @ 100-240 Volts AC, 50/60 Hz | |
| Environmental | |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Enclosure | |
| Black plastic, desktop | |
| Dimensions | |
| Height | 1.58 in. (40 mm) |
| Width | 2.88 in (73 mm) |
| Depth | 6.70 in (170 mm) |
| Weight | |
| 1.4 lb (0.7 kg) | |
