Description

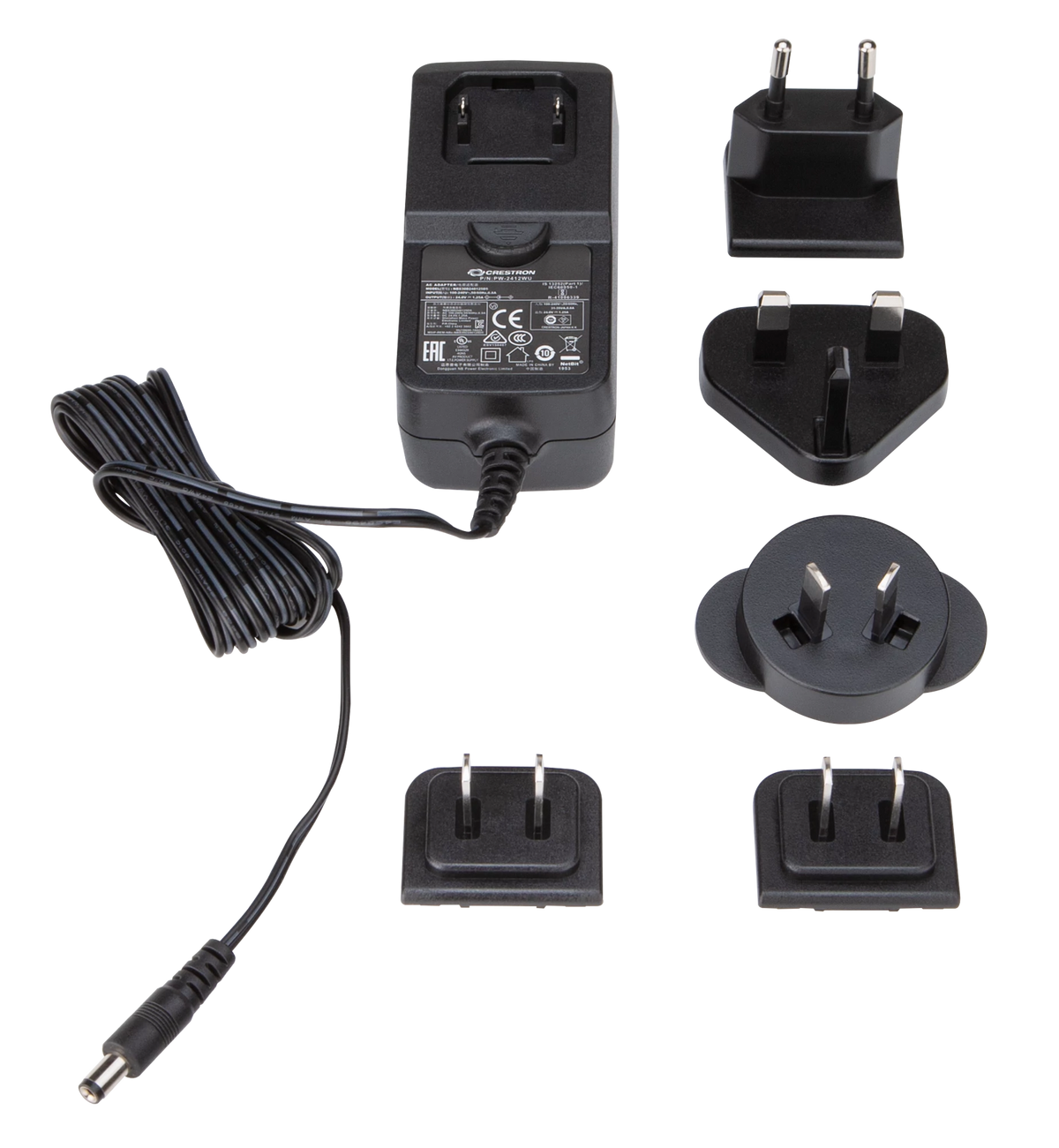

Crestron PW-2412WU Wall Mount Power Pack, 24 VDC, 1.25 A, 2.1 mm, Universal
The Crestron® PW-2412WU is a universal regulated power pack. It is designed to plug directly into an electrical outlet, and includes a universal blade kit to accommodate most outlet types.
Specifications
| Output Rating |
| 24 VDC, 1.25 Amps, regulated |
| Power Requirements |
| 0.8 Amps (maximum) @ 100-240 VAC, 50/60 Hz |
| Connections |
| Line |
(1) Ungrounded AC power plug, line power input |
| Load |
(1) 6 ft (1.83 m) attached cable with 2.1 x 5.5 mm DC power barrel connector |
| Environmental |
| Temperature |
41° to 104°F (5° to 40°C) |
| Humidity |
10% to 90% RH (non-condensing) |
| For indoor use only |
| Construction |
| Plastic, black, outlet-mountable |
