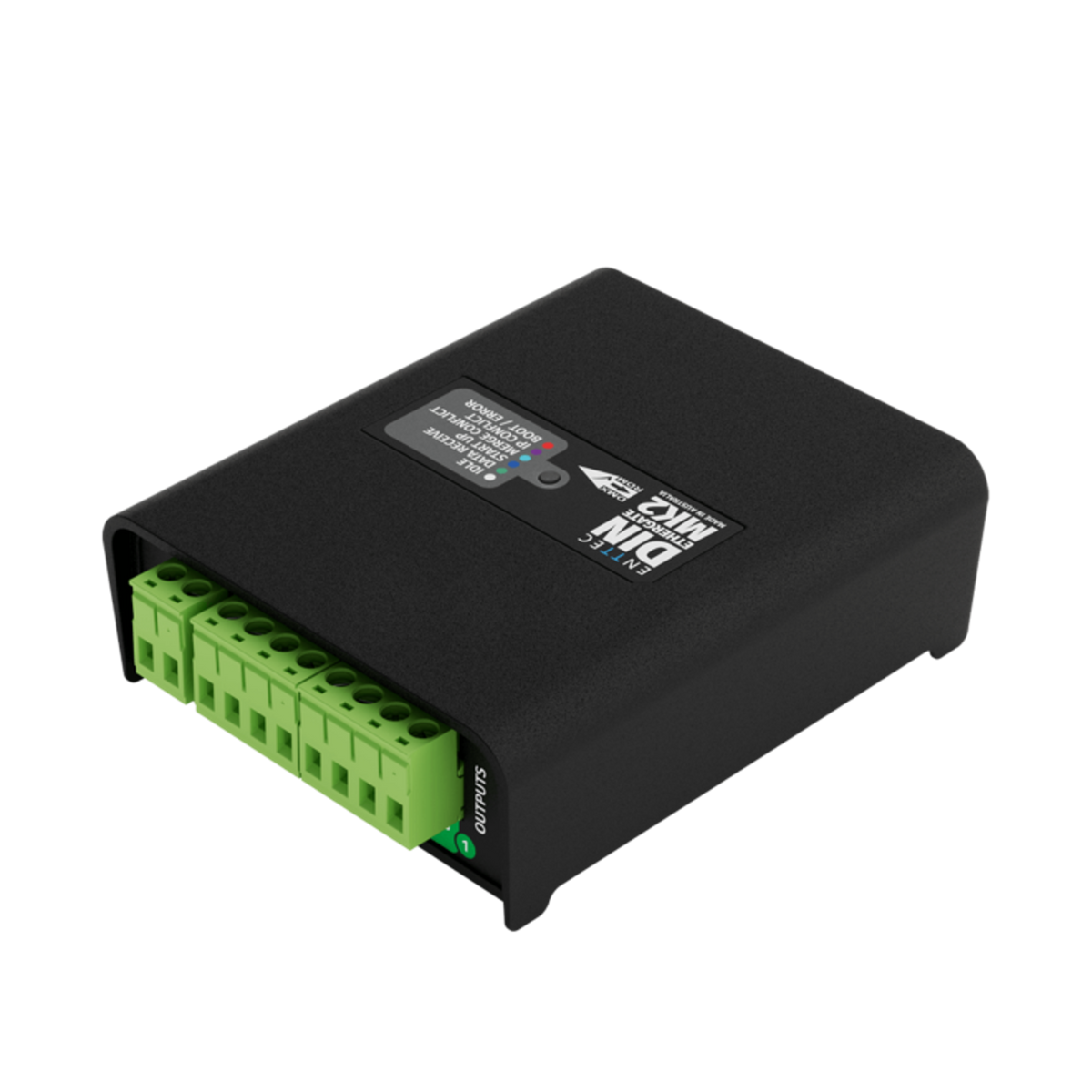

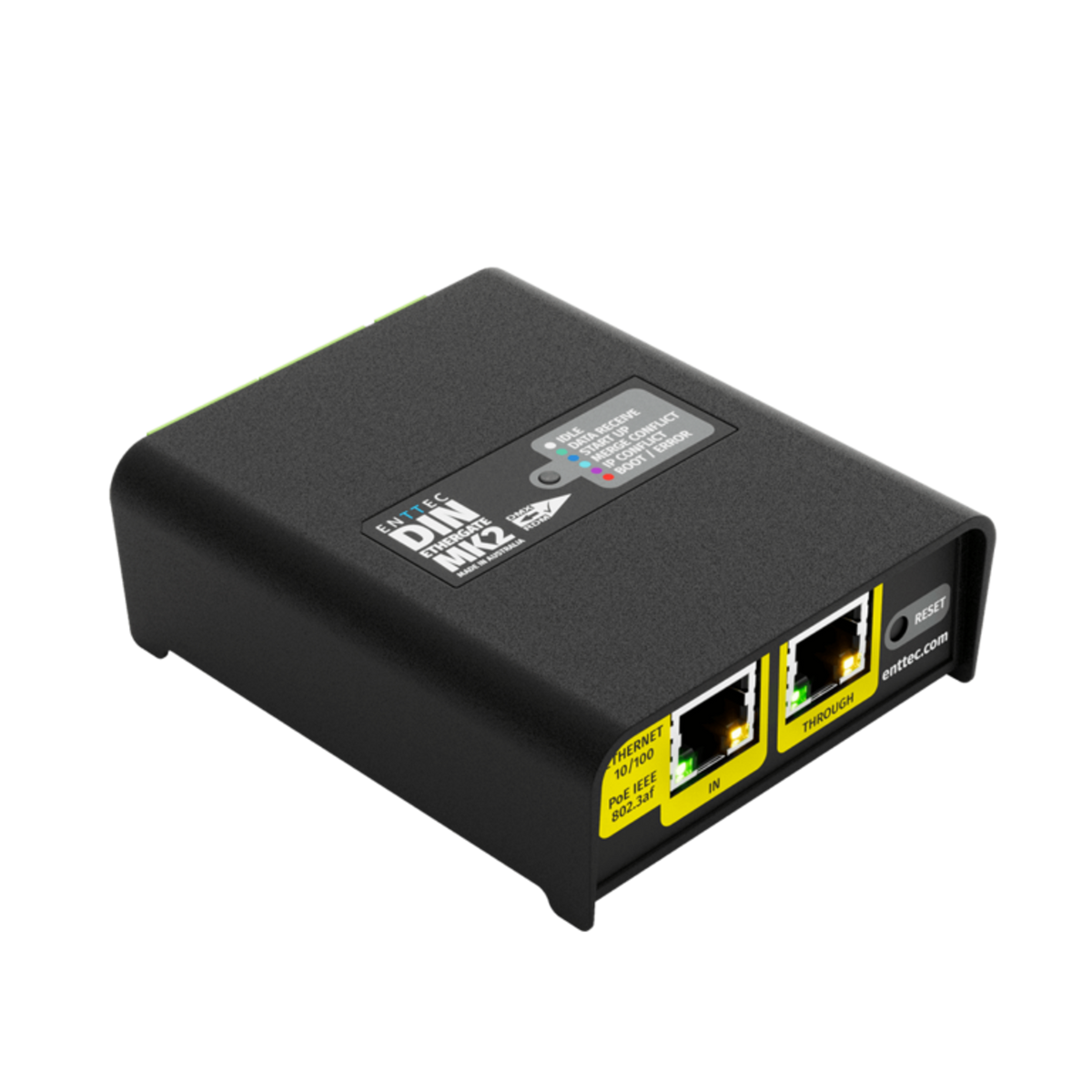

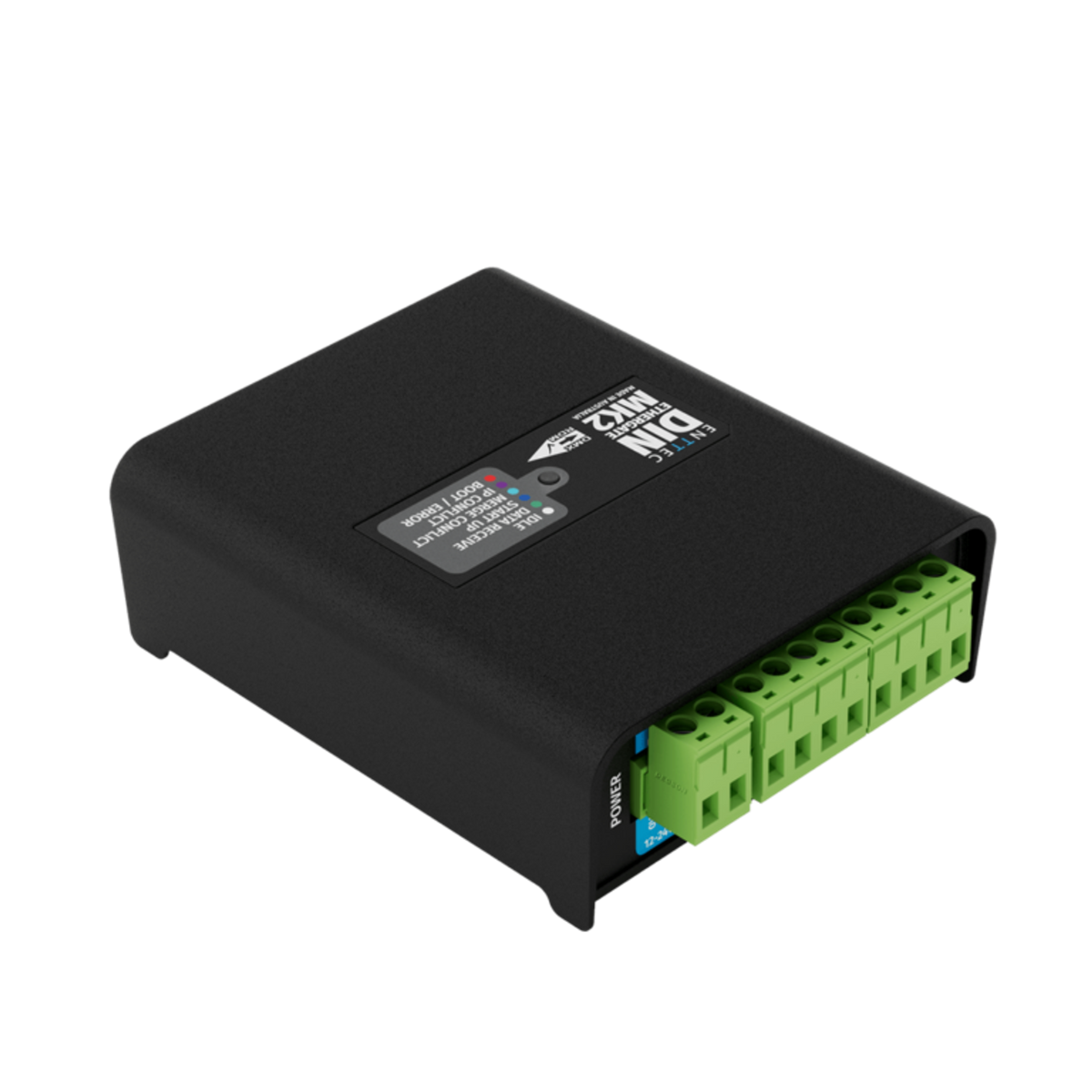

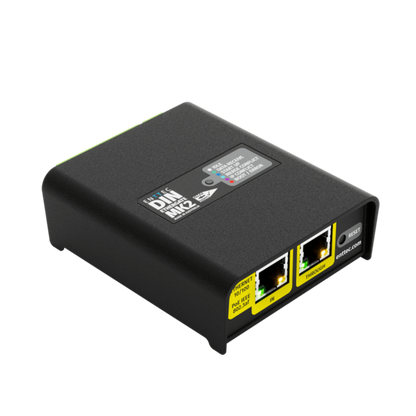

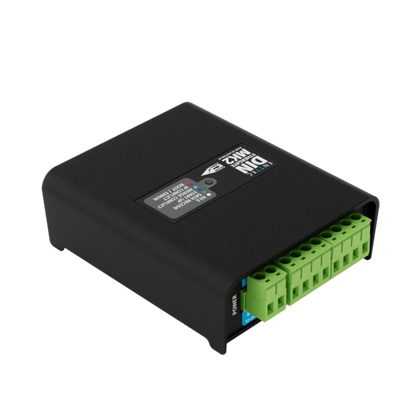

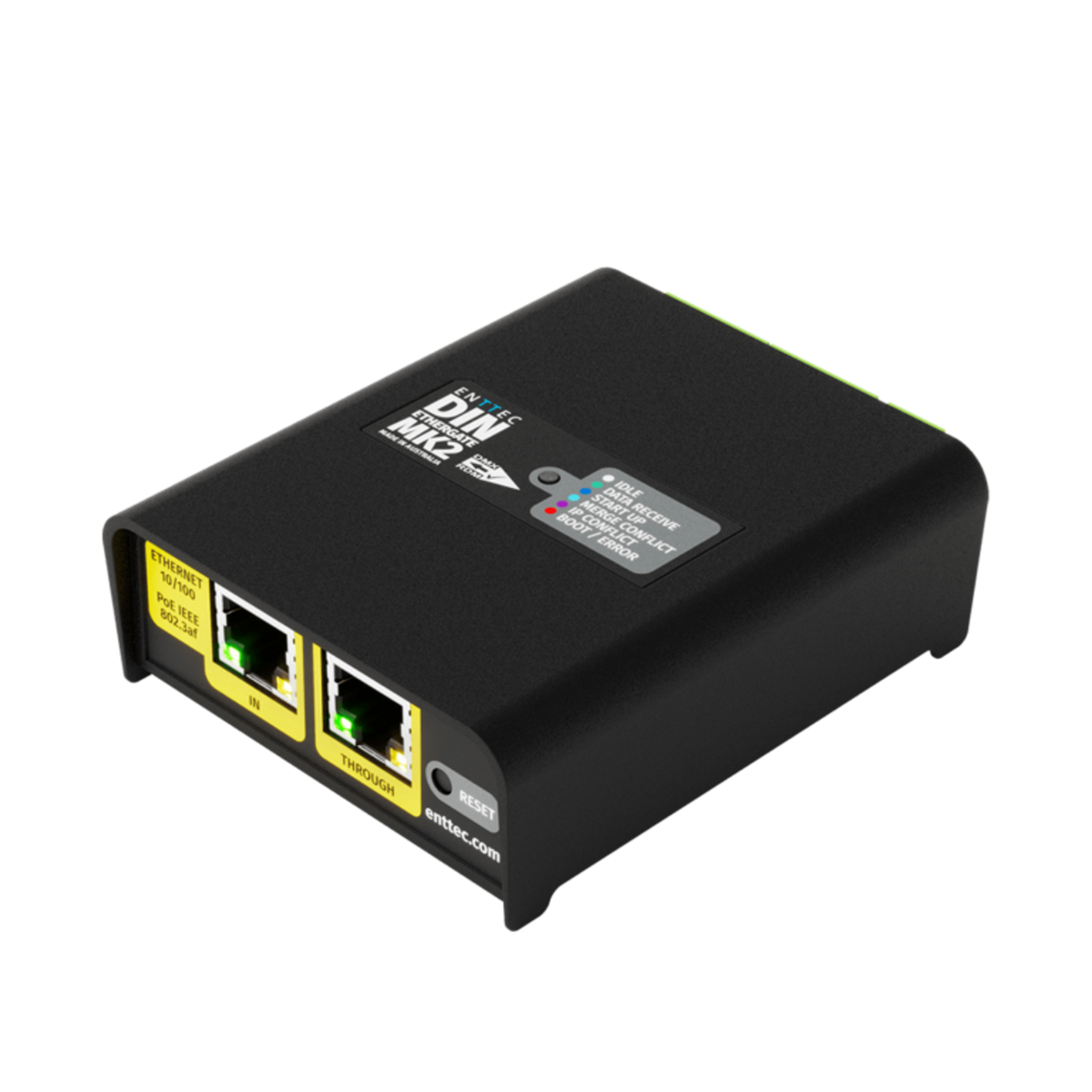

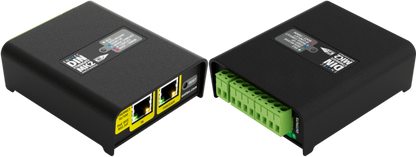

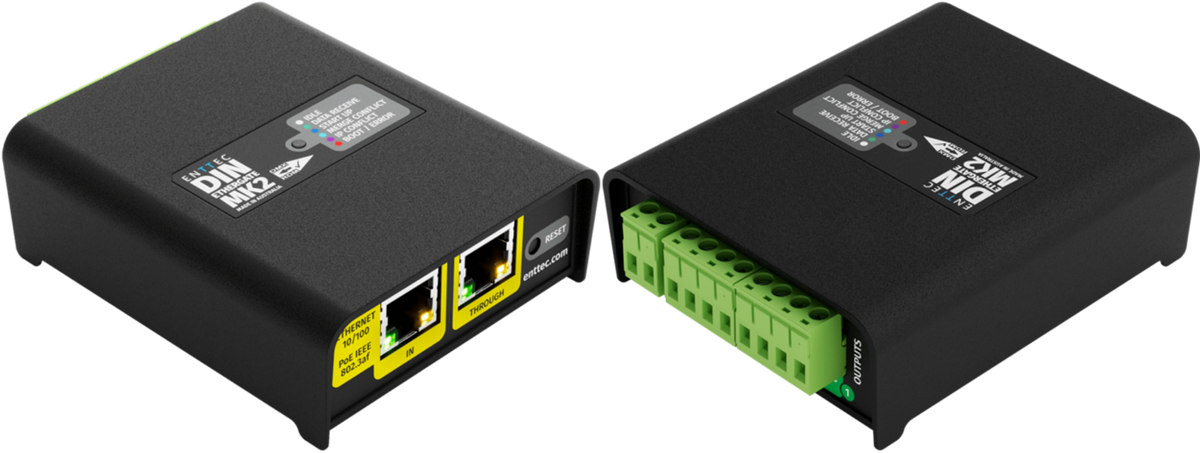

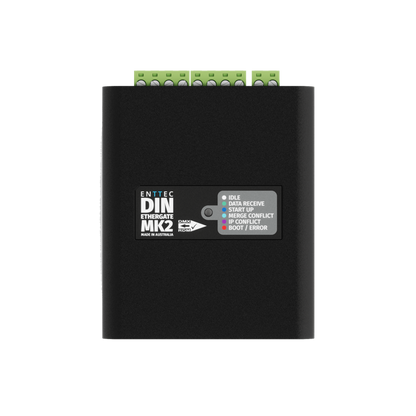

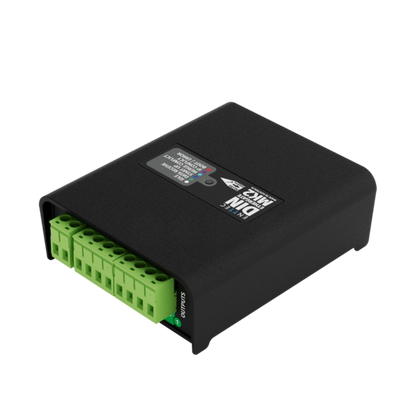

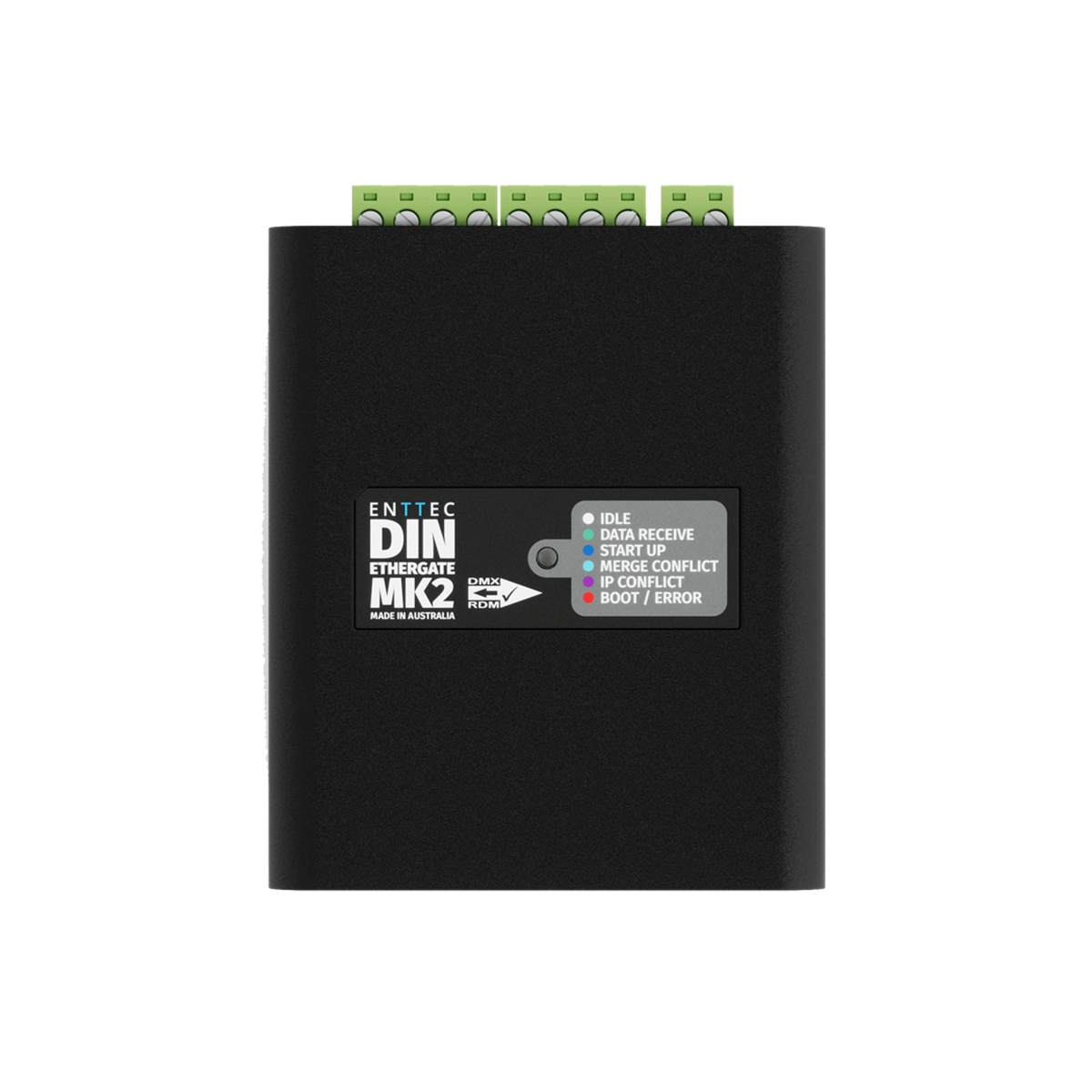

Crestron DIN-SACN-DMX ENTTEC DIN Ethergate Mk2 – Ethernet to DMX Converter
The Crestron DIN-SACN-DMX (sold by ENTTEC as model DIN Ethergate Mk2) is a cost-effective and reliable Ethernet to DMX convertor. It supports sACN, Art-Net, and ESP protocols, and integrates DMX and network controllable lighting devices and systems. As part of a Crestron architectural lighting system, it allows a 3-Series® or 4-Series™ control processor to communicate via sACN with any DMX lighting fixture or controller.
The DIN-SACN-DMX's electrically insulated housing supports TS35 DIN and surface mounting for fast installation. In addition, pluggable terminal blocks with an inbuilt termination line make wiring simple.
Key Features
- Converts between DMX512A and sACN, Art-Net, and ESP protocols
- Enables distribution of DMX over a Ethernet or Wi-Fi® network
- Enables control of DMX lighting fixtures and systems by Crestron devices
- Supports a single universe Ethernet to DMX node in output mode
- Supports a single universe DMX to Ethernet node in input mode
- Supports broadcast or unicast (unicast in input mode only)
- Supports HTP/LTP merging of up to 2 DMX sources (output mode only)
- Supports RDM over Art-Net
- Easy web browser-based setup and firmware updates
- 4U 72 mm DIN rail mountable
- PoE or 12-24VDC powered (power supply not included)
Specifications
Protocols
-
Ethernet: sACN, Art-Net, ESP, RDM
-
DMX: USITT DMX512-A, ANSI E1.20 RDM
Connectors
-
OUTPUTS: (2) 4-pin 5.1 mm detachable terminal blocks; DMX output or input
-
POWER: (1) 2-pin 3.5 mm detachable terminal block; 12-24VDC power input
-
ETHERNET IN: (1) 8-pin RJ-45 connector, female; 10BASE-T/100BASE-TX Ethernet LAN port
-
ETHERNET THROUGH: (1) 8-pin RJ-45 connector, female; 10BASE-T/100BASE-TX Ethernet pass-through LAN port
Controls and Indicators
-
Status LED: (1) LED, indicates operational status
-
LINK: (1) LED, indicates Ethernet link status
-
ACT: (1) LED, indicates Ethernet activity
-
RESET: (1) Recessed push button for hardware reset
Power
-
DC Power: 12-24V operation, 7W; Power supply not included
-
Power over Ethernet: IEEE 802.3af
Environmental
-
Temperature: 32° to 122°F (0° to 50°C)
-
Humidity: 5% to 95% (noncondensing)
Construction
-
Housing: ABS Plastic
-
Mounting: TS35 DIN-Rail mount, occupies 4 DIN module spaces (72 mm)
Dimensions
-
Height: 1.22 in. (31 mm) without mounting clip; 1.46 in. (37 mm) with mounting clip
-
Width: 3.10 in. (78 mm)
-
Depth: 3.95 in. (100 mm)
