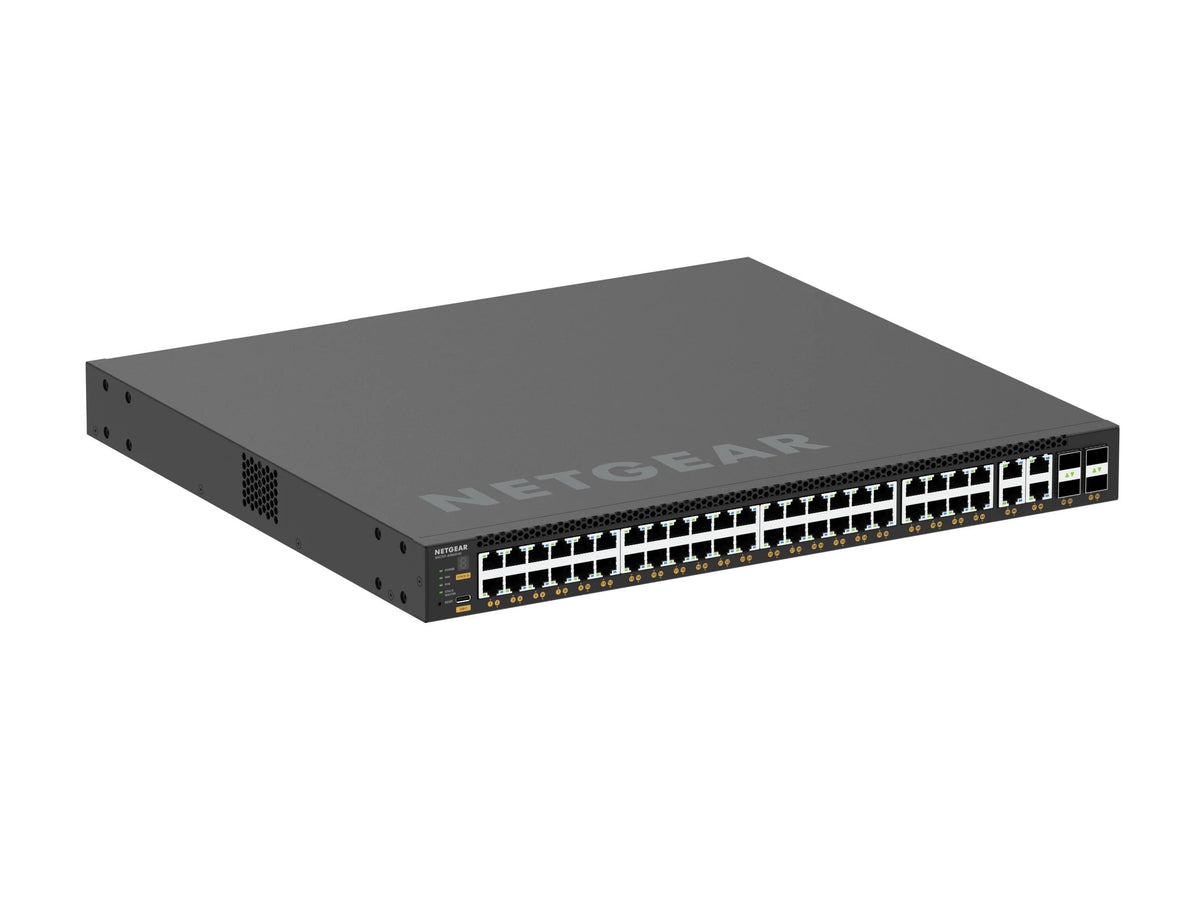

Crestron CEN-SWPOE-52- ULTRA-TAA 52 Port Ultra PoE Managed Switch, TAA Compliant

Crestron CEN-SWPOE-52- ULTRA-TAA 52 Port Ultra PoE Managed Switch, TAA Compliant

Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN-SWPOE-52-ULTRA-TAA is a 52 port managed Ethernet switch that provides PoE++ from 48 of its ports. The four 25 Gigabit Base-X SFP28 ports enable use of transceiver modules to connect to a fiber network.

DM NVX and DM NAX AV-over-IP Profiles
When configuring a DM NVX AV-over-IP or DM NAX Audio-over-IP network, select the appropriate profile to automatically configure the CEN-SWPOE-52-ULTRA-TAA with the multicast management functionality required.

Web Browser Interface
Using a streamlined interface, quickly configure individual ports or assign AV profiles for use with DM NVX or DM NAX systems. An advanced command line interface is also available.

Four SFP28 Ports
All SFP28 ports offer 25 Gigabit Base-X connections with support for both multimode and single-mode fiber transceiver modules (sold separately).

Power Over Ethernet++
PoE++ is supplied on 48 ports, offering a centralized power source for multiple devices while eliminating extra wiring and bulky power supplies. Up to 90 W is provided per port with a combined maximum output of 3314 W (with two modular power supply units, sold separately - maximum output without the modular power supply units is 194 W).

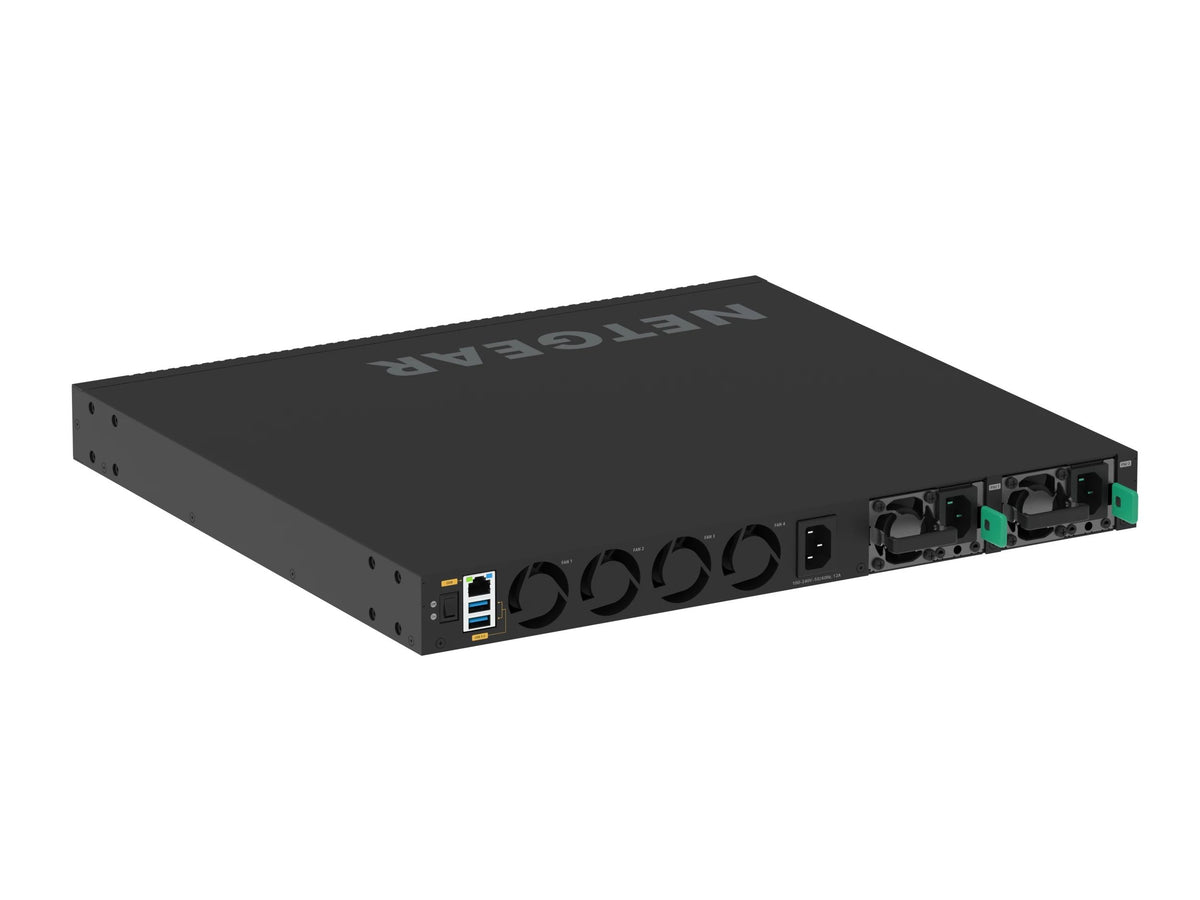

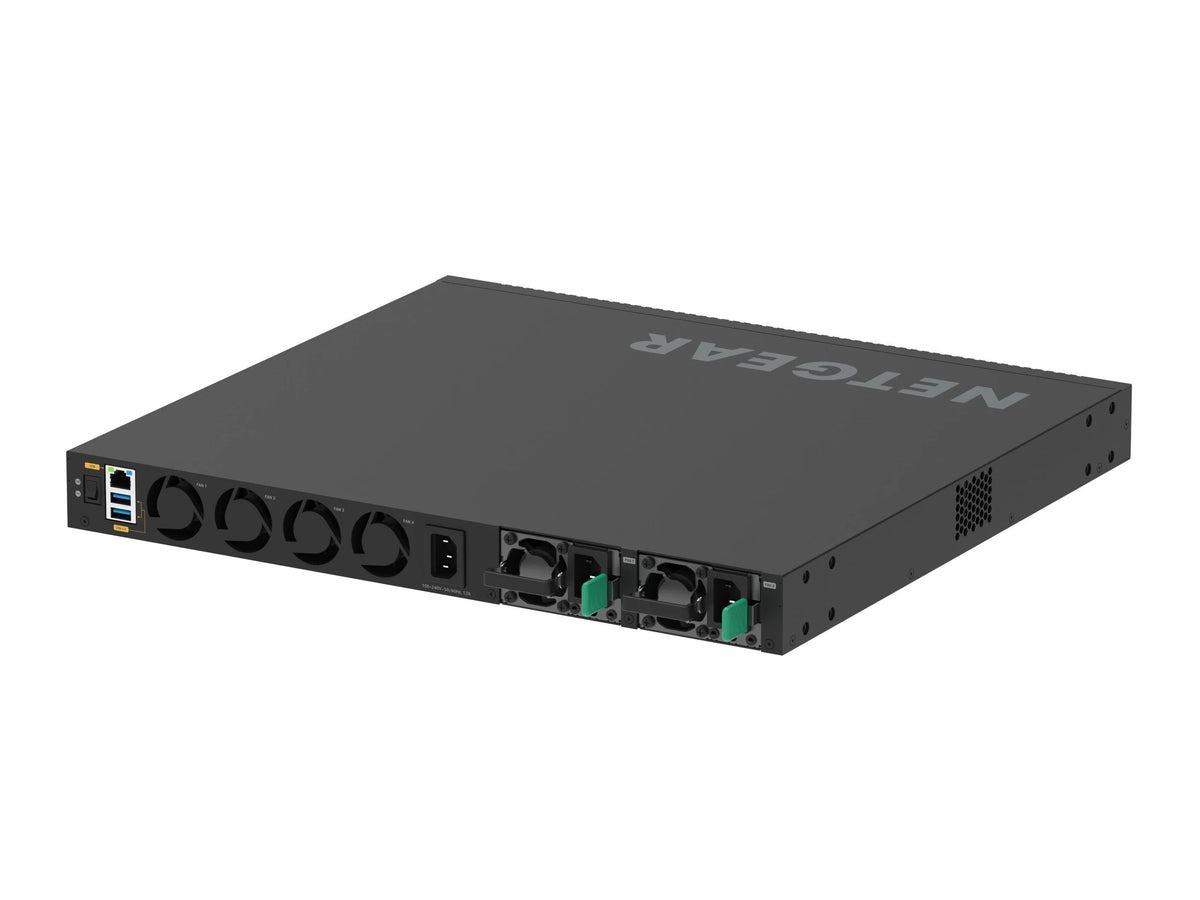

Modular Power Supply Slots
The CEN-SWPOE-52-ULTRA-TAA features two modular power supply slots compatible with the CEN-SWSFP-PWS350 or CEN-SWPOE-PWS2000-ULTRA for power redundancy. The CEN-SWPOE-PWS2000-ULTRA also expands the switch's total PoE budget to 3314 W without redundancy or up to 1794 W with redundancy in case of failover.

Key Features

• Class-leading NETGEAR® AV network switch
• Rack-mount 52 port managed switch
• Forty-four 2.5 Gigabit Ethernet ports
• Two slots for modular power supply units (sold separately)
• Supports PoE++ (802.3bt Type 4) on 48 Ethernet ports
• Provides up to 90 W port port, maximum 3314 W combined output (with modular power supplies, sold separately)
• Four 25 Gigabit Base-X SFP28 ports
• Selectable DM NVX® AV-over-IP and DM NAX® Audio-over-IP profiles
• Layer 2 and Layer 3 managed switching functionality
• LLDP (Link Layer Discovery Protocol) support
• 500 Gbps switching fabric (non-blocking)
• Simple-to-use Web browser interface
• TAA compliant

Specifications

Ethernet

• Ports: (44) 2.5 Gigabit auto-sensing Ethernet w/PoE++; (4) 10 Gigabit auto-sensing 10G/Multi-Gigabit Ethernet w/PoE++; (4) 25 Gigabit Base-X SFP28
• Network Standards: IEEE 802.3af, 802.3at, 802.3bt
• MAC Addresses: Up to 16K
• Switch Fabric: 500 bps non-blocking

Lite Layer 3 Package

• Management: Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+
• IPv4/IPv6 ACL and QoS: Ingress/egress; 1 Kbps shaping, time-based; Single rate policing
• IPv4/IPv6 Multicast Filtering: Automated IGMP between switches; IGMPv3 MLDv2 snooping, proxy ASM and SSM; IGMPv1, v2 querier (compatible with v3); Control packet flooding
• IPv4/IPv6 Policing and Convergence: Auto-VoIP; Policy-based routing; LLDP-MED; IEEE 1588 PTPv2
• IPv4/IPv6 Authentication Security: Successive tiering (DOT1X, MAB, Captive portal); DHCP snooping; Dynamic ARP inspection; IP source guard
• IPv4/IPv6 Static Routing: Port, subnet, VLAN routing; Multicast static routes; DHCPv4 server; DHCP relay; Stateful DHCPv6 Server
• IPv4/IPv6 Dynamic Routing: IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM
• Spanning Tree Green Ethernet: STP, MTP, RSTP; PV(R)STP; BPDU/STRG; EEE 802.3az
• VLANs: Static, dynamic, voice, MAC; GVRP/GMRP; Double VLAN mode; Private VLANs

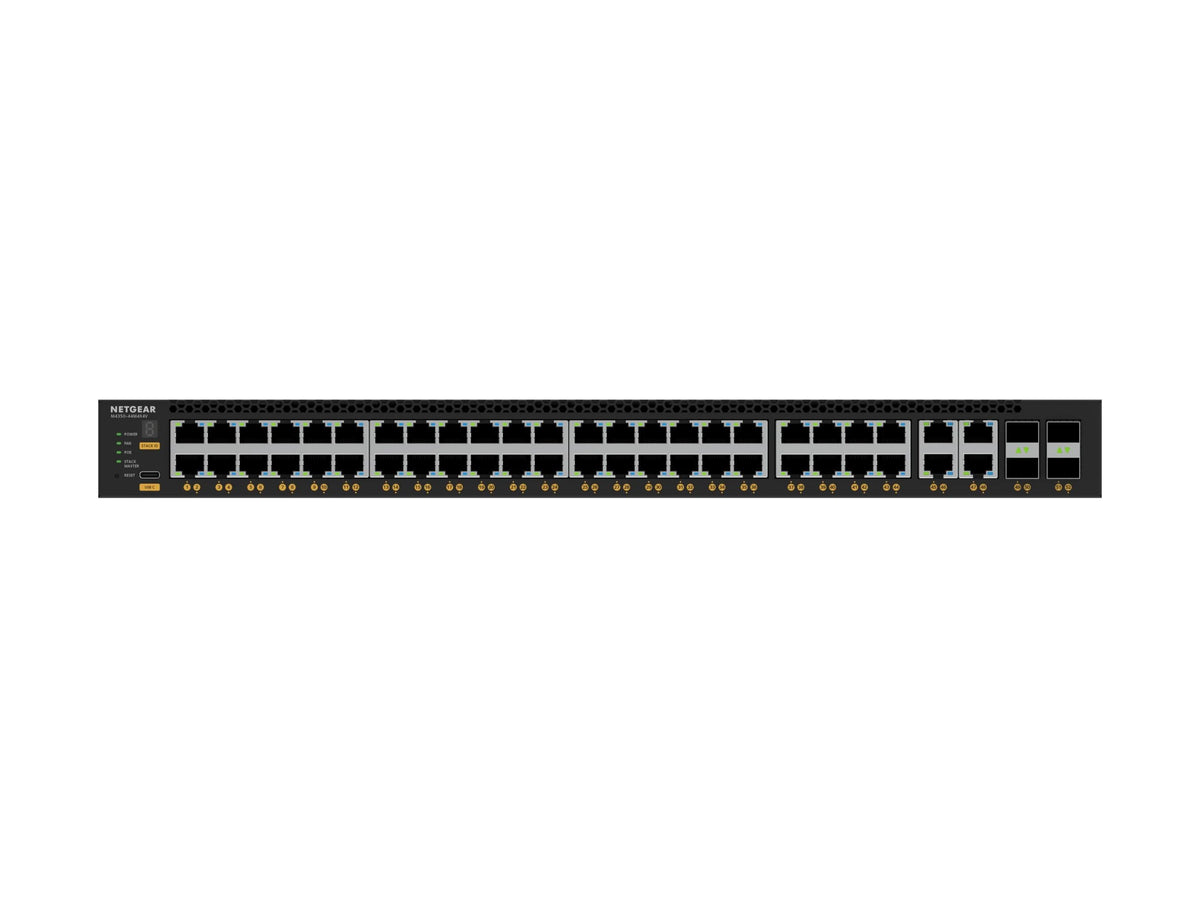

Controls & Indicators

• POWER: (1) green LED, indicates operating power supplied via main power input
• FAN: (1) green LED, indicates fan is in operation
• PoE MAX: (1) green LED, indicates the unit is supplying the maximum amount of PoE
• OOB: (2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port
• STACK MASTER: (1) green LED, indicates that the unit is operating as stack master for its switch stack
• STACK ID: (1) Seven-segment green LED digit, indicates the number of the switch in its switch stack
• 1-48: (2) LEDs per each (48) Ethernet port, left (green) LEDs indicate Ethernet link status for each corresponding port, right (blue) LEDs indicate PoE for each corresponding port
• 49-52: (1) green LED per SFP28 port, indicates active connection
• On / Off: (1) Rocker switch; Turns main power on or off
• RESET: (1) Recessed push button; Used for reboot or factory reset

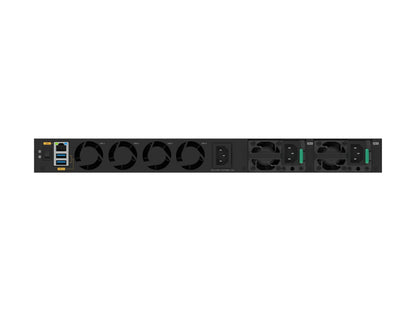

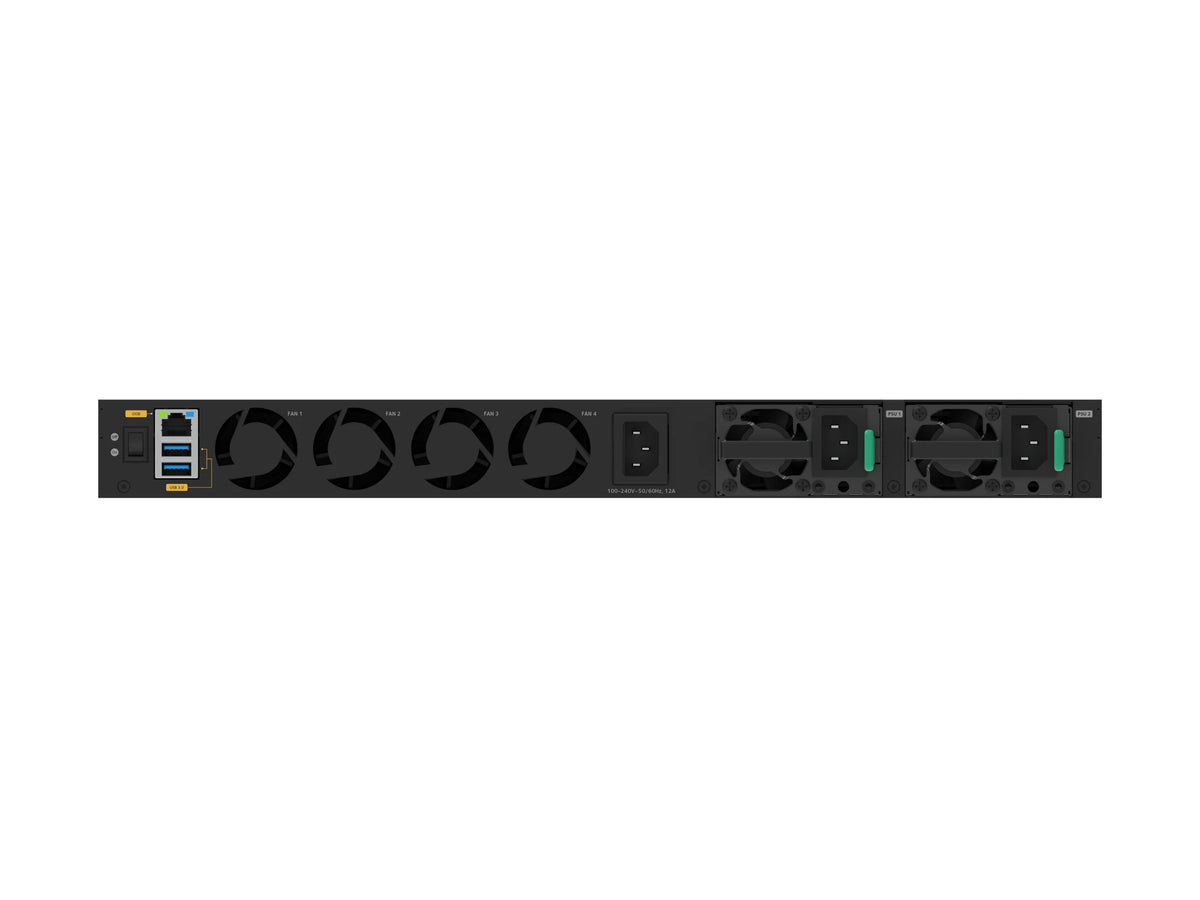

Connectors

• OOB: (1) 8-wire RJ45, female; 10/100/1000Base-T Ethernet port
• USB-C: USB-C® port, female
• 100-240V: (1) power connector
• PSU 1-2: (2) Modular power supply slots for CEN-SWSFP-PWS350 or CEN-SWPOE-PWS2000-ULTRA (sold separately)
• USB 3.0: (2) USB Type A connectors, female
• 1-44: (40) 8-wire RJ45, female; 2.5 G Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs; Supports IEEE 802.3bt Type 4 PoE++ power sourcing from any ports up to the maximum specified power capabilities; Maximum 90 W per port, 3314 W total
• 45-48: (4) 8-wire RJ45, female; 10 Gigabit/Multi-Gigabit Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs; Supports IEEE 802.3bt Type 4 PoE++ power sourcing from any ports up to the maximum specified power capabilities; Maximum 90 W per port, 3314 W total
• 49-52: (4) SFP28 ports, female; 25 Gigabit Base-X SFP28

Power Requirements

• Power Consumption: Maximum Modular Power Supplies Connected, Max PoE: 3857.5 W; Internal Power Supply, Max PoE: 351.5 W; Full Mesh Traffic, No PoE: 133.5 W; Standby: 56.5 W

Environmental

• Temperature: 32° to 113° F (0° to 45° C)
• Humidity: 10% to 90% RH (non-condensing)
• Acoustic Noise: Quiet Mode: 34 dBA at 77° F (25° C); Cool Mode: 52 dBA at 77° F (25° C)

Construction

• Chassis: Metal, black finish, fan-cooled, vented sides
• Mounting: Freestanding or 1U 19-inch rack-mountable with reversible rack ears

Dimensions

• Height: 1.7 in. (43.2 mm)
• Width: 17.32 in. (440 mm)
• Depth: 15.74 in. (400 mm)
